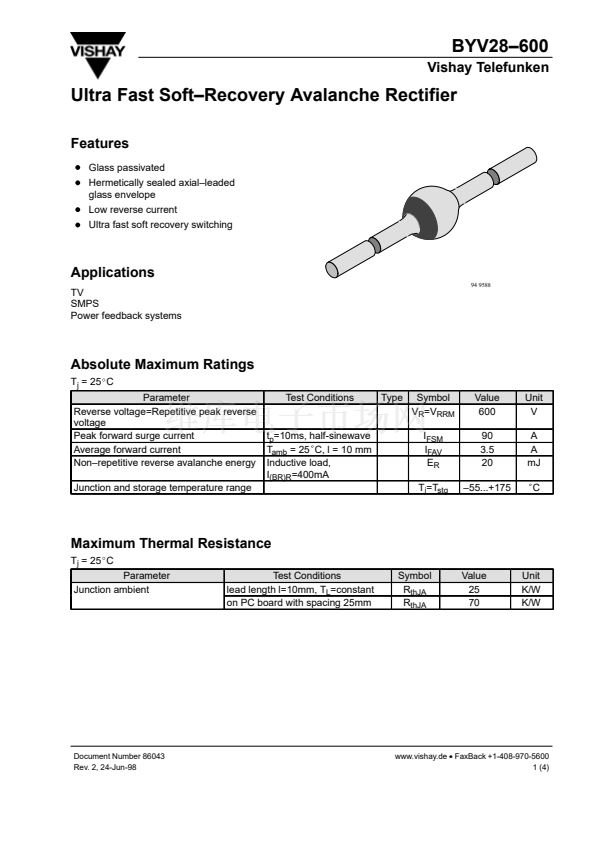

BYV28鈥?00
Vishay Telefunken
Ultra Fast Soft鈥揜ecovery Avalanche Rectifier
Features
D
Glass passivated
D
Hermetically sealed axial鈥搇eaded
glass envelope
D
Low reverse current
D
Ultra fast soft recovery switching
Applications
94 9588
TV
SMPS
Power feedback systems
Absolute Maximum Ratings
T
j
= 25
_
C
Parameter
Test Conditions
Type Symbol
Value
Reverse voltage=Repetitive peak reverse
V
R
=V
RRM
600
voltage
Peak forward surge current
t
p
=10ms, half-sinewave
I
FSM
90
Average forward current
T
amb
= 25
擄
C, l = 10 mm
I
FAV
3.5
Non鈥搑epetitive reverse avalanche energy Inductive load,
E
R
20
I
(BR)R
=400mA
Junction and storage temperature range
T
j
=T
stg
鈥?5...+175
Unit
V
A
A
mJ
擄
C
Maximum Thermal Resistance
T
j
= 25
_
C
Parameter
Junction ambient
Test Conditions
lead length l=10mm, T
L
=constant
on PC board with spacing 25mm
Symbol
R
thJA
R
thJA
Value
25
70
Unit
K/W
K/W
Document Number 86043
Rev. 2, 24-Jun-98
www.vishay.de
鈥?/div>
FaxBack +1-408-970-5600
1 (4)
