Pin-compatible with NFC40 Series

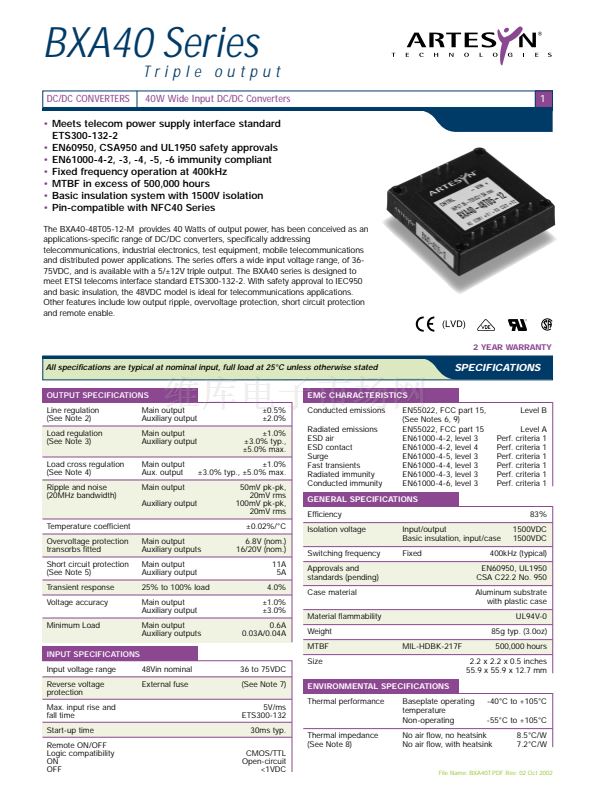

The BXA40-48T05-12-M provides 40 Watts of output power, has been conceived as an
applications-specific range of DC/DC converters, specifically addressing
telecommunications, industrial electronics, test equipment, mobile telecommunications
and distributed power applications. The series offers a wide input voltage range, of 36-
75VDC, and is available with a 5/鹵12V triple output. The BXA40 series is designed to
meet ETSI telecoms interface standard ETS300-132-2. With safety approval to IEC950
and basic insulation, the 48VDC model is ideal for telecommunications applications.
Other features include low output ripple, overvoltage protection, short circuit protection
and remote enable.
2 YEAR WARRANTY
All specifications are typical at nominal input, full load at 25擄C unless otherwise stated
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Line regulation
(See Note 2)
Load regulation
(See Note 3)
Load cross regulation
(See Note 4)
Ripple and noise
(20MHz bandwidth)
Main output
Auxiliary output
Main output
Auxiliary output
Main output
Aux. output
Main output
Auxiliary output
Temperature coefficient
Overvoltage protection
transorbs fitted
Short circuit protection
(See Note 5)
Transient response
Voltage accuracy
Minimum Load
Main output
Auxiliary outputs
Main output
Auxiliary output
25% to 100% load
Main output
Auxiliary output
Main output
Auxiliary outputs
鹵0.5%
鹵2.0%
鹵1.0%
鹵3.0% typ.,
鹵5.0% max.
鹵1.0%
鹵3.0% typ., 鹵5.0% max.
50mV pk-pk,
20mV rms
100mV pk-pk,
20mV rms
鹵0.02%/擄C
6.8V (nom.)
16/20V (nom.)
11A
5A
4.0%
鹵1.0%
鹵3.0%
0.6A
0.03A/0.04A
EMC CHARACTERISTICS
Conducted emissions
Radiated emissions
ESD air
ESD contact
Surge
Fast transients
Radiated immunity
Conducted immunity
EN55022, FCC part 15,
(See Notes 6, 9)
EN55022, FCC part 15
EN61000-4-2, level 3
EN61000-4-2, level 4
EN61000-4-5, level 3
EN61000-4-4, level 3
EN61000-4-3, level 3
EN61000-4-6, level 3
Level B
Level A
criteria 1
criteria 1
criteria 1
criteria 1
criteria 1
criteria 1
Perf.
Perf.
Perf.
Perf.
Perf.
Perf.
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Switching frequency
Approvals and
standards (pending)
Case material
Material flammability
Weight
MTBF
MIL-HDBK-217F
Input/output
Basic insulation, input/case
Fixed
83%
1500VDC
1500VDC
400kHz (typical)
EN60950, UL1950
CSA C22.2 No. 950
Aluminum substrate
with plastic case
UL94V-0
85g typ. (3.0oz)
500,000 hours
2.2 x 2.2 x 0.5 inches
55.9 x 55.9 x 12.7 mm
INPUT SPECIFICATIONS
Input voltage range
Reverse voltage
protection
Max. input rise and
fall time
Start-up time
Remote ON/OFF
Logic compatibility
ON
OFF
48Vin nominal
External fuse
36 to 75VDC
(See Note 7)
5V/ms
ETS300-132
30ms typ.
CMOS/TTL
Open-circuit
<1VDC
Size
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Baseplate operating
temperature
Non-operating
-40擄C to +105擄C
-55擄C to +105擄C
8.5擄C/W
7.2擄C/W
Thermal impedance
(See Note 8)
No air flow, no heatsink
No air flow, with heatsink
File Name: BXA40T.PDF Rev: 02 Oct 2002
