BWS1205 Datasheet

  • BWS1205

  • BWS DC/DC converters(2.5 WATT)

  • 3頁

  • POWER-ONE   POWER-ONE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

BWS SERIES - 2.5 WATT
DESCRIPTION
BWS DC/DC converters offer excellent regulation and
isolation in an industry-standard DIP package. The BWS
is ideal for industrial, telecom, and networking
applications, and features short circuit protection, low
profile, and 500 VDC isolation. Please see the BWD series
for dual output applications.
TECHNICAL SPECIFICATIONS
Input
Voltage Range
5 VDC Nominal
12 VDC Nominal
Reflected Ripple
Reverse Input Current
4.5 - 9 VDC
9 - 18 VDC
20% Iin Max.
100% Iin Max.
FEATURES
鈥?Industry Standard DIP
Package
鈥?Industry Standard Pinout
鈥?85擄C Case Operation
鈥?Short Circuit Protection
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Wide Range Inputs
Input Pi Filter
Regulated Outputs
500V Isolation
Output
Setpoint Accuracy
Line Regulation Vin Min. - Vin Max., Iout Rated
Load Regulation Iout Min. - Iout Max., Vin Nom.
Minimum Output Current
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
Temperature Coefficient
Ripple And Noise, 20 MHz BW
Short Circuit Protection 1
Current Limit
鹵5%
鹵1.5% Vout
鹵2.5% Vout
10% Iout Rated
25% Iout
1% Vout
500 ms
0.02%/擄C
150 mV
Continuous
180%
General
Switching Frequency
Isolation
Input - Output
Input - Case
Output - Case
Isolation Resistance - Input to Output
Isolation Capacitance - Input to Output
No Load Input Power
Case Temperature
Standard Operating Range
Storage Range
Humidity Max., Non-Condensing
Vibration, 3 Axes, 5 Min Each
Safety
Weight (approx.)
200 kHz
500 VDC
500 VDC
500 VDC
109 Ohms
80 pF
0.70 W
-25 to +85擄C
-40 to +125擄C
95%
5 g, 10 - 55 Hz
UL, cUL, TUV
0.6 oz
Notes
1 Continuous short circuit protection is provided. Long-term continuous
operation in this mode is not recommended. Converter will auto-restart
once fault has been removed.
Specifications typically at 25擄C, normal line, and full load, unless
otherwise stated.
Soldering Conditions: I/O pins, 260擄C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model. Please consult
factory for specific model information.
REV. 10/01

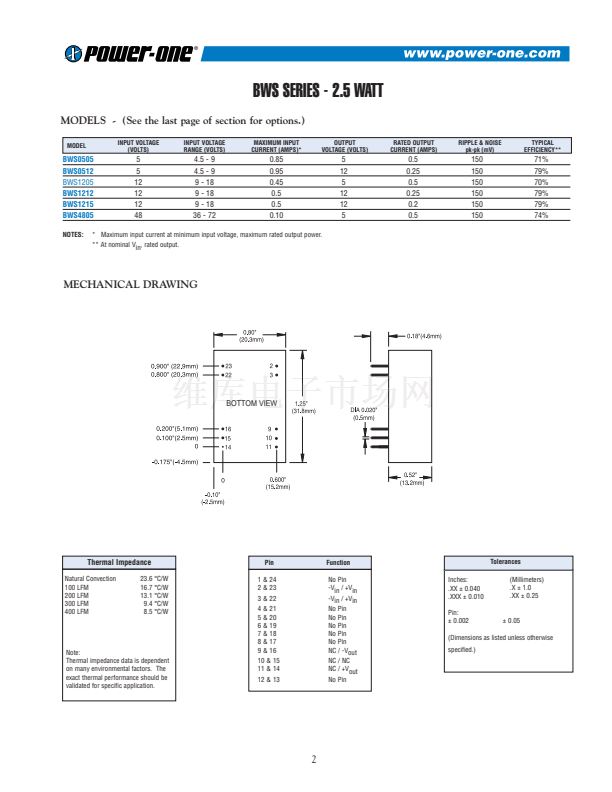

1

BWS1205 產品屬性

  • 0現貨

  • 停產

  • BWS (3W)

  • 散裝

  • 停產

  • 隔離模塊

  • 1

  • 9V

  • 18V

  • 5V

  • -

  • -

  • -

  • 500mA

  • 3 W

  • 500 V

  • ITE（商業）

  • SCP

  • -25°C ~ 85°C

  • 70%

  • 通孔

  • 24-DIP 模塊，8 引線

  • 1.25" 長 x 0.80" 寬 x 0.52" 高（31.8mm x 20.3mm x 13.2mm）

  • -

  • -

  • -

  • -
