The migration to distributed power is accelerating. The critical need for accurate
voltages, tight regulation and rapid transient response is propelling the move to
power processing at the "point-of-use" with low-power DC/DC converters physically
located right at their loads.
DATEL鈥檚 miniature, full featured, 5 Watt BWR Models were speci鏗乧ally designed
for today鈥檚 demanding distributed power architectures in aerospace, marine,
telecom and computer applications. The converters鈥?small size (1" x 1" x 0.45"),
full 5 Watt output capability and low cost give system architects unprecedented
design and layout 鏗俥xibility.
Occupying less than 0.5in
3
total volume, these extremely compact, fully regulated
and isolated (1000Vdc) modules are available with 鹵5, 鹵12 or 鹵15 Volt outputs.
Input voltage ranges are either 18-36 Volts ("D24" models) or 36-72 Volts ("D48"
models).
Although their overall size is 50-75% smaller than many similarly rated power
modules, these 1" x 1" BWR Models are exact, drop-in, pin-for-pin replacements for
many standard 2" x 1" and 2" x 2", 5 Watt modules. They achieve their small size
and low cost by exploiting a novel feedback approach that does not depend upon
traditional optocoupler techniques.
All models are 5-side shielded and have a non-conductive baseplate that permits
pc-card runs to be placed beneath the package. Units are assembled using
high-speed automated SMT techniques and are fully encapsulated with thermally
conductive potting compound. Every unit is electrically tested before and after
encapsulation, 100% burned-in under full load, hi-pot tested, and 鏗乶al-electrical
tested prior to shipment. Every unit meets DATEL鈥檚 traditional high standards for
quality and long-term reliability.

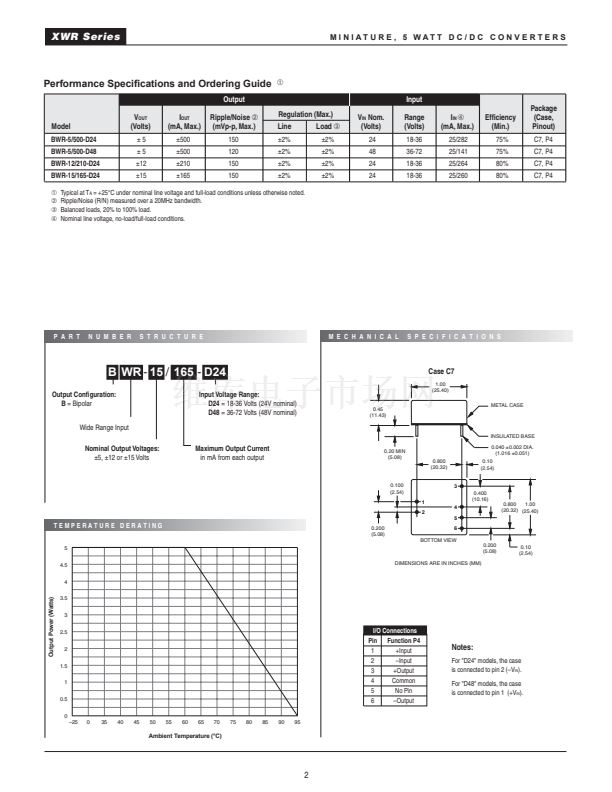

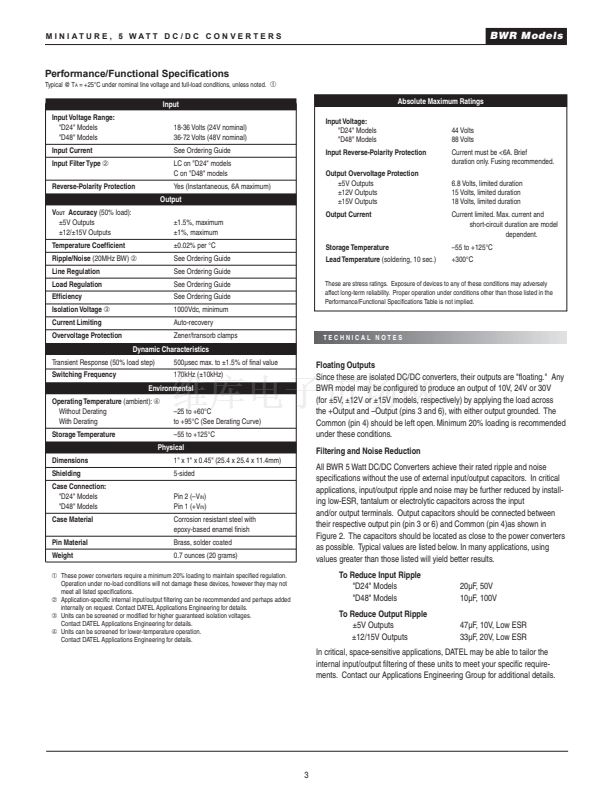

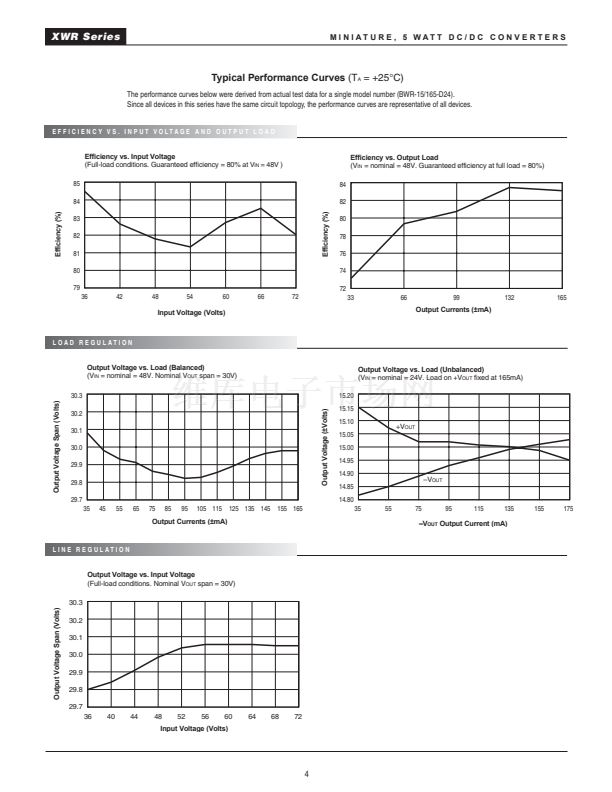

+V
IN
*
+V
OUT
PWM
COMMON
鈥揤
OUT
鈥揤
IN
* "D24" models only
Figure 1. Simpli鏗乪d Schematic

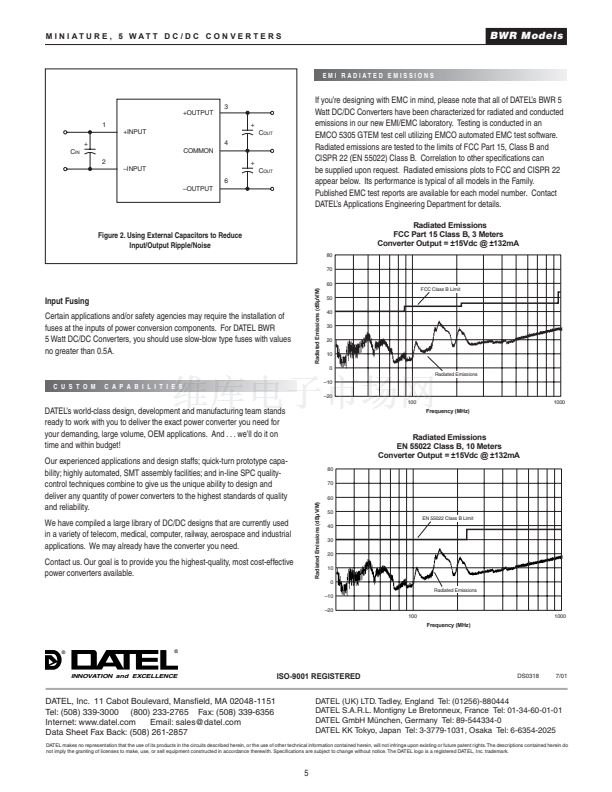

DATEL, Inc., 11 Cabot Boulevard, Mans鏗乪ld, MA 02048 (U.S.A.)
鈥?/div>
Tel: (508)339-3000, (800)233-2765
Fax:
(508)339-6356
鈥?/div>
Email: datellit@mcimail.com
