Sigma-Delta voice CODEC
REV 1.0 2002/04/28
Sigma-Delta Voice CODEC
FEATURES
BW0406X
BW0406X
GENERAL DESCRIPTION
The BW0406X is Sigma-Delta CODEC for speech and
telephony applications. The product contains both
digital IIR/FIR filter and smoothing filter. The normal
input and output channels have
碌
/A law format with
38dB signal to distortion ratio.
The input and output of this device is compressed
form(A-law,
碌
-law) and 14bit linear which can be
easily determined by control select pins
An on-chip voltage reference circuit is included to
allow the single supply operation
TYPICAL APPLICATIONS
-
Speech Processing
(Recognition, Synthesis, Compression etc.)
-
Telephony
-
Modem
- Single chip voice line Codec
(A/D, D/A converter included)
- Oversampled Sigma Delta modulator/
Demodulator
- Input/Output format : 8bit
碌
-law/A-law and
linear 14bit
* These three types are easily selectible by
control pins
* When serial interface mode, the 14bit
linear data has 16bit format with two don't
care bits from LSB
- Sigma Delta ADC.
* 256X Oversampling
* On chip Decimation Filter
* On chip Smoothing Filter
- Sigma Delta DAC.
* 256X Oversampling
* On chip 256X Interpolation Filter
* On chip Analog Post Filter
- Single ended Input and Output.
- Sampling Rate of 8~11KHz
- On chip voltage reference circuitry
- Single +3.3V Power Supply
- 2Vpp In, Output signal swing
- Power Consumption
* Operating Mode : 10mW Typ(3.3V)
* Powerdown Mode : 33
碌
W Typ(3.3V)

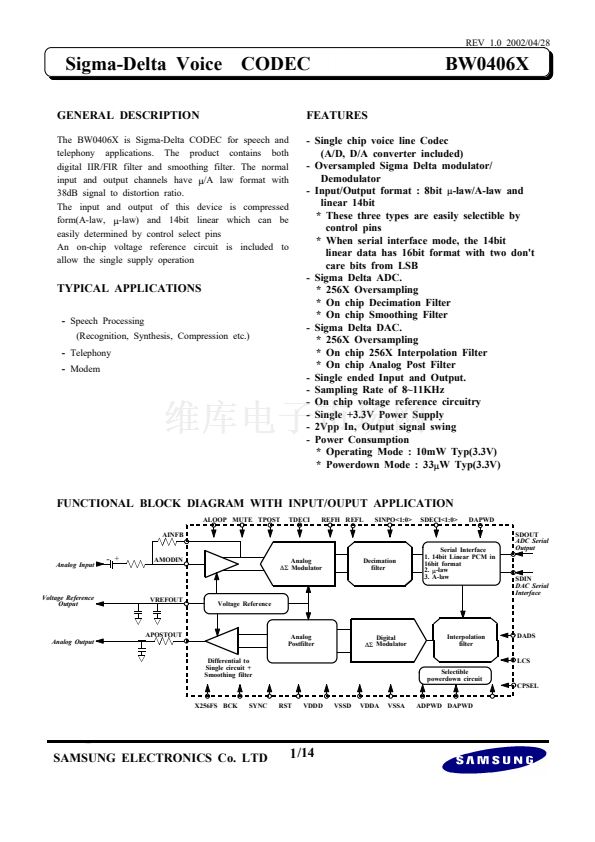

FUNCTIONAL BLOCK DIAGRAM WITH INPUT/OUPUT APPLICATION
ALOOP MUTE TPOST
AINFB
TDECI
REFH REFL
SINPO<1:0>
SDECI<1:0>
DAPWD
SDOUT
ADC Serial
Output
Analog Input
-
+
AMODIN
Analog
鈭單?/div>
Modulator
Decimation
filter
Serial Interface
1. 14bit Linear PCM in
16bit format
2.
碌
-law
3. A-law
Voltage Reference
Output
SDIN
DAC Serial
Interface
VREFOUT
Voltage Reference
APOSTOUT
Analog Output
Differential to
Single circuit +
Smoothing filter
Analog
Postfilter
Digital
鈭單?/div>
Modulator
Interpolation
filter
DADS
LCS
Selectible
powerdown circuit
CPSEL
X256FS BCK
SYNC
RST
VDDD
VSSD
VDDA
VSSA
ADPWD DAPWD
SEC ASIC
SAMSUNG ELECTRONICS Co. LTD
1
/14
ANALOG
