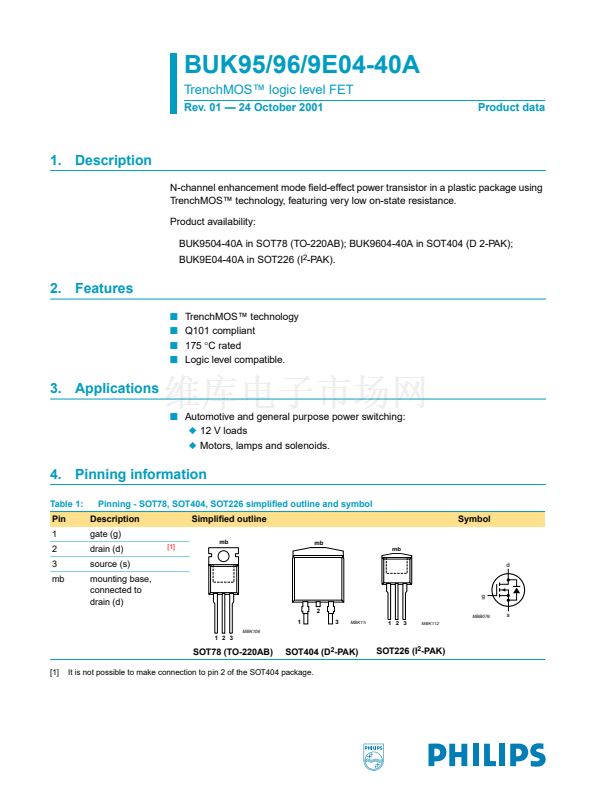

BUK95/96/9E04-40A

TrenchMOS鈩?logic level FET

Rev. 01 鈥?24 October 2001

Product data

1. Description

N-channel enhancement mode 鏗乪ld-effect power transistor in a plastic package using

TrenchMOS鈩?technology, featuring very low on-state resistance.

Product availability:

BUK9504-40A in SOT78 (TO-220AB); BUK9604-40A in SOT404 (D 2-PAK);

BUK9E04-40A in SOT226 (I

2

-PAK).

2. Features

s

s

s

s

TrenchMOS鈩?technology

Q101 compliant

175

擄C

rated

Logic level compatible.

3. Applications

s

Automotive and general purpose power switching:

x

12 V loads

x

Motors, lamps and solenoids.

4. Pinning information

Table 1:

Pin

1

2

3

mb

Pinning - SOT78, SOT404, SOT226 simpli鏗乪d outline and symbol

Description

gate (g)

drain (d)

source (s)

mounting base,

connected to

drain (d)

2

MBB076

Simpli鏗乪d outline

[1]

mb

mb

mb

Symbol

d

g

s

1

MBK106

3

MBK116

1 2 3

MBK112

1 2 3

SOT78 (TO-220AB)

[1]

SOT404 (D

2

-PAK)

SOT226 (I

2

-PAK)

It is not possible to make connection to pin 2 of the SOT404 package.
