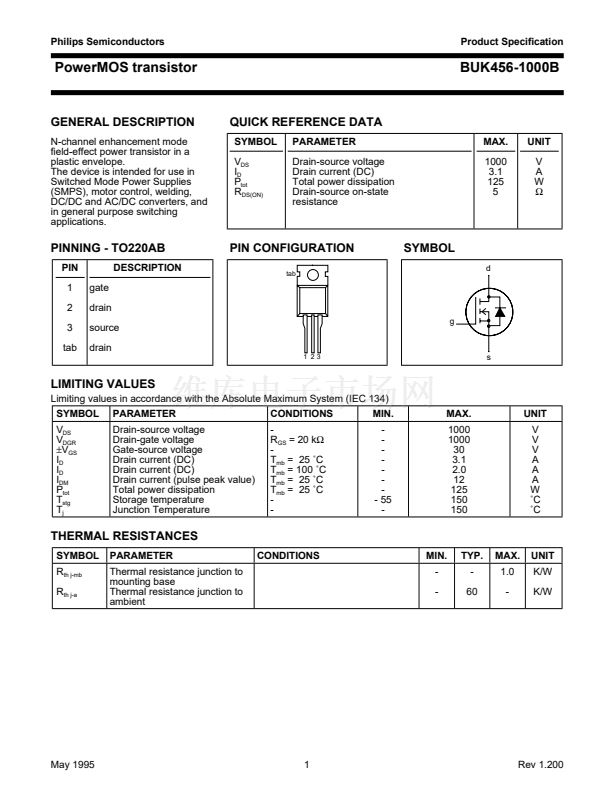

Philips Semiconductors
Product Specification
PowerMOS transistor
BUK456-1000B
GENERAL DESCRIPTION
N-channel enhancement mode
field-effect power transistor in a
plastic envelope.
The device is intended for use in
Switched Mode Power Supplies
(SMPS), motor control, welding,
DC/DC and AC/DC converters, and
in general purpose switching
applications.
QUICK REFERENCE DATA
SYMBOL
V
DS
I
D
P
tot
R
DS(ON)
PARAMETER
Drain-source voltage
Drain current (DC)
Total power dissipation
Drain-source on-state
resistance
MAX.
1000
3.1
125
5
UNIT
V
A
W
鈩?/div>
PINNING - TO220AB
PIN
1
2
3
tab
gate
drain
source
drain
DESCRIPTION
PIN CONFIGURATION
tab
SYMBOL
d
g
1 23
s
LIMITING VALUES
Limiting values in accordance with the Absolute Maximum System (IEC 134)
SYMBOL
V
DS
V
DGR
鹵V
GS
I
D
I
D
I
DM
P
tot
T
stg
T
j
PARAMETER
Drain-source voltage
Drain-gate voltage
Gate-source voltage
Drain current (DC)
Drain current (DC)
Drain current (pulse peak value)
Total power dissipation
Storage temperature
Junction Temperature
CONDITIONS
-
R
GS
= 20 k鈩?/div>
-
T
mb
= 25 藲C
T
mb
= 100 藲C
T
mb
= 25 藲C
T
mb
= 25 藲C
-
-
MIN.
-
-
-
-
-
-
-
- 55
-
MAX.
1000
1000
30
3.1
2.0
12
125
150
150
UNIT
V
V
V
A
A
A
W
藲C
藲C
THERMAL RESISTANCES
SYMBOL
R
th j-mb
R
th j-a
PARAMETER
Thermal resistance junction to
mounting base
Thermal resistance junction to
ambient
CONDITIONS
MIN.
-
-
TYP.
-
60
MAX.
1.0
-
UNIT
K/W
K/W
May 1995
1
Rev 1.200
