BU808DFP Datasheet

  • BU808DFP

  • HIGH VOLTAGE FAST-SWITCHING NPN POWER DARLINGTON

  • 7頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
BU808DFP
HIGH VOLTAGE FAST-SWITCHING
NPN POWER DARLINGTON
s
s
s
s
s
s
s
STMicroelectronics PREFERRED
SALESTYPE
NPN MONOLITHIC DARLINGTON WITH
INTEGRATED FREE-WHEELING DIODE
HIGH VOLTAGE CAPABILITY ( > 1400 V )
HIGH DC CURRENT GAIN ( TYP. 150 )
FULLY MOLDED ISOLATED PACKAGE 2KV
DC ISOLATION (U.L. COMPLIANT)
LOW BASE-DRIVE REQUIREMENTS
DEDICATED APPLICATION NOTE AN1184
3
1
2
APPLICATIONS
s
COST EFFECTIVE SOLUTION FOR
HORIZONTAL DEFLECTION IN LOW END
TV UP TO 21 INCHES.
DESCRIPTION

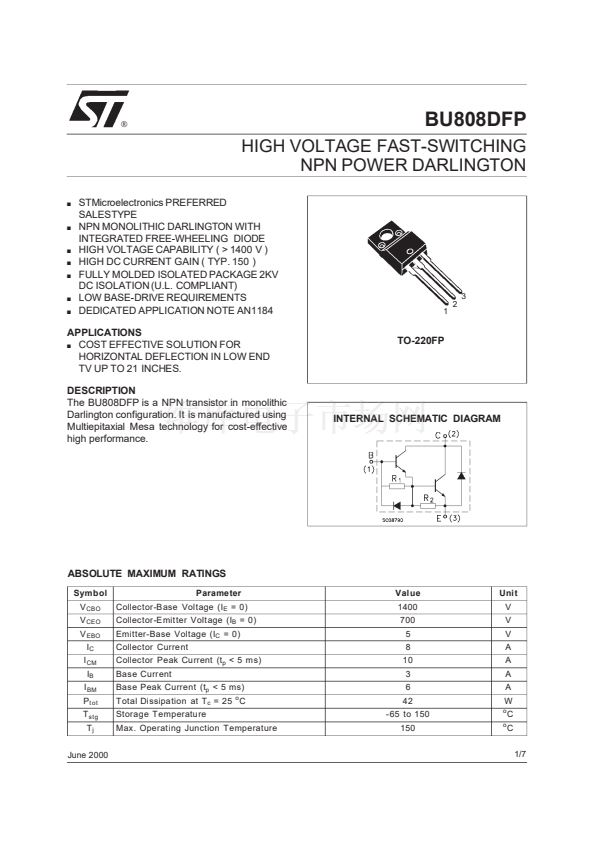

The BU808DFP is a NPN transistor in monolithic
Darlington configuration. It is manufactured using
Multiepitaxial Mesa technology for cost-effective
high performance.

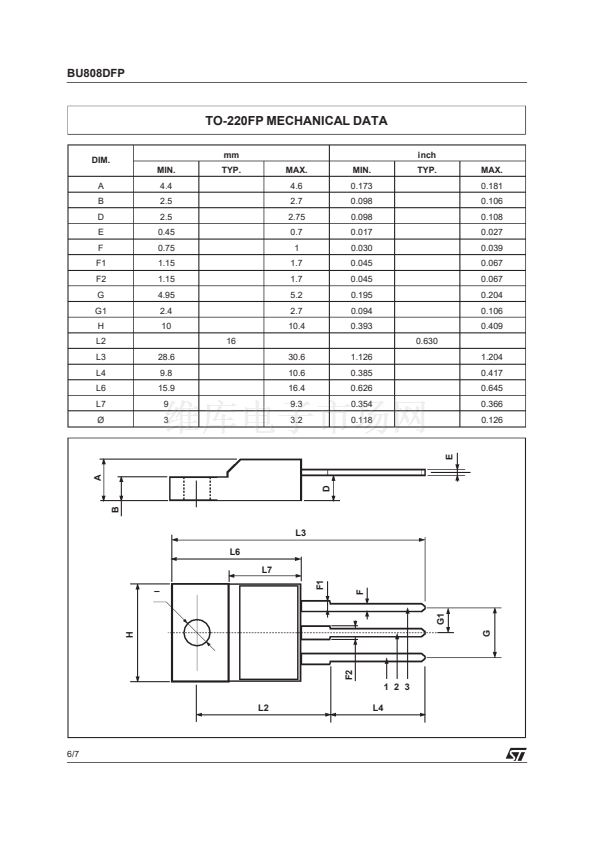

TO-220FP
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
I
BM
P
t ot
T
stg
T
j
June 2000
Parameter
Collector-Base Voltage (I
E
= 0)
Collector-Emitter Voltage (I
B
= 0)
Emitter-Base Voltage (I
C
= 0)
Collector Current
Collector Peak Current (t
p
< 5 ms)
Base Current
Base Peak Current (t
p
< 5 ms)
Total Dissipation at T
c
= 25 C
St orage Temperature
Max. Operating Junction Temperature
o
Value
1400
700
5
8
10
3
6
42
-65 to 150
150
Uni t
V
V
V
A
A
A
A
W
o
o
C
C
1/7
