BTS824R Datasheet

  • BTS824R

  • Smart High-Side Power Switch Four Channels: 4 x 90mз Status...

  • 334.56KB

  • 14頁

  • INFINEON   INFINEON

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

BTS 824R
Smart High-Side Power Switch
Four Channels: 4 x 90m鈩?/div>
Status Feedback
Product Summary
Operating Voltage
V
bb
Active channels
On-state Resistance
R
ON
Nominal load current
I
L(NOM)
Current limitation
I
L(SCr)
5.5...40V
four parallel
22.5m鈩?/div>
19.0A
12A
Package
Power SO 20
one
90m鈩?/div>
4.7A
12A
General Description
鈥?/div>
鈥?/div>
N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and
餂?/div>
diagnostic feedback, monolithically integrated in Smart SIPMOS technology.
Providing embedded protective functions
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
碌C compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads
All types of resistive, inductive and capacitve loads
Most suitable for loads with high inrush currents, so as lamps
Replaces electromechanical relays, fuses and discrete circuits
Basic Functions
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Very low standby current
CMOS compatible input
Improved electromagnetic compatibility (EMC)
Fast demagnetization of inductive loads
Stable behaviour at undervoltage
Wide operating voltage range
Logic ground independent from load ground
Protection Functions
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Short circuit protection
Overload protection
Current limitation
Thermal shutdown
Overvoltage protection (including load dump) with external
resistor
Reverse battery protection with external resistor
Loss of ground and loss of V
bb
protection
Electrostatic discharge protection (ESD)
Block Diagram
Vbb
IN1
ST1/2
IN2
Logic
Channel 1
Channel 2
Load 1
Load 2
Diagnostic Function
鈥?/div>
鈥?/div>
鈥?/div>
Diagnostic feedback with open drain output
Open load detection in OFF-state
Feedback of thermal shutdown in ON-state
IN3
ST3/4
IN4
Logic
Channel 3
Channel 4
Load 3
GND
Load 4
Infineon Technologies AG
1
2003-Oct-01

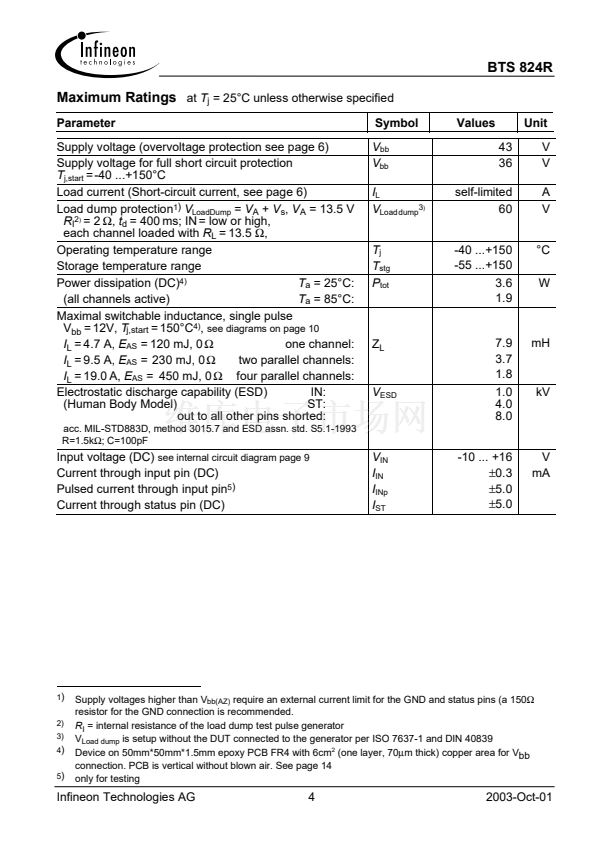

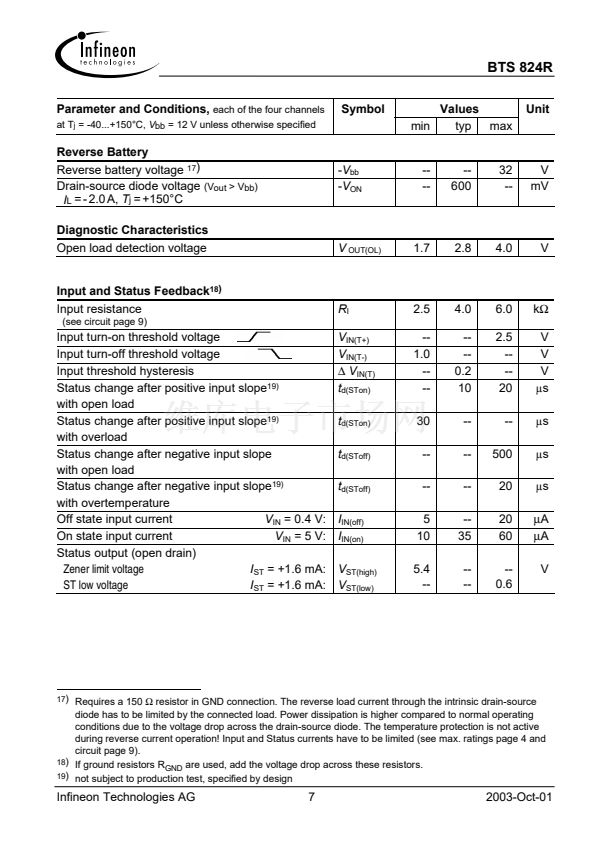

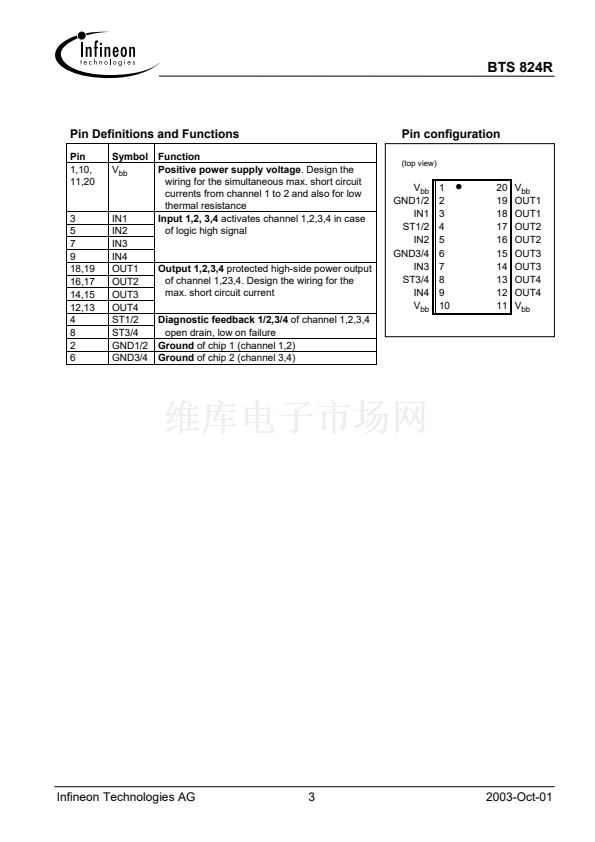

BTS824R 產品屬性

  • BTS824R

  • 800

  • 集成電路 (IC)

  • PMIC - MOSFET，電橋驅動器 - 內部開關

  • -

  • 高端

  • 非反相

  • 4

  • 70 毫歐

  • 4.7A

  • 15A

  • 5.5 V ~ 40 V

  • -40°C ~ 150°C

  • 表面貼裝

  • 20-SOIC（0.433"，11.00mm 寬）裸露焊盤

  • P-DSO-20

  • 帶卷 (TR)

  • BTS824RNTBTS824RTSP000013628
