TrilithIC

Data Sheet

1.1

鈥?/div>

Overview

Features

BTS 7700 G

Quad D-MOS switch driver

Free configurable as bridge or quad-switch

Optimized for DC motor management applications

Low

DS ON

: 110 m蟿 high-side switch, 90 m蟿 low-

side switch (typical values @ 25

錚碈)

Maximum peak current: typ. 9 A @ 25

錚碈=

Very low quiescent current: typ. 5

鈫怉

@ 25

錚碈=

Small outline, enhanced power P-DSO-package

Load and GND-short-circuit-protection

Operates up to 40 V

Status flag diagnosis

Overtemperature shut down with hysteresis

Internal clamp diodes

Isolated sources for external current sensing

Under-voltage detection with hysteresis

PWM frequencies up to 50 kHz

Ordering Code

Q67007-A9375

P-DSO-28-14

Type

BTS 7700 G

1.2

Description

Package

P-DSO-28-14

The

BTS 7700 G

is part of the

TrilithIC

family containing three dies in one package:

One double high-side switch and two low-side switches. The drains of these three

vertical DMOS chips are mounted on separated leadframes. The sources are connected

to individual pins, so the

BTS 7700 G

can be used in H-bridge- as well as in any other

configuration. The double high-side is manufactured in

SMART SIPMOS

廬

technology

which combines low

DS ON

vertical DMOS power stages with CMOS control circuitry.

The high-side switch is fully protected and contains the control and diagnosis circuitry.

To achieve low

DS ON

and fast switching performance, the low-side switches are

manufactured in

S-FET

logic level technology. The equivalent standard product is the

BUZ 104 SL.

In contrast to the

BTS 7710 G,

which consists of lower ohmic chips in the same

package, the

BTS 7700 G

offers a lower price for applications, which do not need the

high current capability of the

BTS 7710 G

BTS 7710 GP.

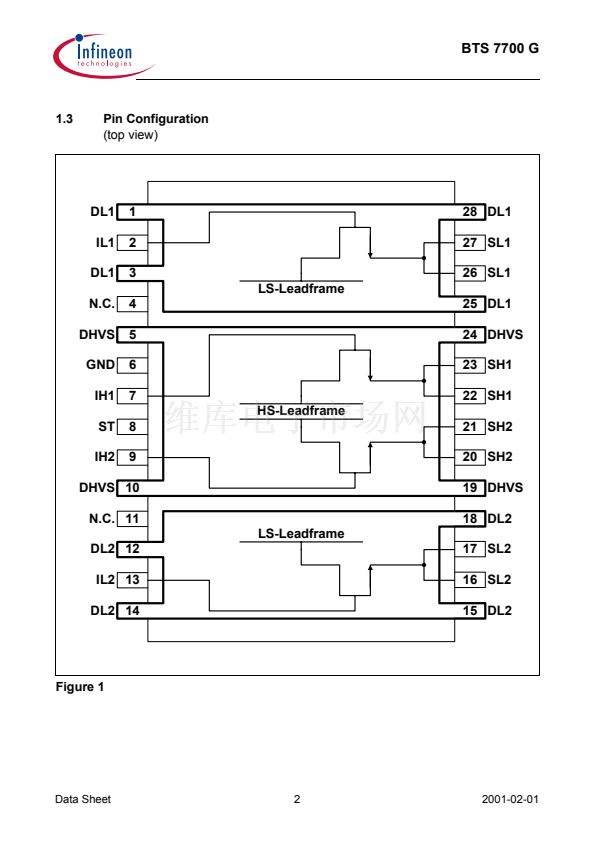

Data Sheet

2001-02-01
