BTA208X-800B Datasheet

  • BTA208X-800B

  • Three quadrant triacs high commutation

  • 54.48KB

  • 6頁

  • PHILIPS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

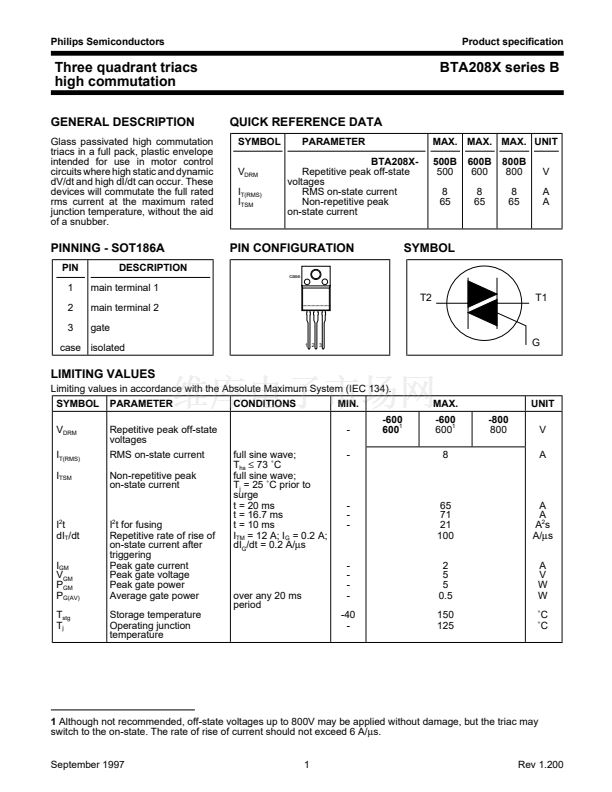

Philips Semiconductors
Product specification
Three quadrant triacs
high commutation
GENERAL DESCRIPTION
Glass passivated high commutation
triacs in a full pack, plastic envelope
intended for use in motor control
circuits where high static and dynamic
dV/dt and high dI/dt can occur. These
devices will commutate the full rated
rms current at the maximum rated
junction temperature, without the aid
of a snubber.
BTA208X series B
QUICK REFERENCE DATA
SYMBOL
V
DRM
I
T(RMS)
I
TSM
PARAMETER
BTA208X-
Repetitive peak off-state
voltages
RMS on-state current
Non-repetitive peak
on-state current
MAX. MAX. MAX. UNIT
500B
500
8
65
600B
600
8
65
800B
800
8
65
V
A
A

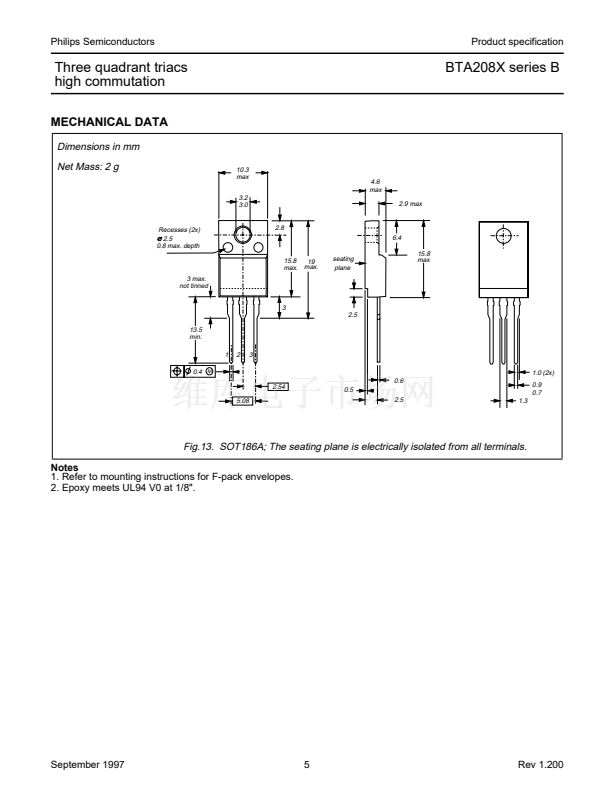

PINNING - SOT186A
PIN
1
2
3
DESCRIPTION
main terminal 1
PIN CONFIGURATION
case
SYMBOL
T2
main terminal 2
gate
1 2 3
T1
case isolated
G
LIMITING VALUES
Limiting values in accordance with the Absolute Maximum System (IEC 134).
SYMBOL
V
DRM
I
T(RMS)
I
TSM
PARAMETER
Repetitive peak off-state
voltages
RMS on-state current
Non-repetitive peak
on-state current
full sine wave;
T
hs
鈮?/div>
73 藲C
full sine wave;
T
j
= 25 藲C prior to
surge
t = 20 ms
t = 16.7 ms
t = 10 ms
I
TM
= 12 A; I
G
= 0.2 A;
dI
G
/dt = 0.2 A/碌s
CONDITIONS
MIN.
-
-
-600
600
1
MAX.
-600
600
1
8
-800
800
UNIT
V
A
I
2
t
dI
T
/dt
I
GM
V
GM
P
GM
P
G(AV)
T
stg
T
j
I
2
t for fusing
Repetitive rate of rise of
on-state current after
triggering
Peak gate current
Peak gate voltage
Peak gate power
Average gate power
Storage temperature
Operating junction
temperature
-
-
-
65
71
21
100
2
5
5
0.5
150
125
A
A
A
2
s
A/碌s
A
V
W
W
藲C
藲C
over any 20 ms
period
-
-
-
-
-40
-
1
Although not recommended, off-state voltages up to 800V may be applied without damage, but the triac may
switch to the on-state. The rate of rise of current should not exceed 6 A/碌s.
September 1997
1
Rev 1.200

BTA208X-800B 產品屬性

  • NXP

  • 雙向可控硅

  • 800 V

  • 0.1 mA

  • 1.5 V

  • 50 mA

  • 60 mA

  • 1.65 V

  • SMD/SMT

  • SOT-186A

  • Rail

  • + 125 C

  • - 40 C

  • 800 V

  • 50

  • BTA208X-800B,127
