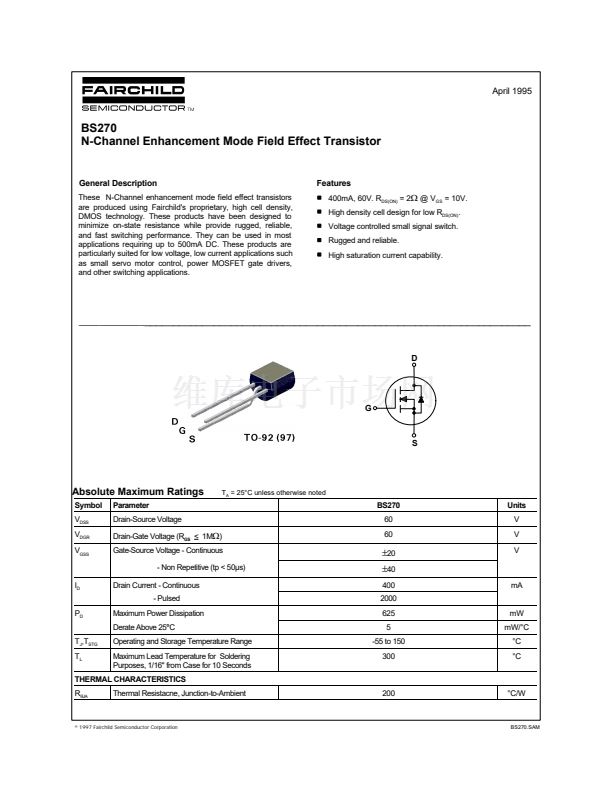

April 1995

BS270

N-Channel Enhancement Mode Field Effect Transistor

General Description

These N-Channel enhancement mode field effect transistors

are produced using Fairchild's proprietary, high cell density,

DMOS technology. These products have been designed to

minimize on-state resistance while provide rugged, reliable,

and fast switching performance. They can be used in most

applications requiring up to 500mA DC. These products are

particularly suited for low voltage, low current applications such

as small servo motor control, power MOSFET gate drivers,

and other switching applications.

Features

400mA, 60V. R

DS(ON)

= 2

鈩?/div>

@ V

= 10V.

High density cell design for low R

DS(ON)

Voltage controlled small signal switch.

Rugged and reliable.

High saturation current capability.

_____________

___________________________________________________________________

Absolute Maximum Ratings

Symbol

DSS

DGR

GSS

Parameter

Drain-Source Voltage

= 25擄C unless otherwise noted

BS270

Units

Drain-Gate Voltage (R

< 1M

鈩?/div>

)

Gate-Source Voltage - Continuous

- Non Repetitive (tp < 50碌s)

鹵

400

2000

625

-55 to 150

300

STG

Drain Current - Continuous

- Pulsed

Maximum Power Dissipation

Derate Above 25擄C

Operating and Storage Temperature Range

Maximum Lead Temperature for Soldering

Purposes, 1/16" from Case for 10 Seconds

mW/擄C

擄C

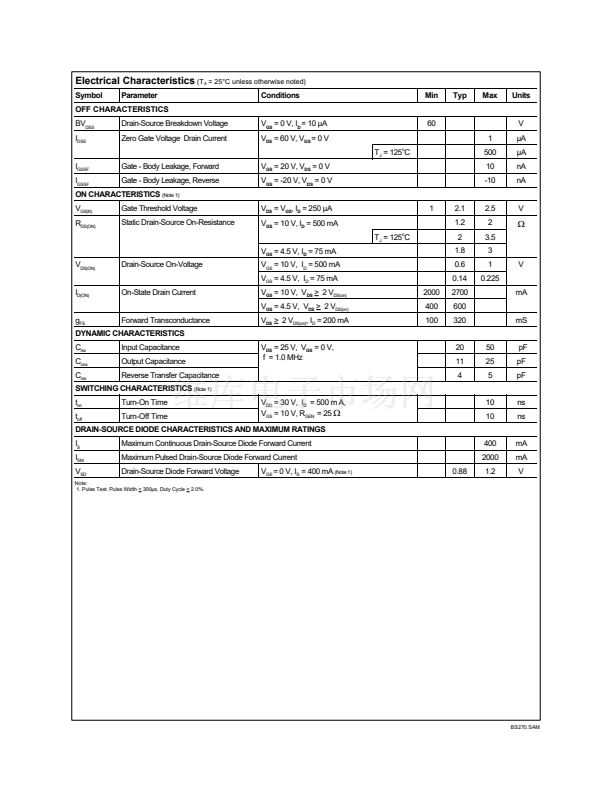

THERMAL CHARACTERISTICS

胃

Thermal Resistacne, Junction-to-Ambient

200

擄C/W

漏 1997 Fairchild Semiconductor Corporation

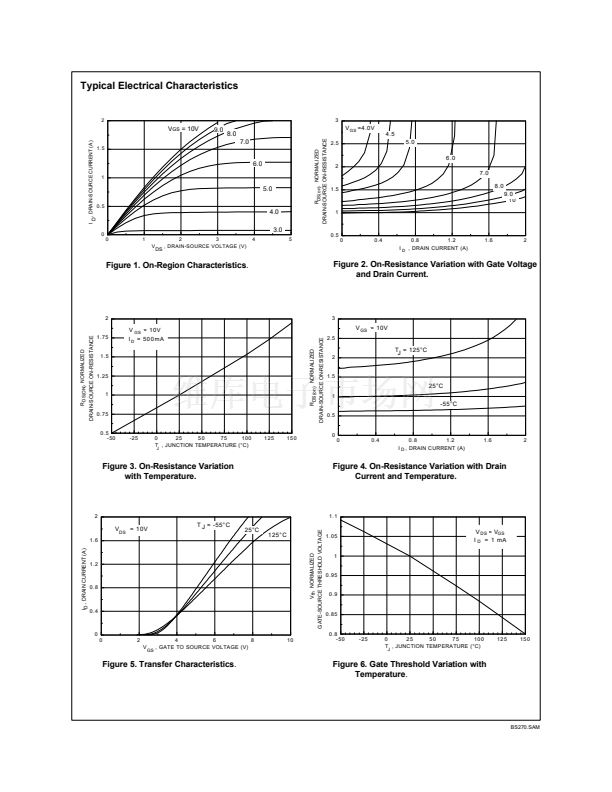

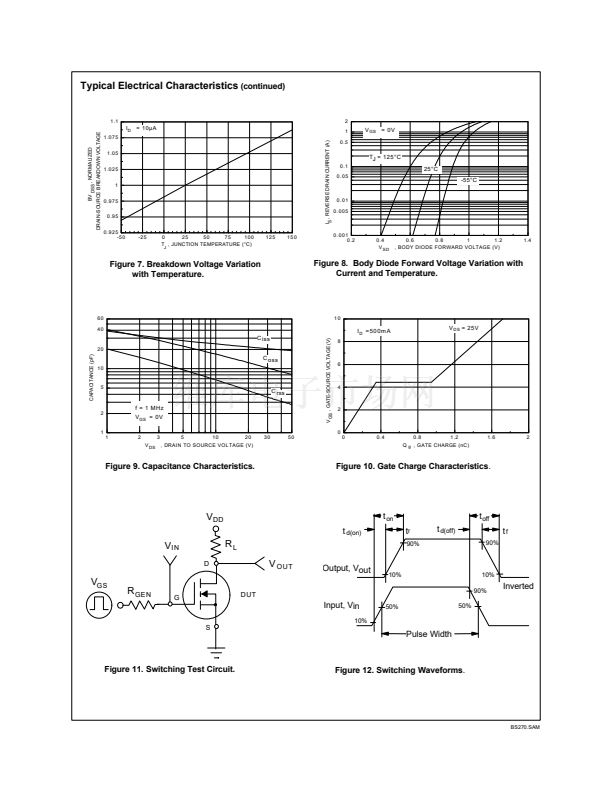

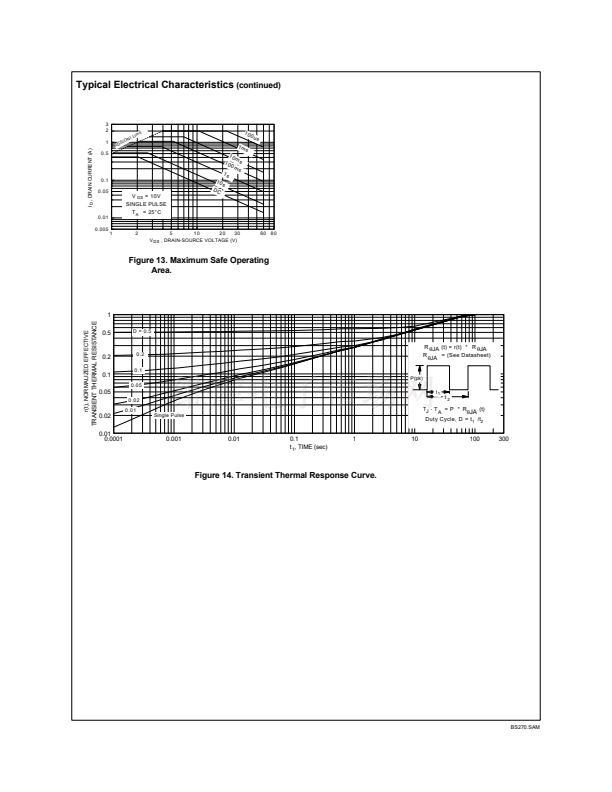

BS270.SAM

產品培訓模塊
High Voltage Switches for Power Processing
標準包裝
2,000
類別
分離式半導體產品
家庭
FET - 單
系列
-
FET 型
MOSFET N 通道，金屬氧化物
FET 特點
邏輯電平門
漏極至源極電壓(Vdss)
60V
電流 - 連續漏極(Id) @ 25° C
400mA
開態Rds（最大）@ Id, Vgs @ 25° C
2 歐姆 @ 500mA，10V
Id 時的 Vgs(th)（最大）
2.5V @ 250µA
閘電荷(Qg) @ Vgs
-
輸入電容 (Ciss) @ Vds
50pF @ 25V
功率 - 最大
625mW
安裝類型
通孔

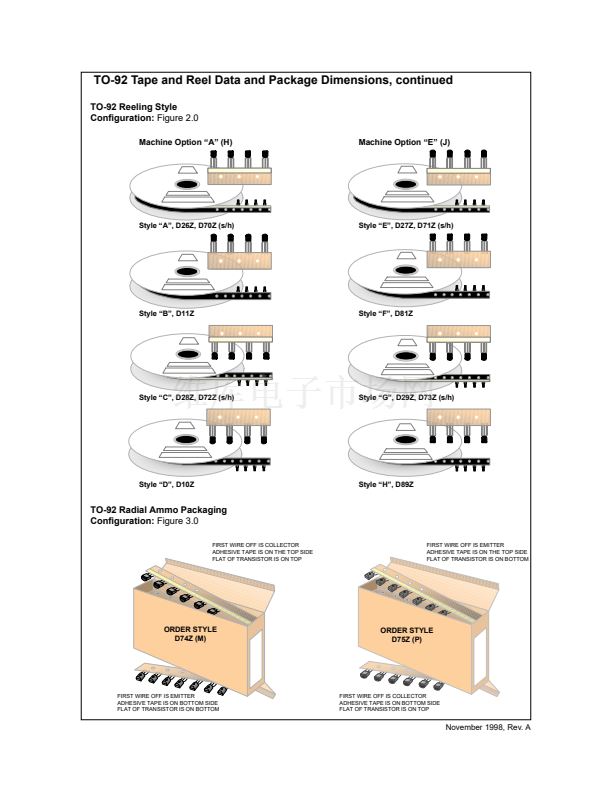

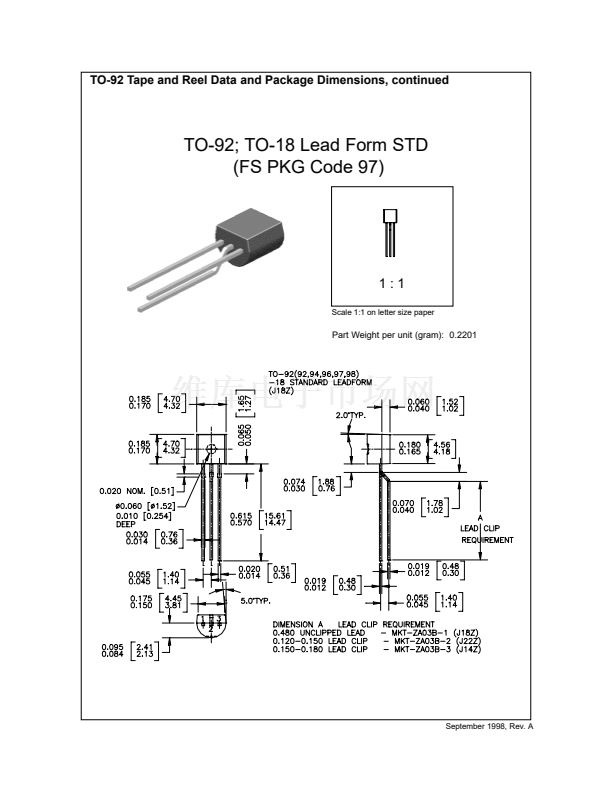

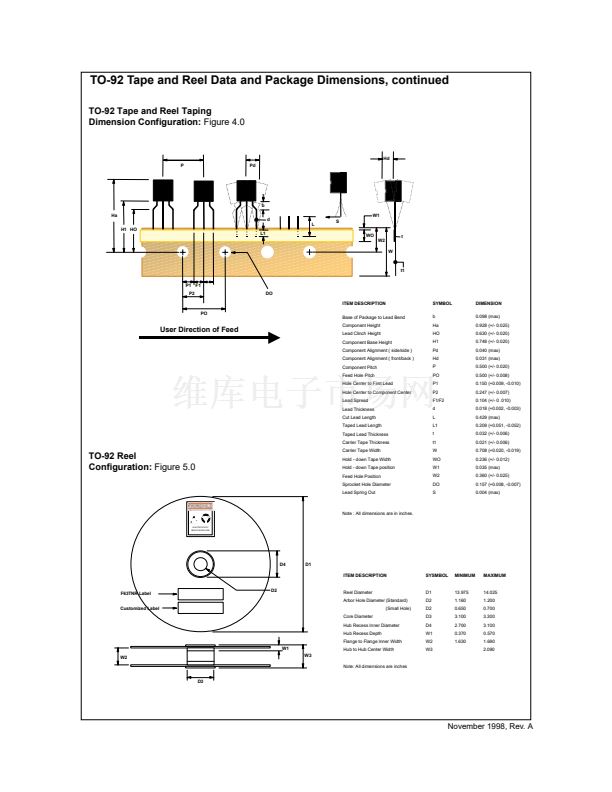

封裝/外殼
TO-226-3、TO-92-3 標準主體
供應商設備封裝
TO-92-3

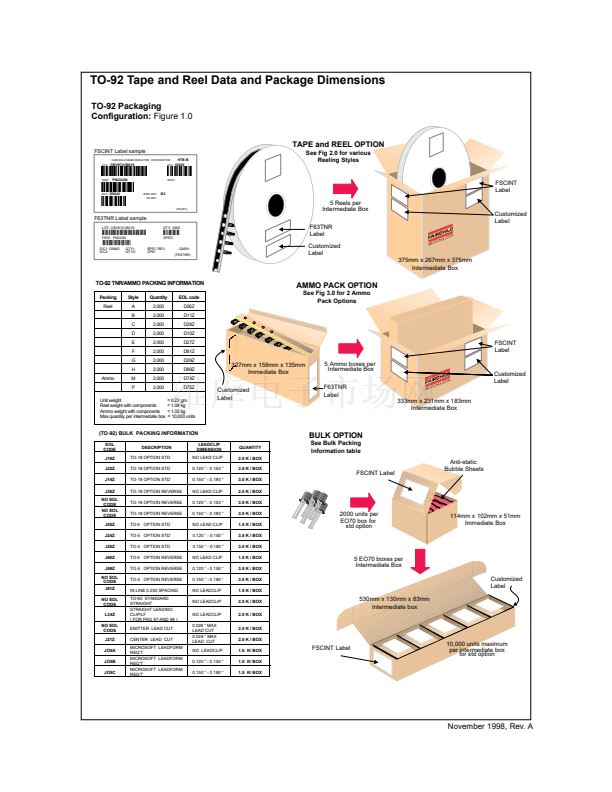

包裝
散裝
其它名稱
BS270-NDBS270FS
