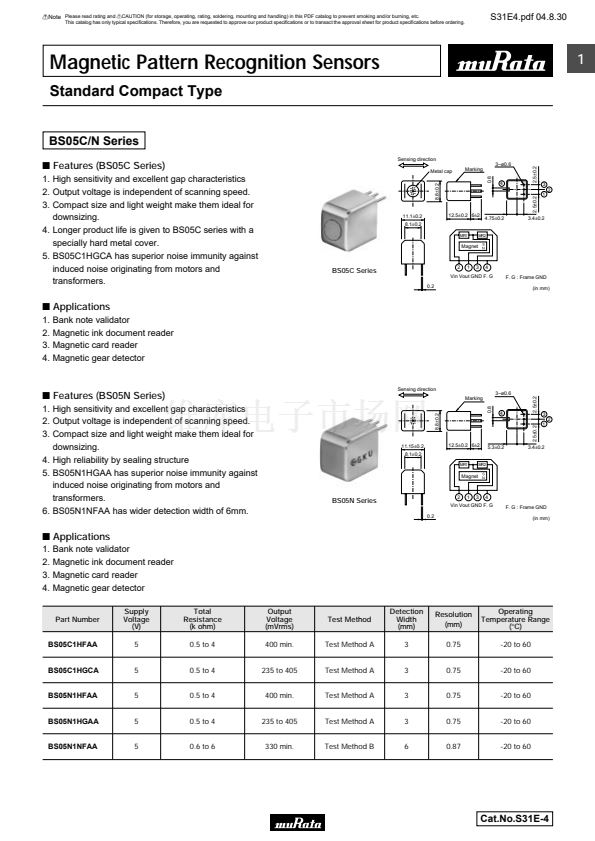

Magnetic Pattern Recognition Sensors
Standard Compact Type
BS05C/N Series
Metal cap
8.8鹵0.2
Marking
0.8
4
1
1. High sensitivity and excellent gap characteristics
2. Output voltage is independent of scanning speed.
3. Compact size and light weight make them ideal for
downsizing.
4. Longer product life is given to BS05C series with a
specially hard metal cover.
5. BS05C1HGCA has superior noise immunity against
induced noise originating from motors and
transformers.
2.5鹵0.2
2.5鹵0.2
2.5鹵0.2
2.5鹵0.2
s
Features (BS05C Series)
Sensing direction
3鈥撁?.6
3
1
2
11.1鹵0.2
8.1鹵0.2
12.5鹵0.2 6鹵2
4.75鹵0.2
3.4鹵0.2
MR1
MR2
Magnet
BS05C Series
0.2
2
1
3
4
F. G : Frame GND
(in mm)
Vin Vout GND F. G
s
Applications
1. Bank note validator
2. Magnetic ink document reader
3. Magnetic card reader
4. Magnetic gear detector
s
Features (BS05N Series)
1. High sensitivity and excellent gap characteristics
2. Output voltage is independent of scanning speed.
3. Compact size and light weight make them ideal for
downsizing.
4. High reliability by sealing structure
5. BS05N1HGAA has superior noise immunity against
induced noise originating from motors and
transformers.
6. BS05N1NFAA has wider detection width of 6mm.
Sensing direction
Marking
0.8
8.8鹵0.2
3鈥撁?.6
4
3
1
2
11.15鹵0.2
8.1鹵0.2
12.5鹵0.2 6鹵2
5.3鹵0.2
3.4鹵0.2
MR1
MR2
Magnet
BS05N Series
0.2
2
1
3
4
F. G : Frame GND
(in mm)
Vin Vout GND F. G
s
Applications
1. Bank note validator
2. Magnetic ink document reader
3. Magnetic card reader
4. Magnetic gear detector
Supply
Voltage
(V)
5
5
5
5
5
Total
Resistance
(k ohm)
0.5 to 4
0.5 to 4
0.5 to 4
0.5 to 4
0.6 to 6
Output
Voltage
(mVrms)
400 min.
235 to 405
400 min.
235 to 405
330 min.
Detection
Width
(mm)
3
3
3
3
6
Resolution
(mm)
0.75
0.75
0.75
0.75
0.87
Operating
Temperature Range
(擄C)
-20 to 60
-20 to 60
-20 to 60
-20 to 60
-20 to 60
Part Number
BS05C1HFAA
BS05C1HGCA
BS05N1HFAA
BS05N1HGAA
BS05N1NFAA
Test Method
Test Method A
Test Method A
Test Method A
Test Method A
Test Method B
Cat.No.S31E-4
