BRT22F Datasheet

  • BRT22F

  • Optocoupler, Phototriac Output, Zero Crossing

  • 9頁

  • VISHAY   VISHAY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

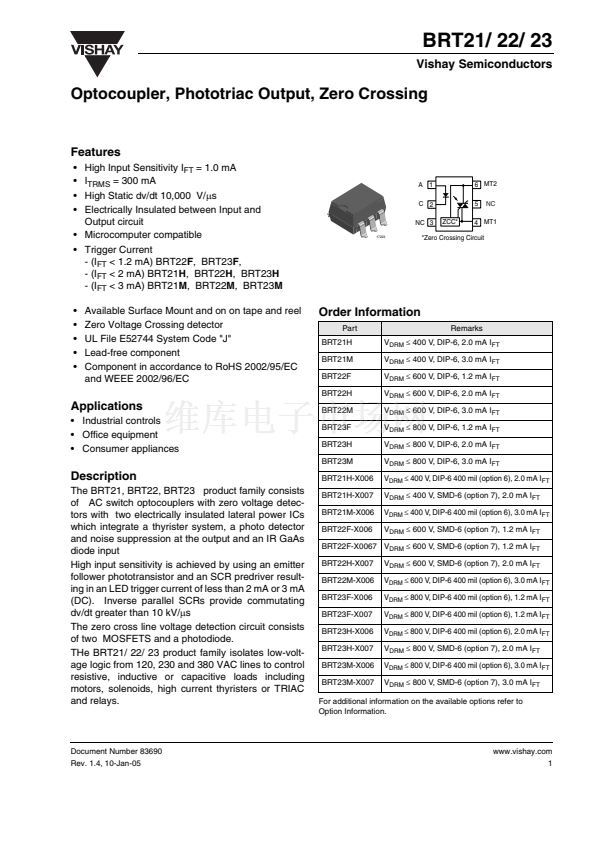

BRT21/ 22/ 23
Vishay Semiconductors
Optocoupler, Phototriac Output, Zero Crossing
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
High Input Sensitivity I
FT
= 1.0 mA
I
TRMS
= 300 mA
High Static dv/dt 10,000 V/碌s
Electrically Insulated between Input and
Output circuit
鈥?Microcomputer compatible
鈥?Trigger Current
- (I
FT
< 1.2 mA) BRT22F, BRT23F,
- (I
FT
< 2 mA) BRT21H, BRT22H, BRT23H
- (I
FT
< 3 mA) BRT21M, BRT22M, BRT23M
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Available Surface Mount and on on tape and reel
Zero Voltage Crossing detector
UL File E52744 System Code "J"
Lead-free component
Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
A 1
C 2
NC 3
17223
6 MT2
5
ZCC*
NC
4 MT1
*Zero Crossing Circuit
Order Information
Part
BRT21H
BRT21M
BRT22F
BRT22H
Remarks
V
DRM
鈮?/div>
400 V, DIP-6, 2.0 mA I
FT
V
DRM
鈮?/div>
400 V, DIP-6, 3.0 mA I
FT
V
DRM
鈮?/div>
600 V, DIP-6, 1.2 mA I
FT
V
DRM
鈮?/div>
600 V, DIP-6, 2.0 mA I
FT
V
DRM
鈮?/div>
600 V, DIP-6, 3.0 mA I
FT
V
DRM
鈮?/div>
800 V, DIP-6, 1.2 mA I
FT
V
DRM
鈮?/div>
800 V, DIP-6, 2.0 mA I
FT
V
DRM
鈮?/div>
800 V, DIP-6, 3.0 mA I
FT
V
DRM
鈮?/div>
400 V, DIP-6 400 mil (option 6), 2.0 mA I
FT
V
DRM
鈮?/div>
400 V, SMD-6 (option 7), 2.0 mA I
FT
V
DRM
鈮?/div>
400 V, DIP-6 400 mil (option 6), 3.0 mA I
FT
V
DRM
鈮?/div>
600 V, SMD-6 (option 7), 1.2 mA I
FT
Applications
鈥?Industrial controls
鈥?Office equipment
鈥?Consumer appliances
BRT22M
BRT23F
BRT23H
BRT23M
Description
The BRT21, BRT22, BRT23 product family consists
of AC switch optocouplers with zero voltage detec-
tors with two electrically insulated lateral power ICs
which integrate a thyrister system, a photo detector
and noise suppression at the output and an IR GaAs
diode input
High input sensitivity is achieved by using an emitter
follower phototransistor and an SCR predriver result-
ing in an LED trigger current of less than 2 mA or 3 mA
(DC). Inverse parallel SCRs provide commutating
dv/dt greater than 10 kV/碌s
The zero cross line voltage detection circuit consists
of two MOSFETS and a photodiode.
THe BRT21/ 22/ 23 product family isolates low-volt-
age logic from 120, 230 and 380 VAC lines to control
resistive, inductive or capacitive loads including
motors, solenoids, high current thyristers or TRIAC
and relays.
BRT21H-X006
BRT21H-X007
BRT21M-X006
BRT22F-X006
BRT22F-X0067 V
DRM
鈮?/div>
600 V, SMD-6 (option 7), 1.2 mA I
FT
BRT22H-X007
BRT22M-X006
BRT23F-X006
BRT23F-X007
BRT23H-X006
BRT23H-X007
BRT23M-X006
BRT23M-X007
V
DRM
鈮?/div>
600 V, SMD-6 (option 7), 2.0 mA I
FT
V
DRM
鈮?/div>
600 V, DIP-6 400 mil (option 6), 3.0 mA I
FT
V
DRM
鈮?/div>
800 V, DIP-6 400 mil (option 6), 1.2 mA I
FT
V
DRM
鈮?/div>
800 V, DIP-6 400 mil (option 6), 1.2 mA I
FT
V
DRM
鈮?/div>
800 V, DIP-6 400 mil (option 6), 2.0 mA I
FT
V
DRM
鈮?/div>
800 V, SMD-6 (option 7), 2.0 mA I
FT
V
DRM
鈮?/div>
800 V, DIP-6 400 mil (option 6), 3.0 mA I
FT
V
DRM
鈮?/div>
800 V, SMD-6 (option 7), 3.0 mA I
FT
For additional information on the available options refer to
Option Information.
Document Number 83690
Rev. 1.4, 10-Jan-05
www.vishay.com
1
