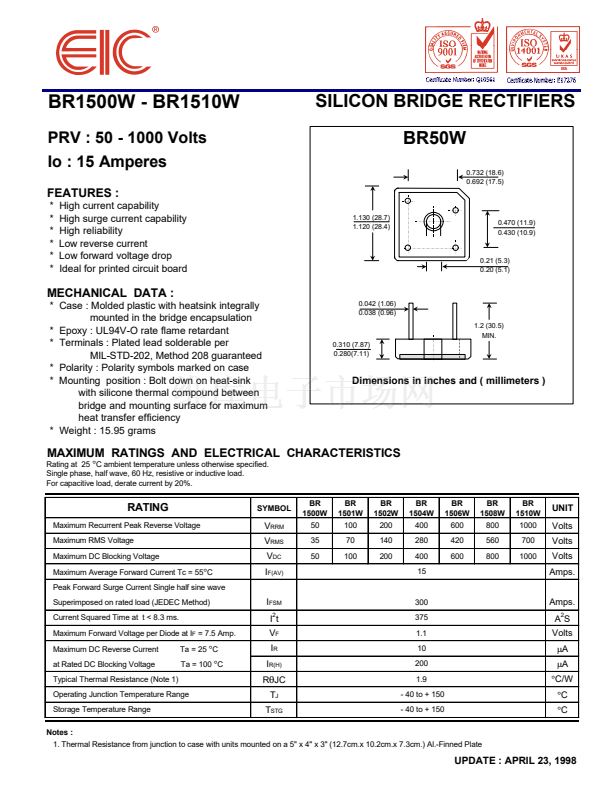

BR1500W - BR1510W
PRV : 50 - 1000 Volts
Io : 15 Amperes
FEATURES :
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Ideal for printed circuit board
SILICON BRIDGE RECTIFIERS
BR50W
0.732 (18.6)
0.692 (17.5)
1.130 (28.7)
1.120 (28.4)
0.470 (11.9)
0.430 (10.9)
0.21 (5.3)
0.20 (5.1)
MECHANICAL DATA :
* Case : Molded plastic with heatsink integrally
mounted in the bridge encapsulation
* Epoxy : UL94V-O rate flame retardant
* Terminals : Plated lead solderable per
MIL-STD-202, Method 208 guaranteed
* Polarity : Polarity symbols marked on case
* Mounting position : Bolt down on heat-sink
with silicone thermal compound between
bridge and mounting surface for maximum
heat transfer efficiency
* Weight : 15.95 grams
Rating at 25
擄
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
0.042 (1.06)
0.038 (0.96)
1.2 (30.5)
MIN.
0.310 (7.87)
0.280(7.11)
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current Tc = 55
擄
C
Peak Forward Surge Current Single half sine wave
Superimposed on rated load (JEDEC Method)
Current Squared Time at t < 8.3 ms.
Maximum Forward Voltage per Diode at I
F
= 7.5 Amp.
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Thermal Resistance (Note 1)
Operating Junction Temperature Range
Storage Temperature Range
Notes :
Ta = 25
擄
C
Ta = 100
擄
C
SYMBOL
BR
1500W
50
35
50
BR
1501W
100
70
100
BR
1502W
200
140
200
BR
1504W
400
280
400
15
BR
1506W
600
420
600
BR
1508W
800
560
800
BR
1510W
1000
700
1000
UNIT
Volts
Volts
Volts
Amps.
Amps.
A
2
S
Volts
碌A(chǔ)
碌A(chǔ)
擄C/W
擄C
擄C
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
I
R(H)
R
胃
JC
T
J
T
STG
300
375
1.1
10
200
1.9
- 40 to + 150
- 40 to + 150
1. Thermal Resistance from junction to case with units mounted on a 5" x 4" x 3" (12.7cm.x 10.2cm.x 7.3cm.) Al.-Finned Plate
UPDATE : APRIL 23, 1998
