INTEGRATED CONNECTOR MODULES

Gigabit belMag鈩?with LEDs

鈥?/div>

Single port shielded RJ-45 connector with integrated

Gigabit Ethernet magnetics

Compatible with a variety of Gigabit Ethernet

transceiver ICs and 10/100Base-TX transceiver ICs

Operating temperature 0擄 to +70擄 C

鈥?/div>

Storage temperature -40擄 to +85擄 C

Adaptable, modular design provides higher reliability

鈥?/div>

BM01810

Complies with IEEE 802.3ab standards and all Gigabit

Ethernet specifications

Integrated design conserves valuable board space

Minimum interwinding breakdown voltage of 1500 Vrms

鈥?/div>

ELECTRICAL SPECIFICATIONS AT 25擄 C

Common to

Differential Mode

Rejection

dB min

100KHz to 100MHz

Common to

Common Mode

Rejection

dB min

100KHz to 100MHz

-33 + 20 log

(f/100MHz)

Insertion Loss

dB max

Return Loss

dB min

Crosstalk

dB min

Hipot

Vrms min

0.1MHz

to 100MHz

-0.8

100MHz to

125MHz

-1.2

0.5MHz

to 40MHz

-18

40MHz

to 100MHz

-12 + 20 log

(f/80 MHz)

-35

-30

1500

SCHEMATIC

0826-1A1T-23

0826-1B1T-23

0826-1C1T-23

0826-1D1T-23

0826-1E1T-23

0826-1G1T-23

0826-1K1T-23

0826-1L1T-23

0826-1X1T-23

0826-1Y1T-23

LED 1

LED 2

Shield

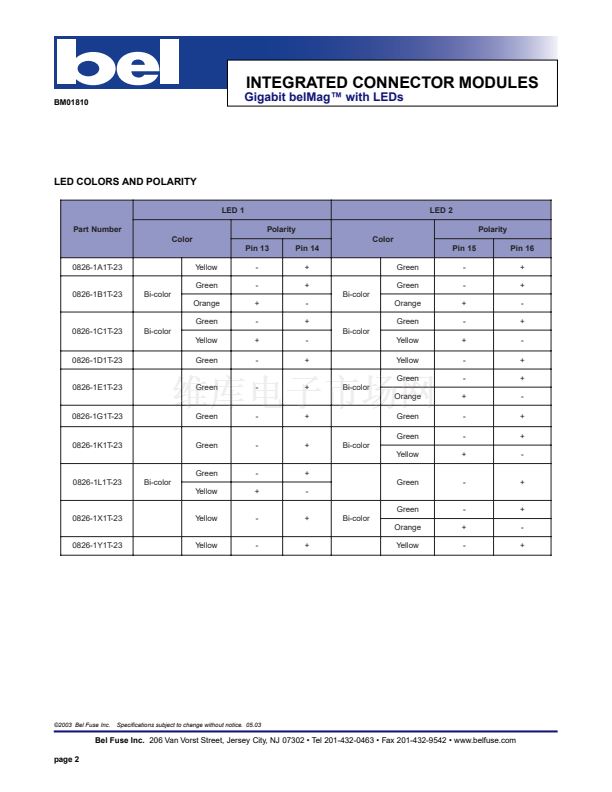

See chart on page 2 for LED colors and polarity.

漏2003 Bel Fuse Inc.

Specifications subject to change without notice. 05.03

1CT : 1CT

RJ45

1CT : 1CT

75鈩?/div>

1000pF

2kV

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com

page 1
