鈦?/div>
(inches)
鹵 .005"
鹵 .13 mm

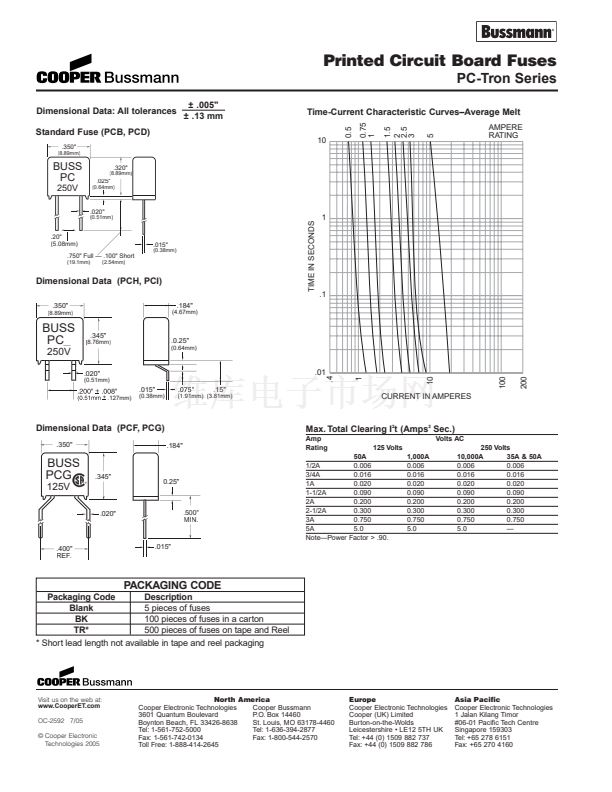

Dimensional Data: All tolerances
Ordering
鈥?Specify packaging code and product code
(i.e., BK/PCB-1/2)
DC Application
The PC-Tron subminiature fuse is UL Recognized for
DC supplementary overcurrent protection to provide
individual protection for components or internal circuits in
equipment. Suitability for a specific application is
dependent on time constants and capacitance values. It
is the responsibility of the customer to evaluate the
information provided for applicability to their particular
application.
Mounting Socket
鈥?Available as option. (Specify catalog number BK/PCS
(100-in) and short fuse lead length 鈥?PCC or PCE)
Socket (PCS)
.030"
.300"
(7.62mm)
(2.41mm)
.200"
(5.08mm)
.095"
(2.41mm)
.290"
(7.37mm)
(3.05mm
鹵
0.25mm)
.12"
鹵
.010"
SPECIFICATIONS
Product Code /
Amp Rating
PCB - 1/2, 3/4, 1, 1-1/2, 2, 2-1/2
PCB - 3
PCC - 1/2, 3/4, 1, 1-1/2, 2, 2-1/2
PCC - 3
PCD - 5
PCE - 5
PCF - 1/2, 3/4, 1, 1-1/2, 2, 2-1/2
PCF - 3
PCG - 5
PCH - 1/2, 3/4, 1, 1-1/2, 2, 2-1/2
PCH - 3
PCI - 5
Lead
Length
Full - 0.750" (straight)
Full - 0.750" (straight)
Short 0.100" (straight)
Short 0.100" (straight)
Full - 0.750" (straight)
Short 0.100" (straight)
0.475"
0.475"
0.475"
0.125"
0.125"
0.125"
Voltage
Rating AC
250V
250V
250V
250V
125V
125V
250V
250V
125V
250V
250V
125V
AC
Interrupting
50A @ 250V
10kA @ 125V
50A @ 250V
50A @ 250V
10kA @ 125V
50A @ 250V
10kA @ 125V
10kA @ 125V
10kA @ 125V
50A @ 250V
10kA @ 125V
50A @ 250V
10kA @ 125V
10kA @ 125V
50A @ 250V
10kA @ 125V
50A @ 250V
10kA @ 125V
10kA @ 125V
Voltage
Rating DC
450V
350V
450V
350V
250V
250V
450V
350V
250V
450V
350V
250V
DC Interrupting
Min.
Max.
300
5900A
300
300
300
300
300
300
300
300
300
300
300
4400A
5900A
4400A
4200A
4200A
5900A
4400A
4200A
5900A
4400A
4200A
Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended, with further derating required at
elevated ambient temperatures.
