BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BIR-BM18E4G-2
END-LOOK PACKAGE
LIGHT EMITTING DIODE
Features:
1. High radiant power and high radiant intensity.
2. Standard T-1 3/4(5mm)package.
3. Peak wavelength
位p=940nm.
4. Good spectral matching to si-photodetector.
5. Radiant angle: 40
擄
Package Dimensions:
Unit:mm(inches)
1.0(.040)
Anode
Cathode
Cathode
6. Lens Appearance: Light Blue Transparent.
7. This product doesn't contain restriction
substance, comply ROHS standard
2.54(0.100) NOM
NOTES:
Applications:
1. Remote Control.
2. Automatic Control System.
1.All dimensions are in millimeters (inches).
2.Tolerance is 鹵0.25mm (0.01鈥? unless otherwise specified.
3.Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
Absolute Maximum Ratings(Ta=25鈩?
Parameter
Power Dissipation
Continuous Forward Current
Peak Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
*1
*1
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
100
100
1.0
5
-45鈩儈85鈩?/div>
-45鈩儈100鈩?/div>
260鈩?for 5 seconds)
Unit
mW
mA
A
V
-
-
-
Condition for is I
FP
pulse of 1/10 duty and 0.1 msec width.

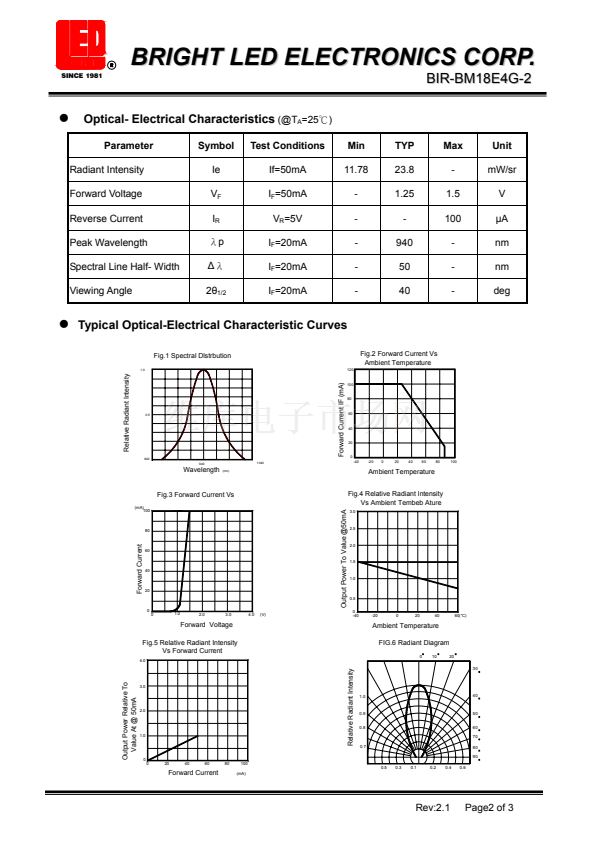

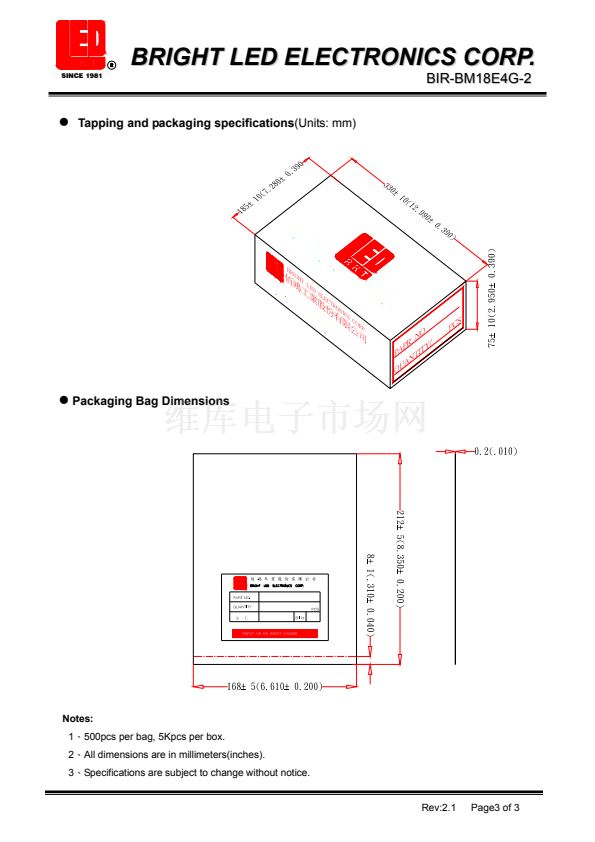

Rev:2.1 Page1 of 3
