250W / 300W TO-227 HIGH POWER RESISTORS
Features鈥︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€?
Non-Inductive,
Rated up to 300W depending on resistor configuration.
Small TO-227 style package, with very low thermal resistance.
Superior vibration durability, with M4 screw terminals.
RoHS compliant.
Applications鈥︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€︹€?/div>
High power snubber resistors in power supplies.
High frequency and pulse handling circuits.
Pulse generator load resistors
.
High power crossover circuits in audio speaker systems

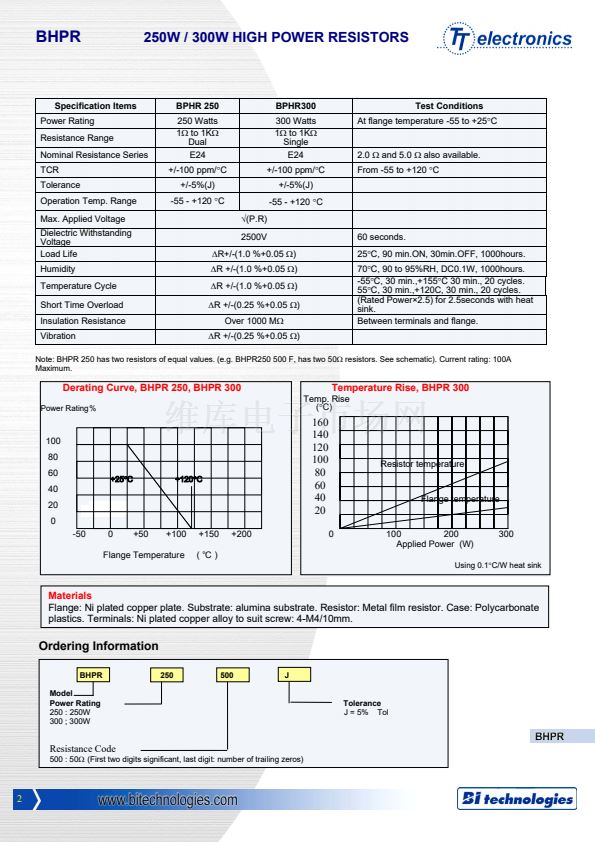

Specification
Dimensions
H
G
E
D
A
Dimensions
Symbols
A
B
C
D
E
F
G
H
(mm)
38+/-0.5
25+/-0.5
15+/-0.5
30+/-0.2
15+/-0.5
13+/-0.5
2-3.2dia.
4-M4.0
C
F
B
Schematics
BHPR300
銆€銆€
BHPR250
Specifications subject to change without notice
