Crimp

BHL

CONNECTOR

Disconnectable Crimp style connectors

鈥?Contact lances

voltage.

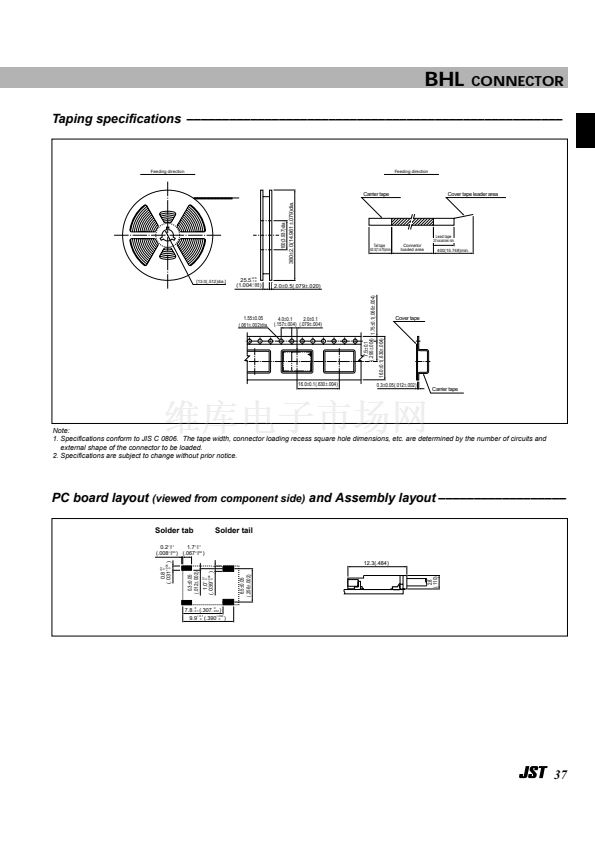

Emboss Tape

2.3mm

(.091") pitch

Features 鈥撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€?/div>

Contacts are secured in the housing by their spring action,

thus fully shrouded. This helps improve the withstanding

鈥?Anti-misinsertion housing

The housing has mis-insertion preventive guides on both

sides. Housing locks prevent release of the housing that might

result from vibration or shock.

Low profile connector with high

withstanding voltage, designed for

connecting liquid crystal display backlight

lamps to their starters. The BHL

connector is 2.8mm (.110") thick, so the

mounting height is only 3mm (.118").

Specifications 鈥撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€撯€?/div>

鈥?Current rating: 1.0A AC, DC

鈥?Voltage rating: 1,400V AC, DC

鈥?Temperature range: -25藲C to +85藲C

(including temperature rise in applying

electrical current)

鈥?Contact resistance: Initial value/10m

鈩?/div>

max.

After environmental testing/20m

鈩?/div>

max.

鈥?Insulation resistance:

1,000M

鈩?/div>

min.

鈥?Withstanding voltage: 3,800V AC/minute

鈥?Applicable wire: Conductor/AWG #28 to #24

Insulation O. D./0.9 to 1.7mm(.035" to .067")

* Contact JST for details.
