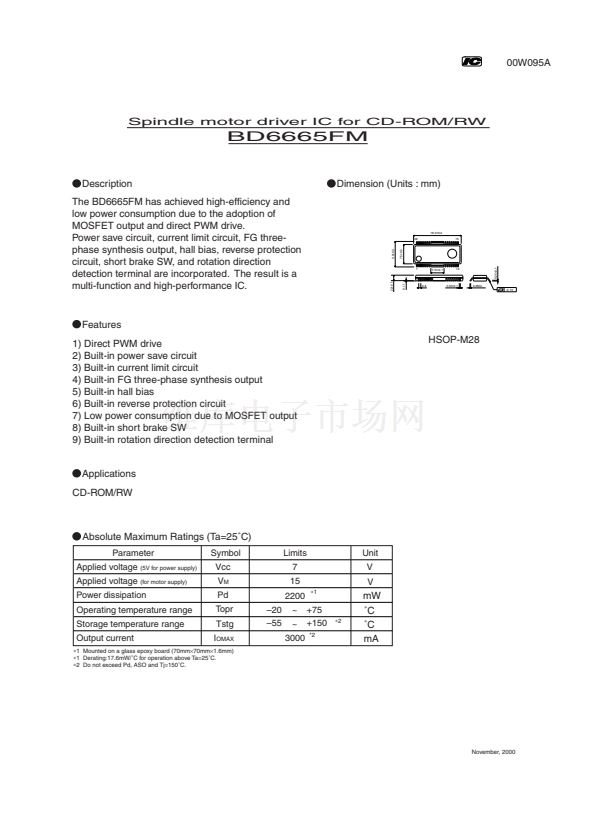

00W095A
Spindle motor driver IC for CD-ROM/RW
BD6665FM
Description
The BD6665FM has achieved high-efficiency and
low power consumption due to the adoption of
MOSFET output and direct PWM drive.
Power save circuit, current limit circuit, FG three-
phase synthesis output, hall bias, reverse protection
circuit, short brake SW, and rotation direction
detection terminal are incorporated. The result is a
multi-function and high-performance IC.
Dimension (Units : mm)
18.5鹵0.2
28
15
9.9鹵0.3
7.5鹵0.2
1
5.15鹵0. 1
14
2.2鹵0. 1
0. 1 1
0.8
0.35鹵0. 1
0.3Min.
0. 15
Features
1) Direct PWM drive
2) Built-in power save circuit
3) Built-in current limit circuit
4) Built-in FG three-phase synthesis output
5) Built-in hall bias
6) Built-in reverse protection circuit
7) Low power consumption due to MOSFET output
8) Built-in short brake SW
9) Built-in rotation direction detection terminal
Applications
CD-ROM/RW
HSOP-M28
Absolute Maximum Ratings (Ta=25藲C)
Parameter
Applied voltage
(5V for power supply)
Applied voltage
(for motor supply)
Power dissipation
Operating temperature range
Storage temperature range
Output current
Symbol
Vcc
V
M
Pd
Topr
Tstg
I
OMAX
鈥?0
鈥?5
Limits
7
15
2200
~
~
3000
鈭?
Unit
V
V
+75
+150
*2
鈭?
mW
藲C
藲C
mA
鈭?
Mounted on a glass epoxy board (70mm脳70mm脳1.6mm)
鈭?
Derating:17.6mW/藲C for operation above Ta=25藲C.
鈭?
Do not exceed Pd, ASO and Tj=150藲C.
November, 2000
0.25鹵0. 1
1
2
