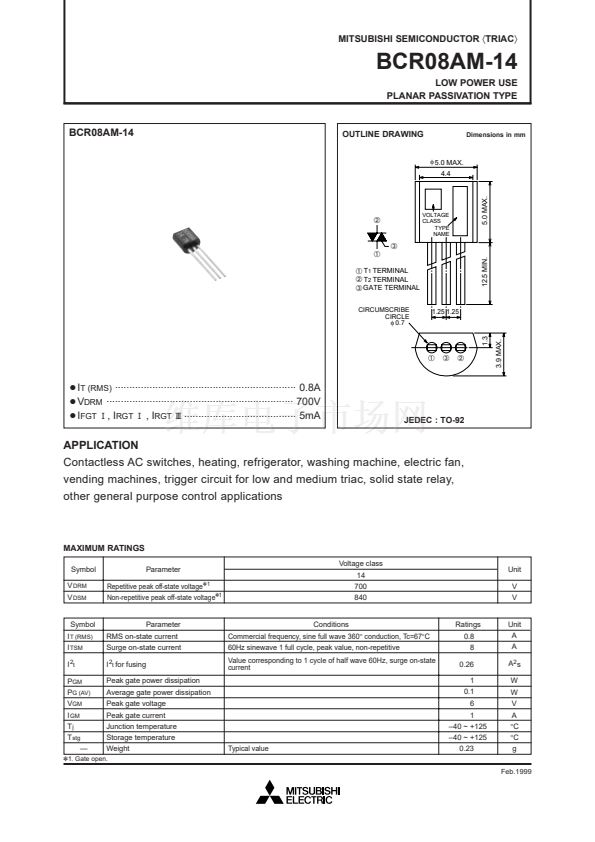

BCR08AM-14
LOW POWER USE
PLANAR PASSIVATION TYPE
BCR08AM-14
OUTLINE DRAWING
蠁
5.0 MAX.
Dimensions in mm
4.4
聧
聨
VOLTAGE
CLASS
TYPE
NAME
聦
T
1
TERMINAL
聧
T
2
TERMINAL
聨
GATE TERMINAL
CIRCUMSCRIBE
CIRCLE
蠁
0.7
1.25 1.25
1.3
12.5 MIN.
聦
5.0 MAX.
3.9 MAX.
聦 聨 聧
............................................................... 0.8A
q
V
DRM
................................................................. 700V
q
I
FGT
!
, I
RGT
!
, I
RGT
#
....................................... 5mA
q
I
T (RMS)
JEDEC : TO-92
APPLICATION
Contactless AC switches, heating, refrigerator, washing machine, electric fan,
vending machines, trigger circuit for low and medium triac, solid state relay,
other general purpose control applications
MAXIMUM RATINGS
Symbol
V
DRM
V
DSM
Parameter
Repetitive peak off-state voltage
V1
Non-repetitive peak off-state voltage
V1
Voltage class
14
700
840
Unit
V
V
Symbol
I
T (RMS)
I
TSM
I
2t
P
GM
P
G (AV)
V
GM
I
GM
T
j
T
stg
鈥?/div>
Parameter
RMS on-state current
Surge on-state current
I
2t
for fusing
Peak gate power dissipation
Average gate power dissipation
Peak gate voltage
Peak gate current
Junction temperature
Storage temperature
Weight
Typical value
Conditions
Commercial frequency, sine full wave 360擄 conduction, Tc=67擄C
60Hz sinewave 1 full cycle, peak value, non-repetitive
Value corresponding to 1 cycle of half wave 60Hz, surge on-state
current
Ratings
0.8
8
0.26
1
0.1
6
1
鈥?0 ~ +125
鈥?0 ~ +125
0.23
Unit
A
A
A
2
s
W
W
V
A
擄C
擄C
g
Feb.1999
V1.
Gate open.
1
2
