Low-Cost Set-top box reference design based on the
BCM7320 satellite single-chip
鈥?1鈥?5 Megabaud variable rate receiver
鈥?Data Transport Processor
- Support for DirecTV
TM
and MPEG transport streams
- DES/DVB descrambler
鈥?MPEG-ATSC compliant audio/video decoders
- MP@ML MPEG2 video decoder
- Decode of MPEG Layer 1 & Layer 2 audio
鈥?Broadcom graphics engine (BGE)
- Supports 3 Graphics, 1 x Video & H/W cursor planes
- 2D Video Scaling support
- Integrated PAL/NTSC/SECAM encoder
鈥?MIPS32 embedded processor
- MMU support
- EJTAG interface for development support
鈥?/div>
Provides a cost effective solution for direct broadcast
satellite (DBS) applications.
鈥?/div>
All major system functionality is integrated into the
BCM7320 single chip, greatly reducing system cost
and complexity.
鈥?/div>
Hardware and software design can be leveraged by
set-top box manufactures for rapid time to market.
鈥?/div>
Provides a reference and development environment for
the BCM7320 based set-top box designs.
鈥?/div>
Broadcom鈥檚 device drivers enable rapid software
development cycles with support of industry-standard
operating systems .
鈥?/div>
鈥?/div>
Reference design includes:
files.
Schematic drawings and Gerber
鈥?Bill of material (BOM).
鈥?Data sheets and users manual.
鈥?Software source code.
鈥?Application support.
鈥?/div>
BCM3440 CMOS tuner
鈥?/div>
IDE host interface for PVR development
鈥?/div>
USB host capability
鈥?/div>
Software device drivers
鈥?/div>
Complete fully functional set-top box

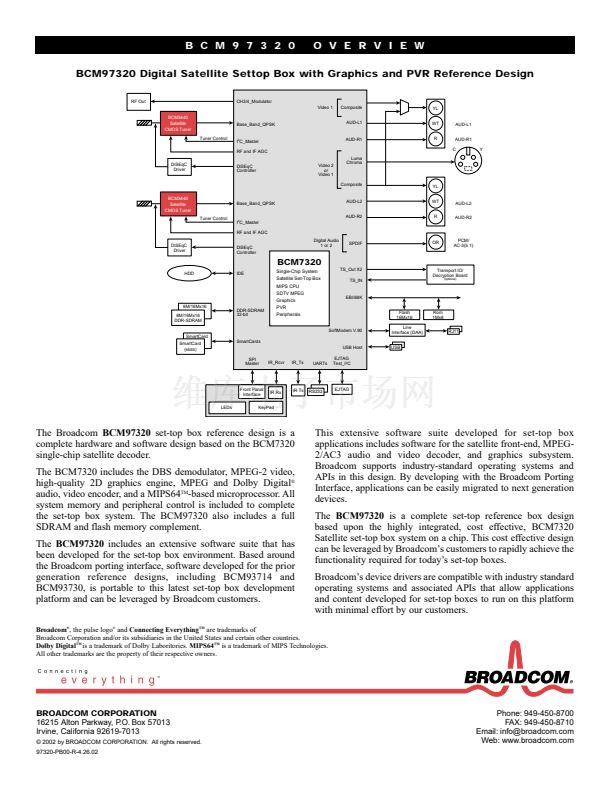

BCM97320 Set-top Box Software Development Platform
