operating systemsWindows
廬
95, 98, 2000 or NT host PC
QPSK, 8PSK and 16 QAM with a turbo code FEC.
Supports legacy modes based on DIRECTV
廬
and
DVB-S QPSK standards.
High-performance direct conversion BCM3440
satellite tuner exceeds performance of typical single-
chip satellite tuners for increased system performance.
Highly integrated BCM3440 and BCM4500 devices
enable low-cost implementation with minimal external
components.
Host software uses the BCM4500 high-level
application program interface (API) implemented in
the on-chip microcontroller contained in the
BCM4500.
BCM3440 also controlled by the host through the
BCM4500 API.
Highly integrated Windows
廬
software enables
evaluation of all advanced modulation/turbo modes, as
well as legacy DVB and DIRECTV modes.
Easy interface to PC via parallel port and I
2
C
connector on BCM94500.
Interface to BCM4500 Integrated DiSEqC
TM
2.0 for
two-way communication with external hardware.

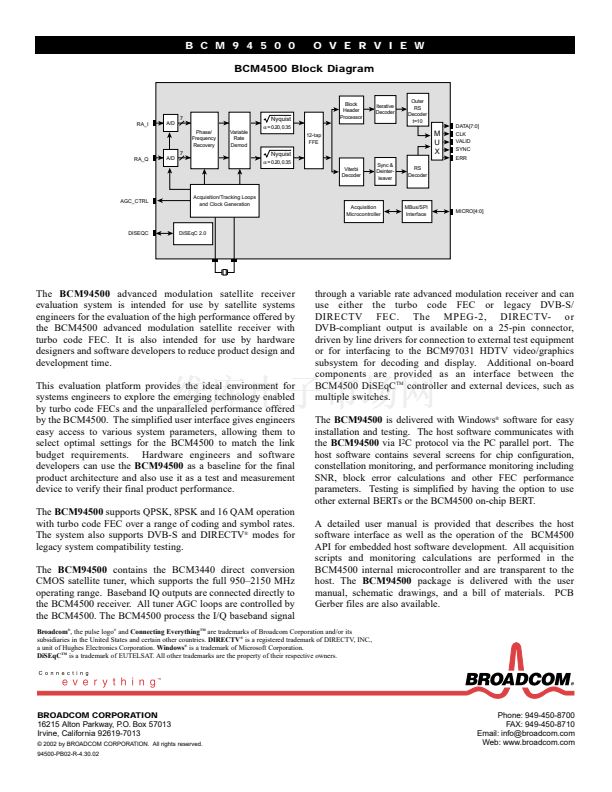

BCM94500 Advanced Modulation Satellite Receiver Evaluation System
