BCM93138 Datasheet

  • BCM93138

  • Advanced PHY Transmitter/Receiver Evaluation System

  • 85.95KB

  • 2頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

BCM93138
PRODUCT
Brief
O F
B E N E F I T S
BCM93138 ADVANCED PHY TRANSMITTER/RECEIVER EVALUATION SYSTEM
B C M 9 3 1 3 8
F E AT U R E S
S U M M A R Y
鈥?/div>
The BCM93138 is a dual-channel upstream cable burst
transmitter/receiver evaluation system
Support for advanced TDMA PHY layer functions for
鈥?/div>
DOCSIS/EuroDOCSIS, IEEE802.14, DAVIC and DVB
鈥?/div>
鈥?/div>
鈥?/div>
applications
Programmable modulation formats including BPSK,
and QPSK up to 256 QAM
Frequency-agile from 5 to 65 MHz
Flexible options for evaluating upstream analog front
end (AFE)
鈥?Wideband external A/D with direct sampling
鈥?Narrowband external A/D sampling
鈥?Narrowband internal A/D sampling
enables complete cable upstream
鈥?/div>
The BCM93138layer testing and evaluation with:
advanced PHY
鈥?BCM3138: DOCSIS/EuroDOCSIS-based advanced TDMA
PHY burst receiver
鈥?BCM3037: DOCSIS/EuroDOCSIS-based QPSK/16 QAM
burst transmitter
鈥?BCM3034: DOCSIS/EuroDOCSIS-based advanced QAM
modulator
Dramatically reduces time to
鈥?/div>
complete reference design for market by providing a
a DOCSIS/EuroDOCSIS
鈥?/div>
50 dB dynamic range for transmitter and receiver
Full Reed-Solomon encoder/decoder with
鈥?/div>
programmable 23-bit randomizer/derandomizer
鈥?/div>
Multiple operation modes:
Continuous
鈥?/div>
鈥?DOCSIS/EuroDOCSIS TDMA
鈥?Random-arrival
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Easy-to-use Broadband Studio evaluation software
based advanced TDMA PHY cable upstream
implementation.
Implements pre-equalization for improved
performance in heavily impaired cable channels.
Enables digital cable set-top boxes, modems and
telephony implementations.
Provides self-contained subscriber and headend system
with seamless interface between subscriber and
headend components.
Windows software for running test functions and
scripts enable user-based evaluation tools with fast
turn-up.
Windows software API for register, memory and
control access allows visibility to system performance
for design comparisons and tradeoffs.

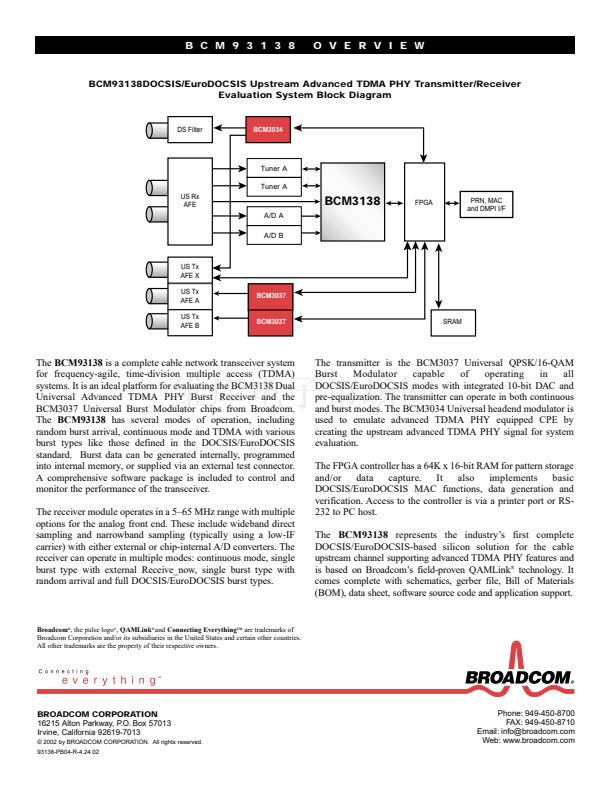

BCM93138 DOCSIS/EuroDOCSIS Upstream Advanced PHY
Transmitter/Receiver Evaluation System
