BCM6315 Datasheet

  • BCM6315

  • 2頁

  • ETC

掃碼查看芯片數(shù)據手冊

上傳產品規(guī)格書

PDF預覽

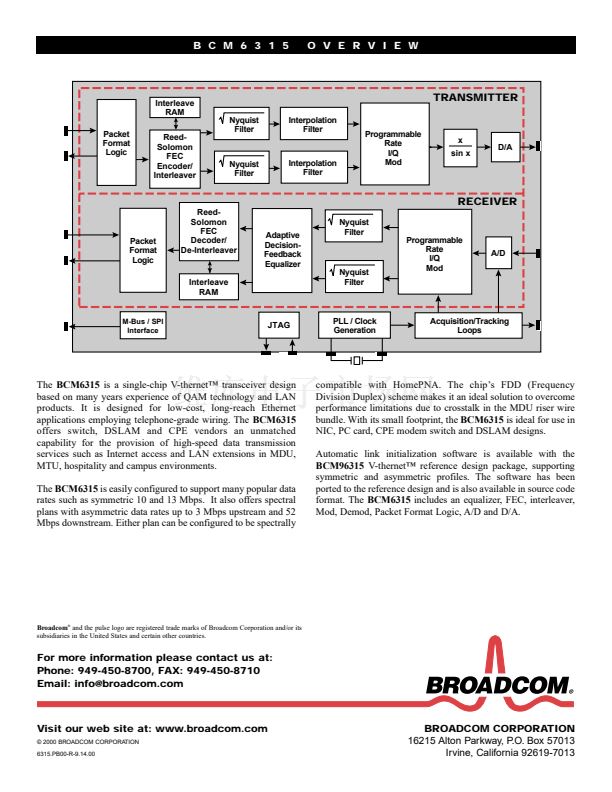

BCM6315
PRODUCT
Brief
O F
B E N E F I T S
BCM6315 V-thernet鈩?TRANSCEIVER
B C M 6 3 1 5
F E AT U R E S
S U M M A R Y
The Broadcom廬 BCM6315 is a single-chip V-thernet鈩?/div>
transceiver optimized for low-cost Ethernet transport on
telephone grade wire.
鈥?/div>
Operates on telephone grade and CAT 1鈥? twisted
pair cable
鈥?/div>
Supports most popular bit rates, including symmetric
10 and 13 Mbps
鈥?/div>
Supports asymmetric up to 3 Mbps upstream and 52
Mbps downstream for typical VoD application
鈥?/div>
Coexists with POTS
鈥?/div>
HPNA- compatible spectral plans available
鈥?/div>
Suitable for high-speed data transport through MDU
riser cable
鈥?/div>
Sub- 1-watt power consumption
鈥?/div>
Programmable QAM constellations
鈥?/div>
On-chip A/D and D/A converters
鈥?/div>
Adjustable upstream and downstream center frequencies
鈥?/div>
On-chip RAM interleaving
鈥?/div>
Reed-Solomon FEC
鈥?/div>
Packet scrambling
鈥?/div>
Enhanced adaptive decision feedback equalizer
鈥?/div>
Bit/byte synchronous interfaces
鈥?/div>
Single 3.3V supply operation
鈥?/div>
JTAG test interface
鈥?/div>
Small 100-pin PQFP package
鈥?/div>
15 times greater reach than Ethernet
鈥?/div>
Suitable for both DSLAM and remote units
鈥?/div>
Small size and low power enables high port densities
鈥?/div>
Simple spectrum control via register programming
DSLAM Block Diagram
Remote CPE Block Diagram
Ethernet
Switch
HDLC
Framer
BCM6315
Analog
Front End
(AFE)
POTS
Splitter
POTS
Splitter
Analog
Front End
(AFE)
BCM6315
HDLC
Framer
10Base-T
To
RJ45
Microcontroller
Microcontroller
