BCM5308M Datasheet

  • BCM5308M

  • 2頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

BCM5308M
PRODUCT
Brief
O F
B E N E F I T S

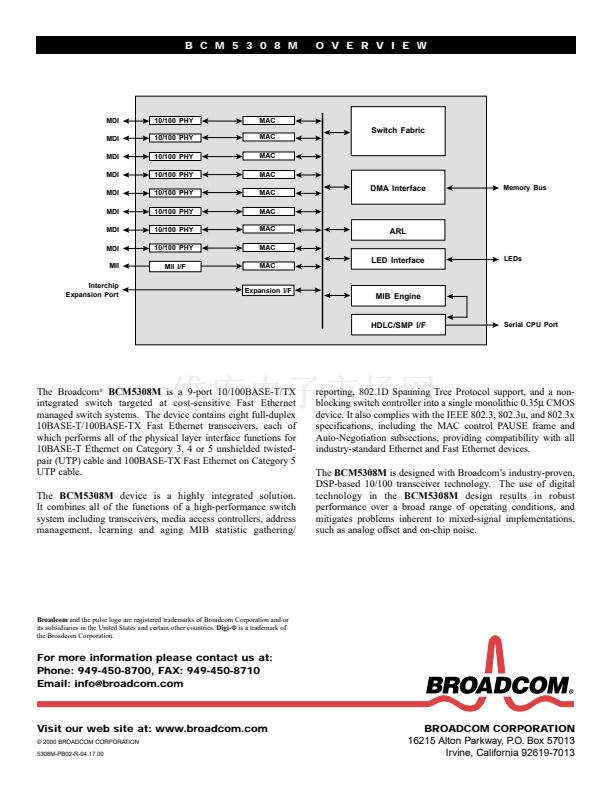

BCM5308M 9-PORT MANAGED 10/100BASE-T/TX SWITCH
B C M 5 3 0 8 M
F E AT U R E S
S U M M A R Y
鈥?/div>
9-Port 10/100 Switch Integrating the MACs, Switching
Fabric and eight Transceivers into a Single Chip
鈥?/div>
Support for Full-Wire Speed, Full-Duplex Traffic on
Every Port Simultaneously
鈥?/div>
Non-Blocking and Cascadable up to 24 Ports
鈥?/div>
On-Board 32/64-Bit Counters Support Popular MIBs
鈥?/div>
Serial Management Port (SMP) Provided for CPU
鈥?/div>
Hardware Support for SNMP, RMON, and Spanning Tree
鈥?/div>
Glueless Interface to Low-Cost 512 KB or
1 MB SSRAM
鈥?/div>
Support for Address Learning and Aging
鈥?/div>
MII Connection for External Phy (FX or TX)
that Cascades
鈥?/div>
2.6-Gbps Expansion Port Configuration up to three
Devices in a Daisy-Chain
鈥?/div>
Support for up to 16K Unicast MAC Addresses
鈥?/div>
Flow Control: Support for Full-Duplex (802.3x) and
Half-Duplex Options
鈥?/div>
Direct LED Interface to Provide Status on each Port
鈥?/div>
Low-Power, 3.3V Design in 0.35碌 CMOS Technology
鈥?/div>
352-Pin TBGA Package
Optional
TX Cascade I/F
D
5201
鈥?/div>
World鈥檚 most integrated 10/100 managed switch
鈥?/div>
Lowest cost solution for SOHO and entry-level
corporate applications
鈥?/div>
Smallest form factor (reducing board space by 50%)
鈥?/div>
Fully manageable with external CPU
鈥?/div>
Ability to gather and support basic management
statistics with only a very low-cost microcontroller
鈥?/div>
Scalable architecture that supports 8 to 24 port
densities
鈥?/div>
Cost of external LED latches and drivers eliminated
鈥?/div>
Robust and field-proven Digi-桅鈩?based 10/100
transceivers
鈥?/div>
Substantially simplified board and system design
鈥?/div>
Integrated transceivers, eliminating pin-intensive Media
Independent Interface (MII)
鈥?/div>
Internal PLL, generating all system clocks from a
single 25-MHz source
24-Port Fully Managed Cascadable Switch
Optional 2nd
TX Cascade I/F
D
5201
Mag
Mag
5201
ODL
CPU
SMP
MII
SSRAM
MII
MII
5308M
SSRAM
5308M
SSRAM
5308M
Quad
Magn.
Quad
Magn.
Quad
Magn.
Quad
Magn.
Quad
Magn.
Quad
Magn.
LED Matrix
8 x RJ-45
LED Matrix
8 x RJ-45
LED Matrix
8 x RJ-45
24 Front Panel Ports
