鈥?/div>
The BCM3360 integrates:
廬
DOCSIS/EuroDOCSIS 1.0/1.1 and complete
FA-TDMA Advanced Physical Layer feature set
鈥?Advanced QAMLink transceiver supporting Annex A/B/C
operation
鈥?DOCSIS/EuroDOCSIS 1.0/1.1 MAC
鈥?High-performance, 140-MHz MIPS-32 CPU
鈥?Advanced QAMLink
廬
鈥?downstream demodulator, supporting
4/16/32/64/128/256/512/1024 QAM
鈥?Advanced QAMLink
廬
鈥?upstream modulator, supporting FA-
TDMA Advanced PHY with 2/4/8/16/ 32/64/128/256 QAM
鈥?Upstream power amplifier
鈥?IPSEC Engine for VPN gateway applications
鈥?10/100 Ethernet MAC/PHY with MII interface
鈥?USB 1.1 slave port with integrated transceiver
鈥?Single 28-MHz reference crystal
鈥?Extended device interface
鈥?/div>
First complete Advanced PHY, single-chip cable
modem.
鈥?/div>
Advanced QAMLink modulator/demodulator
provides higher throughputs and superior
performance in noisy plant environments.
鈥?/div>
DOCSIS/EuroDOCSIS 1.0/1.1 MAC is compatible
with existing Cable Modem application code, resulting
in minimum time to market.
with integrated transceiver provides lowest cost CPE
interface.
鈥?/div>
Integrated 10/100 Ethernet MAC/PHY and USB 1.1
鈥?/div>
Advanced RF and control interface to BCM3415
CMOS Tuner for DOCSIS/EuroDOCSIS solutions
鈥?/div>
On-chip support for PROPANE packet acceleration
鈥?/div>
1.8/3.3 volt operation
鈥?/div>
356-pin PBGA package
TM
鈥?/div>
Integrated HPNA 2.0 core provides fast home
networking over existed telephone wiring.
鈥?/div>
EBI interface supports connection to wireless home
networking module.
鈥?/div>
On-chip PROPANE supports DOCSIS/EuroDOCSIS
based packet acceleration.
鈥?/div>
EJTAG embedded ICE support is compatible with
TM
existing MIPS32 development tools, improving
software development and testing.

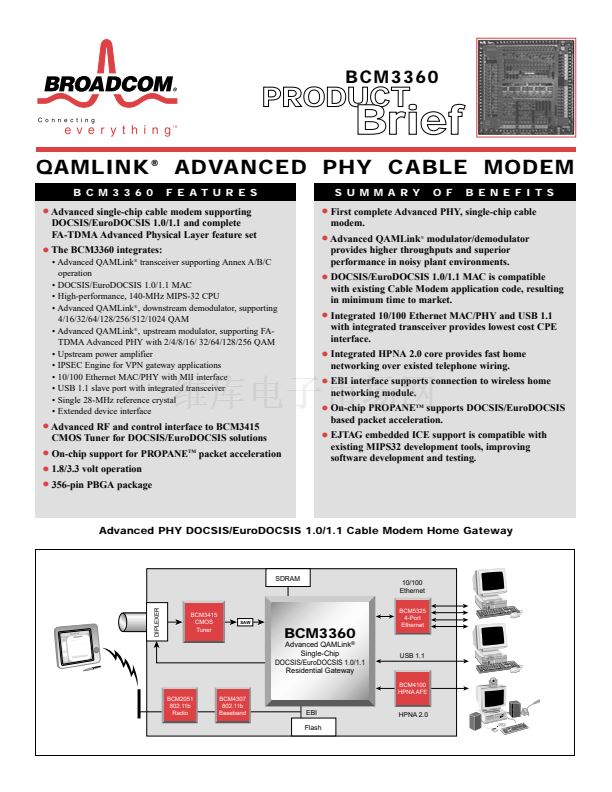

Advanced PHY DOCSIS/EuroDOCSIS 1.0/1.1 Cable Modem Home Gateway
SDRAM
10/100
Ethernet
BCM5325
4-Port
Ethernet
DIPLEXER
BCM3415
CMOS
Tuner
SAW
BCM3360
Advanced QAMLink
廬
Single-Chip
DOCSIS/EuroDOCSIS 1.0/1.1
Residential Gateway
USB 1.1
BCM4100
HPNA AFE
BCM2051
802.11b
Radio
BCM4307
802.11b
Baseband
EBI
Flash
HPNA 2.0
