Continental Device India Limited
An IS/ISO 9002 and IECQ Certified Manufacturer
IS/ISO 9002
Lic# QSC/L- 000019.2
IS / IECQC 700000
IS / IECQC 750100
PNP SILICON PLANAR EPITAXIAL TRANSISTOR
BC369

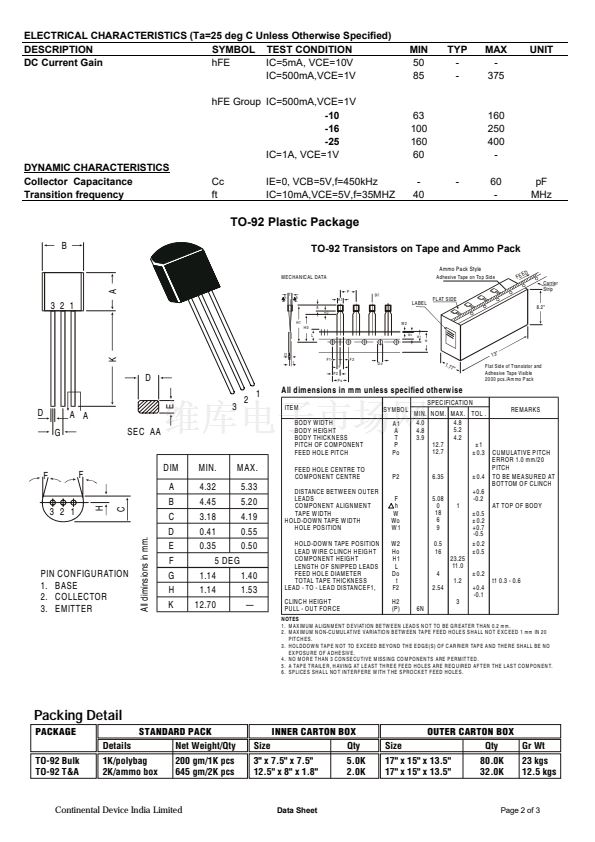

TO-92
BCE
Transistor in TO-92 Plastic Package Intended for Low Voltage, High Current LF
Applications, Suitable for Class-B Audio Output Stages up to 3W
ABSOLUTE MAXIMUM RATINGS
DESCRIPTION
SYMBOL
VALUE
VCES
25
Collector -Emitter Voltage
VCEO
20
Collector -Emitter Voltage
VEBO
5.0
Emitter Base Voltage
IC
1.0
Collector Current
ICM
2.0
Collector Current Peak Value
IB
100
Base Current
IBM
200
Base Current Peak Value
PTA
0.8
Power Dissipation @ Ta=25 deg C
PTC
1.0
@ Tc=25 deg C
Tj
150
Junction Temperature
Tstg
-65 to +150
Storage Temperature Range
Thermal Resistance
Rth (j-a)
156
Junction to Ambient in Free Air
Rth (j-a)
125
Junction to Ambient *
Rth (j-c)
60
Junction to Case
*Mounted on printed-circuit board , maximum lead length 4mm, mounting
pad for collector lead min 10 mm x10 mm
ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified)
DESCRIPTION
SYMBOL TEST CONDITION
ICBO
IE=0, VCB=25V
Collector Cut- off Current
Tj=150 deg C
IE=0, VCB=25V
VEB=5V, IC=0
IC=5mA, VCE=10V
IC=1A, VCE=1V
IC=1A, IB=100mA
UNIT
V
V
V
A
A
mA
mA
W
W
deg C
deg C
deg C/W
deg C/W
deg C/W
MIN
-
TYP
-
-
-
-
MAX
10
UNIT
uA
Emitter Cut- off Current
Base- Emitter on Voltage
Collector- Emitter Saturation Voltage
IEBO
VBE(on)
VCE(Sat)
-
-
-
-
-
-
1.0
10
0.7
1.0
0.5
mA
uA
V
V
V
Continental Device India Limited
Data Sheet
Page 1 of 3
