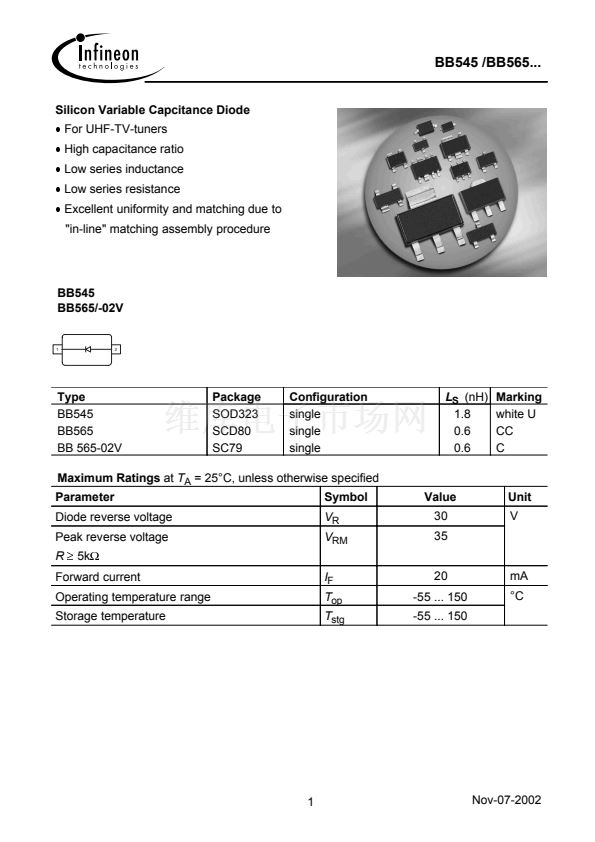

BB545 /BB565...

Silicon Variable Capcitance Diode

For UHF-TV-tuners

High capacitance ratio

Low series inductance

Low series resistance

Excellent uniformity and matching due to

"in-line" matching assembly procedure

1

BB545

BB565/-02V

2

Type

BB545

BB565

BB 565-02V

Package

SOD323

SCD80

SC79

Configuration

single

single

single

L

S

(nH)

1.8

0.6

0.6

Marking

white U

CC

C

Maximum Ratings

at

T

A

= 25擄C, unless otherwise specified

Parameter

Diode reverse voltage

Peak reverse voltage

Forward current

Operating temperature range

Storage temperature

R

5k

Symbol

V

R

V

RM

I

F

T

op

T

stg

Value

30

35

20

-55 ... 150

-55 ... 150

mA

擄C

Unit

V



1

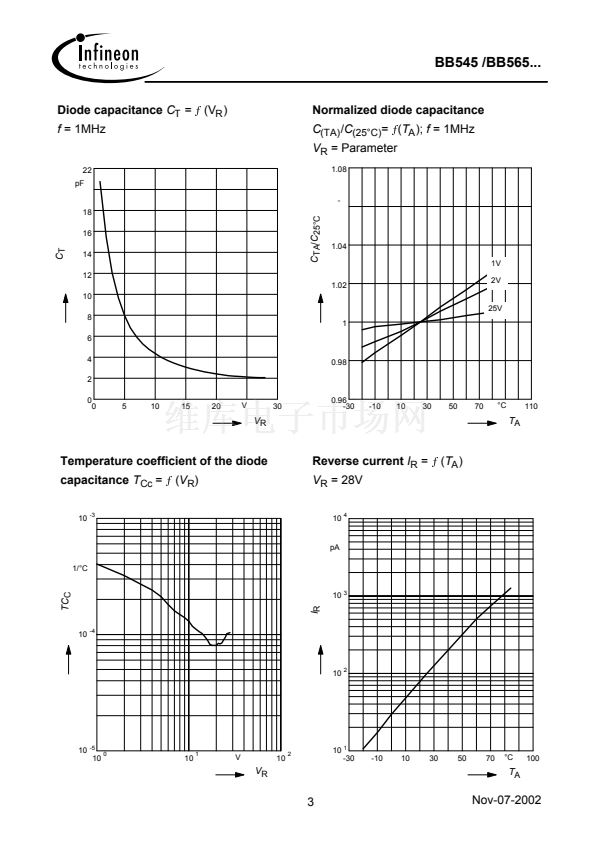

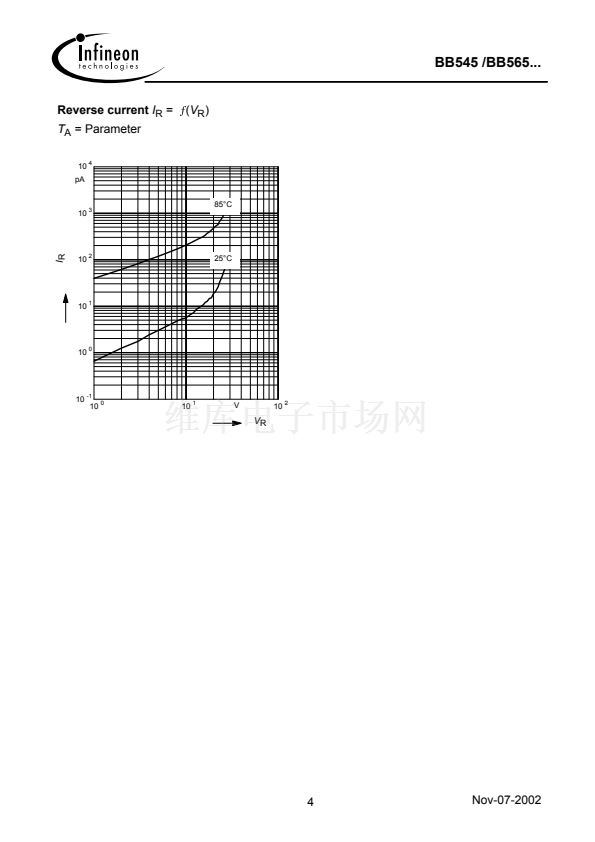

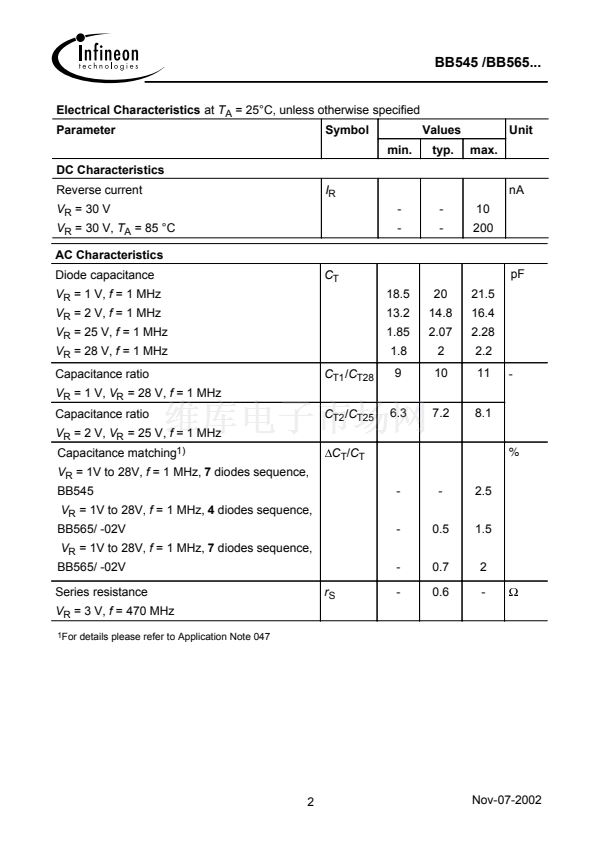

Nov-07-2002
