鈥?/div>
Low Forward Voltage 鈥?0.75 Volts (Typ) @ IF = 10 mAdc
3
CATHODE
1
ANODE

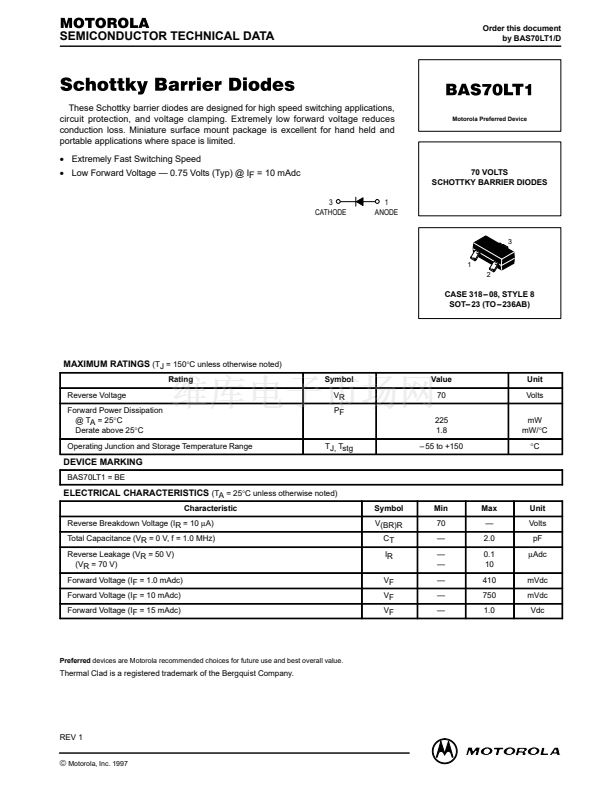

BAS70LT1
Motorola Preferred Device
70 VOLTS
SCHOTTKY BARRIER DIODES
3
1
2
CASE 318 鈥?08, STYLE 8
SOT鈥?23 (TO 鈥?236AB)
MAXIMUM RATINGS
(TJ = 150擄C unless otherwise noted)
Rating
Reverse Voltage
Forward Power Dissipation
@ TA = 25擄C
Derate above 25擄C
Operating Junction and Storage Temperature Range
Symbol
VR
PF
225
1.8
TJ, Tstg
鈥?55 to +150
mW
mW/擄C
擄C
Value
70
Unit
Volts
DEVICE MARKING
BAS70LT1 = BE
ELECTRICAL CHARACTERISTICS
(TA = 25擄C unless otherwise noted)
Characteristic
Reverse Breakdown Voltage (IR = 10
碌A)
Total Capacitance (VR = 0 V, f = 1.0 MHz)
Reverse Leakage (VR = 50 V)
(VR = 70 V)
Forward Voltage (IF = 1.0 mAdc)
Forward Voltage (IF = 10 mAdc)
Forward Voltage (IF = 15 mAdc)
Symbol
V(BR)R
CT
IR
VF
VF
VF
Min
70
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Max
鈥?/div>
2.0
0.1
10
410
750
1.0
Unit
Volts
pF
碌Adc
mVdc
mVdc
Vdc
Preferred
devices are Motorola recommended choices for future use and best overall value.
Thermal Clad is a registered trademark of the Bergquist Company.
REV 1
Motorola Small鈥揝ignal Transistors, FETs and Diodes Device Data
漏
Motorola, Inc. 1997
1
