JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
SOD-323 Plastic-Encapsulate
Diode
SCHOTTKY DIODE
BAS40WS

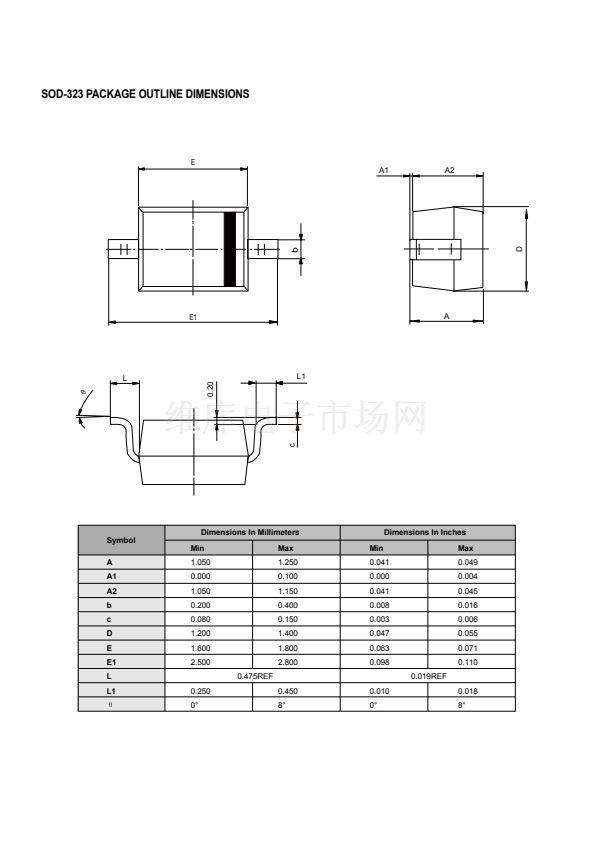

SOD-323
Features
路
路
路
Low Turn-on Voltage
Fast Switching
PN Junction Guard Ring for Transient and
ESD Protection
1.30
1.00
1.70
Marking:
BAS40WS:43
Unit:mm
2.65
Maximum Ratings
@ T
A
= 25擄C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
I
FM
P
d
@ t < 1.0s
I
FSM
R
qJA
T
j
T
STG
BAS40
40
200
350
600
357
-55 to +125
-65 to +150
Unit
V
mA
mW
mA
擄C/W
擄C
擄C
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current (Note 1)
Power Dissipation (Note 1)
Forward Surge Current (Note 1)
Operating Junction Temperature Range
Storage Temperature Range
Thermal Resistance, Junction to Ambient Air (Note 1)
Electrical Characteristics
@ T
A
= 25擄C unless otherwise specified
Characteristic
Reverse Breakdown Voltage
Forward Voltage
Reverse Leakage Current
Junction Capacitance
Reverse Recovery Time
Notes:
Symbol
V
(BR)R
V
F
I
R
C
j
t
rr
Min
40
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Typ
鈥?/div>
鈥?/div>
20
4.0
鈥?/div>
Max
鈥?/div>
380
1000
200
5.0
5.0
Unit
V
mV
nA
pF
ns
Test Condition
I
R
= 10mA
t
p
< 300ms, I
F
= 1.0mA
t
p
< 300ms, I
F
= 40mA
t
p
< 300ms, V
R
= 30V
V
R
= 0V, f =1.0MHz
I
F
= I
R
= 10mA to I
R
= 1.0mA,
R
L
= 100W
1. Valid Provided that terminals are kept at ambient temperature.
0.30
1 /1
