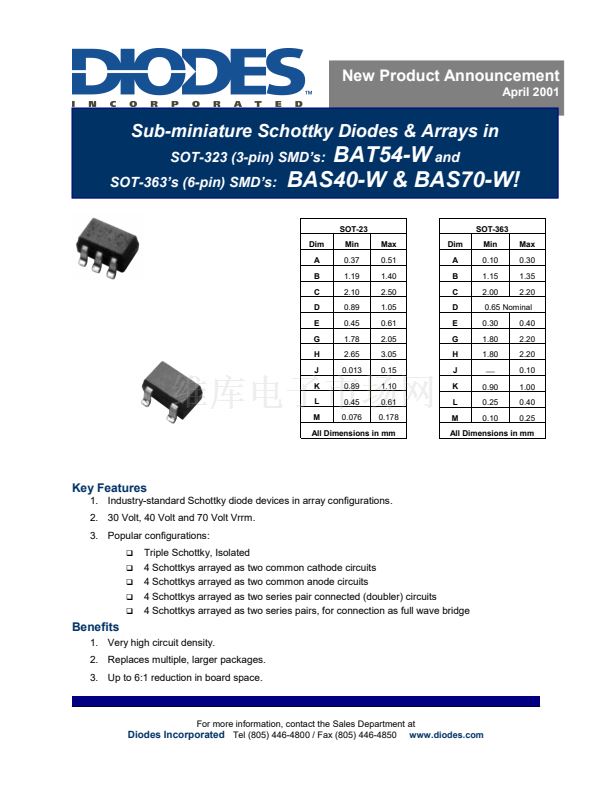

New Product Announcement

April 2001

Sub-miniature Schottky Diodes & Arrays in

SOT-323 (3-pin) SMD鈥檚:

SOT-363鈥檚 (6-pin) SMD鈥檚:

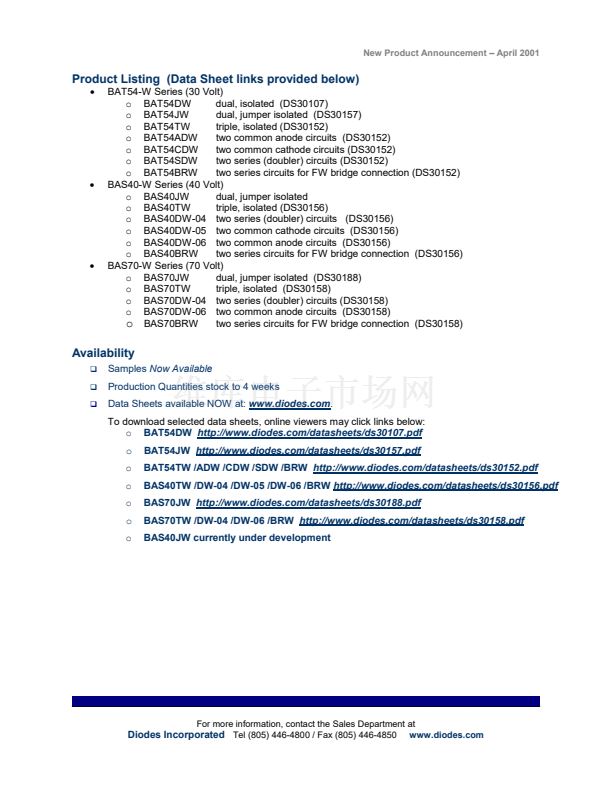

BAT54-W

and

BAS40-W & BAS70-W!

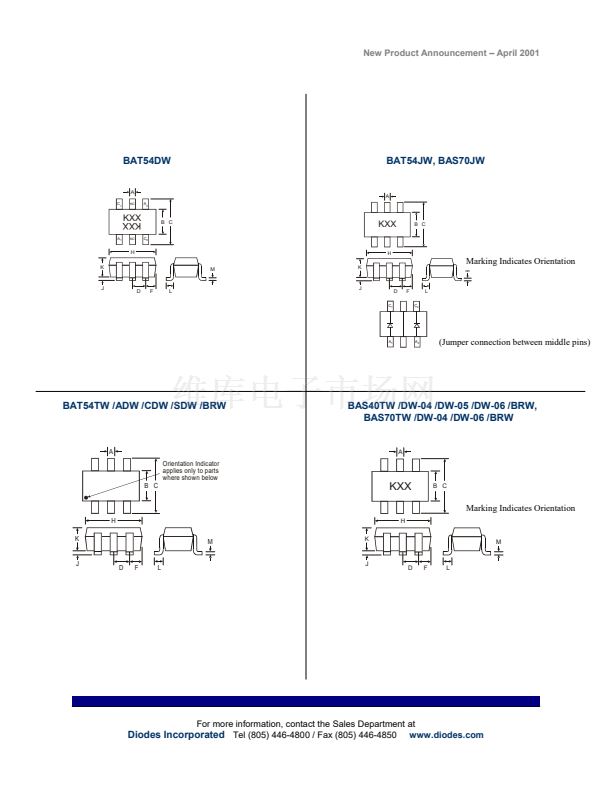

SOT-23

Dim

Min

0.37

1.19

2.10

0.89

0.45

1.78

2.65

0.013

0.89

0.45

0.076

Max

0.51

1.40

2.50

1.05

0.61

2.05

3.05

0.15

1.10

0.61

0.178

Dim

SOT-363

Min

0.10

1.15

2.00

Max

0.30

1.35

2.20

0.65 Nominal

0.30

1.80

錚?/div>

0.90

0.25

0.10

0.40

2.20

0.10

1.00

0.40

0.25

All Dimensions in mm

Key Features

1. Industry-standard Schottky diode devices in array configurations.

2. 30 Volt, 40 Volt and 70 Volt Vrrm.

3. Popular configurations:

Triple Schottky, Isolated

4 Schottkys arrayed as two common cathode circuits

4 Schottkys arrayed as two common anode circuits

4 Schottkys arrayed as two series pair connected (doubler) circuits

4 Schottkys arrayed as two series pairs, for connection as full wave bridge

Benefits

1. Very high circuit density.

2. Replaces multiple, larger packages.

3. Up to 6:1 reduction in board space.

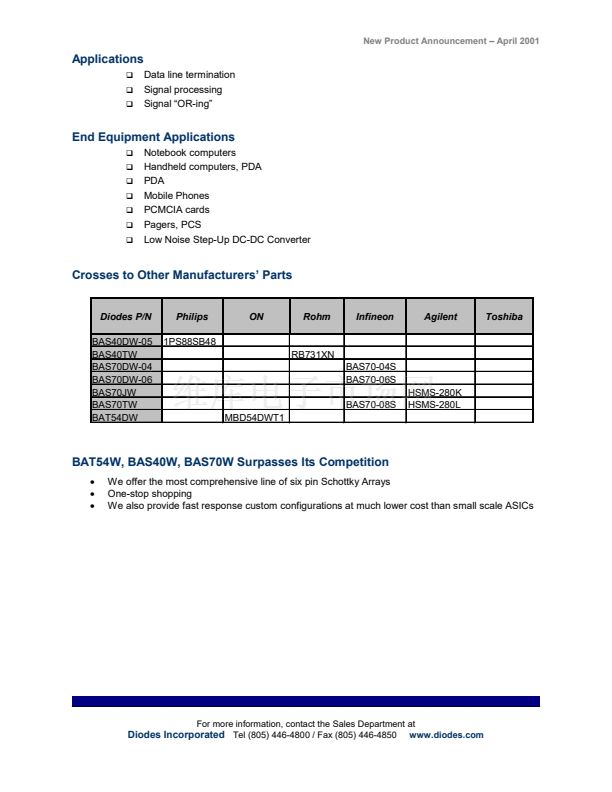

_____________________________________________________________________________________________

For more information, contact the Sales Department at

Diodes Incorporated

Tel (805) 446-4800 / Fax (805) 446-4850

www.diodes.com
