00W015A
Reversible Motor Driver
BA6920FP-Y
Description
The BA6920FP-Y is an IC for small DC motor
drive which has a wide operating voltage range.
It has four output modes such as forward, reverse,
stop and brake. When the motor is stopped, all
circuits turn off automatically. A power save circuit
that reduces current consumption and a power save
terminal is included. This IC has 34V maximum
operating voltage, so that it is useful for wide
varieties of applications.
Dimension
(Units:mm)
Features
1)Wide operating voltage range : 6.5~34V
2)Can be operated directly by TTL and CMOS
3)Low power consumption while the motor is stopping
due to built-in power save circuit
4)Output high voltage can be set externally by V
REF
pin.
5)Built-in surge absorbing diode
6)Built-in TSD (Thermal shut down ) circuit
7) A signal ground and a power ground are provided
separately, so that reversible/variable speed control
is available by adding an electronic governor.
Applications
HSOP25
VCR, Audio system applications, Office automation equipment, Industrial applications
Absolute Maximum Ratings
(Ta=25 )
Parameter
Supply voltage
Power dissipation
Operating temperature range
Storage temperature range
Output current
Symbol
V
CC
Pd
Topr
Tstg
IOUT
Limits
36
1450
*1
Unit
V
mW
deg
mA
-30 ~ +85
-55 ~ +150
1000
*2
*1 Derating : 11.6mW/ for operation above Ta=25
(Mounted on a 70.0mm*70.0mm*1.6mm glass epoxy PCB.)
*2 Do not exceed PD and ASO.

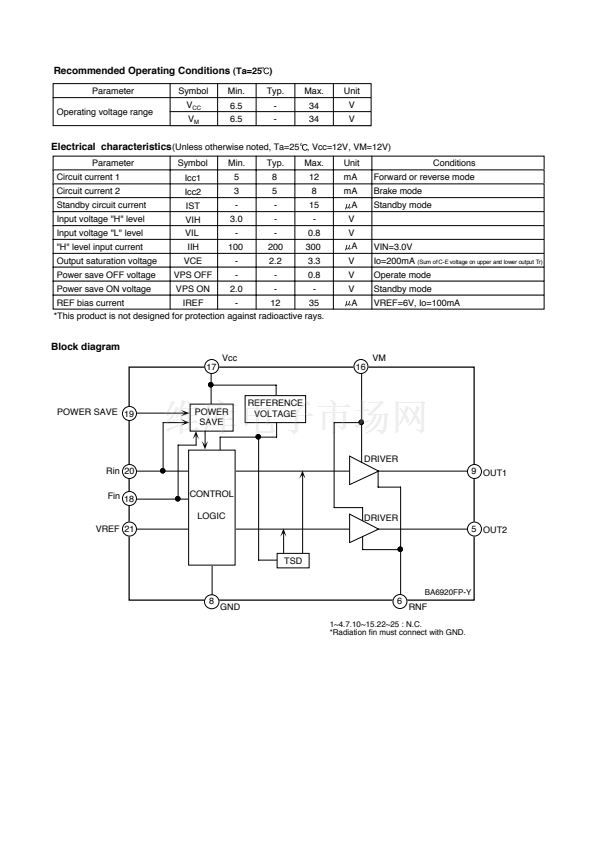

March, 2000
