Bay Linear
Inspire the Linear Power
Surface Mount RF PIN Switch Diodes
Description
The B-839x series is optimized for switching
applications where low resistance at low current and low
capacitance are required. The B-849x series products
feature ultra low parasitic inductance. These products
are specifically designed for use at frequencies which
are much higher than the upper limit for conventional
PIN diodes.
At Bay Linear, our commitment to quality components
gives our customers a reliable source of RF products,
which are tested at a more stringent level than our
competitors. Manufacturing techniques assure that when
two diodes are mounted into a single package they are
taken from adjacent sites on the wafer.
In cross referenced parts, we guarantee pin to pin
compatibility. The various package configurations
available provide a low cost solution to a wide variety of
design problems.
B8390
Series
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Unique Configurations in Surface Mount
Add Flexibility
Save Board Space
Reduce Cost
Switching
Low Capacitance
Low Resistance at Low Current
Low Failure in Time (FIT) Rate
Matched Diodes
High Thermal Conductivity for greater Power

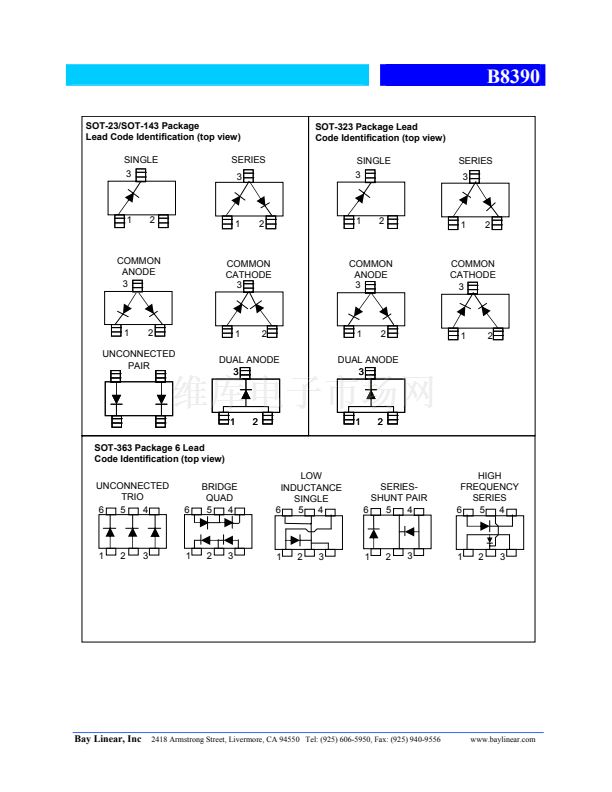

Pin Connection
Pin Connections and
Package Marking
1
2
3
Notes:
1. Package marking provides
orientation and identification
2. See 鈥淓lectrical Specifications鈥?/div>
for appropriate package marking
Ordering Information
Package
SOT-26
Part No.
B839XK6 -X.X
6
5
4
C4Z
C4Z
C4Z
Bay Linear, Inc
2418 Armstrong Street, Livermore, CA 94550 Tel: (925) 606-5950, Fax: (925) 940-9556
www.baylinear.com
