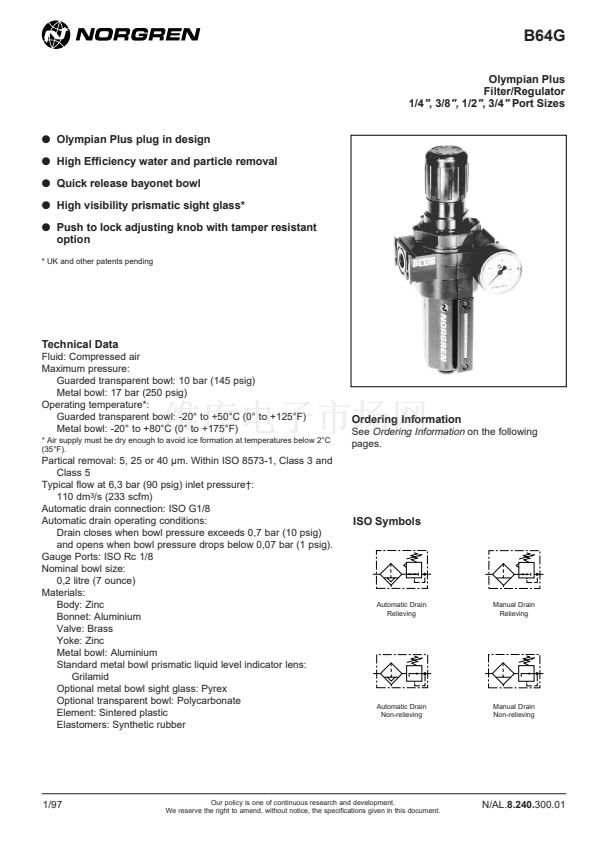

B64G
Olympian Plus
Filter/Regulator
1/4", 3/8", 1/2", 3/4" Port Sizes
q
Olympian Plus plug in design
q
High Efficiency water and particle removal
q
Quick release bayonet bowl
q
High visibility prismatic sight glass*
q
Push to lock adjusting knob with tamper resistant
option
* UK and other patents pending
Technical Data
Fluid: Compressed air
Maximum pressure:
Guarded transparent bowl: 10 bar (145 psig)
Metal bowl: 17 bar (250 psig)
Operating temperature*:
Guarded transparent bowl: -20擄 to +50擄C (0擄 to +125擄F)
Metal bowl: -20擄 to +80擄C (0擄 to +175擄F)
* Air supply must be dry enough to avoid ice formation at temperatures below 2擄C
(35擄F).

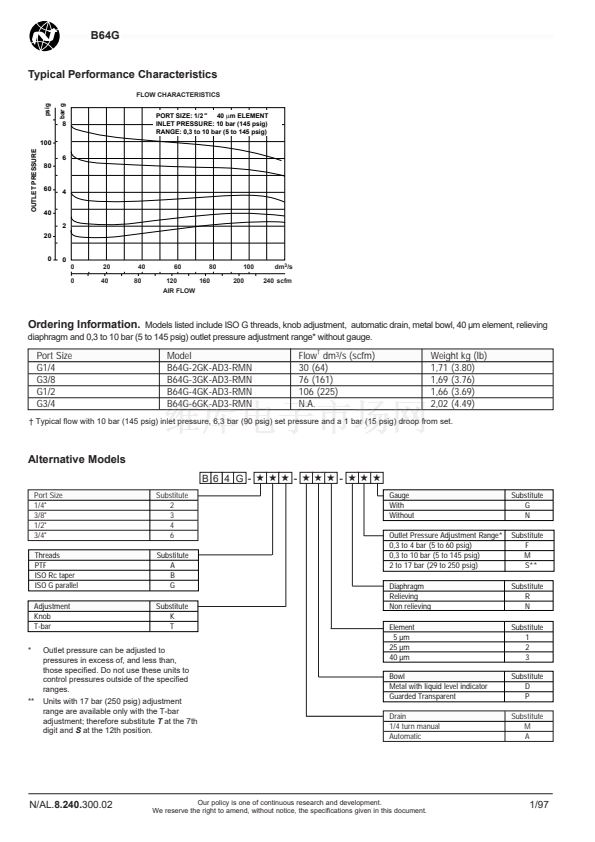

Ordering Information
See
Ordering Information
on the following
pages.
Partical removal: 5, 25 or 40 碌m. Within ISO 8573-1, Class 3 and
Class 5
Typical flow at 6,3 bar (90 psig) inlet pressure鈥?
110 dm
3
/s (233 scfm)
Automatic drain connection: ISO G1/8
Automatic drain operating conditions:
Drain closes when bowl pressure exceeds 0,7 bar (10 psig)
and opens when bowl pressure drops below 0,07 bar (1 psig).
Gauge Ports: ISO Rc 1/8
Nominal bowl size:
0,2 litre (7 ounce)
Materials:
Body: Zinc
Bonnet: Aluminium
Valve: Brass
Yoke: Zinc
Metal bowl: Aluminium
Standard metal bowl prismatic liquid level indicator lens:
Grilamid
Optional metal bowl sight glass: Pyrex
Optional transparent bowl: Polycarbonate
Element: Sintered plastic
Elastomers: Synthetic rubber
ISO Symbols
Automatic Drain
Relieving
Manual Drain
Relieving
Automatic Drain
Non-relieving
Manual Drain
Non-relieving
1/97
Our policy is one of continuous research and development.
We reserve the right to amend, without notice, the specifications given in this document.
