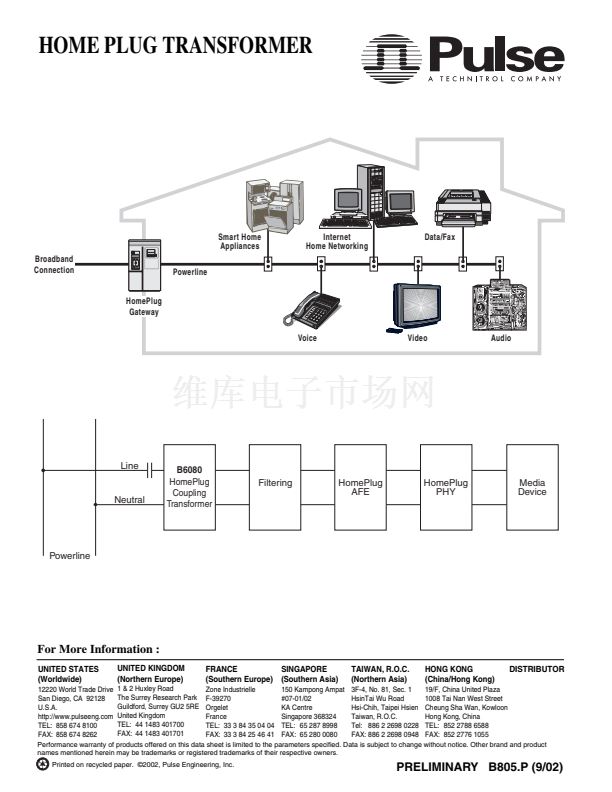

HOME PLUG TRANSFORMER
Supports HomePlug 1.0 Technology
Matched to leading HomePlug Analog Front End
Powerline Interface
Couples Home Powerline to HomePlug Analog
Front End (AFE)
Small form factor
Electrical Specifications @ 25擄C 鈥?Operating Temperature -40擄C to +85擄C
Part
Number
B6080
Mounting
SMT
Turns Ratio
(鹵2%)
(1-3):(6-4)
1CT:1CT
Inductance
(@ 100 kHz, 0.01 Vrms)
(1-3)
250 碌H MIN
Isolation
Voltage
(Vrms)
2000
NOTE:
Transformers are shipped in tubes, unless Tape & Reel packaging is specified by adding a 鈥淭鈥?suffix to the part number (ex: B6080T).
Mechanical
B6080
.366
9,30
.276
7,00
Schematic
.411
鹵 .010
10,44
鹵 0,25
Date Code
Country of Origin
B6080
.268
6,81
6X
.043
1,10
.098
2,50
.197
5,00
SUGGESTED PAD LAYOUT
.445
11,30
1
2
3
1CT:1CT
6
5
4
.098
2,50
.197
5,00
6X
.028
0,71
Weight
. . . . . . . . . . . . . .3.5 grams
Tape & Reel
. . . . . . . . . . . .180/reel
Tube
. . . . . . . . . . . . . . . . . .50/tube
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are 鹵 .010
0,25
.394
10,00
.012
0,30
.004/0,10
6 SURFACES
US 858 674 8100
鈥?/div>
UK 44 1483 401 700
鈥?/div>
France 33 3 84 35 04 04
鈥?/div>
Singapore 65 287 8998
鈥?/div>
Taiwan 886 2 2698 0228
鈥?/div>
Hong Kong 852 2788 6588
鈥?/div>
http://www.pulseeng.com
PRELIMINARY B805.P (9/02)
