B5S16862 Datasheet

  • B5S16862

  • 20-BIT TWO PORT BUS SWITCH WITH FOUR ENABLE CONTROL

  • 9頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

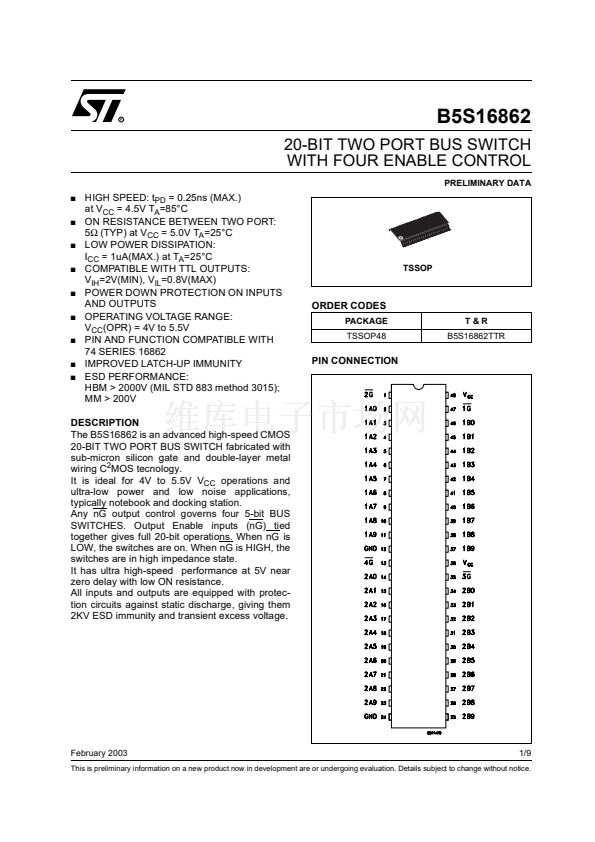

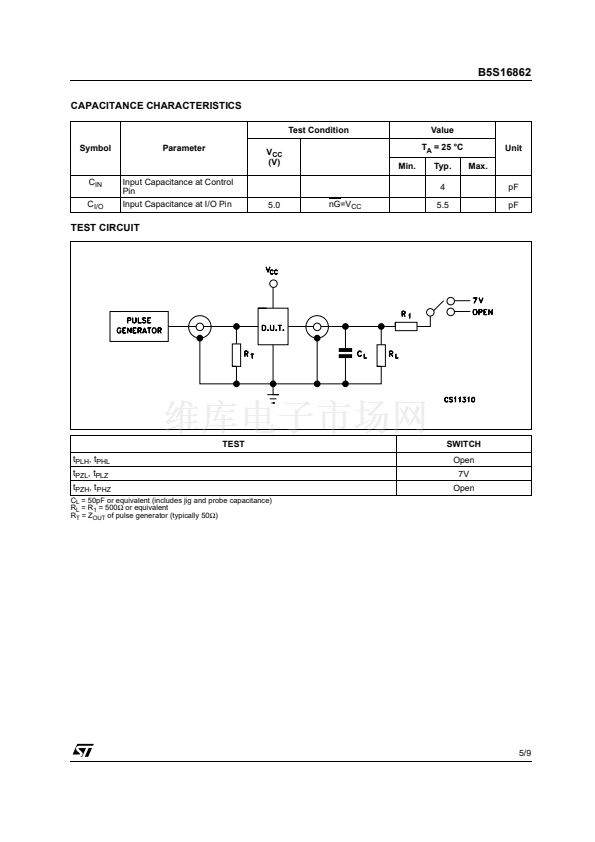

B5S16862
20-BIT TWO PORT BUS SWITCH
WITH FOUR ENABLE CONTROL
PRELIMINARY DATA
s
s
s
s
s
s
s
s
s

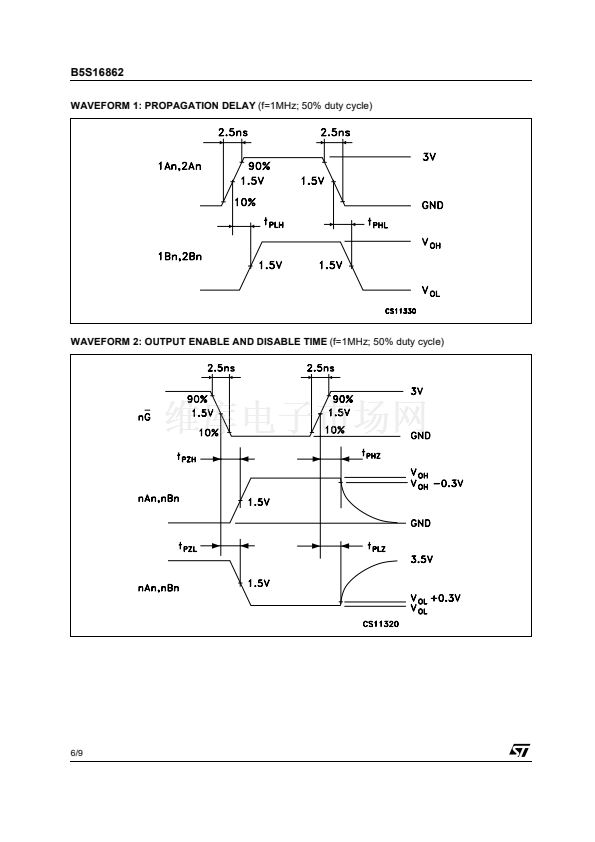

HIGH SPEED: t
PD
= 0.25ns (MAX.)
at V
CC
= 4.5V T
A
=85擄C

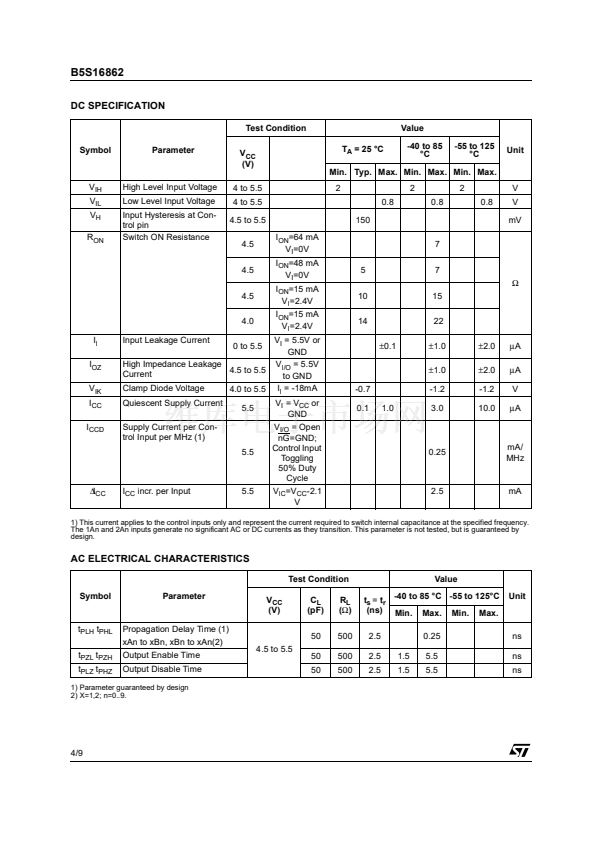

ON RESISTANCE BETWEEN TWO PORT:
5鈩?(TYP) at V
CC
= 5.0V T
A
=25擄C
LOW POWER DISSIPATION:
I
CC
= 1uA(MAX.) at T
A
=25擄C
COMPATIBLE WITH TTL OUTPUTS:
V
IH
=2V(MIN), V
IL
=0.8V(MAX)
POWER DOWN PROTECTION ON INPUTS
AND OUTPUTS

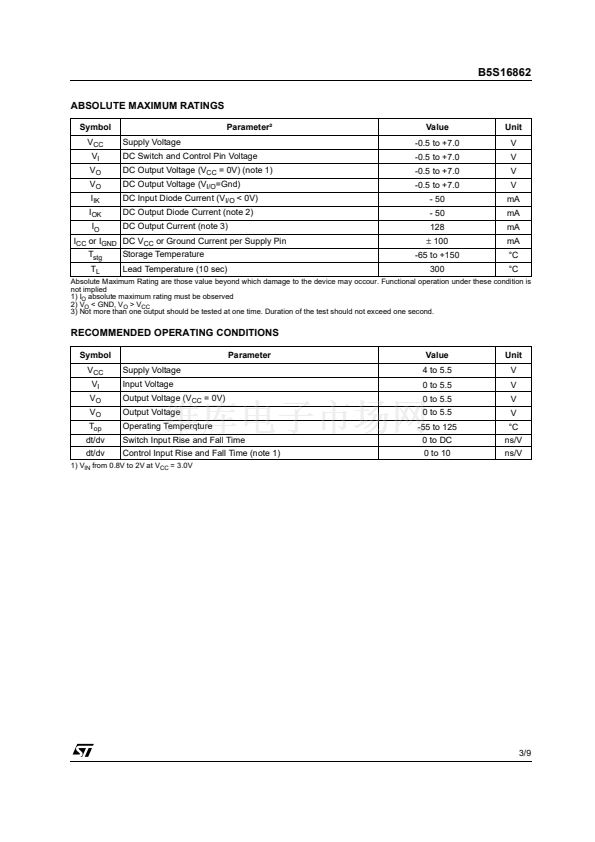

OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 4V to 5.5V
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 16862
IMPROVED LATCH-UP IMMUNITY
ESD PERFORMANCE:
HBM > 2000V (MIL STD 883 method 3015);
MM > 200V

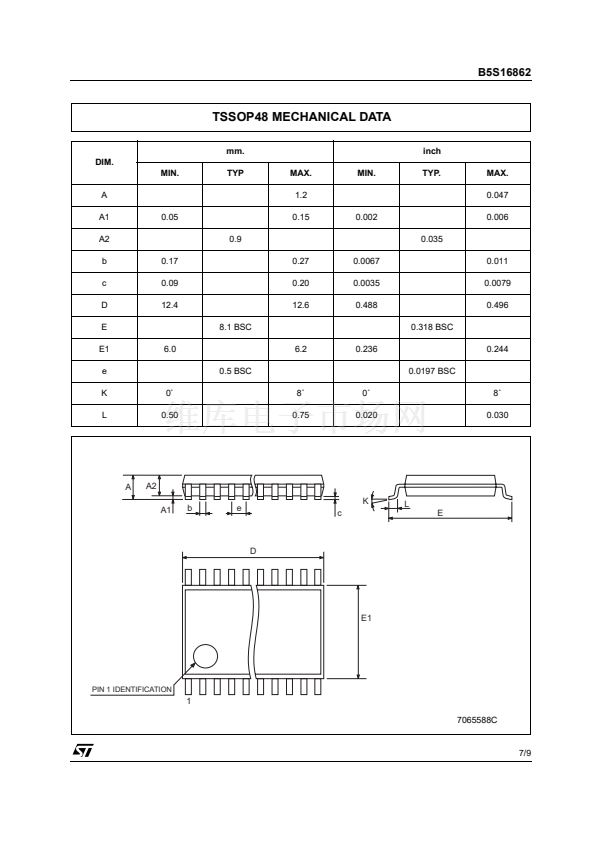

TSSOP
ORDER CODES
PACKAGE
TSSOP48

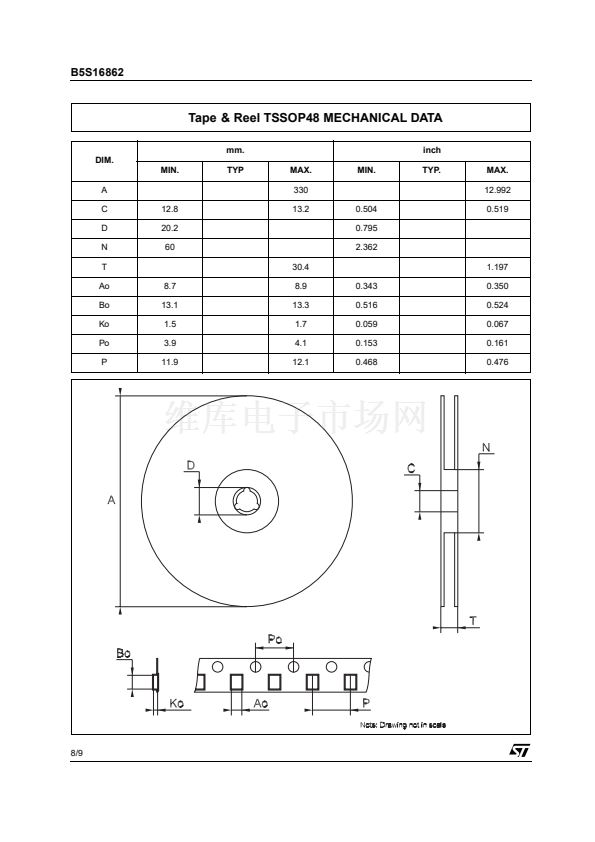

T&R
B5S16862TTR

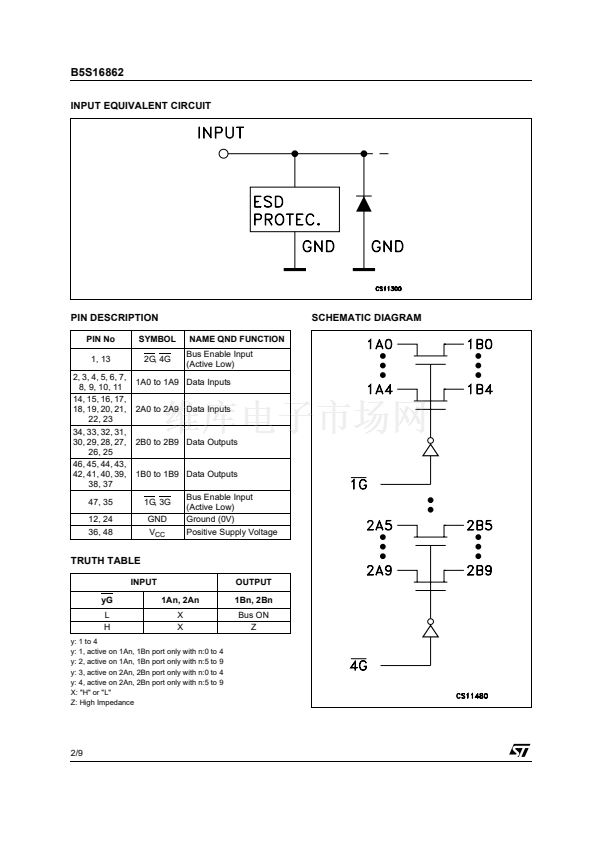

PIN CONNECTION
DESCRIPTION
The B5S16862 is an advanced high-speed CMOS
20-BIT TWO PORT BUS SWITCH fabricated with
sub-micron silicon gate and double-layer metal
wiring C
2
MOS tecnology.
It is ideal for 4V to 5.5V V
CC
operations and
ultra-low power and low noise applications,
typically notebook and docking station.
Any nG output control governs four 5-bit BUS
SWITCHES. Output Enable inputs (nG) tied
together gives full 20-bit operations. When nG is
LOW, the switches are on. When nG is HIGH, the
switches are in high impedance state.
It has ultra high-speed performance at 5V near
zero delay with low ON resistance.
All inputs and outputs are equipped with protec-
tion circuits against static discharge, giving them
2KV ESD immunity and transient excess voltage.
February 2003
1/9
This is preliminary information on a new product now in development are or undergoing evaluation. Details subject to change without notice.
