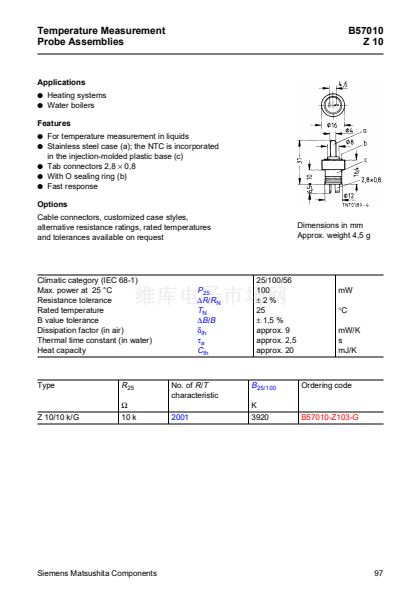

Temperature Measurement
Probe Assemblies
B57010
Z 10
Applications
q
Heating systems
q
Water boilers
Features
q
For temperature measurement in liquids
q
Stainless steel case (a); the NTC is incorporated
in the injection-molded plastic base (c)
q
Tab connectors 2,8
脳
0,8
q
With O sealing ring (b)
q
Fast response
Options
Cable connectors, customized case styles,
alternative resistance ratings, rated temperatures
and tolerances available on request
Dimensions in mm
Approx. weight 4,5 g
Climatic category (IEC 68-1)
Max. power at 25 擄C
Resistance tolerance
Rated temperature
B value tolerance
Dissipation factor (in air)
Thermal time constant (in water)
Heat capacity
P
25
鈭?/div>
R/ R
N
T
N
鈭?/div>
B/B
未
th
蟿
a
C
th
25/100/56
100
鹵
2%
25
鹵
1,5 %
approx. 9
approx. 2,5
approx. 20
mW
擄C
mW/K
s
mJ/K
Type
R
25
鈩?/div>
No. of
R/T
characteristic
2001
B
25/100
K
3920
Ordering code
Z 10/10 k/G
10 k
B57010-Z103-G
Siemens Matsushita Components
97
1
2
