Bay Linear
Inspire the Linear Power
250 mA CMOS Low Dropout LDO
B4250
Description
The B4250 series are a group of positive output voltage,
three-pin regulators, which provide a high current even
when the input/output voltage differential is small. Low
power consumption and high accuracy is achieved
though CMOS and programmable fuse technologies.
Output voltage: 2.0V to 6.0V in 0.1V increments.
The B4250 consists of a high-precision voltage
reference, an error correction circuit, and a current
limited output driver.
Available in SOT-23 (150mW) and SOT-89 (500mW)
packages minimizing the usage of board real state.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Maximum output current: 250 mA.
Highly accurate: Output voltage +/- 2%. (1%)
CMOS low power consumption.
Small input/output differential:
0.38V at 160mA (Vout=3.3V)
0.12V at 100mA (Vout=5V)
Pin-to-Pin Improve XC62FP/XC6201
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Battery Powered Equipment
Notebook PC, Palmtops, PDA
Portable Cameras and Video Recorders
Reference Voltage Sources
Pin Connection
Ordering Information
-40擄C to +125擄C
擄
擄
Package
SOT-23
Part No.
B4250CK3 -X.X
B4250CR-X.X
SOT-23-3 (K3)
SOT-89
SOT-89 (R)
Vin
2
V
in
3
1
2
X.X = Fixed Output Voltages from 2.0V to 6.0V
1
Vss
2
3
V
ss
V
out
Top View
Vin Vout
Top View

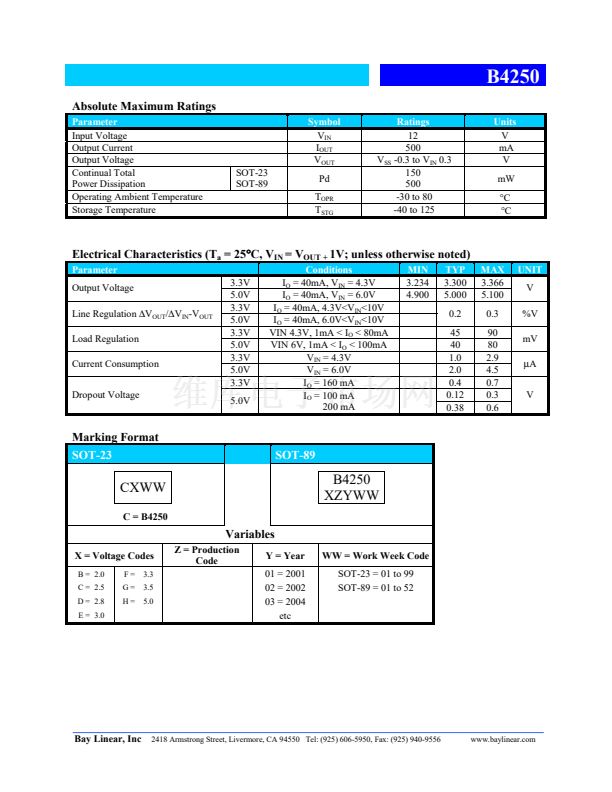

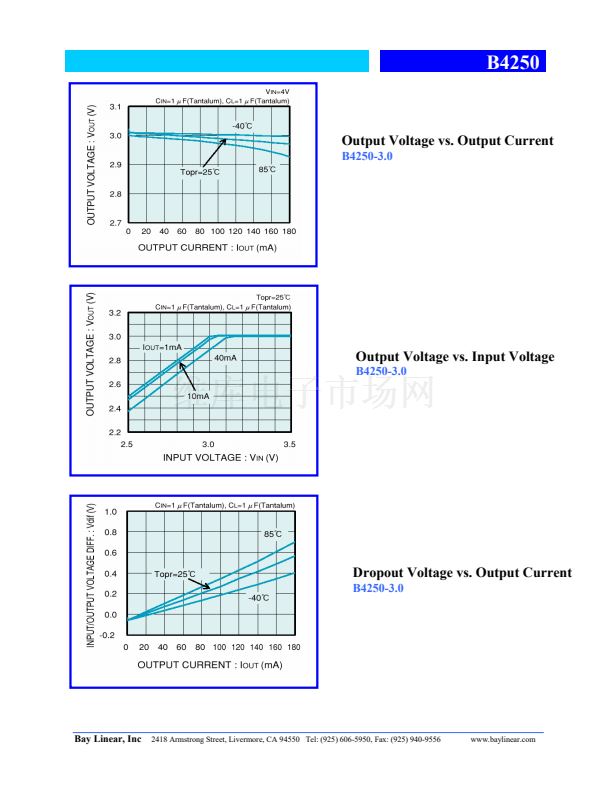

Bay Linear, Inc
2418 Armstrong Street, Livermore, CA 94550 Tel: (925) 606-5950, Fax: (925) 940-9556
www.baylinear.com
