Bay Linear
Inspire the Linear Power

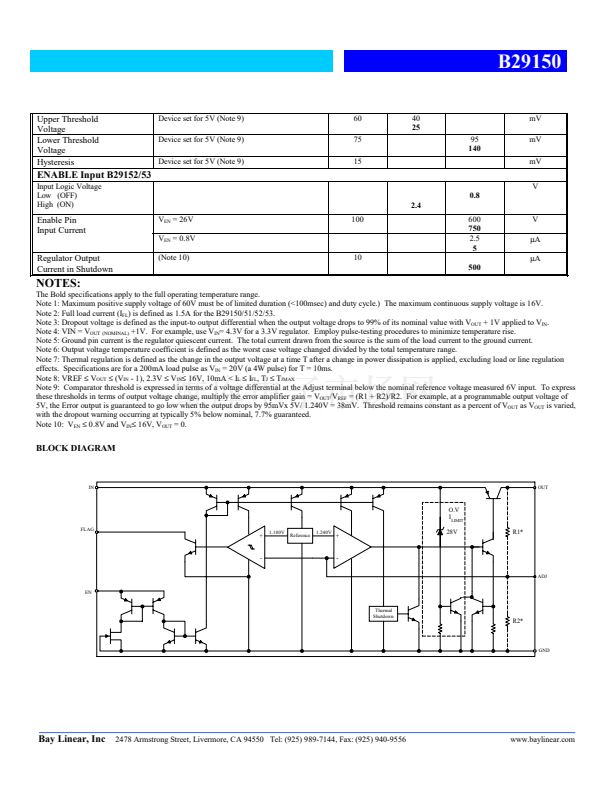

1.5A High Current Low Dropout
Voltage Regulator Adjustable & Fix Output
B29150
Preliminary Information
Description
The Bay Linear B29150 is a 1.5A high accuracy, low dropout
voltage regulator with only 350mV(Typ.)@ 1.5A). The B29150 is
designed for low voltage a application that requires lower dropout
voltage and faster transient response. This device is an excellent
choice for use in powering low voltage microprocessor that require
a lower dropout, faster transient response to regulate from +2.5V to
3.8V supplies and as a post regulator for switching supplies
applications.
The B29150 offers full protection against over-current faults,
reversed input polarity, reversed load insertion, and positive and
negative transient voltage. On-Chip trimming adjusts the reference
voltage to 1%. Features such as Enable pin, Error Flag pin are also
included in the 5 pin packages
.
The B29150 is offer in a new LPDD
(Low Profile TO-263) package from 4.47 mm (DD) tickness down
to only 1.27 mm (LPDD) total tickness.
The B29150 are offered in a 3 & 5-pin TO-220 & TO-263 package
compatible with other 3 terminal regulators. For a 3A low dropout
regulator refer to the B39300 data sheet.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Adjustable & Fix Output
1% output accuracy @2.5V, 3.3V, @ 5.0V
Output Current of 1.5A
Low Dropout Voltage of 350mV @ 1.5A
Extremely Tight Load & Line Regulation
Reverse-battery and 鈥淟oad Dump鈥?Protection
Zero Current Shutdown Mode (5-pin version)
Error Flag Signal Output-of-Regulation (5-pin
version)
Offer in TO-263, TO-220, & New Slim LPDD
Similar to industry Standard MIC29150
鈥?/div>
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Powering VGA & Sound Card
LCD Monitor
USB Power Supply
SMPS Post Regulator
High Efficiency 鈥滸reen鈥?Computer System
Adjustable Power Supply
Pin Connection
Ordering Information
Devices
B29150T
B29151/2/3T
B29150S
B29151/2/3S
B29150J
B29151/2/3J
TO-220-3 Package
Package
TO-220-3
TO-220-5
TO-263-3
TO-263-5
LPDD-3
LPDD-5
TO-220-5 Package
Temp.
-40
擄C
to 125
擄C
-40
擄C
to 125
擄C
-40
擄C
to 125
擄C
-40
擄C
to 125
擄C
-40
擄C
to 125
擄C
-40
擄C
to 125
擄C
TO-263-3 Package
TO-263-5 Package
BAY
B29150
1
2
3
BAY
B29151/52/53
1 2 3 4 5
B29151
1) ENABLE
2) INPUT
3) GND
4) OUTPUT
5) FLAG
B29152
1) ENABLE
2) INPUT
3) GND
4) OUTPUT
5) ADJUST
B29153
1) FLAG
2) INPUT
3) GND
4) OUTPUT
5) ADJUST
BAY
B29150
BAY
B29151/52/53
B29151
1) ENABLE
2) INPUT
3) GND
4) OUTPUT
5) FLAG
B29152
1) ENABLE
2) INPUT
3) GND
4) OUTPUT
5) ADJUST
B29153
1) FLAG
2) INPUT
3) GND
4) OUTPUT
5) ADJUST
V
IN
GND V
OUT
Front View
Top View
1 2 3 4 5
V
IN
GND V
OUT
Top View
Front View
Bay Linear, Inc
2478 Armstrong Street, Livermore, CA 94550 Tel: (925) 989-7144, Fax: (925) 940-9556
www.baylinear.com
