B25834-F4475-K1 Datasheet

  • B25834-F4475-K1

  • KONDENSATOR LEISTUNG 4.7 UF 420V

  • 40頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規(guī)格書

PDF預覽

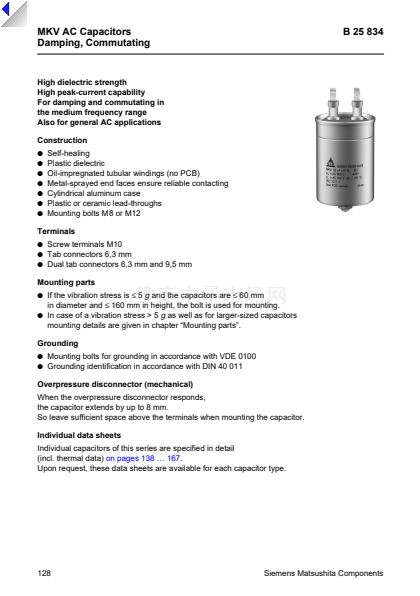

MKV AC Capacitors
Damping, Commutating
B 25 834
High dielectric strength
High peak-current capability
For damping and commutating in
the medium frequency range
Also for general AC applications
Construction
q
q
q
q
q
q
q
Self-healing
Plastic dielectric
Oil-impregnated tubular windings (no PCB)
Metal-sprayed end faces ensure reliable contacting
Cylindrical aluminum case
Plastic or ceramic lead-throughs
Mounting bolts M8 or M12
Terminals
q
Screw terminals M10
q
Tab connectors 6,3 mm
q
Dual tab connectors 6,3 mm and 9,5 mm

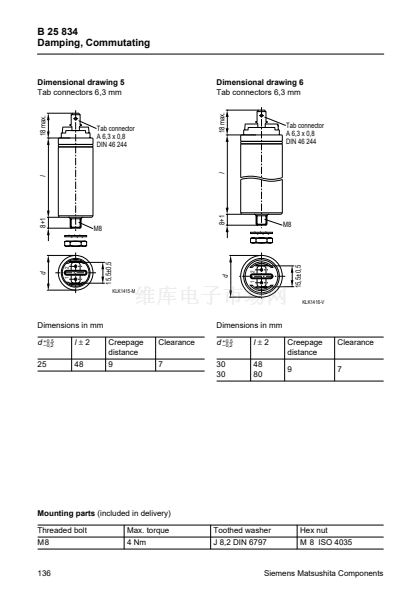

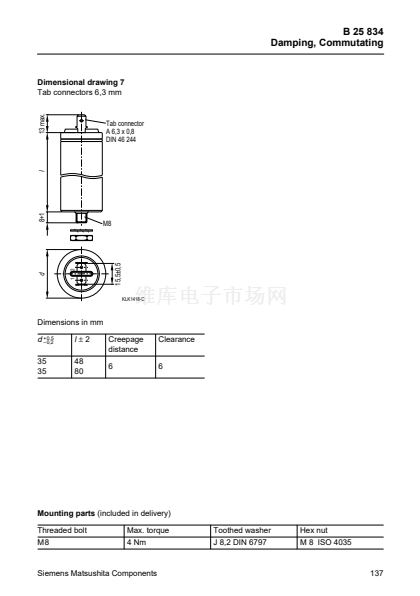

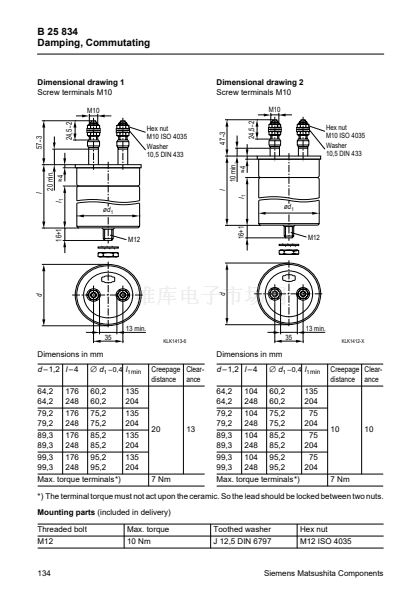

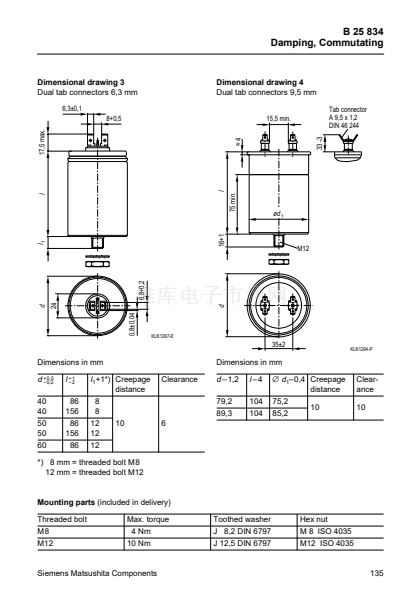

Mounting parts
q
If the vibration stress is
鈮?/div>
5
g
and the capacitors are
鈮?/div>
60 mm
in diameter and
鈮?/div>
160 mm in height, the bolt is used for mounting.
q
In case of a vibration stress > 5
g
as well as for larger-sized capacitors
mounting details are given in chapter 鈥淢ounting parts鈥?
Grounding
q
Mounting bolts for grounding in accordance with VDE 0100
q
Grounding identification in accordance with DIN 40 011
Overpressure disconnector (mechanical)
When the overpressure disconnector responds,
the capacitor extends by up to 8 mm.
So leave sufficient space above the terminals when mounting the capacitor.

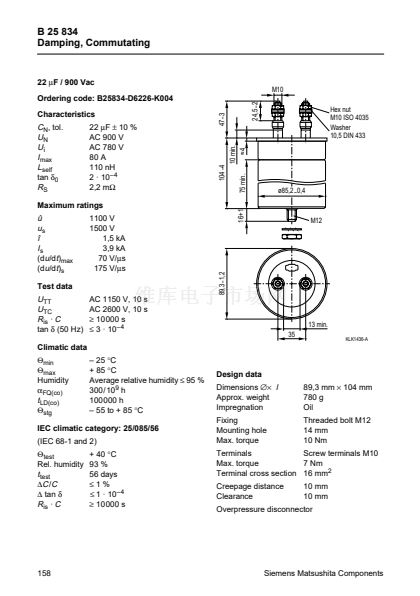

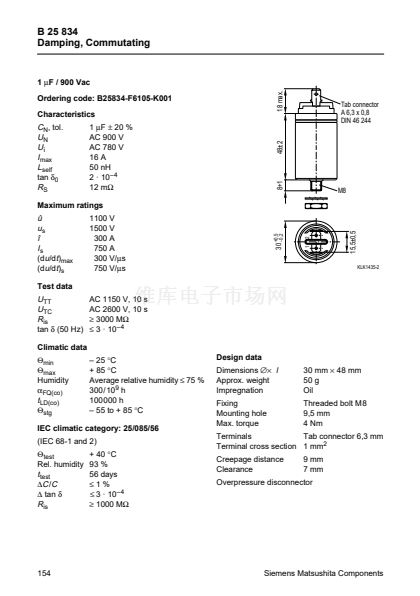

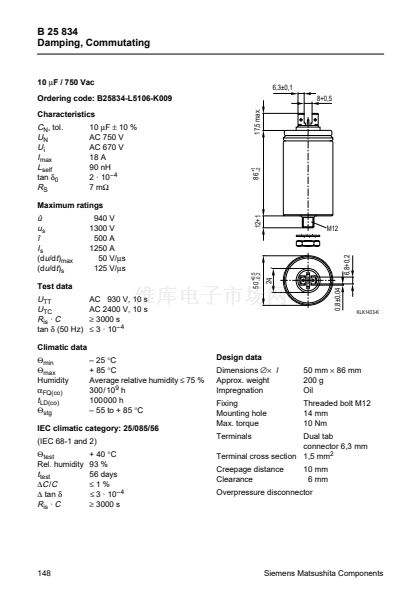

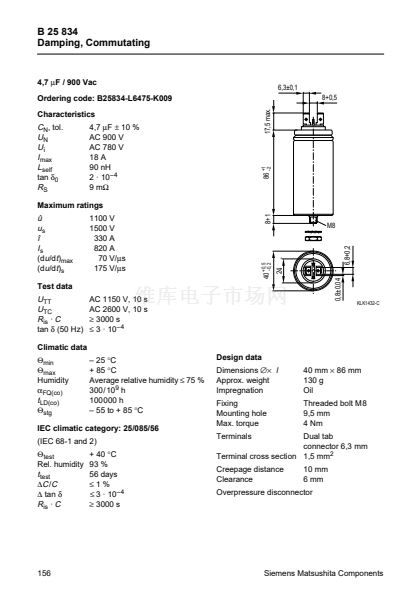

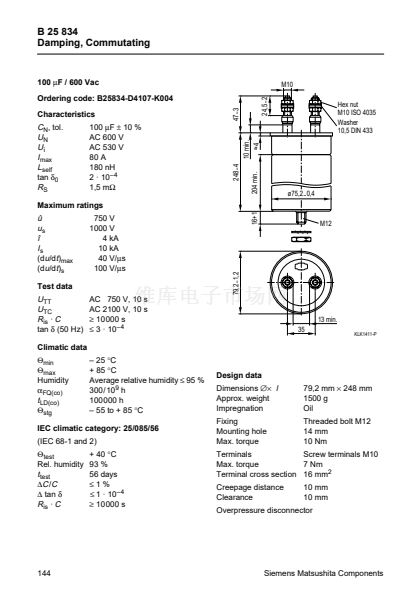

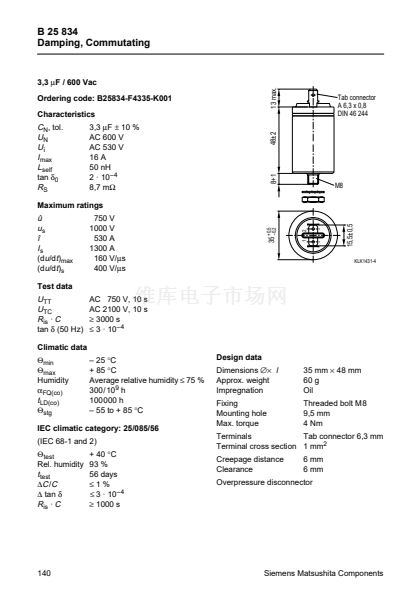

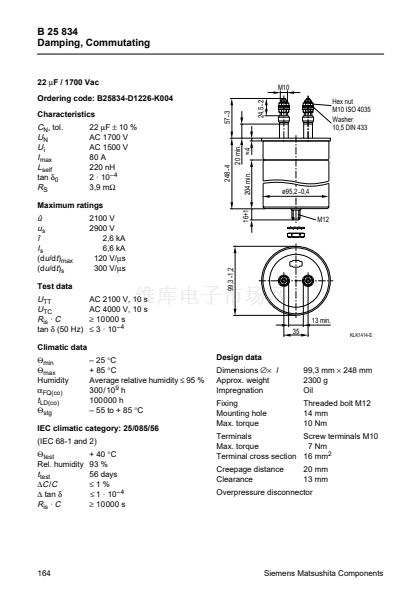

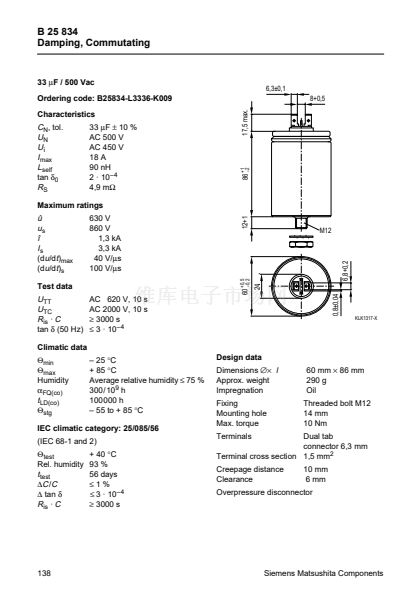

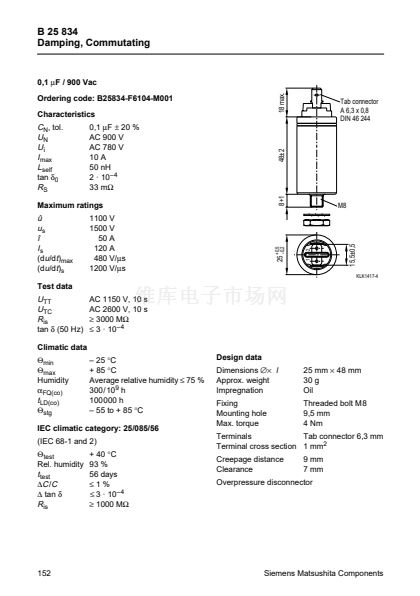

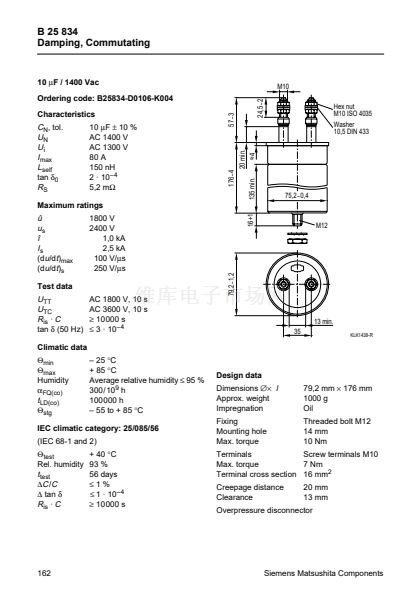

Individual data sheets
Individual capacitors of this series are specified in detail

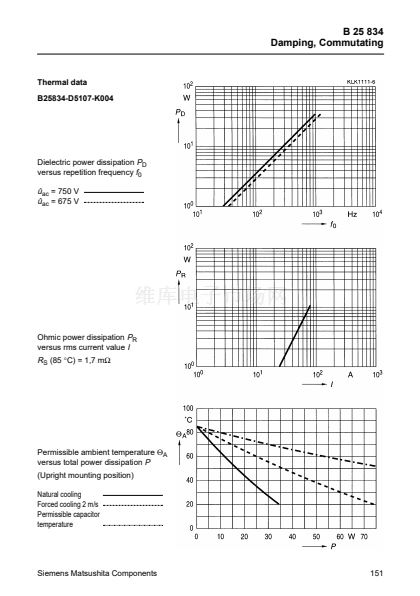

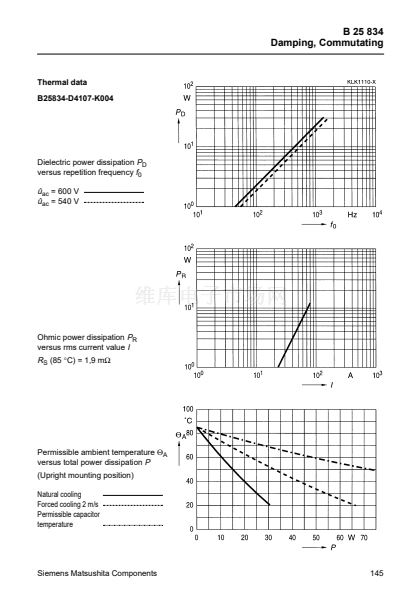

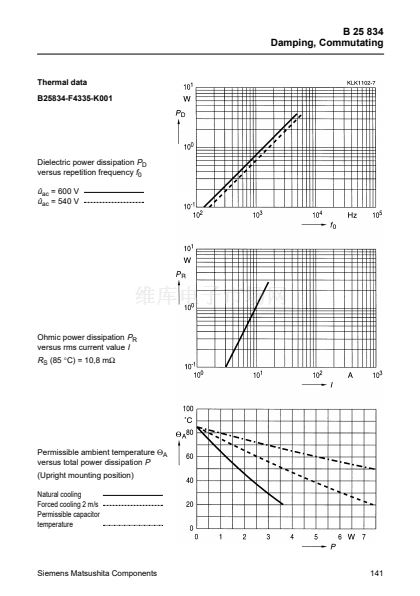

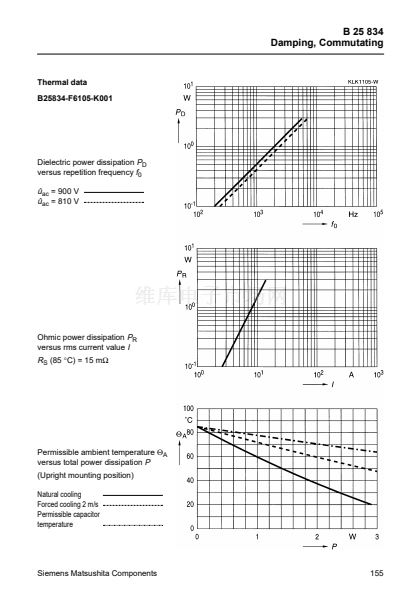

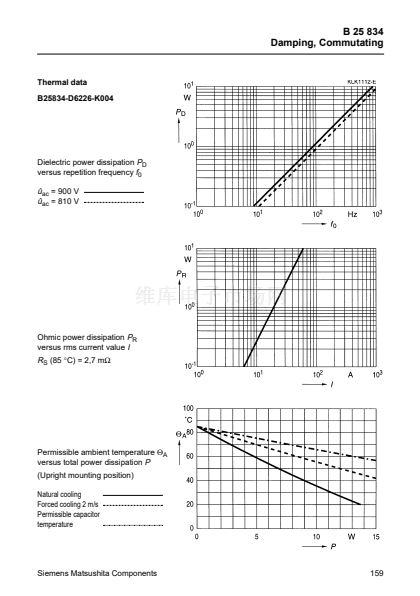

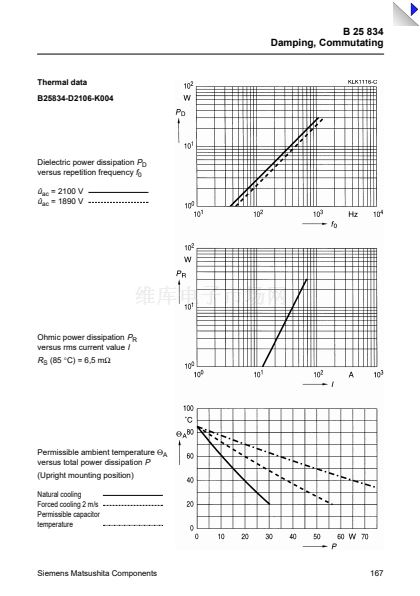

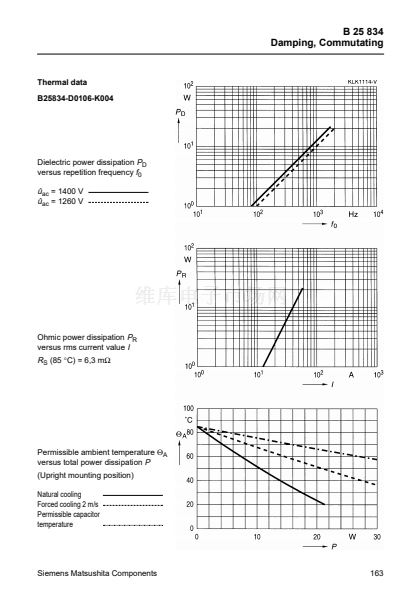

(incl. thermal data)
on pages 138 鈥?167.
Upon request, these data sheets are available for each capacitor type.
128
Siemens Matsushita Components
