Mechanical Data
Case:
JEDEC DO-214AC molded plastic body
Terminals:
Solder plated, solderable per
MIL-STD750, Method 2026
High temperature soldering guaranteed:
250擄C/10 seconds at terminals
Polarity:
Color band denotes cathode end
Weight:
0.002 ounce, 0.064 gram
A
Low power loss, high efficiency
Low profile surface mount package
Built-in strain relief
For use in low voltage high frequency inverters, free
wheeling, and polarity protection applications
鈥?Guardring for overvoltage protection
鈥?Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
Maximum Ratings and Thermal Characteristics
(T
Parameter
Device marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at T
L

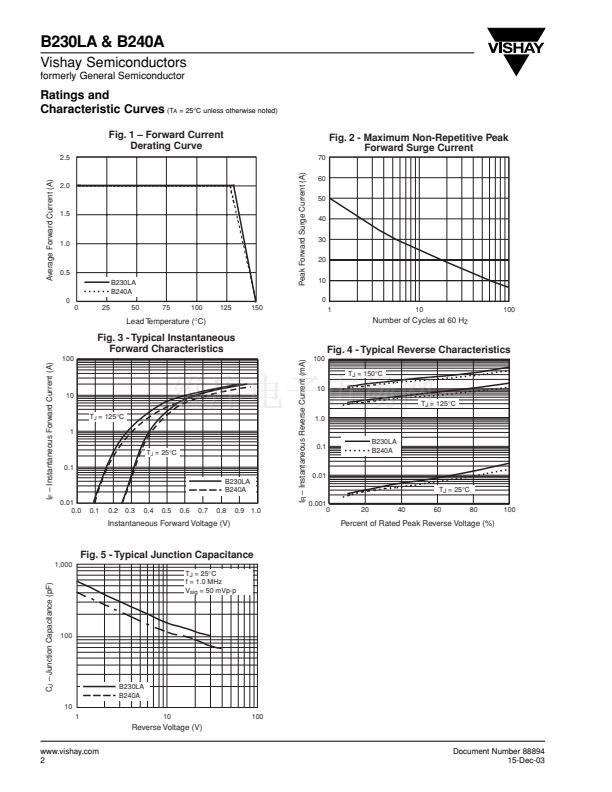

(See Fig. 1)
Peak forward surge current 8.3ms single half
sine-wave superimposed on rated load (JEDEC Method)
Typical thermal resistance
(2)
Voltage rate of change (rated V
R
)
Operating junction temperature range
Storage temperature range
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
R
螛JA
R
螛JL
dv/dt
T
J
T
STG
(T
A
= 25擄C unless otherwise noted)
= 25擄C unless otherwise noted)
B230LA
B23
30
21
30
2.0
50
110
28
10,000
-65 to + 150
-65 to + 150
B240A
B24
40
28
40
Unit
V
V
V
V
A
A
擄C/W
V/碌s
擄C
擄C
Electrical Characteristics
Parameter
Maximum instantaneous
forward voltage at 2.0A
(1)
Maximum DC reverse current
at rated DC blocking voltage
(1)
Symbol
T
J
=25擄C
T
J
=25擄C
V
F
I
R
Max.
0.50
0.5
Max.
0.55
0.5
Unit
V
mA
Notes:
(1) Pulse test: 300碌s pulse width, 1% duty cycle
(2) Aluminum substrate mounted
Document Number 88894
15-Dec-03
www.vishay.com
1
