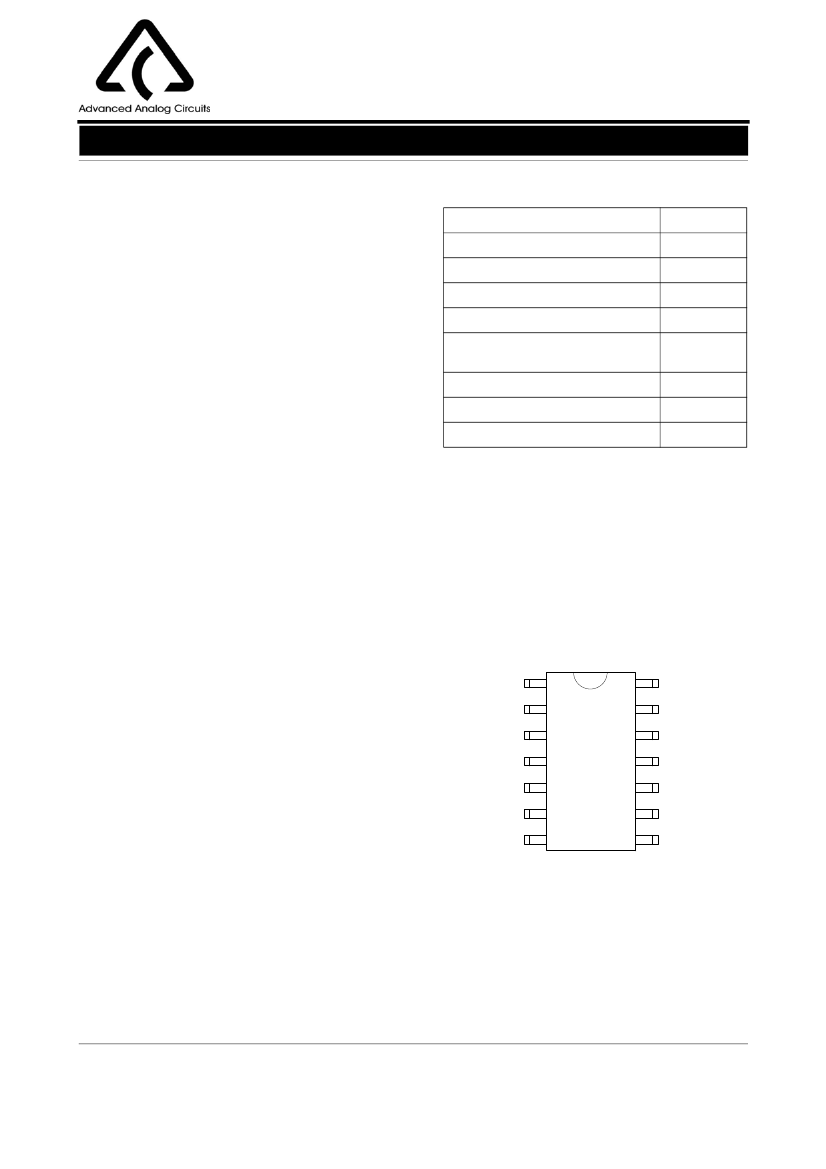

Product Brief
LOW POWER LOW OFFSET VOLTAGE QUAD COMPARATORS
Description
The AZ339 series consists of four independent precision
voltage comparators with an offset voltage specification as
low as 2mV. The input common mode voltage range of
these comparators includes ground, even when operated
from a single power supply voltage. Operation from split
power supplies is also possible and the low power supply
current drain is independent of the magnitude of the power
supply voltage. The AZ339 series is designed to directly
interface with TTL and CMOS.
AZ339
Parametric Table
Supply Voltage (V)
Supply Current (mA) (18V, 15k鈩?
Differential Input Voltage (V)
Input offset Voltage (mV)
Input offset Current (nA)
Large Signal Response Time
(ns) (5.1k鈩?
Output Sink Current (mA)
Saturation Voltage (mV)
Voltage Gain (V/mV)
20
0.8
20
2.0
5.0
300
16
250
200
Features
路
Wide Supply Voltage Range
- Single Supply: 2.0V to 18V
- Dual Supplies:
鹵1.0V
to
鹵
9V
Very Low Supply Current Drain: 0.8mA
- Independent of Supply Voltage
Low Input Bias Current: 25nA (Typical)
Low Input Offset Current:
鹵5nA
(Typical)
Low Input Offset Voltage:
鹵2mV
(Typical)
Input Common Mode Voltage Range Includes
Ground
Differential Input Voltage Range Equals to the Power
Supply Voltage
Low Output Saturation Voltage: 250mV at 4mA
Open Collector Output
路
路
路
路
路
路
路
路
Additional Available Materials
路
路
Samples
Datasheet
Pin Configuration
SOIC-14/DIP-14
OUTPUT 2
OUTPUT 1
1
2
3
4
5
6
7
14
13
12
11
10
9
8
OUTPUT 3
OUTPUT 4
GND
INPUT 4+
INPUT 4-
INPUT 3+
INPUT 3-
Applications
路
路
路
路
路
路
Battery Charger
Cordless Telephone
Switching Power Supply
DC-DC Module
PC Motherboard
Communication Equipment
V
CC
INPUT 1-
INPUT 1+
INPUT 2-
INPUT 2+
Benefits
路
路
Easier to Use
Very Competitive Price
Aug. 2006
BCD Semiconductor Manufacturing Limited
