AZ10ELT20 Datasheet

  • AZ10ELT20

  • CMOS/TTL to Differential PECL Translator

  • 10頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

ARIZONA MICROTEK, INC.
AZ10ELT20
AZ100ELT20
CMOS/TTL to Differential PECL Translator
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
PACKAGE

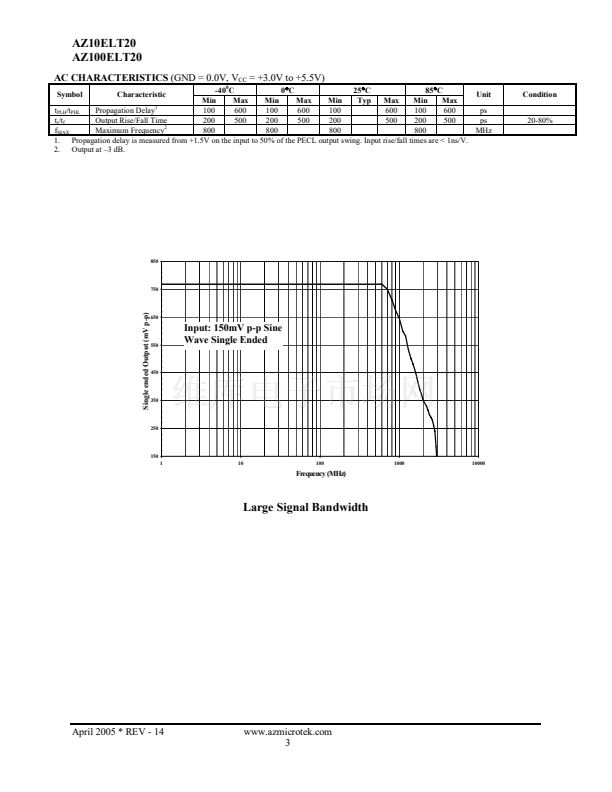

0.5ns Typical Propagation Delay
Differential PECL Outputs
Flow Through Pinouts
Operating Range of +3.0V to +5.5V
Direct Replacement for ON Semi
MC100ELT20 & Micrel SY89329V
Available in 2x2 and 3x3 mm MLP
Packages
MLP 8 (2x2x0.75)
MLP 8 (2x2x0.75)
RoHS Compliant /
Lead (Pb) Free
MLP 16 (3x3)
MLP 16 (3x3)
Lead-Free
SOIC 8
SOIC 8
TSSOP 8
TSSOP 8 RoHS
Compliant / Lead
(Pb) Free
DIE
1
2
3
4
PACKAGE AVAILABILITY
PART NUMBER
AZ100ELT20N
AZ100ELT20N+
MARKING
T0
<Date Code>
T0+
<Date Code>
AZM
T20
<Date Code>
AZM+
T20
<Date Code>
AZM10
ELT20
AZM100
ELT20
AZH
LT20
AZH+
LT20
N/A
NOTES
1,2
1,2
AZ10/100ELT20L
1,2
AZ10/100ELT20L+
AZ10ELT20D
AZ100ELT20D
AZ100ELT20T
AZ100ELT20T+
AZ10/100ELT20XP
1,2
1,2,3
1,2,3
1,2,3
1,2,3
4
DESCRIPTION
Add R1 at end of part number for 7 inch (1K parts), R2 for 13 inch (2.5K
parts) Tape & Reel.
Date code format: 鈥淵鈥?or 鈥淵Y鈥?for year followed by 鈥淲W鈥?for week.
Date code 鈥淵WW鈥?or 鈥淵YWW鈥?on underside of part.
Waffle Pack.
The AZ10/100ELT20 is a CMOS/TTL to differential PECL translator. It operates with a single power supply of
+3.0 to +5.5 volts, making it ideal for both LVCMOS/LVTTL and CMOS/TTL applications. The extremely small
MLP 8 2x2 mm package makes it ideal for those applications where space, performance and low power are at a
premium.
When the D input is left floating, the Q output is forced HIGH, and the Q output is forced LOW.
爐
The ELT20 is available in both PECL standards: the AZ10ELT20 is compatible with PECL 10K logic levels
while the AZ100ELT20 is compatible with PECL 100K logic levels.

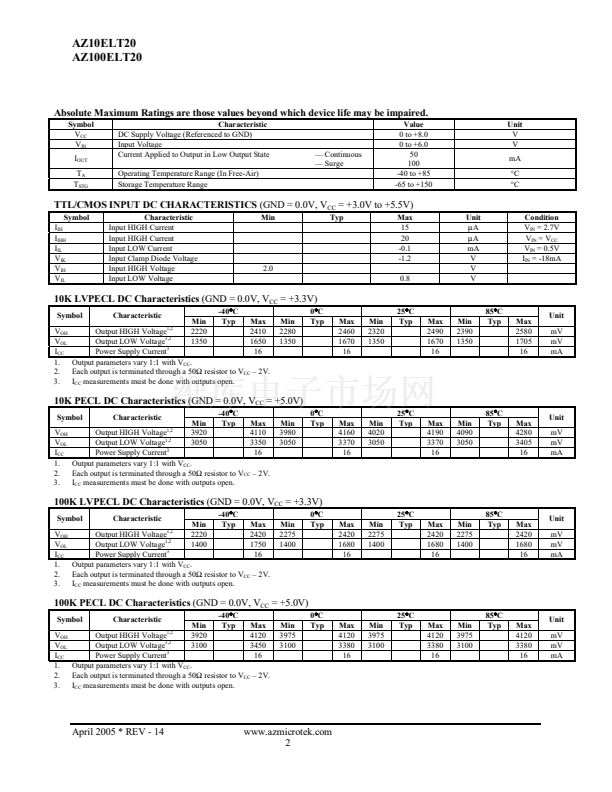

NOTE: Specifications in the PECL tables are valid when thermal equilibrium is established.
BLOCK DIAGRAM
1630 S. STAPLEY DR., SUITE 125
鈥?/div>
MESA, ARIZONA 85204
鈥?/div>
USA
鈥?/div>
(480) 962-5881
鈥?/div>
FAX (480) 890-2541
www.azmicrotek.com
D
Q
Q
