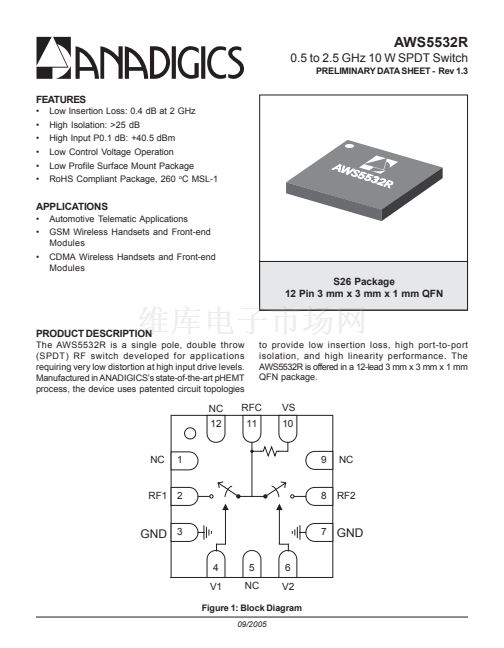

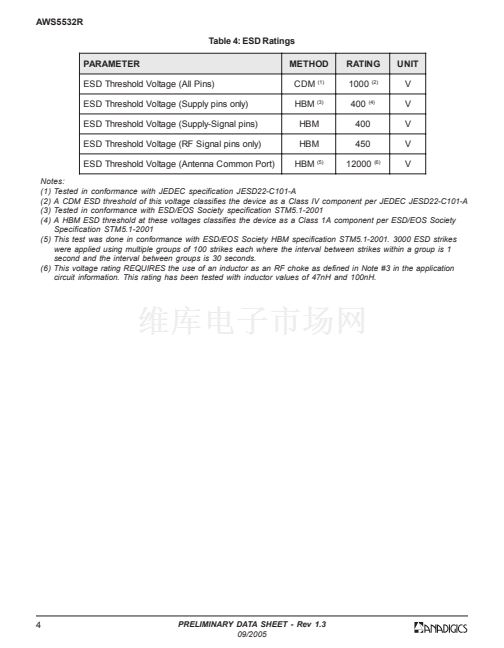

AWS5532R

0.5 to 2.5 GHz 10 W SPDT Switch

PRELIMINARY DATA SHEET - Rev 1.3

FEATURES

鈥?/div>

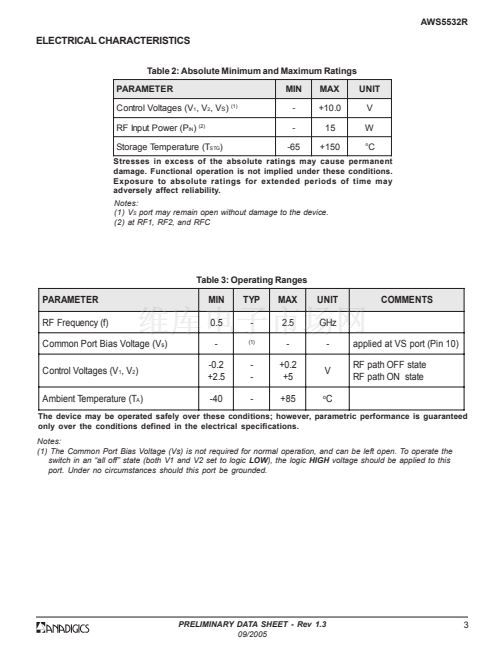

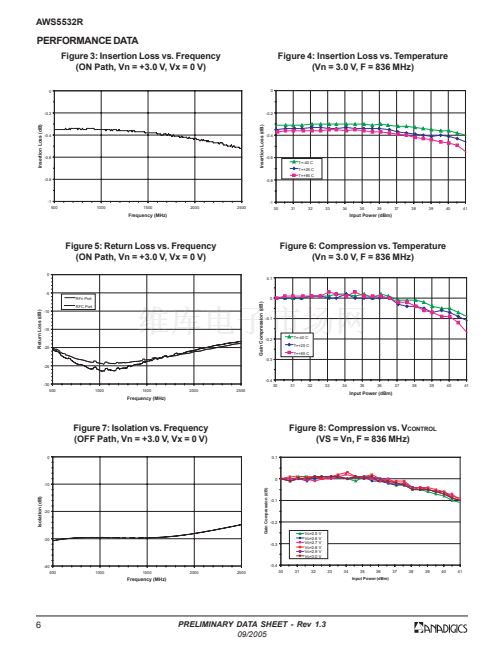

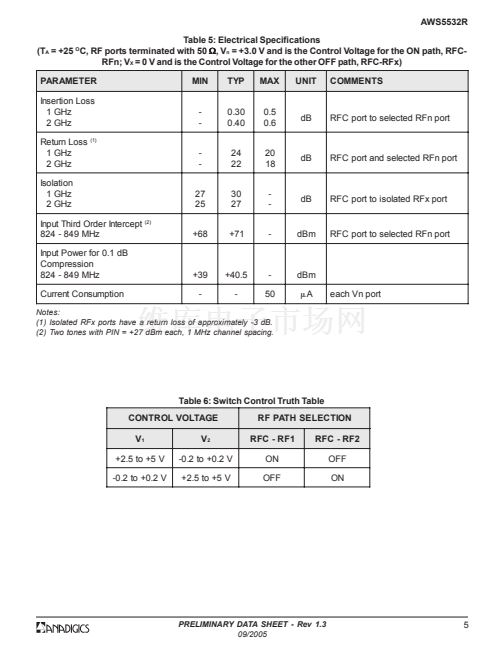

Low Insertion Loss: 0.4 dB at 2 GHz

High Isolation: >25 dB

High Input P0.1 dB: +40.5 dBm

Low Control Voltage Operation

Low Profile Surface Mount Package

RoHS Compliant Package, 260

C MSL-1

S55

APPLICATIONS

鈥?/div>

Automotive Telematic Applications

GSM Wireless Handsets and Front-end

Modules

CDMA Wireless Handsets and Front-end

Modules

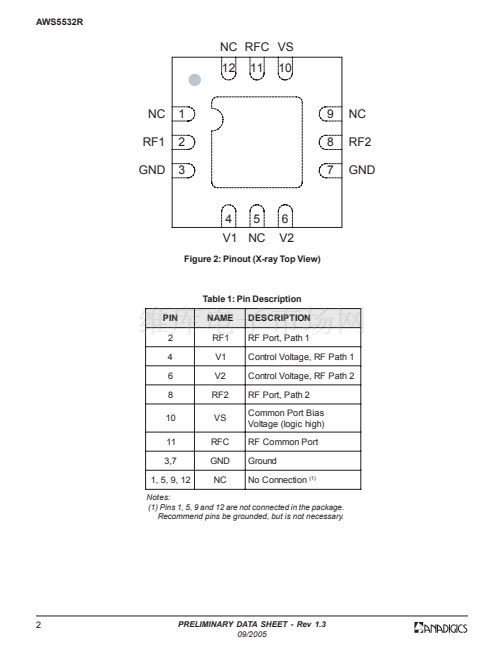

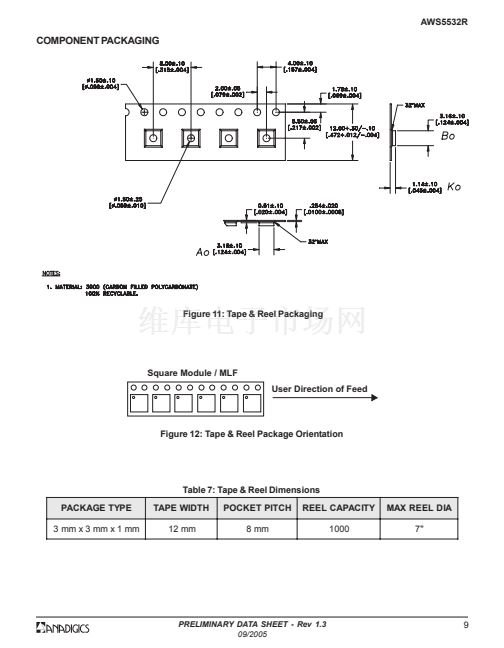

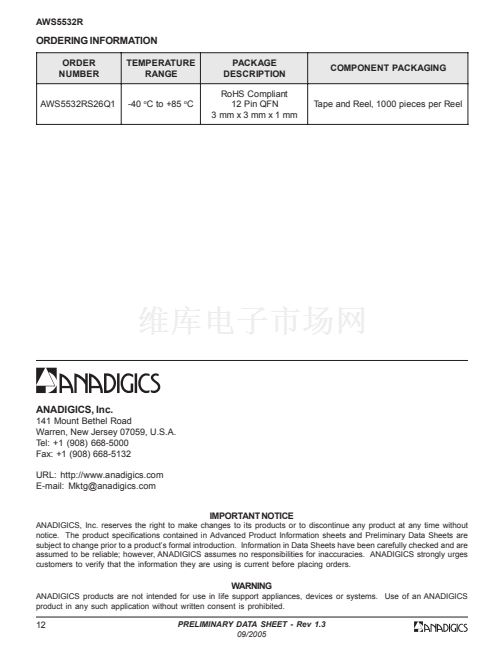

S26 Package

12 Pin 3 mm x 3 mm x 1 mm QFN

PRODUCT DESCRIPTION

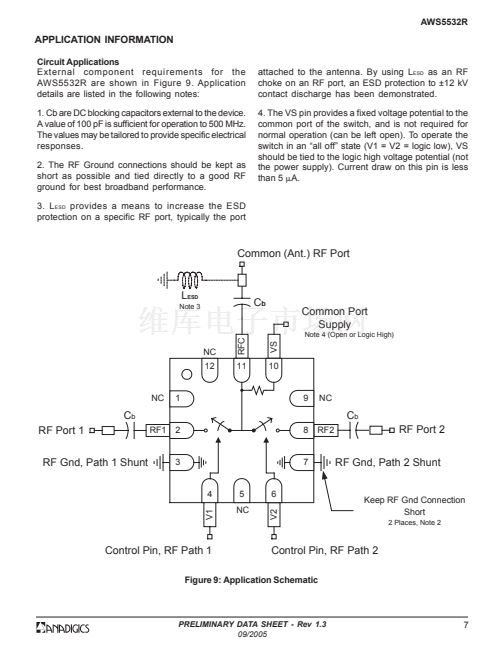

The AWS5532R is a single pole, double throw

(SPDT) RF switch developed for applications

requiring very low distortion at high input drive levels.

Manufactured in ANADIGICS鈥檚 state-of-the-art pHEMT

process, the device uses patented circuit topologies

to provide low insertion loss, high port-to-port

isolation, and high linearity performance. The

AWS5532R is offered in a 12-lead 3 mm x 3 mm x 1 mm

QFN package.

RF1

RFC

RF2

GND

Figure 1: Block Diagram
