ATR0785 Datasheet

  • ATR0785

  • ATR0785 Preliminary [Updated 2/03. 12 Pages] High linearity ...

  • 12頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Active Mixer with Conversion Gain
Integrated LO and IF Drivers
Excellent Linearity
Broadband 50
W
Impedance on All Ports
Low LO-RF Leakage
Differential or Single Ended Inputs
Applications
鈥?/div>
AMPS/GSM/TDMA/CDMA Transmitter
鈥?/div>
Other Digital Communication Applications
鈥?/div>
High Performance RF Instrumentation
Benefits
鈥?/div>
Small and Thin 16-pin SSOP Package with Exposed Paddle
鈥?/div>
Few External Components
鈥?/div>
Fully ESD Protected
Electrostatic sensitive device.
Observe precautions for handling.
High Linearity
Active Transmit
Mixer for
800 MHz to
1000 MHz
ATR0785
Preliminary
Description
The ATR0785 is a highly linearity active mixer which is manufactured using Atmel麓s
advanced Silicon Germanium technology for the use in a variety of high performance
requiring RF systems such as digital communications.
This mixer features a frequency range of 800 MHz to 1000 MHz. It operates from a
single 5 V supply and provides 14 dB of conversion gain while requiring only 0 dBm
input to the integrated LO driver. An IF and an LO amplifier is also included.
The ATR0785 incorporates internal matching on each RF, IF and LO port to enhance
ease of use and to reduce the external components required. The RF and LO inputs
can be driven differentially or single ended.
Figure 1.
Block Diagram
IF_IN+
8
IF_IN-
12
9
5
RF_Out+
LO_IN+
13
LO_IN-
4
RF_Out-
Rev. 4585B鈥揝IGE鈥?2/03

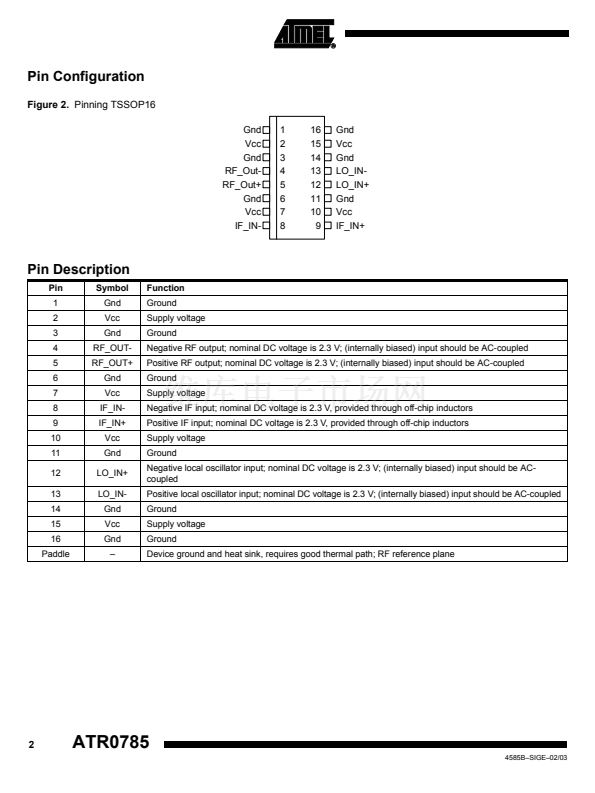

1
