ATF-541M4 Datasheet

  • ATF-541M4

  • Single Voltage E-pHEMT Low Noise +36 dBm OIP3 in MiniPak

  • 16頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Agilent ATF-541M4 Low Noise
Enhancement Mode
Pseudomorphic HEMT in a
Miniature Leadless Package
Data Sheet
Features
鈥?High linearity performance
鈥?Single Supply Enhancement Mode
Technology
[1]
鈥?Very low noise figure
鈥?Excellent uniformity in product
specifications
Description
Agilent Technologies鈥檚
ATF-541M4 is a high linearity,
low noise, single supply
E-PHEMT housed in a miniature
leadless package.
The ATF-541M4鈥檚 small size and
low profile makes it ideal for the
design of hybrid module and
other space-constraint devices.
The device can be used in appli-
cations such as TMA and front
end LNA for Cellular/PCS and
WCDMA base stations, LNA and
driver amplifiers for Wireless
Data and 802.11b WLAN.
In addition, the device鈥檚 superior
RF performance at higher
frequency makes it an ideal
candidate for high frequency
applications such as WLL,
802.11a WLAN, 5鈥? GHz UNII
and HIPERLAN applications.
MiniPak 1.4 mm x 1.2 mm Package
鈥?800 micron gate width
鈥?Miniature leadless package
1.4 mm x 1.2 mm x 0.7 mm
鈥?Tape-and-Reel packaging option
available

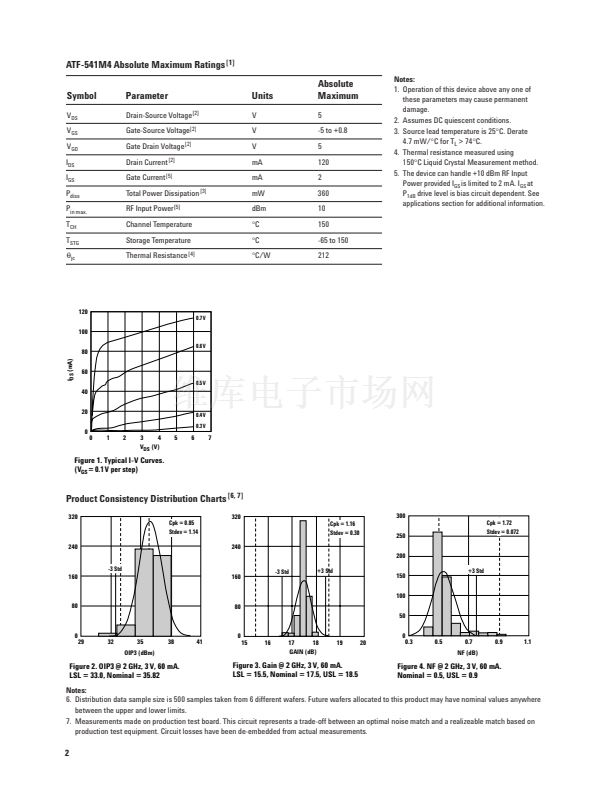

Specifications
2 GHz; 3V, 60 mA (Typ.)
Pin Connections and
Package Marking
Source
Pin 3
Drain
Pin 4
Rx
鈥?35.8 dBm output 3
rd
order intercept
鈥?21.4 dBm output power at 1 dB gain
compression
鈥?0.5 dB noise figure
Source
Pin 1
Rx
Gate
Pin 2
鈥?17.5 dB associated gain
Applications
鈥?Low Noise Amplifier and Driver
Amplifier for Cellular/PCS and
WCDMA Base Stations
鈥?LNA and Driver Amplifier for
WLAN, WLL/RLL and MMDS
applications
鈥?General purpose discrete E-PHEMT
for ultra low noise applications in
the 450 MHz to 10 GHz frequency
range
Note:
1. Enhancement mode technology requires
positive Vgs, thereby eliminating the need for
the negative gate voltage associated with
conventional depletion mode devices.
Note:
Top View. Package marking provides orientation,
product identification and date code.
鈥淩鈥?= Device Type Code
鈥渪鈥?= Date code character. A different
character is assigned for each month and
year.
