AT93C56 Datasheet

  • AT93C56

  • 3-Wire Serial CMOS E 2 PROM

  • Atmel   Atmel

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

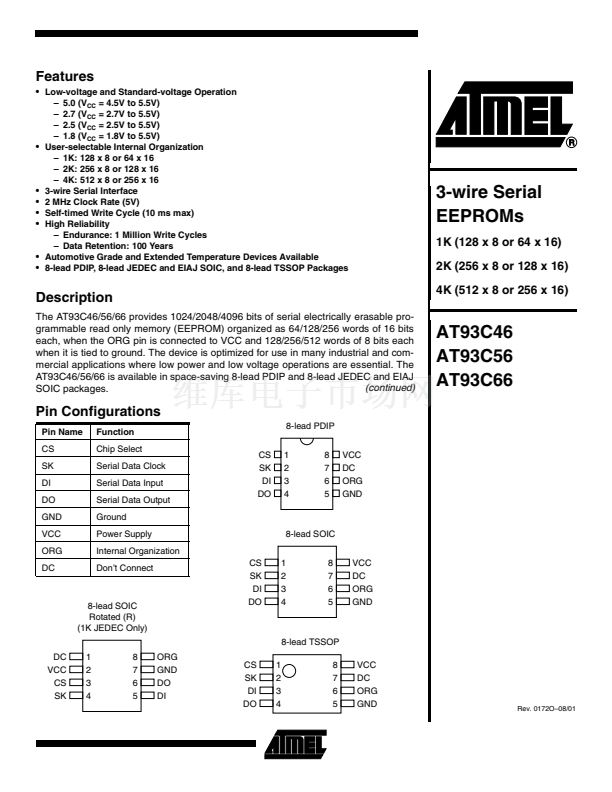

Features
鈥?/div>
Low-voltage and Standard-voltage Operation
鈥?5.0 (V
CC
= 4.5V to 5.5V)
鈥?2.7 (V
CC
= 2.7V to 5.5V)
鈥?2.5 (V
CC
= 2.5V to 5.5V)
鈥?1.8 (V
CC
= 1.8V to 5.5V)
User-selectable Internal Organization
鈥?1K: 128 x 8 or 64 x 16
鈥?2K: 256 x 8 or 128 x 16
鈥?4K: 512 x 8 or 256 x 16
3-wire Serial Interface
2 MHz Clock Rate (5V)
Self-timed Write Cycle (10 ms max)
High Reliability
鈥?Endurance: 1 Million Write Cycles
鈥?Data Retention: 100 Years
Automotive Grade and Extended Temperature Devices Available

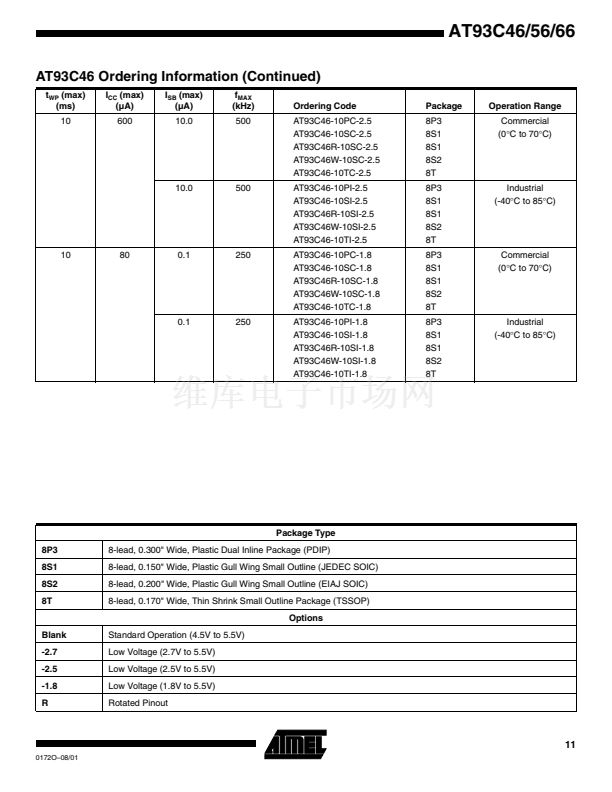

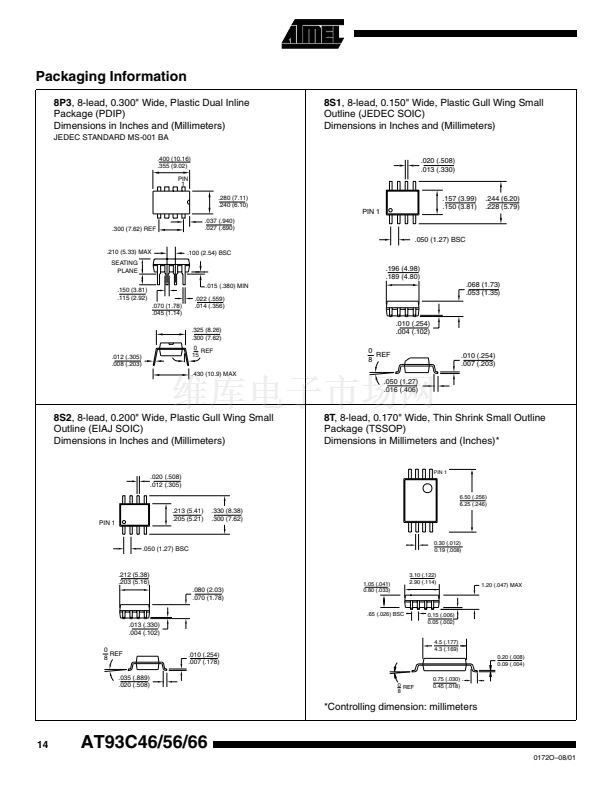

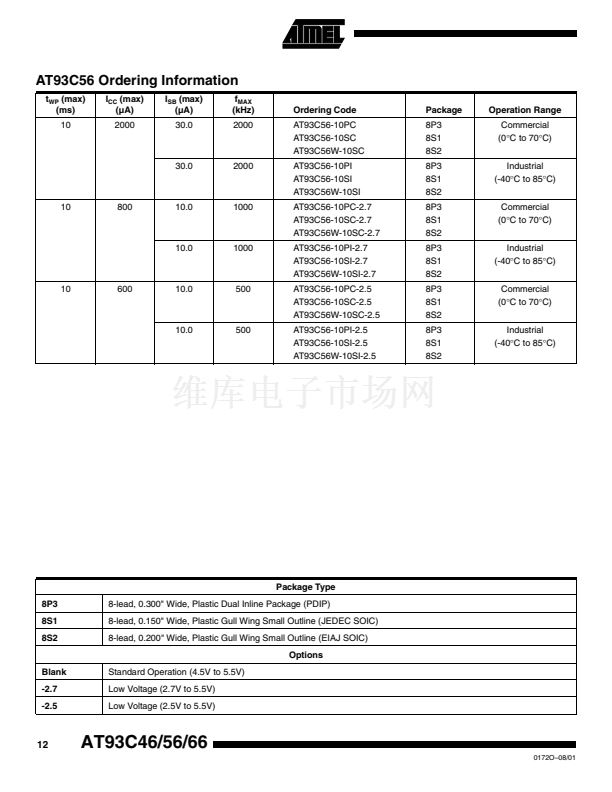

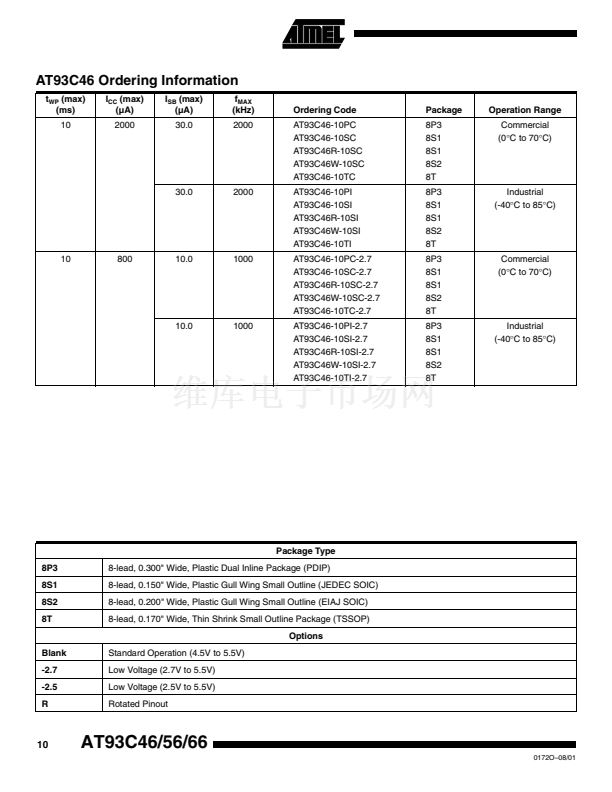

8-lead PDIP, 8-lead JEDEC and EIAJ SOIC, and 8-lead TSSOP Packages
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
3-wire Serial
EEPROMs
1K (128 x 8 or 64 x 16)
2K (256 x 8 or 128 x 16)
4K (512 x 8 or 256 x 16)
Description
The AT93C46/56/66 provides 1024/2048/4096 bits of serial electrically erasable pro-
grammable read only memory (EEPROM) organized as 64/128/256 words of 16 bits
each, when the ORG pin is connected to VCC and 128/256/512 words of 8 bits each
when it is tied to ground. The device is optimized for use in many industrial and com-
mercial applications where low power and low voltage operations are essential. The
AT93C46/56/66 is available in space-saving 8-lead PDIP and 8-lead JEDEC and EIAJ
(continued)
SOIC packages.
AT93C46
AT93C56
AT93C66
Pin Configurations
Pin Name
CS
SK
DI
DO
GND
VCC
ORG
DC
Function
Chip Select
Serial Data Clock
Serial Data Input
Serial Data Output
Ground
Power Supply
Internal Organization
Don鈥檛 Connect
8-lead SOIC
8-lead PDIP
CS
SK
DI
DO
1
2
3
4
8
7
6
5
VCC
DC
ORG
GND
8-lead SOIC
Rotated (R)
(1K JEDEC Only)
CS
SK
DI
DO
1
2
3
4
8
7
6
5
VCC
DC
ORG
GND
8-lead TSSOP
DC
VCC
CS
SK
1
2
3
4
8
7
6
5
ORG
GND
DO
DI
CS
SK
DI
DO
1
2
3
4
8
7
6
5
VCC
DC
ORG
GND
Rev. 0172O鈥?8/01
1
