AT89C5130A-RDTIM Datasheet

IC型號：
AT89C5130A-RDTIM
PDF描述：
8-bit Flash Microcontroller with Full Speed USB Device
文件大小：
2092.55KB
PDF頁數：
184頁
芯片廠家：
ATMEL

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

1

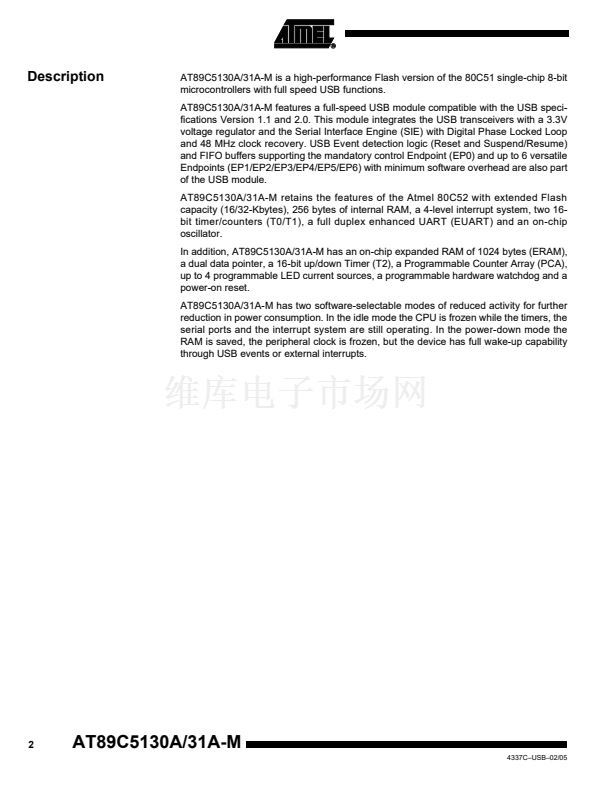

2

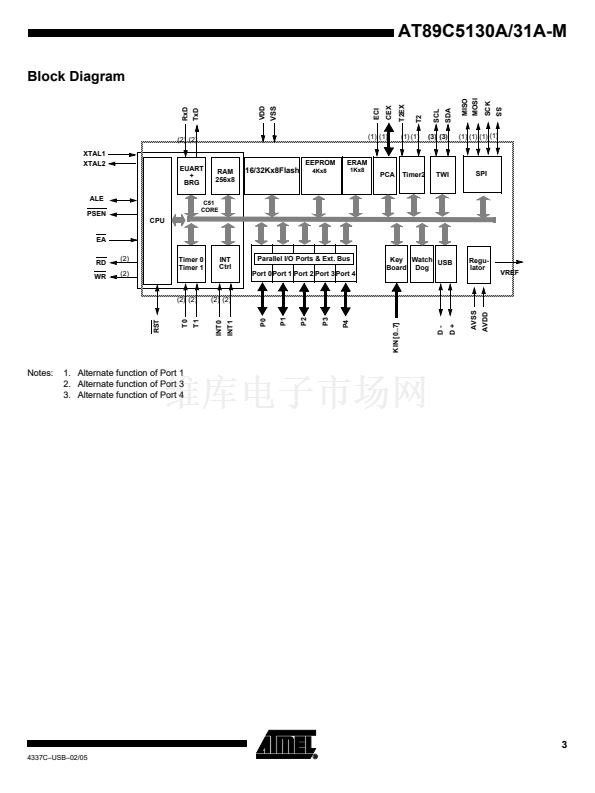

3
4
5
6

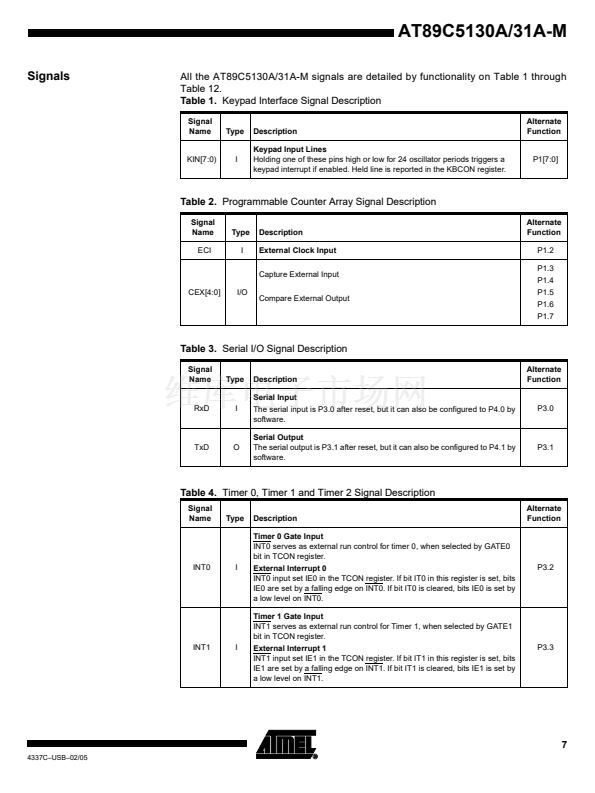

7

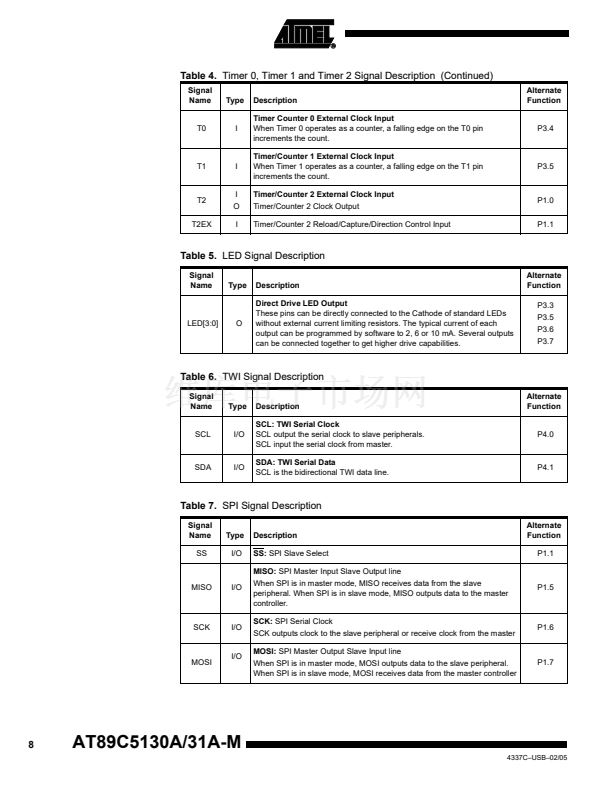

8
9
10

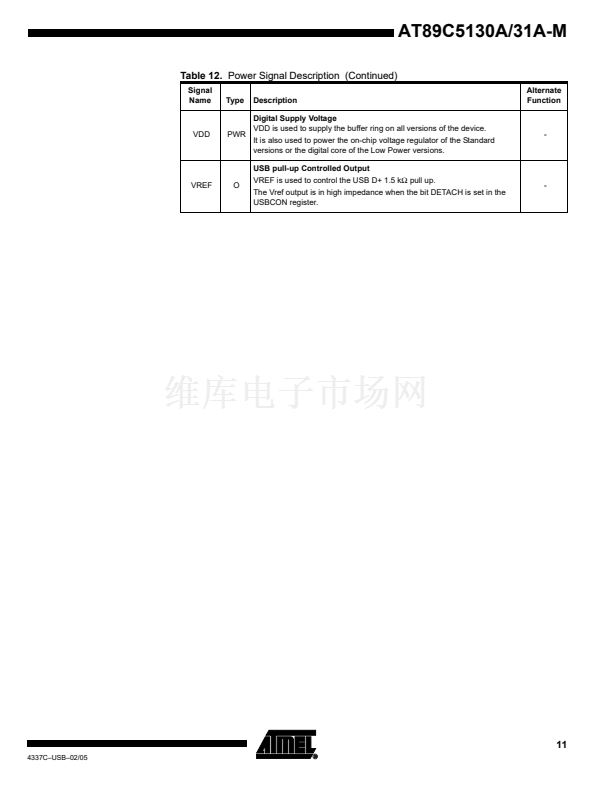

11

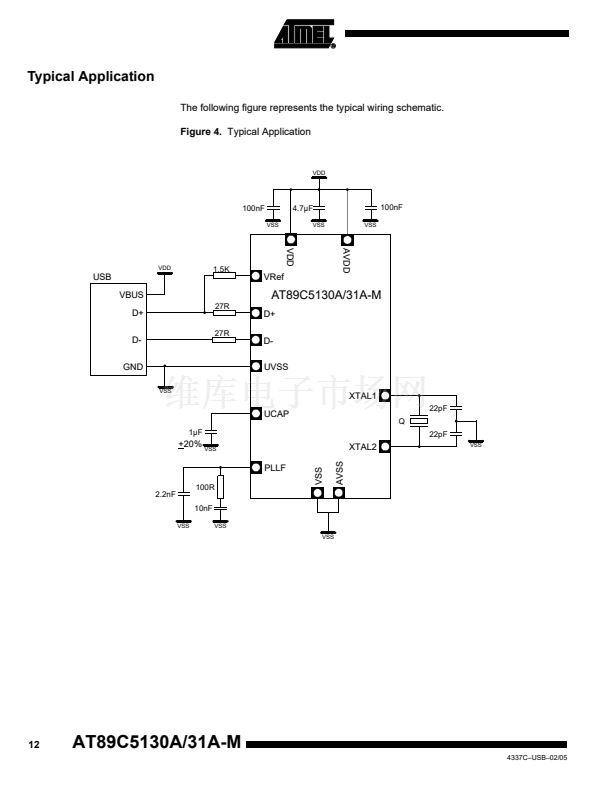

12
13
14
15

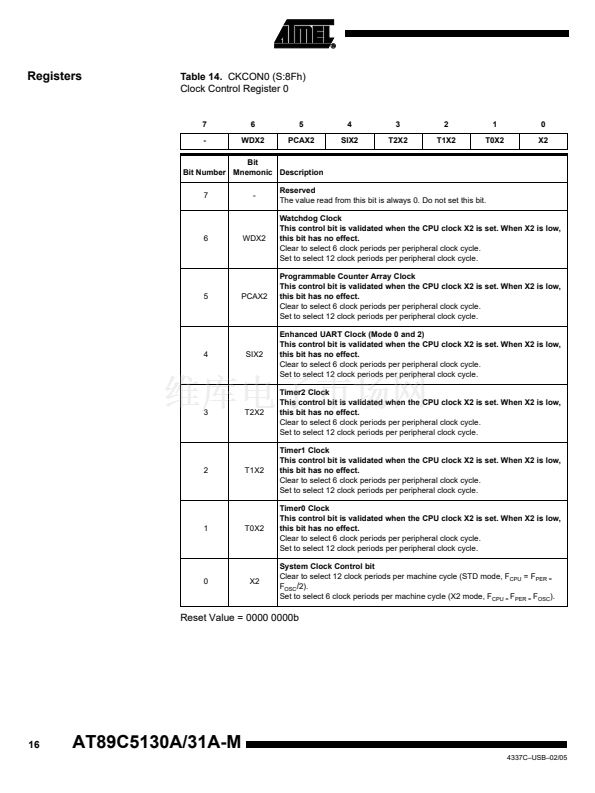

16
17
18

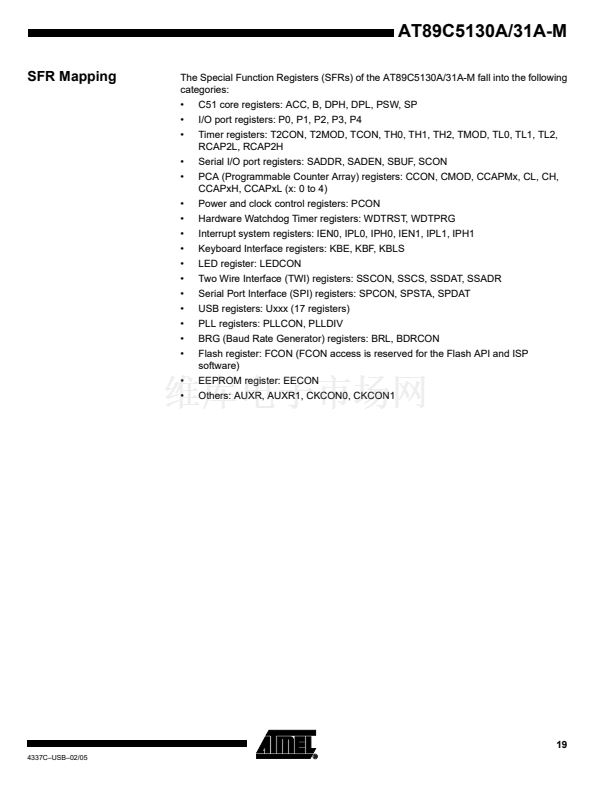

19

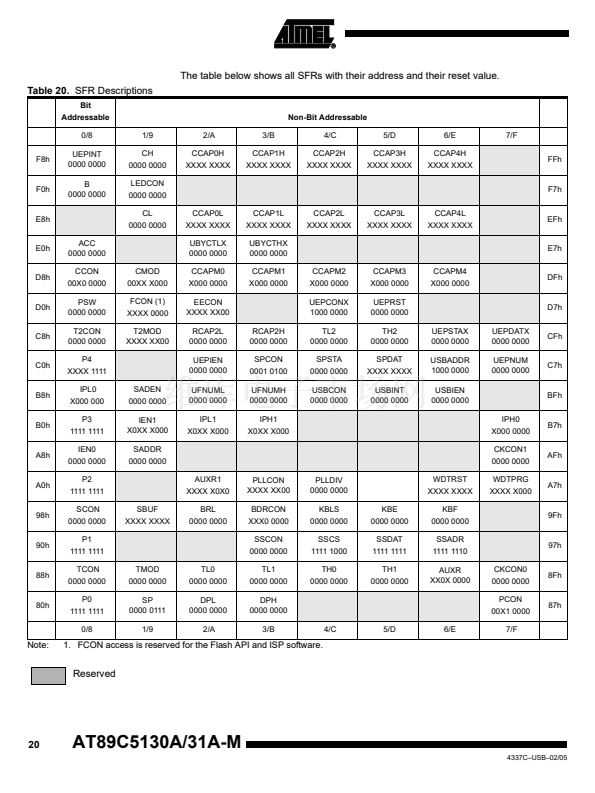

20
21
22

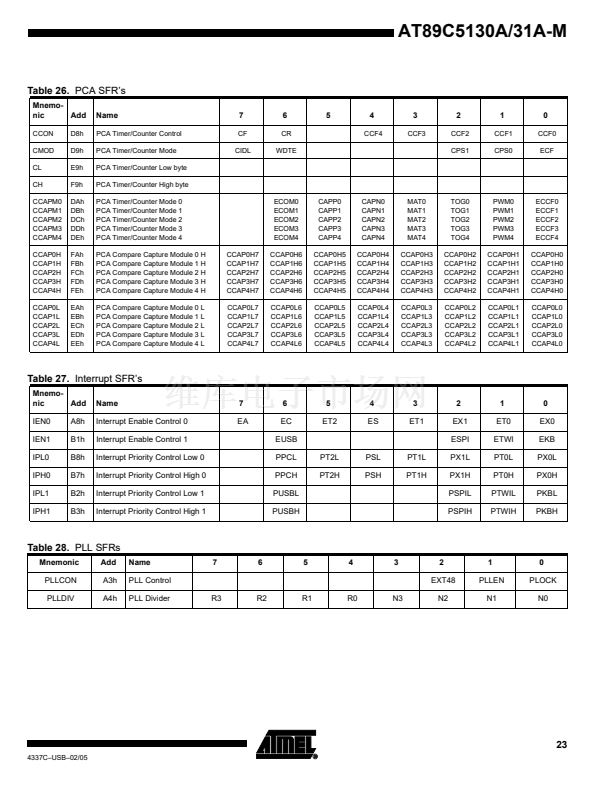

23
24
25
26

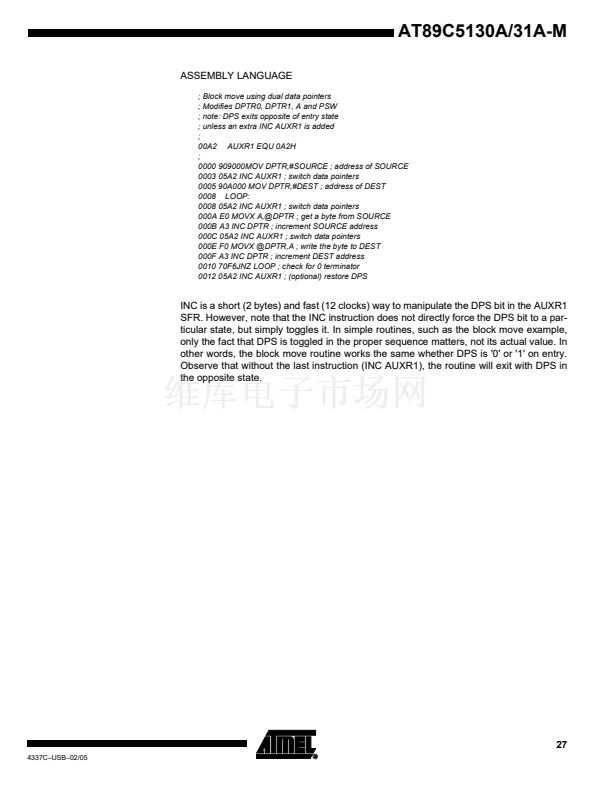

27
28
29

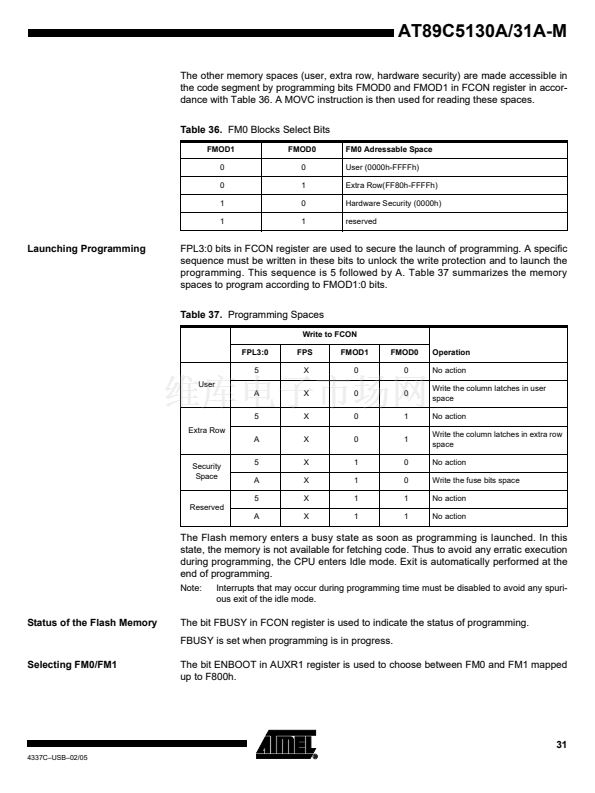

30
31

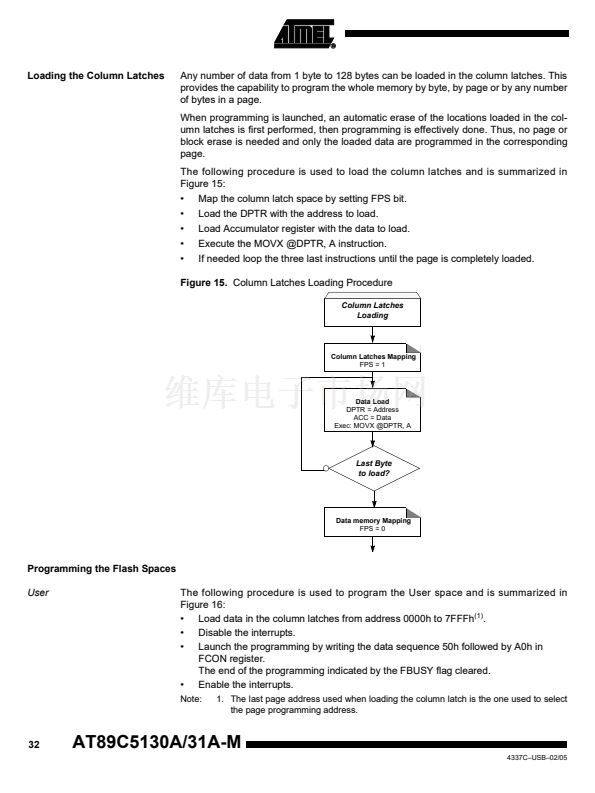

32
33

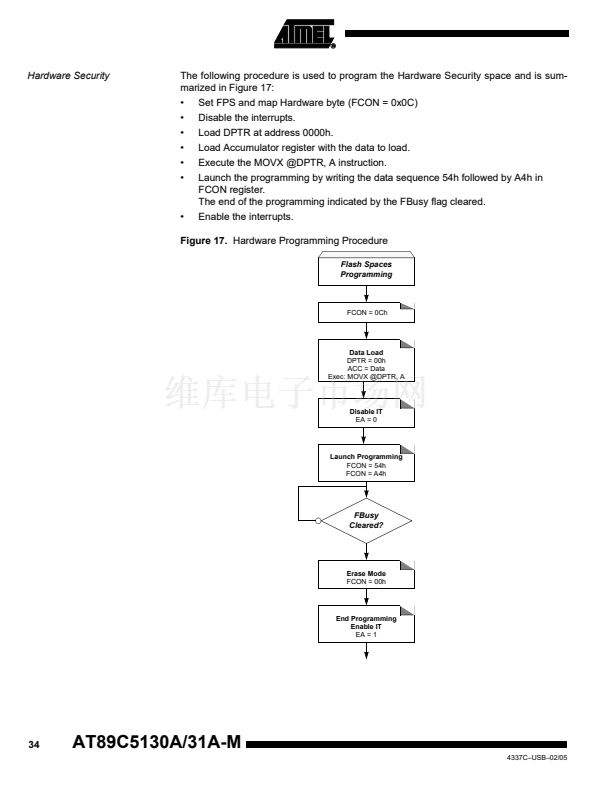

34

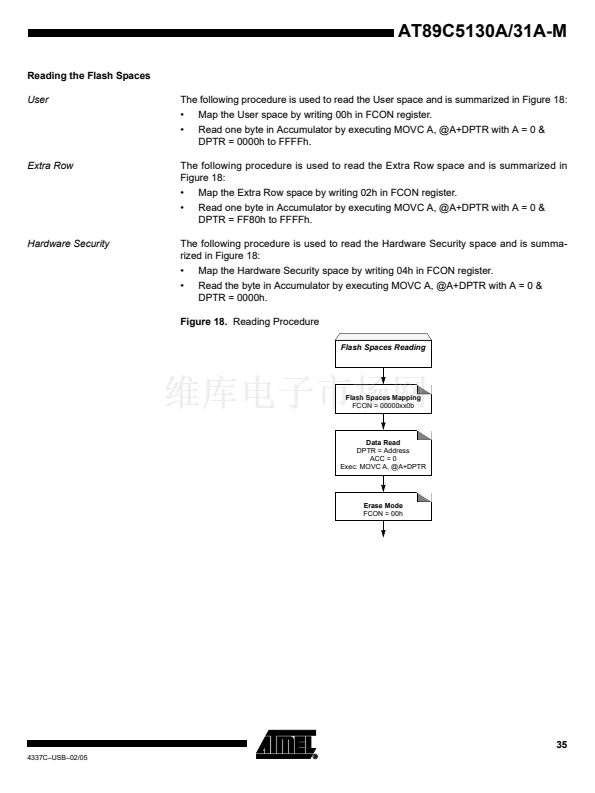

35
36
37

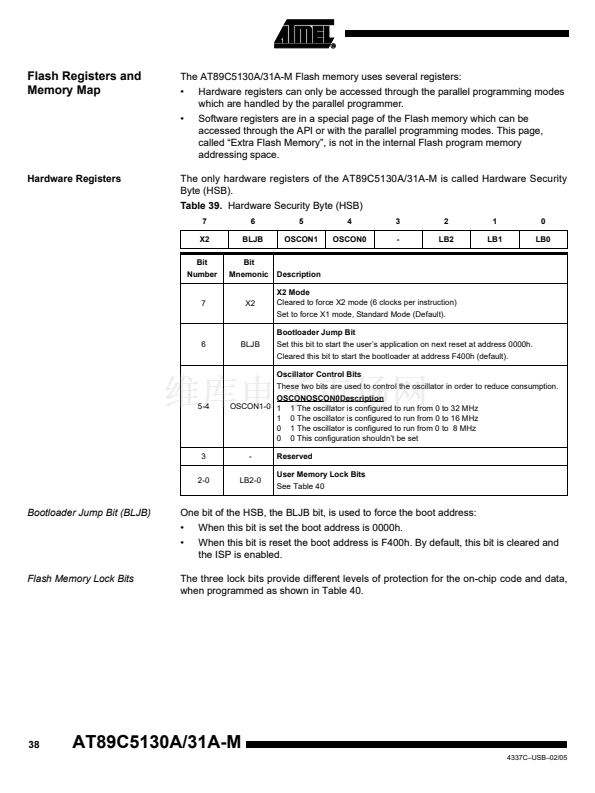

38
39

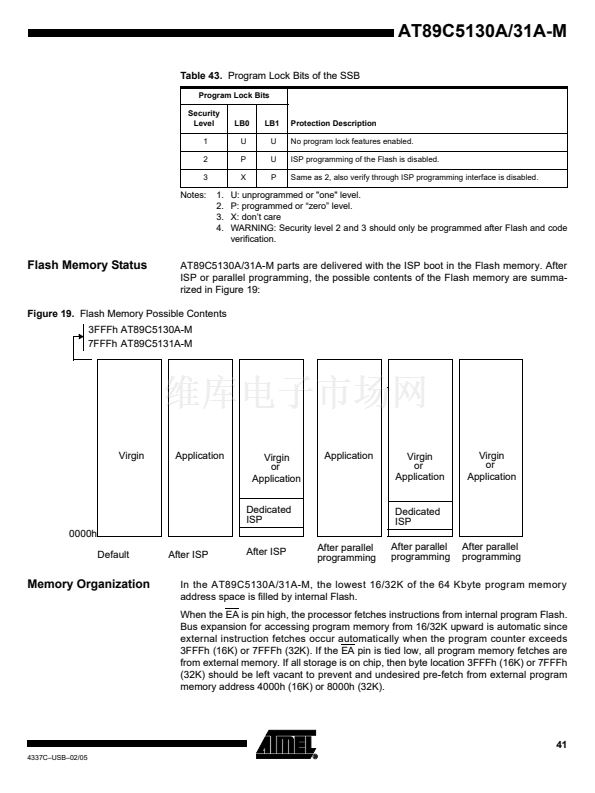

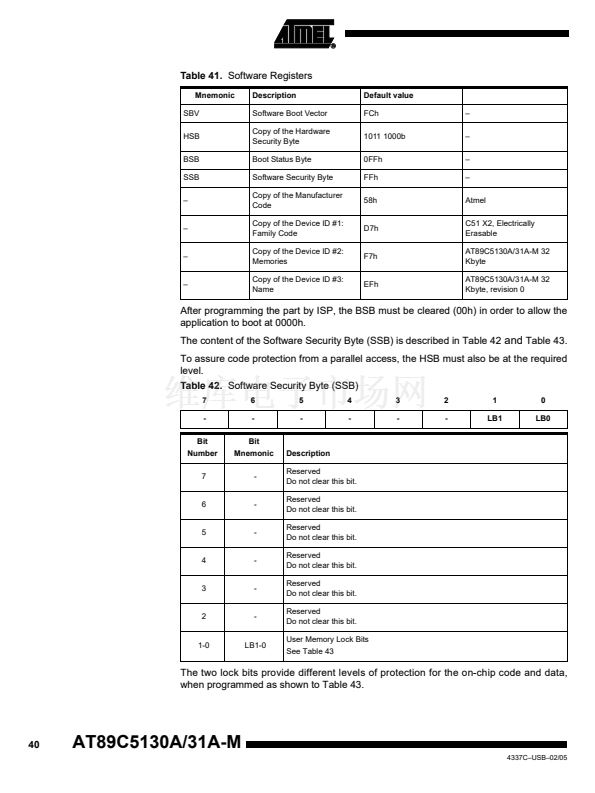

40
41

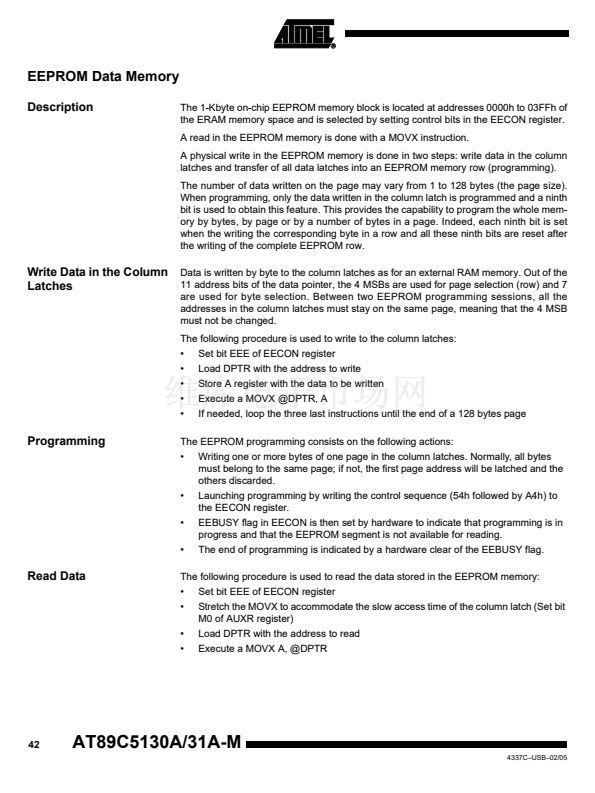

42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

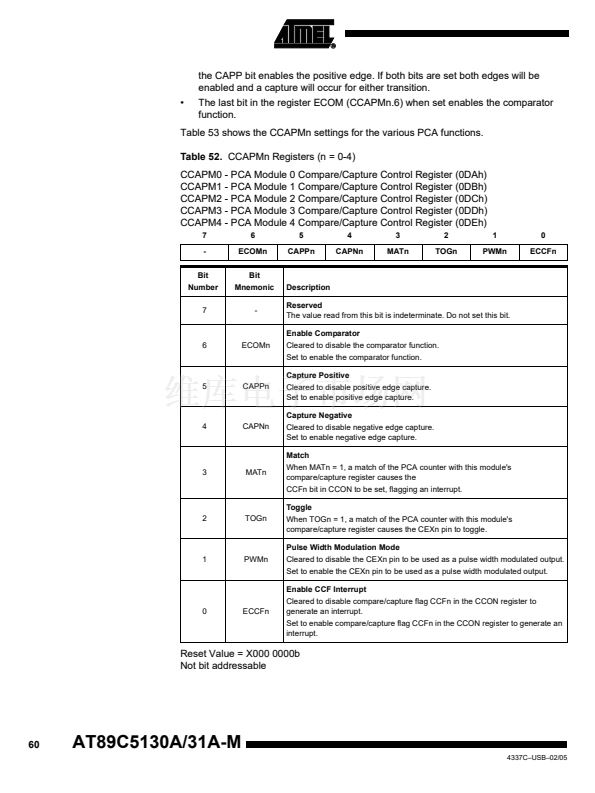

60
61
62
63
64

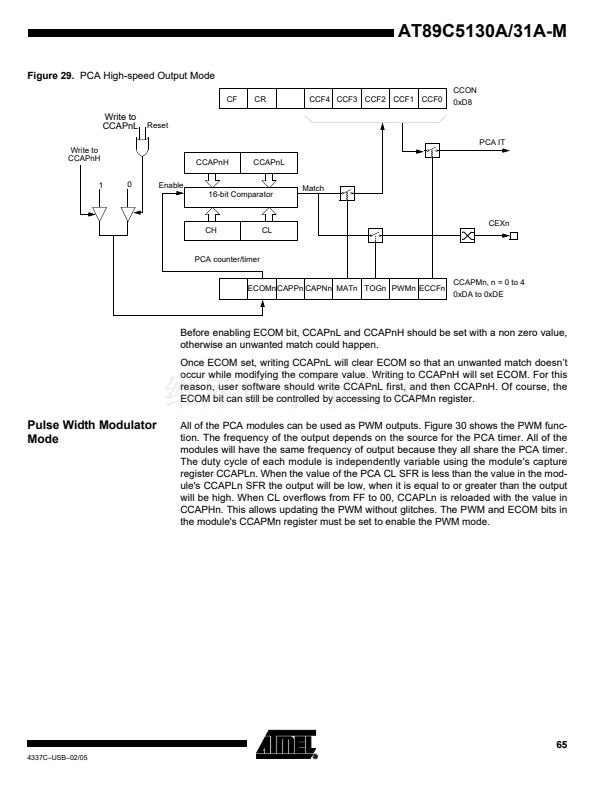

65
66
67
68

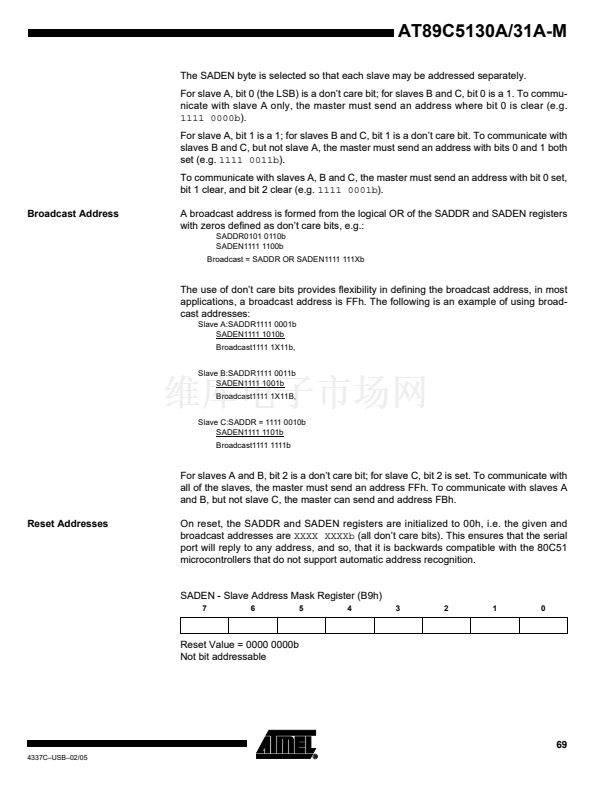

69

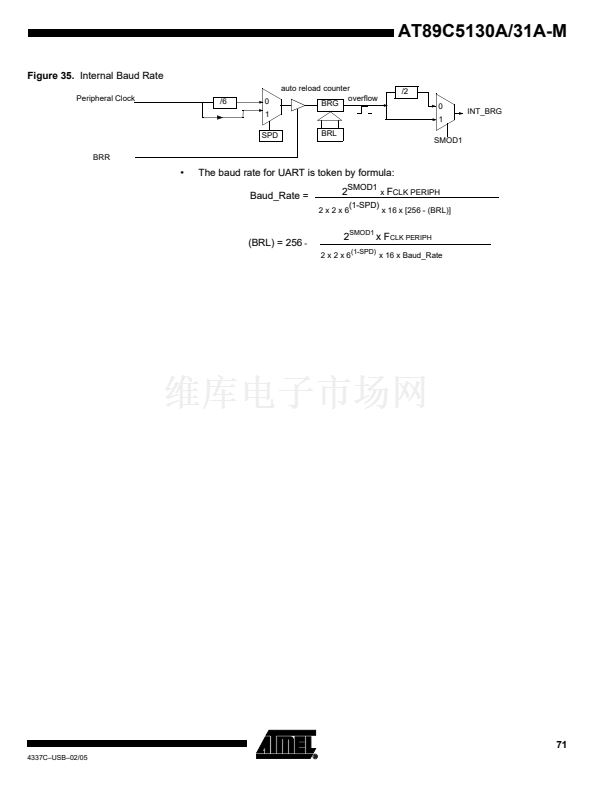

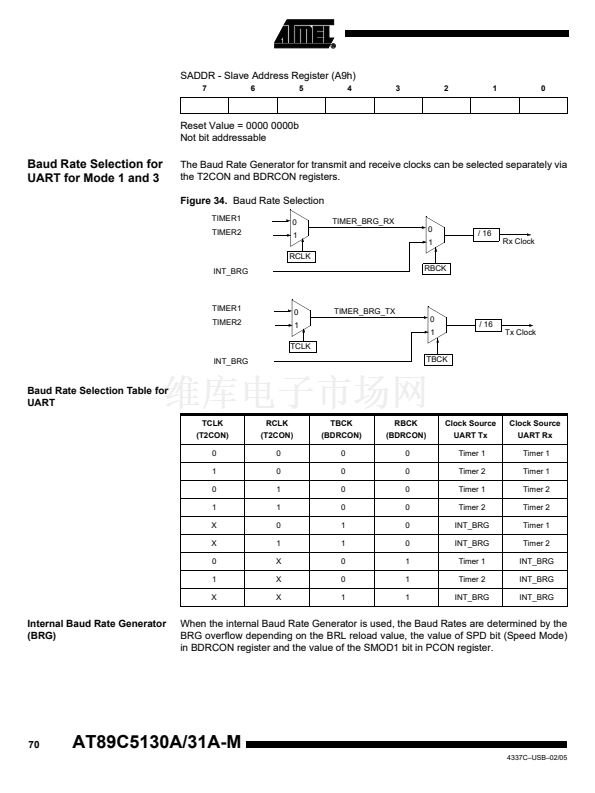

70
71

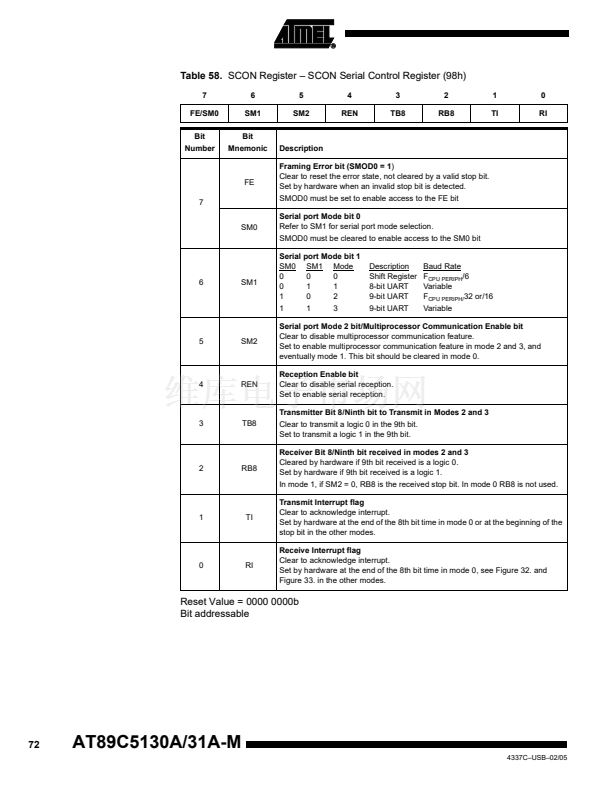

72

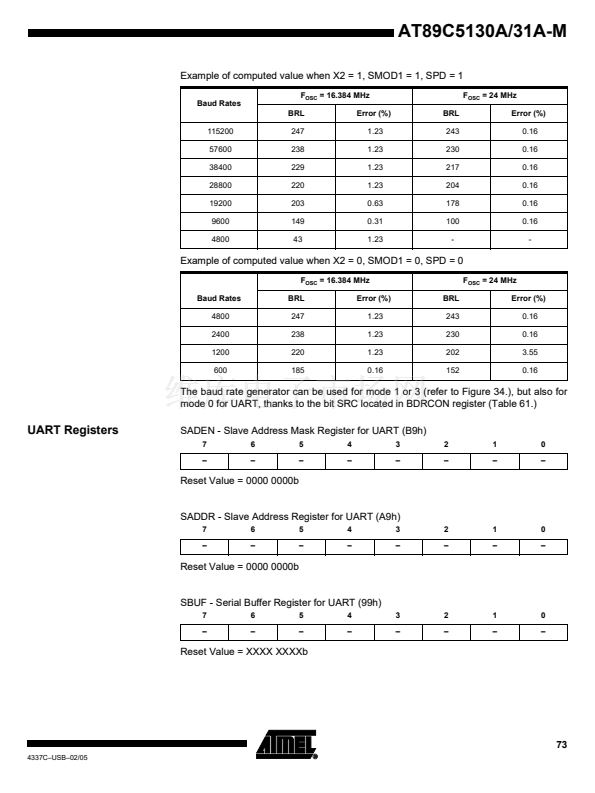

73

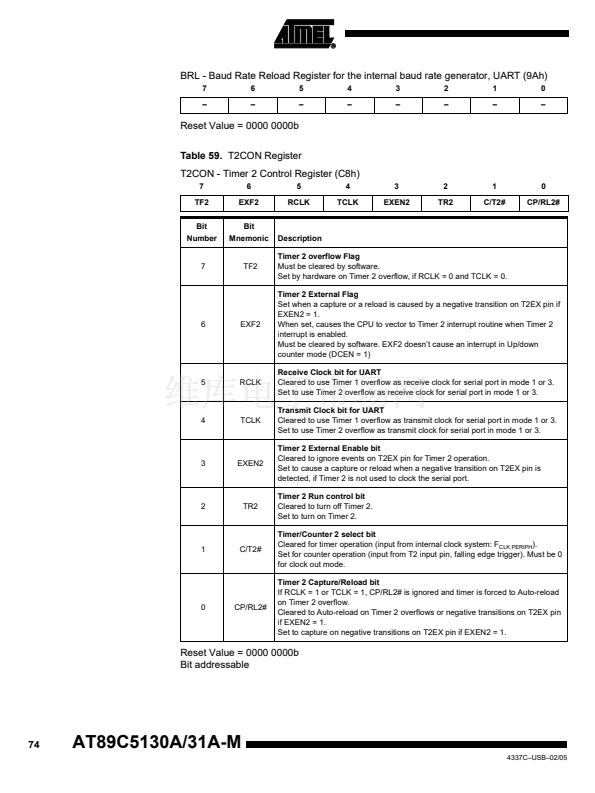

74

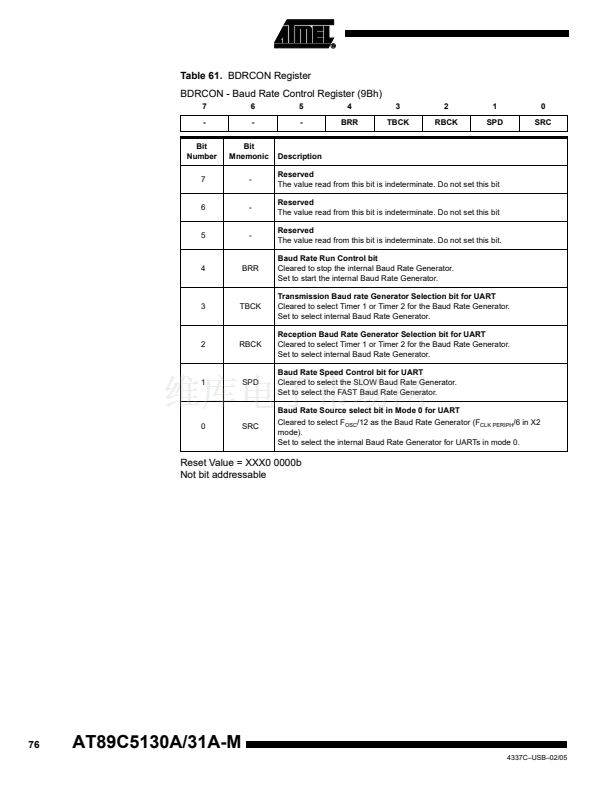

75
76

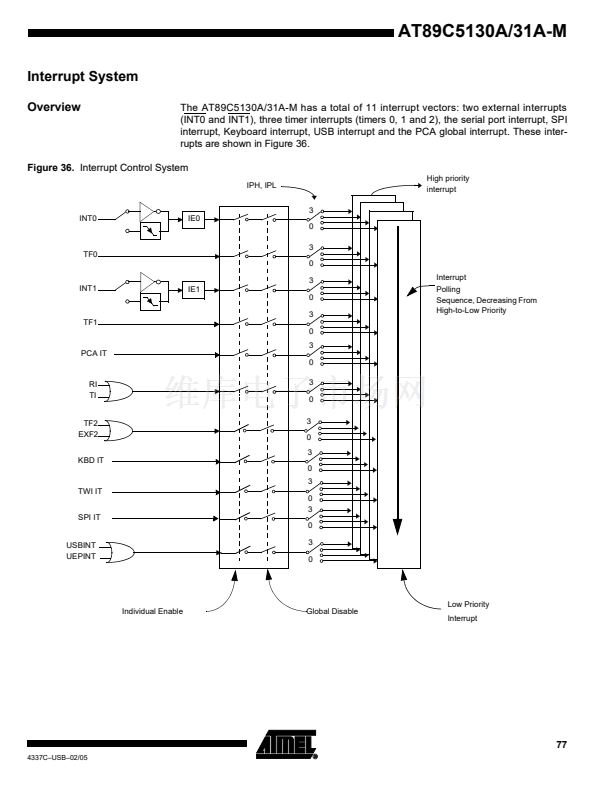

77

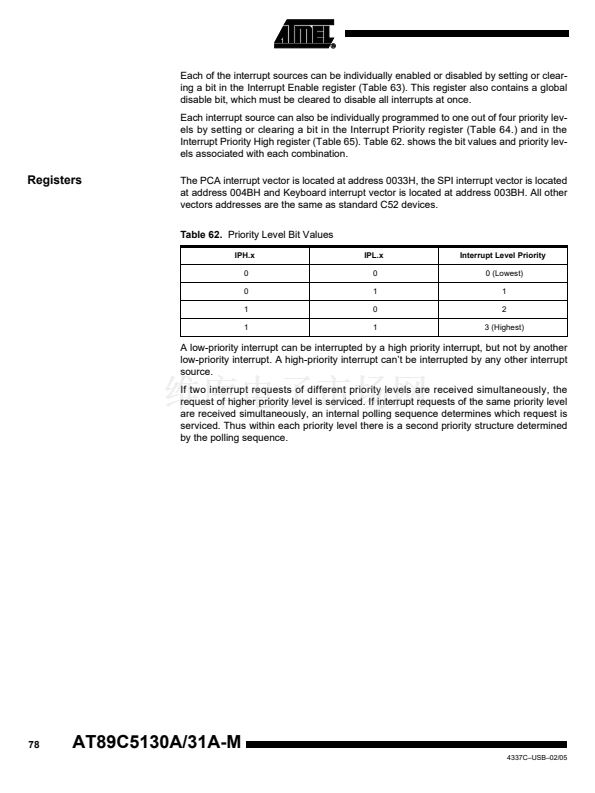

78

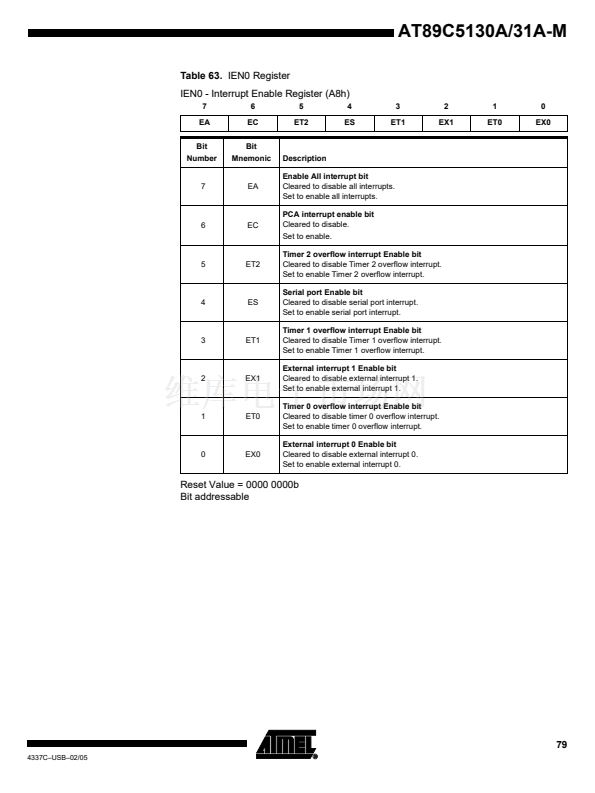

79
80
81
82

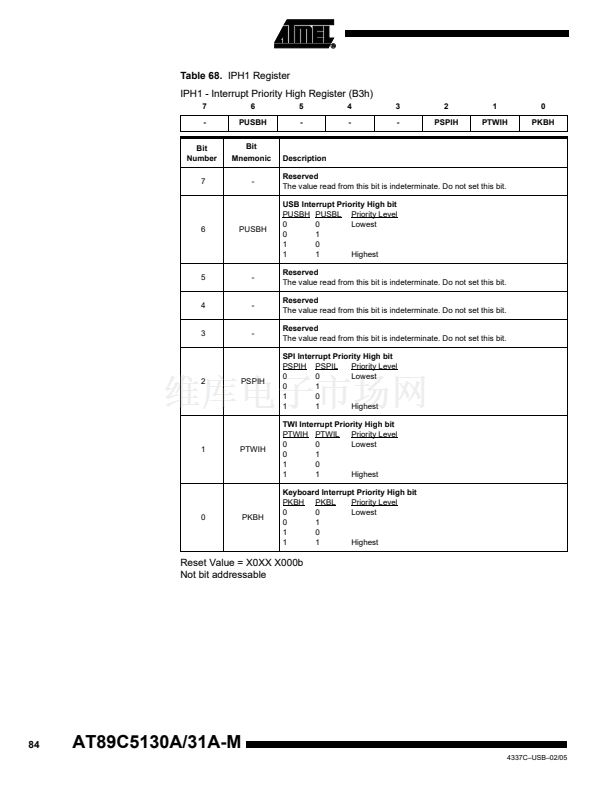

83
84
85
86
87
88
89
90
91
92
93

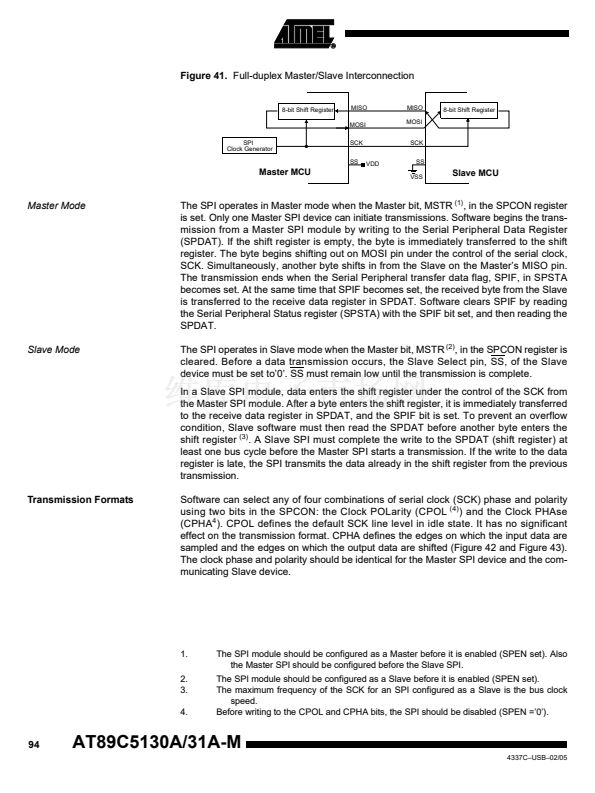

94
95
96
97
98
99
100

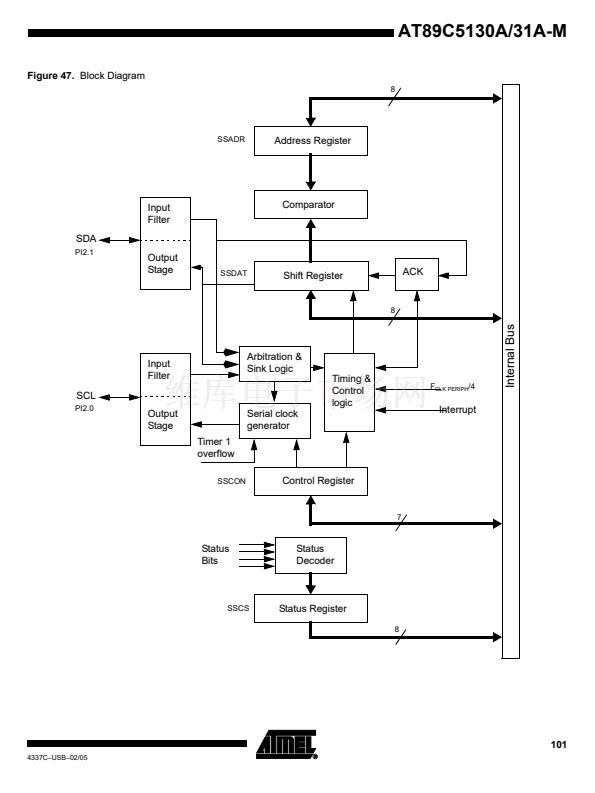

101

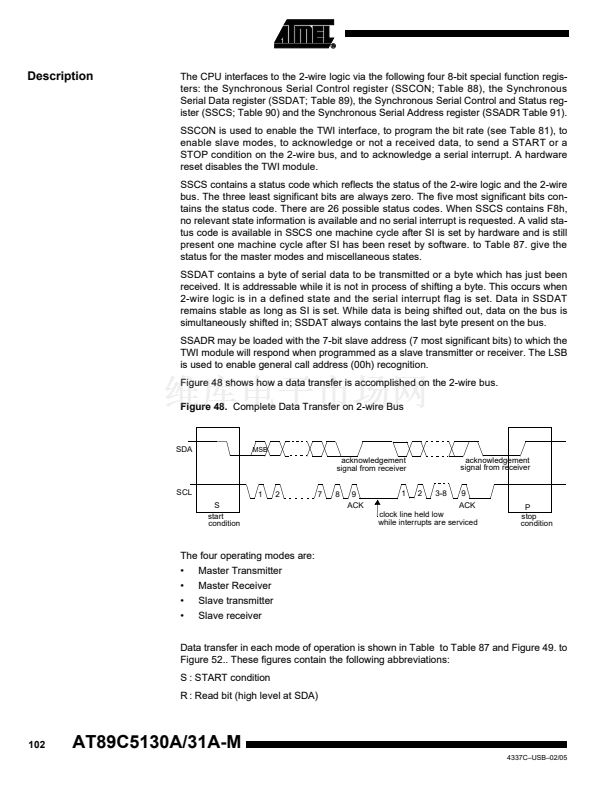

102
103

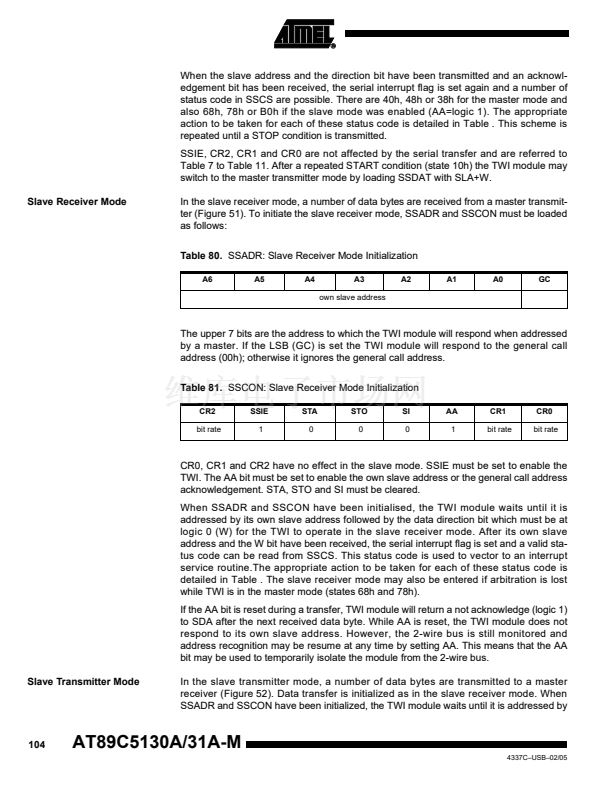

104
105

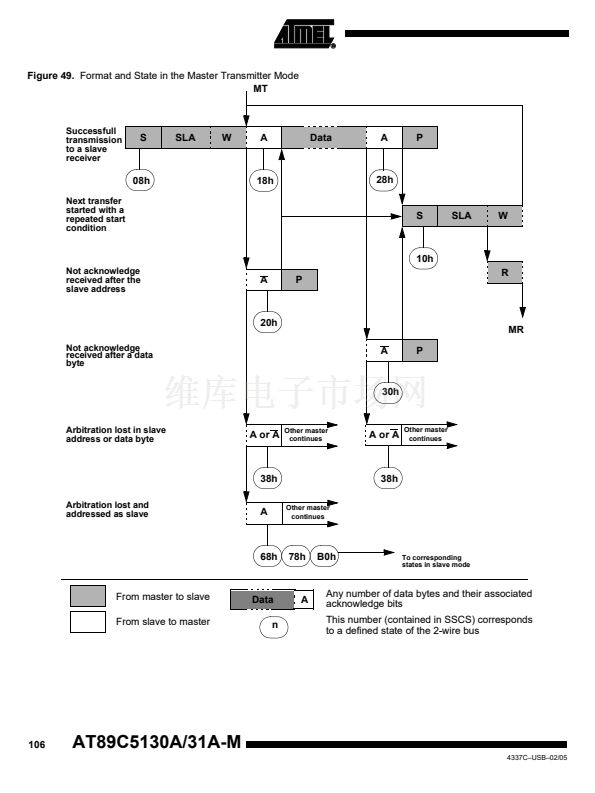

106

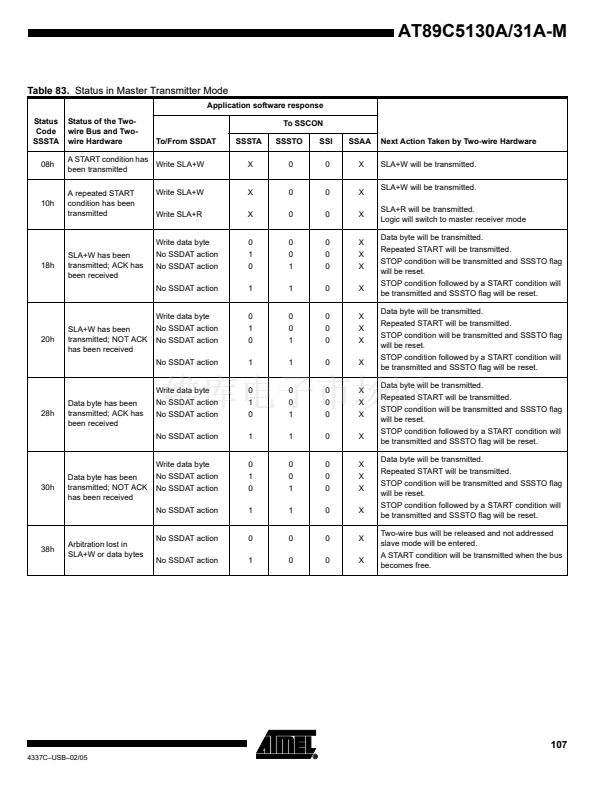

107
108

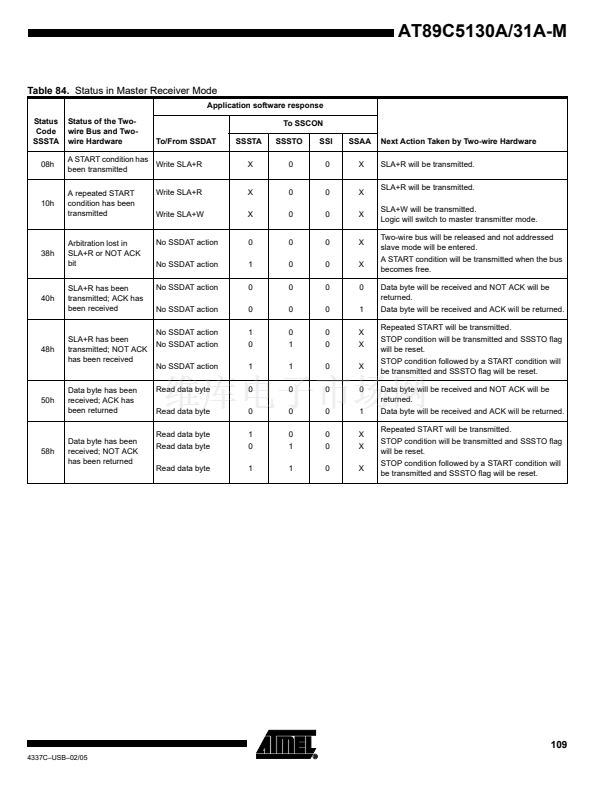

109
110

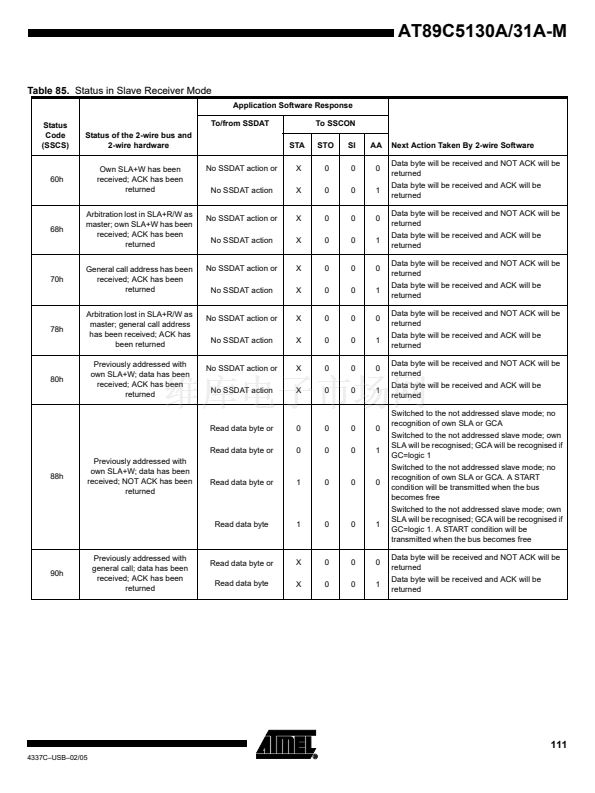

111

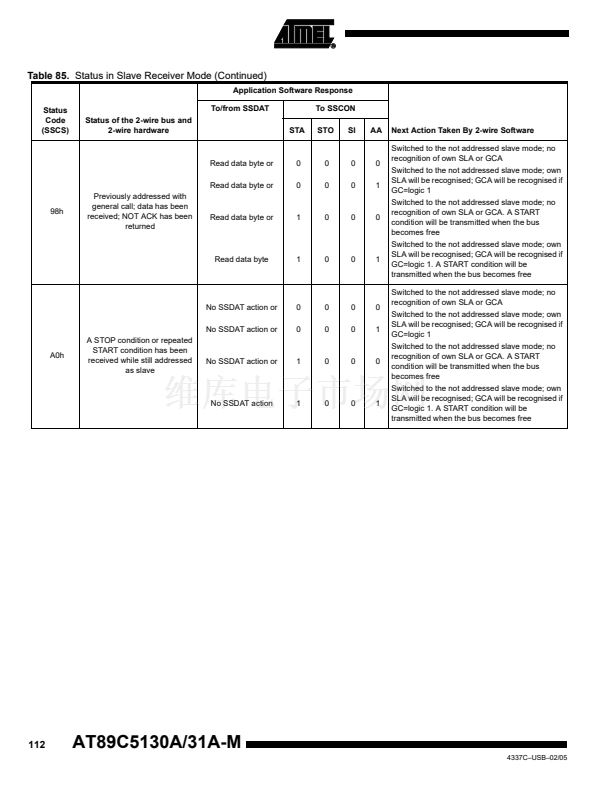

112
113

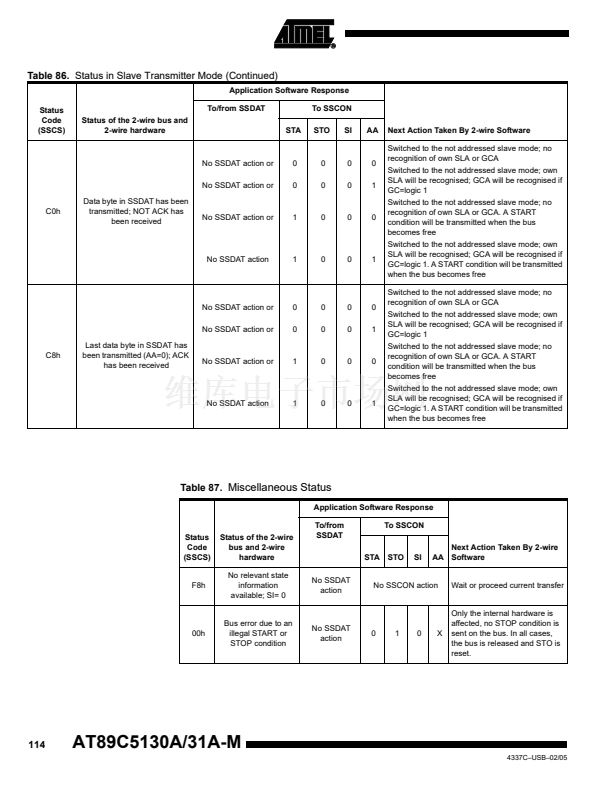

114

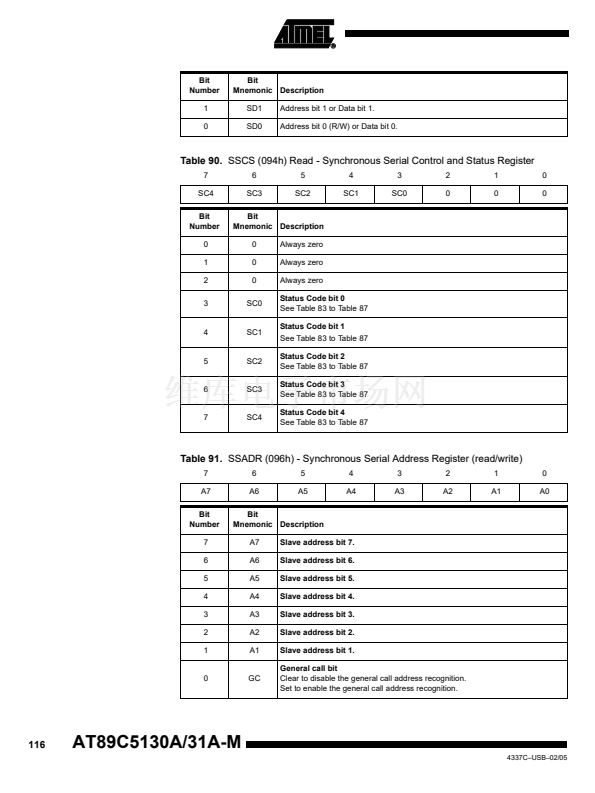

115
116
117
118
119
120
121
122

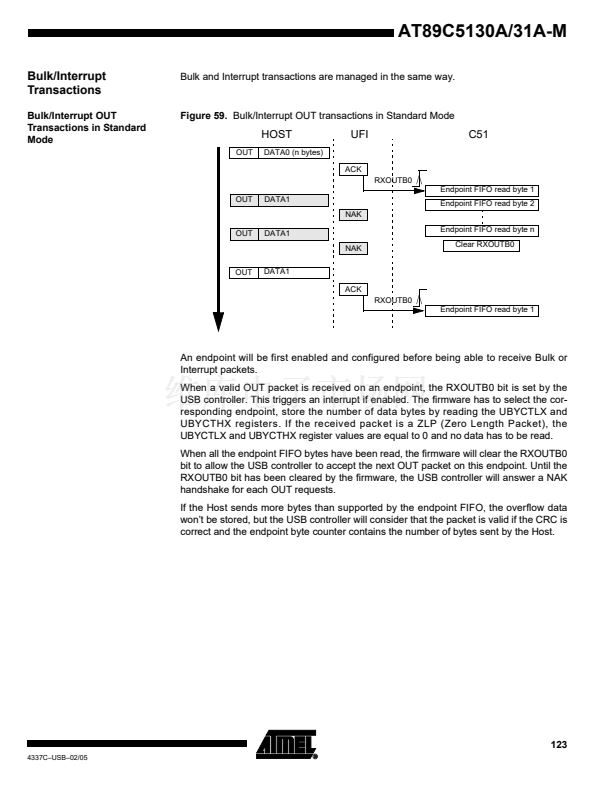

123

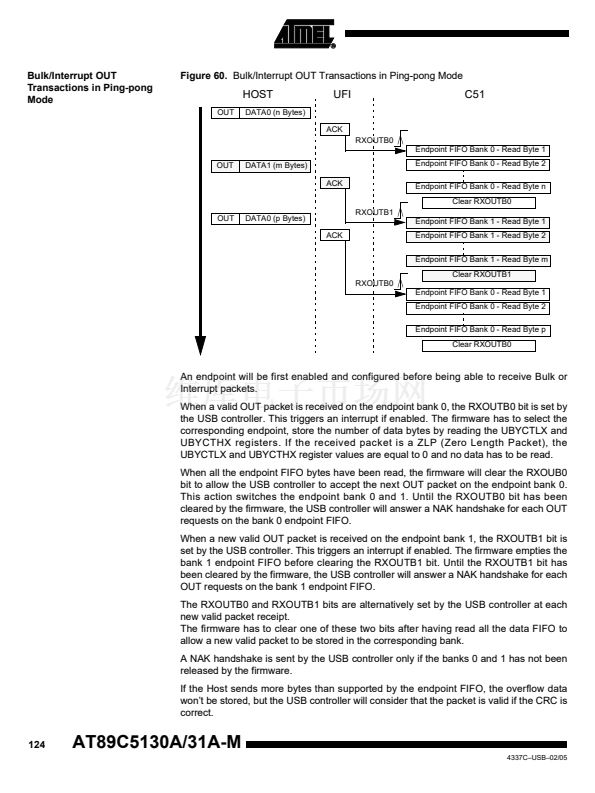

124
125

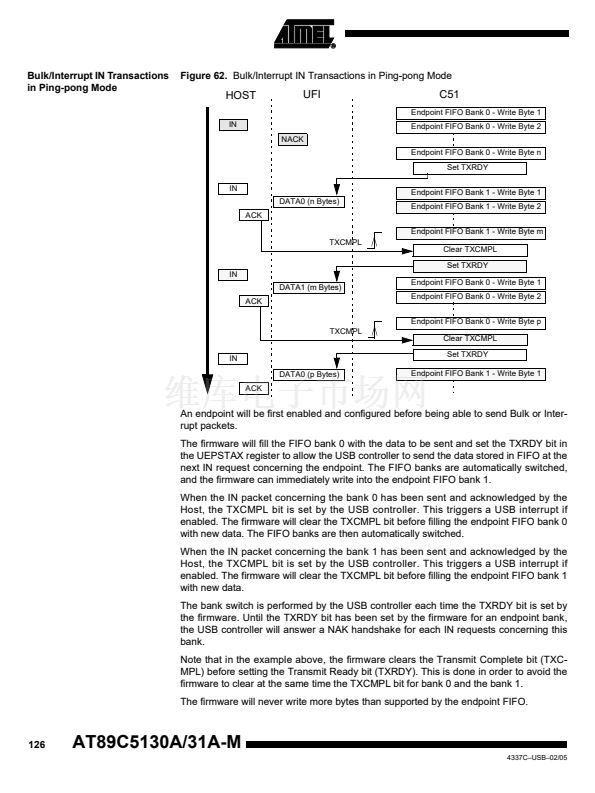

126

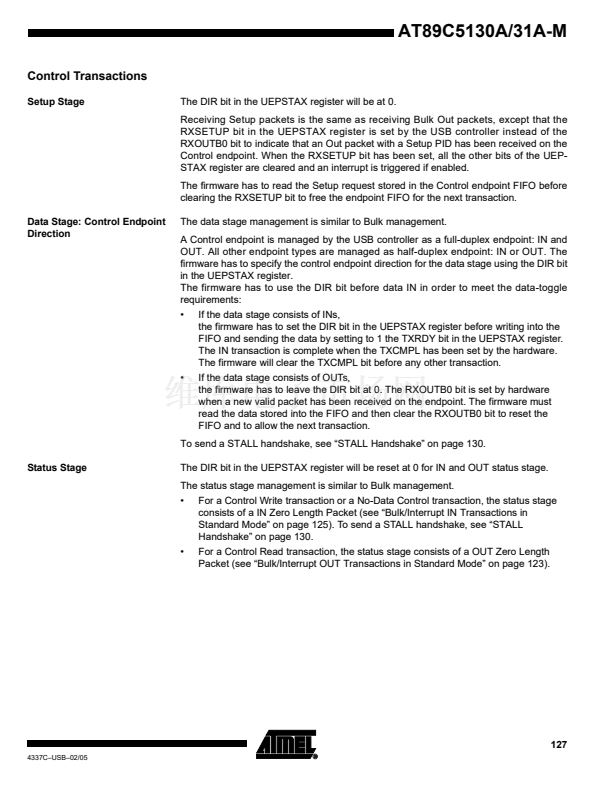

127

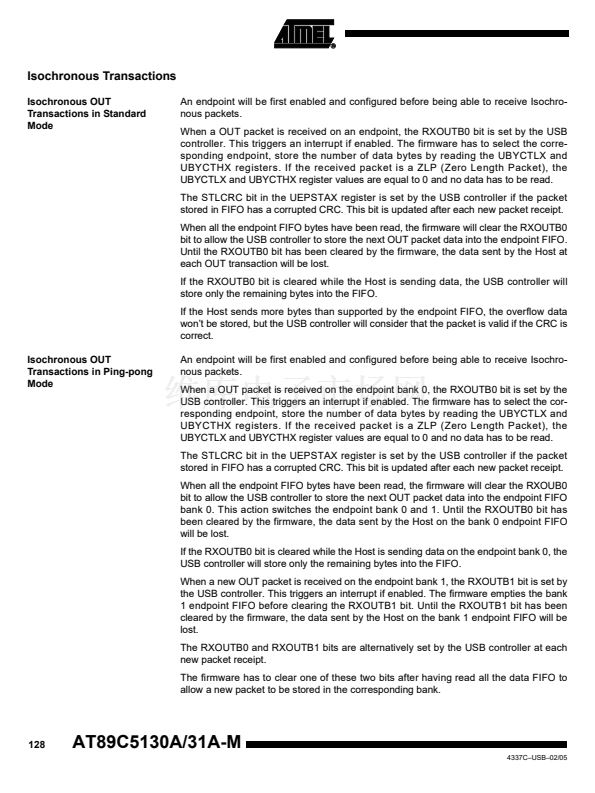

128

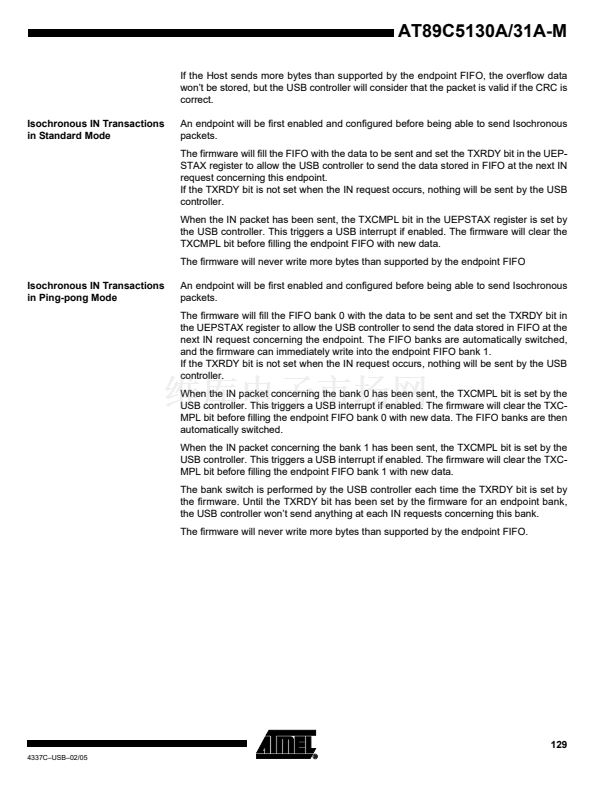

129
130
131
132

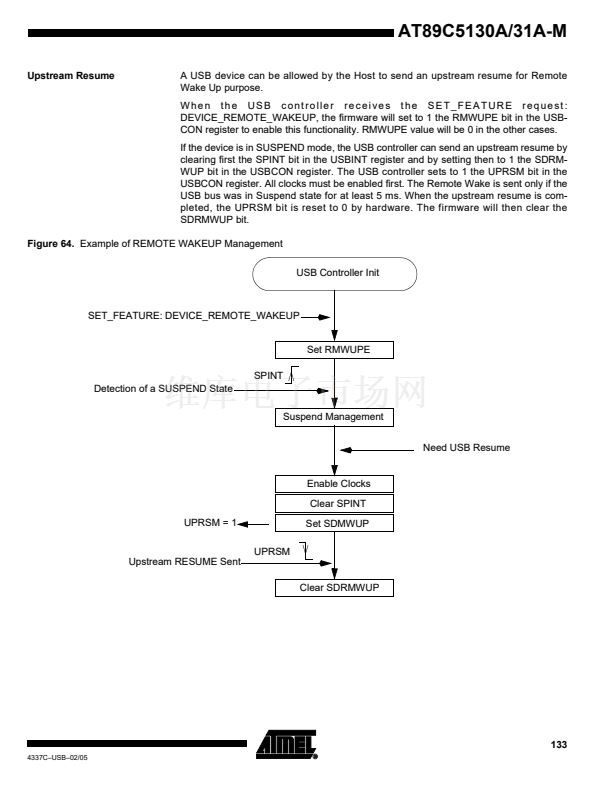

133
134
135
136
137
138
139
140
141

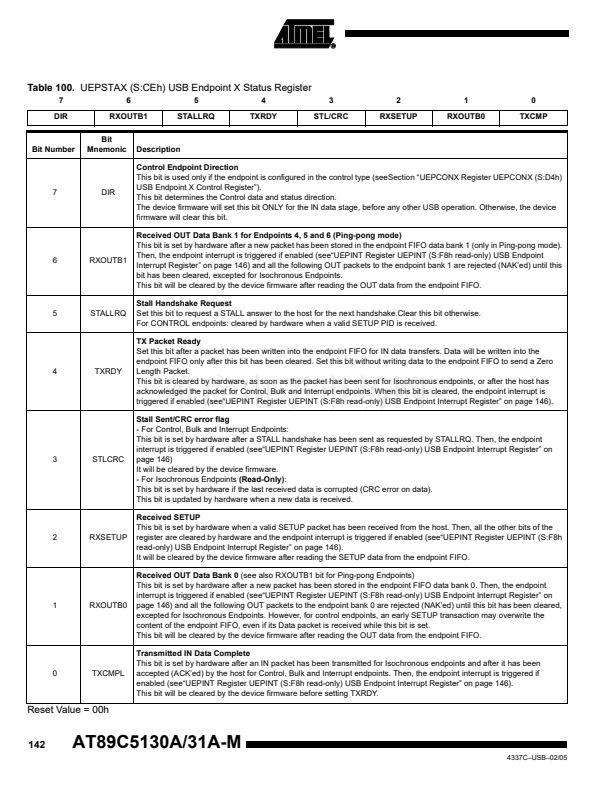

142
143
144

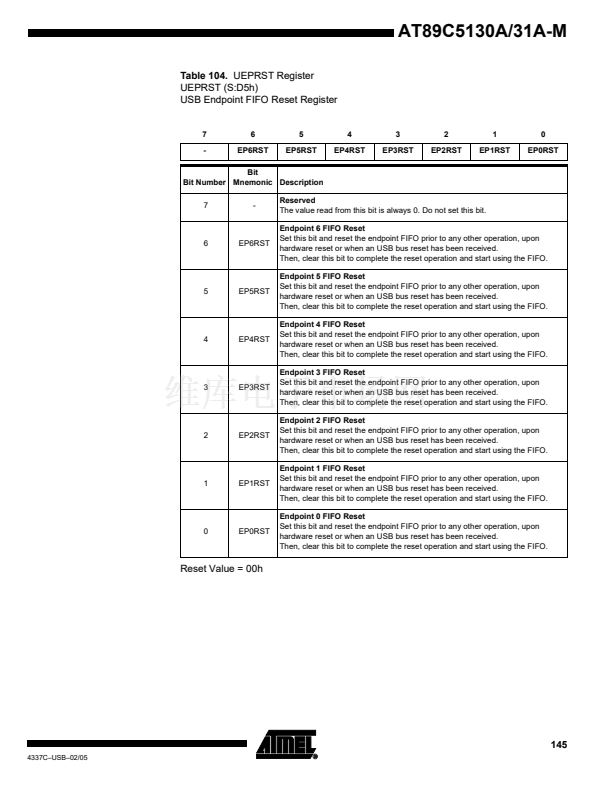

145
146

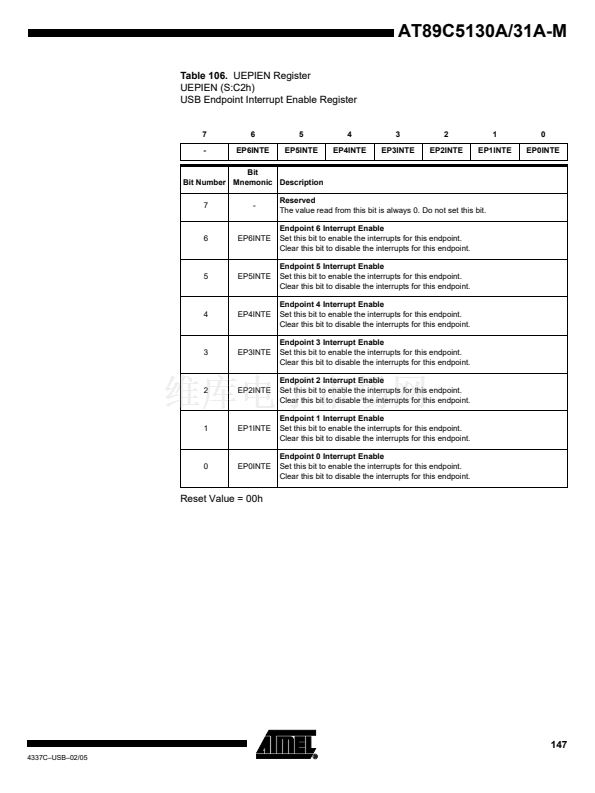

147

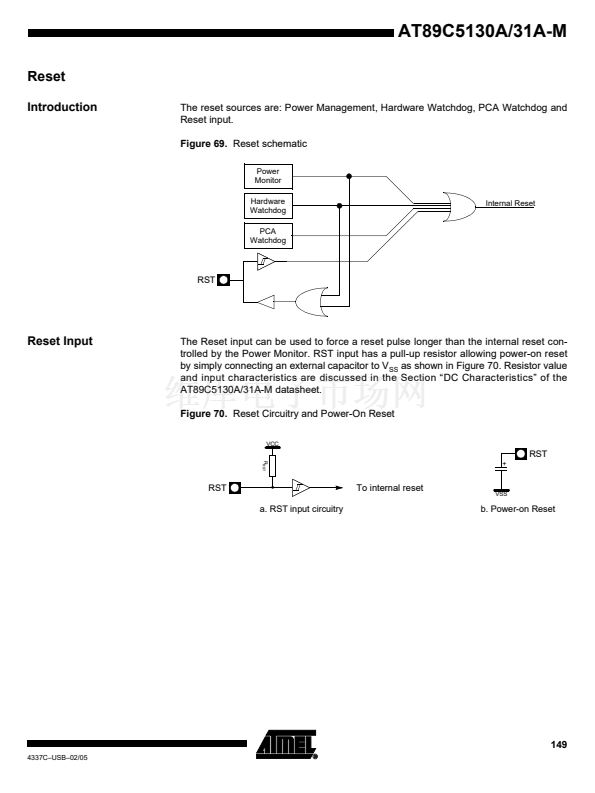

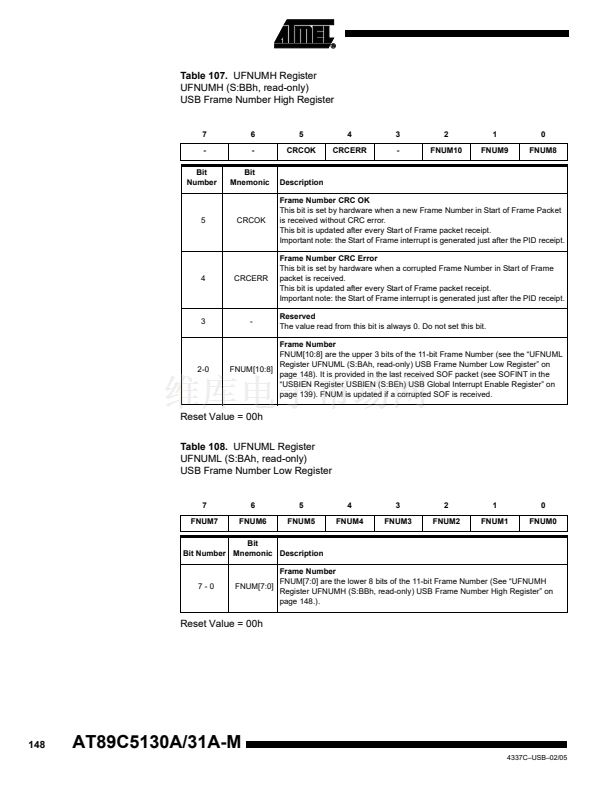

148
149

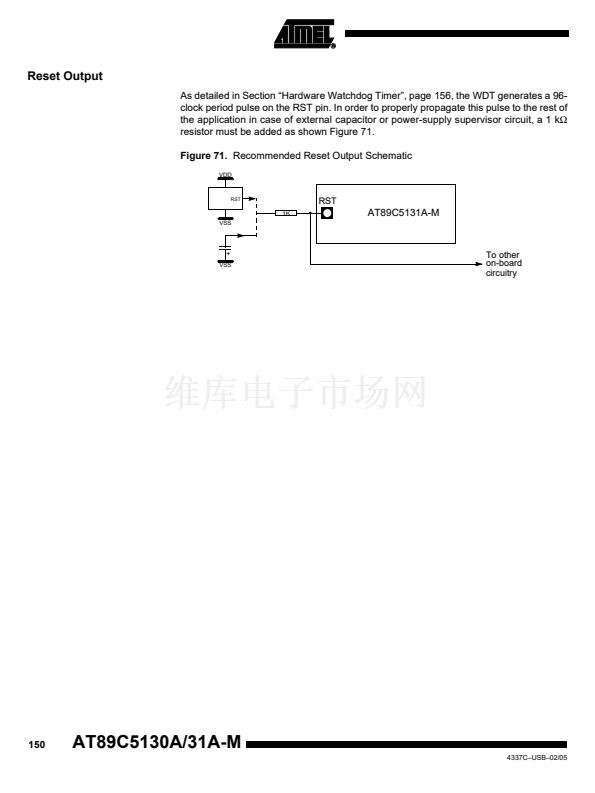

150
151
152
153

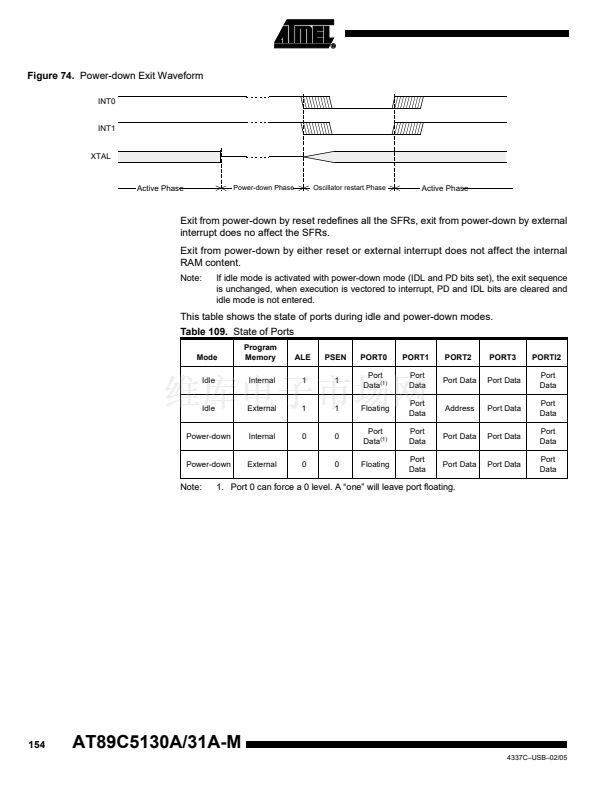

154

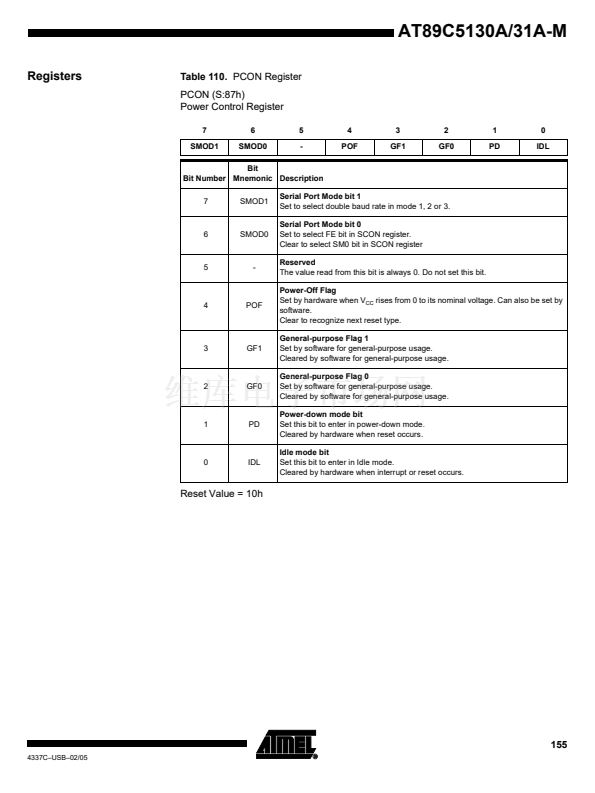

155
156
157

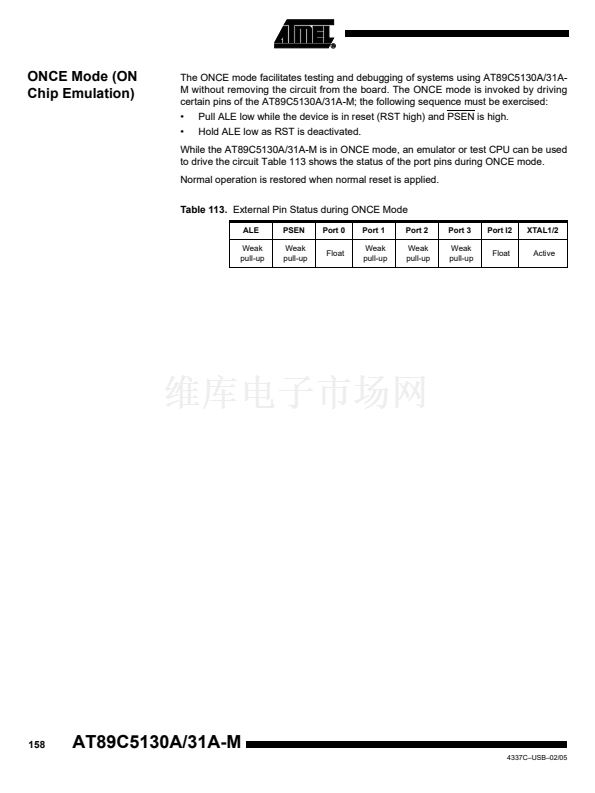

158

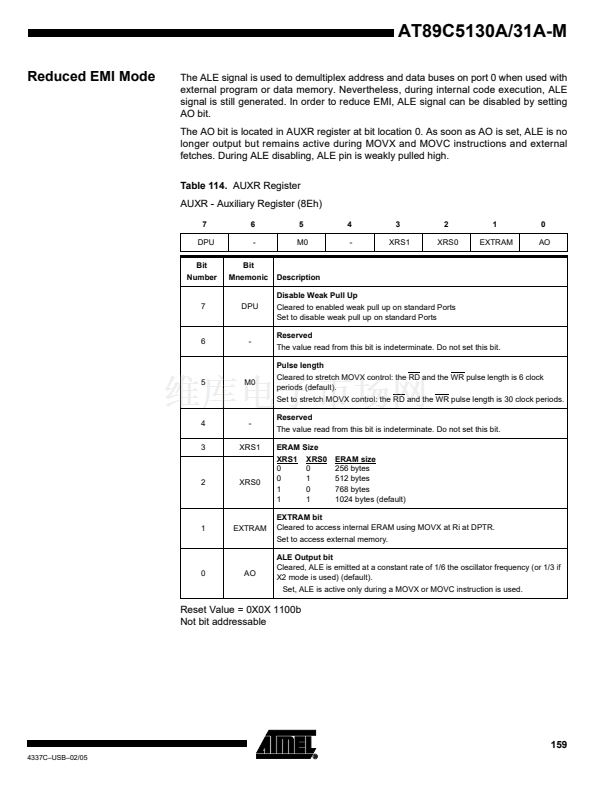

159

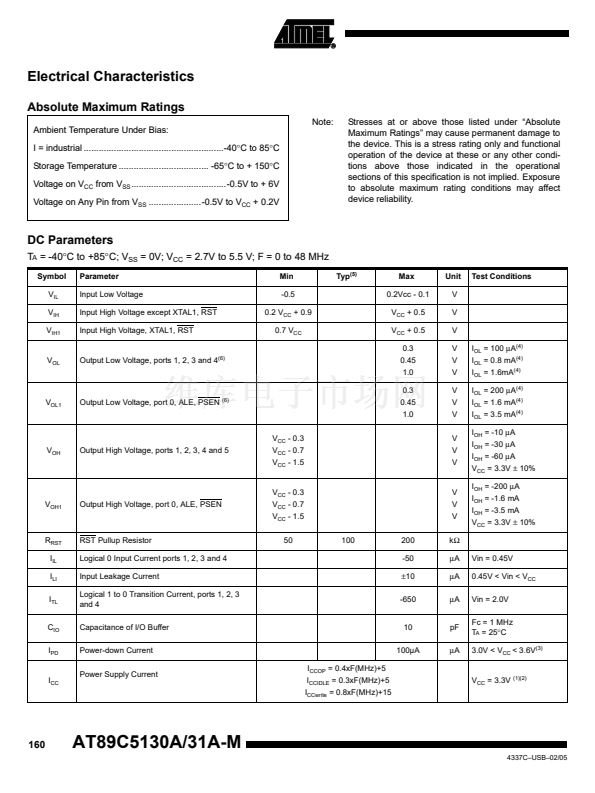

160

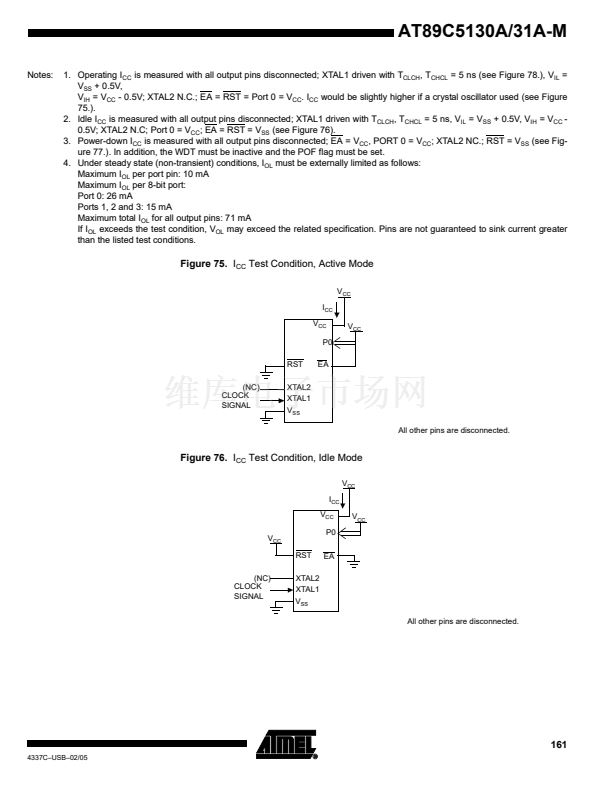

161

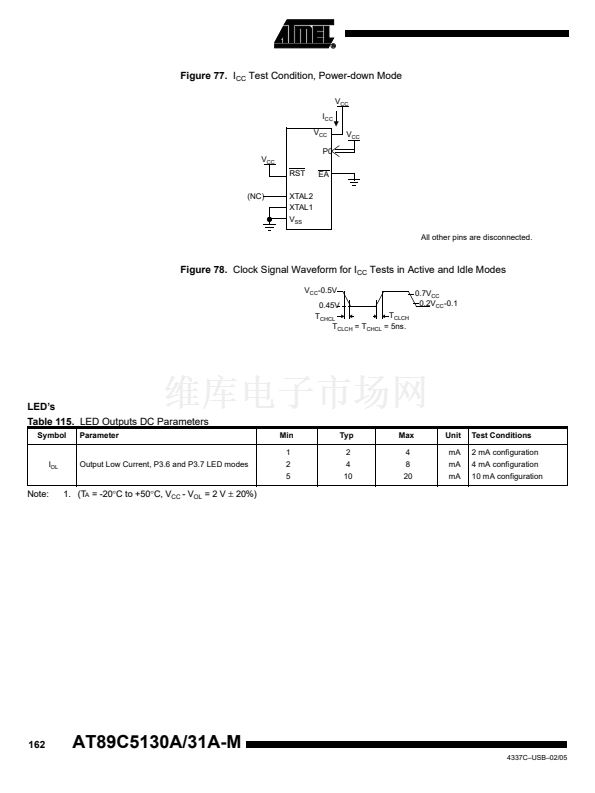

162
163

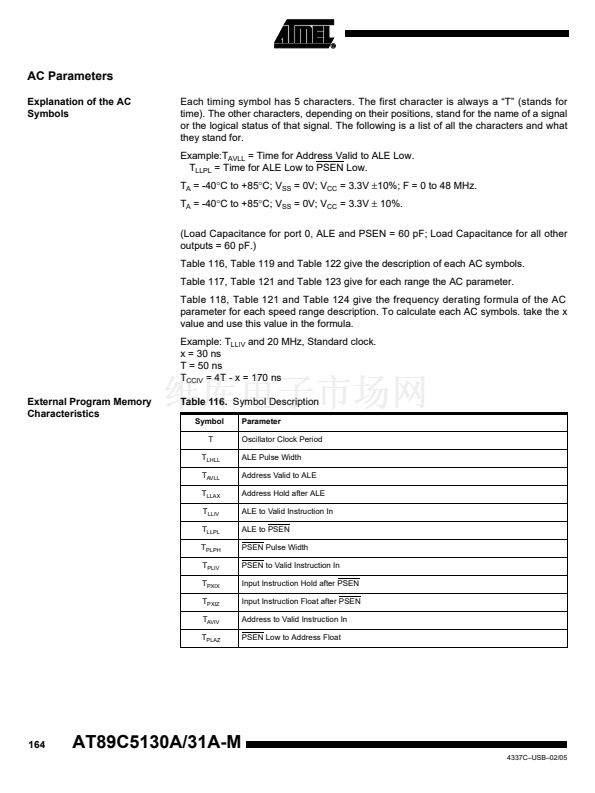

164

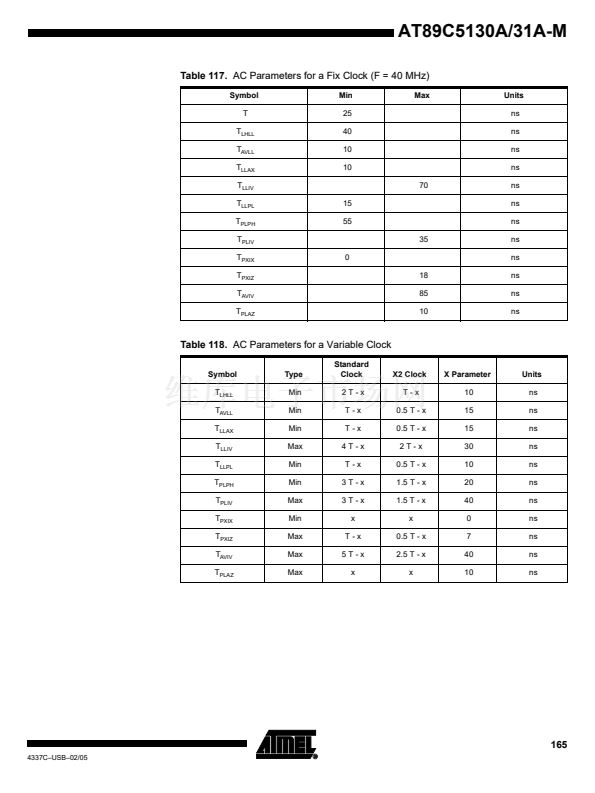

165

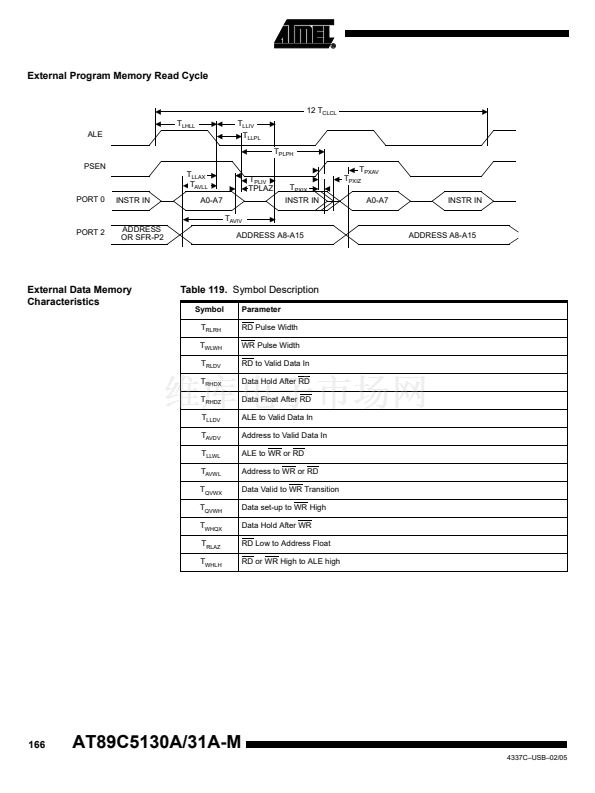

166

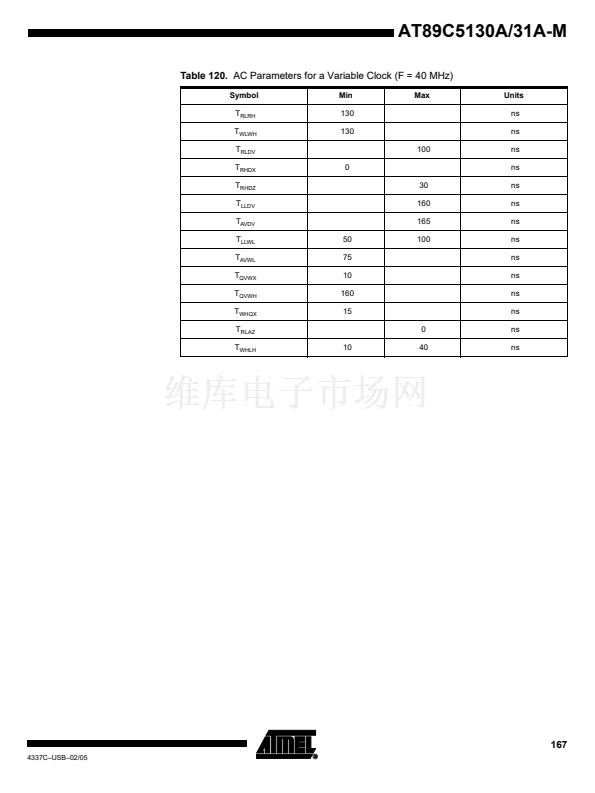

167
168
169

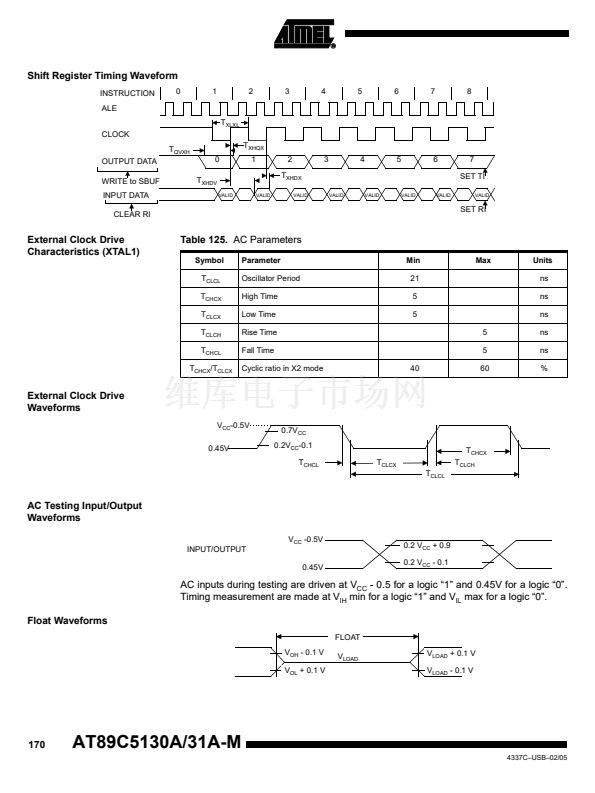

170
171
172
173
174

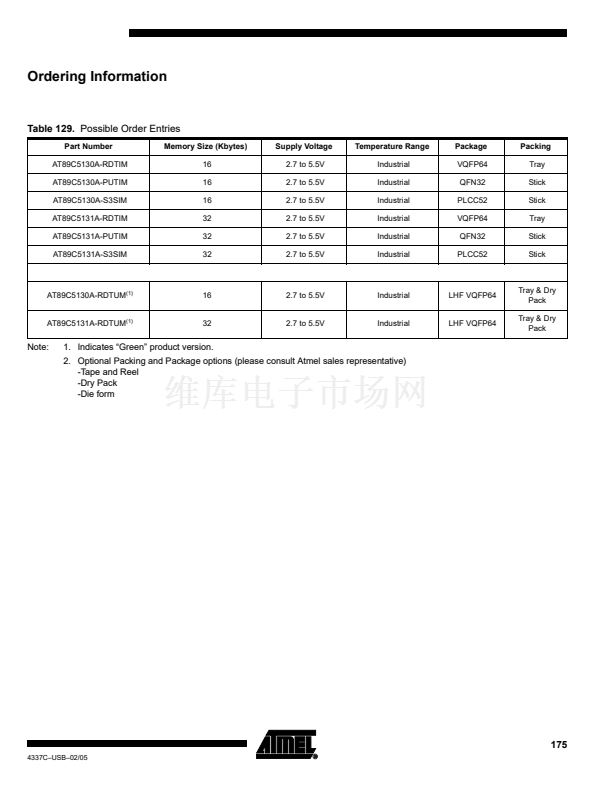

175
176
177
178
179
180
181
182
183
184

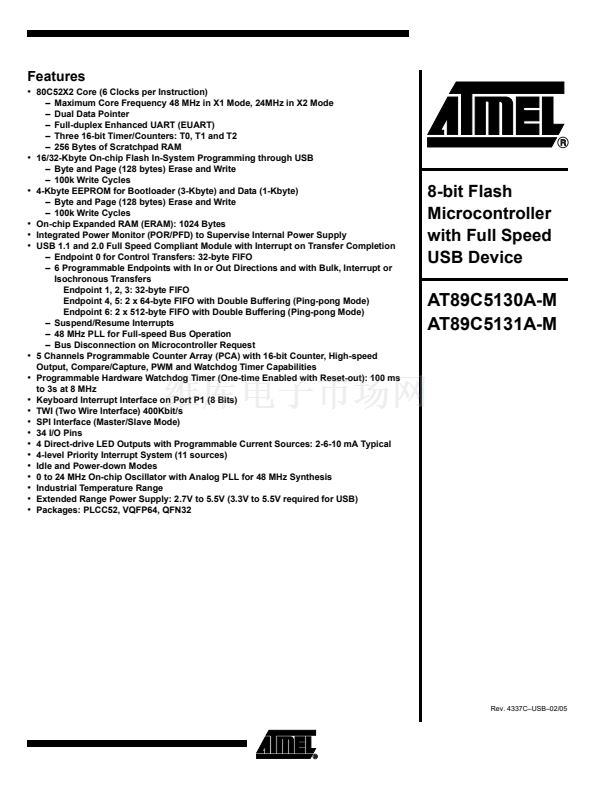

Features

鈥?/div>

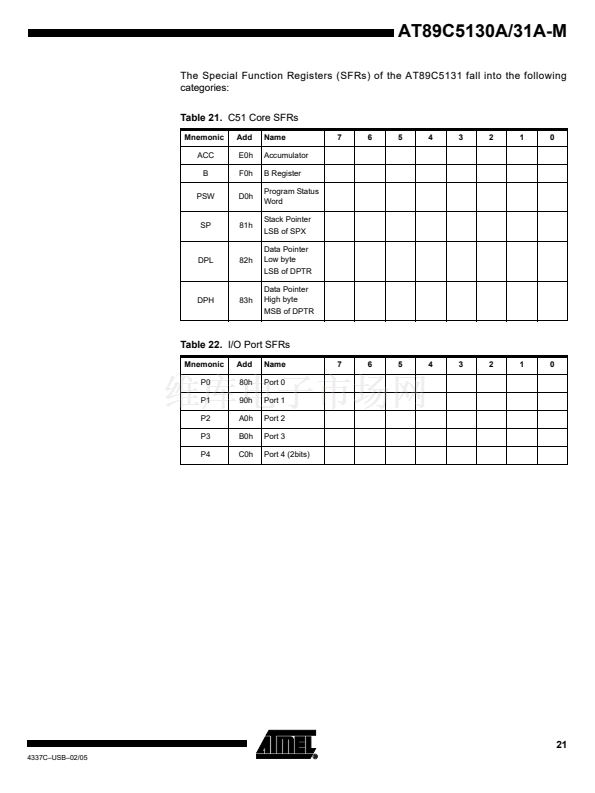

80C52X2 Core (6 Clocks per Instruction)

鈥?Maximum Core Frequency 48 MHz in X1 Mode, 24MHz in X2 Mode

鈥?Dual Data Pointer

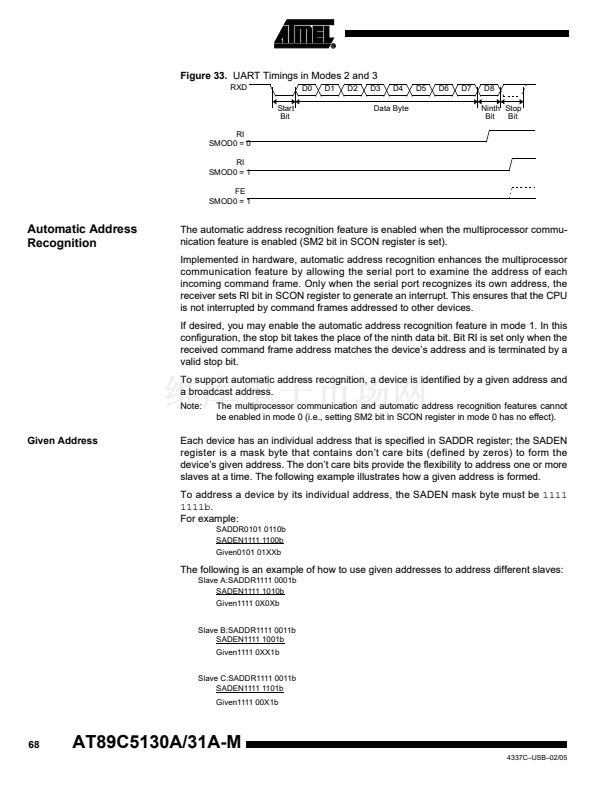

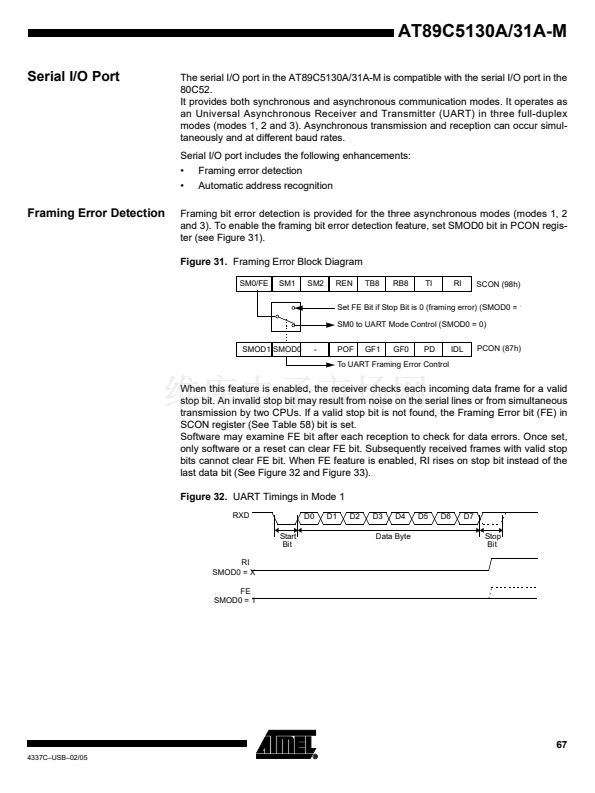

鈥?Full-duplex Enhanced UART (EUART)

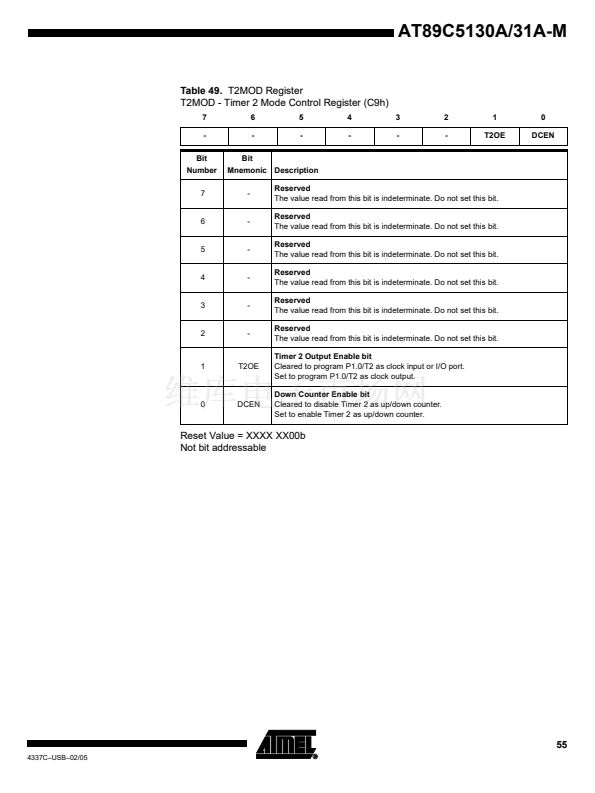

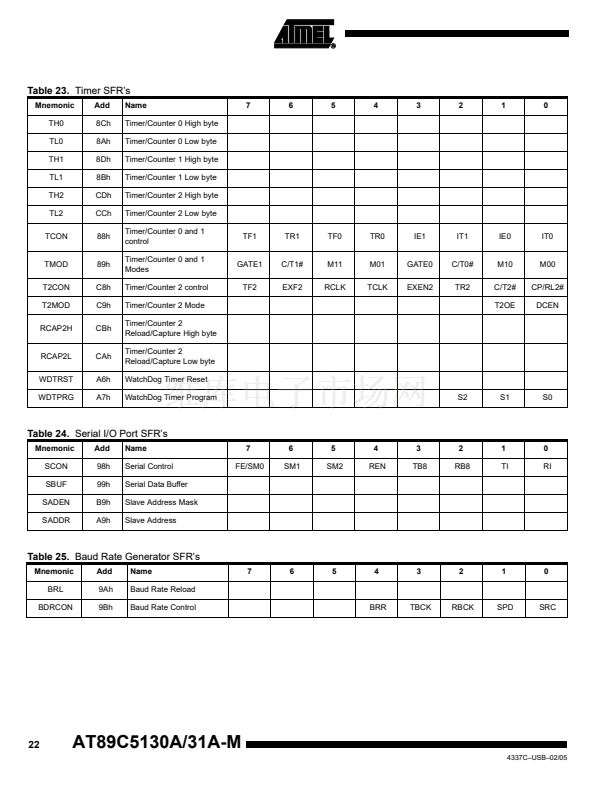

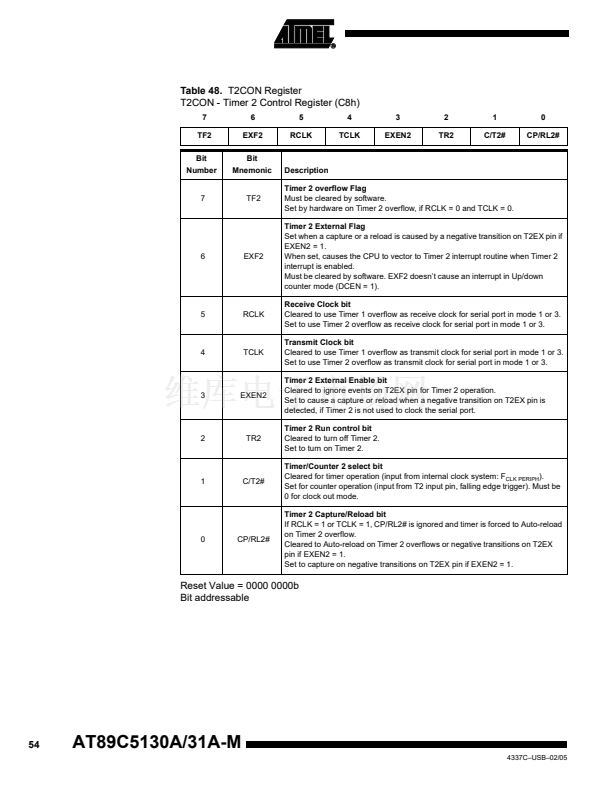

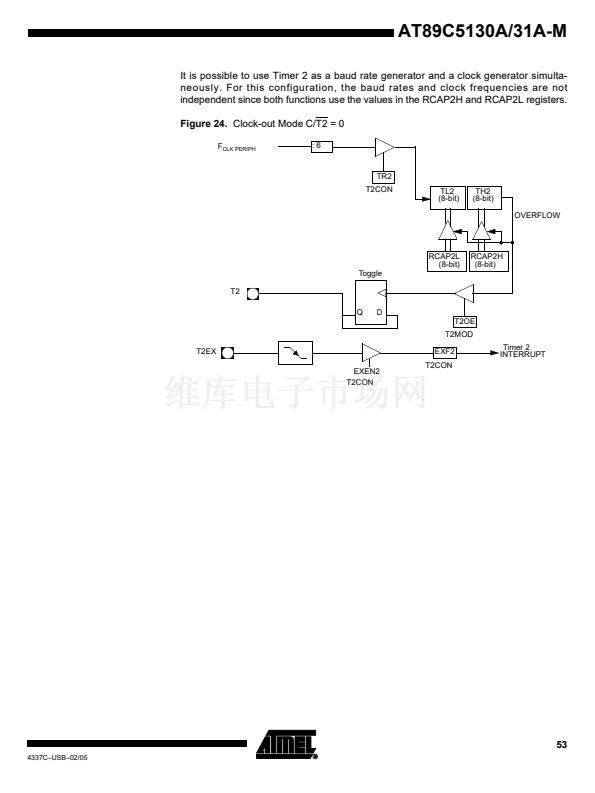

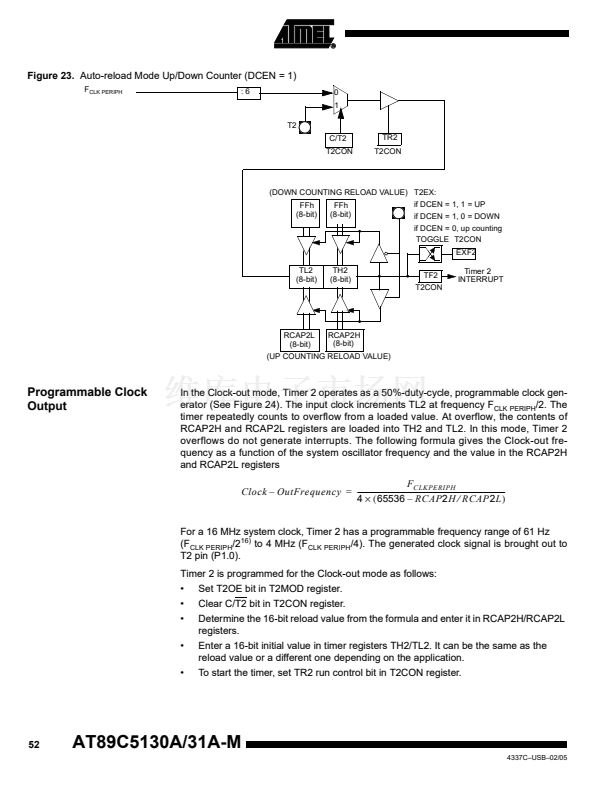

鈥?Three 16-bit Timer/Counters: T0, T1 and T2

鈥?256 Bytes of Scratchpad RAM

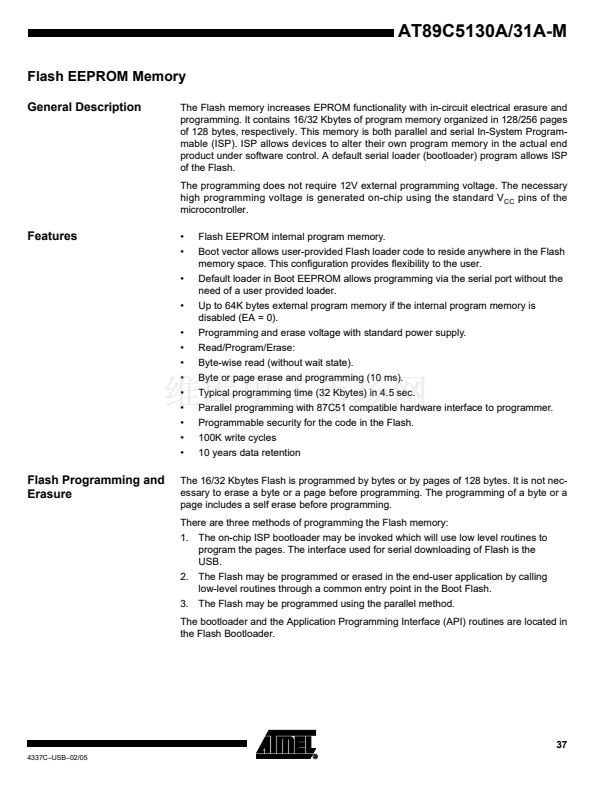

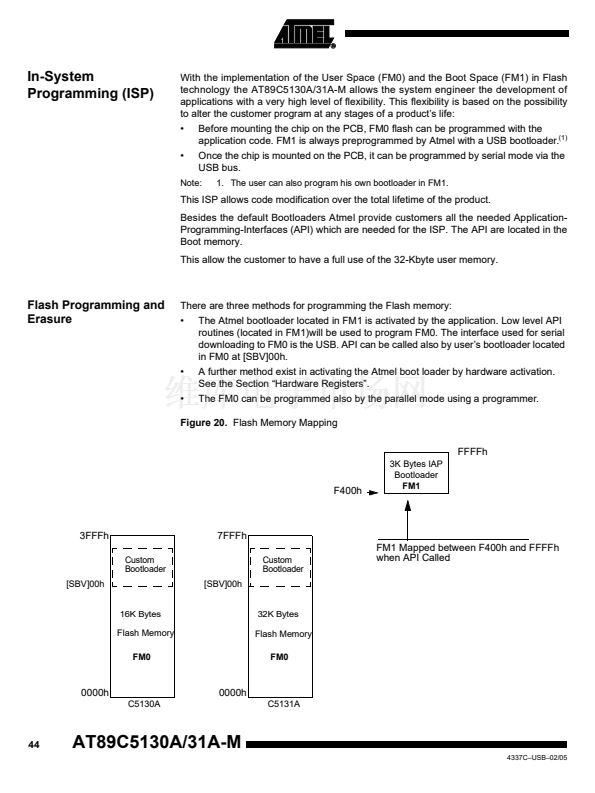

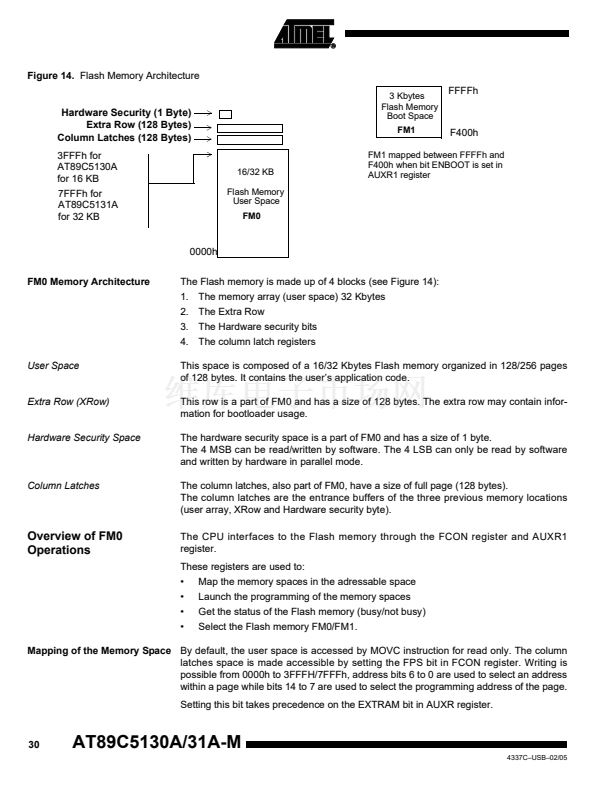

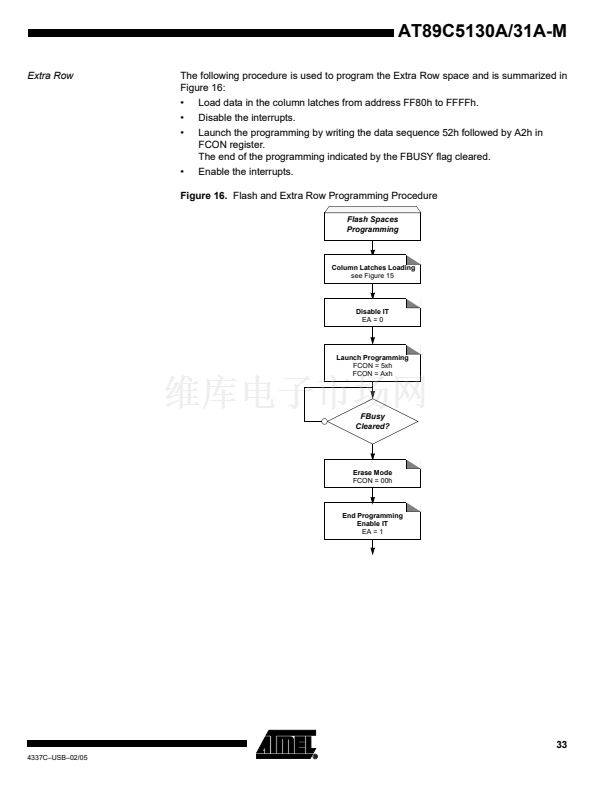

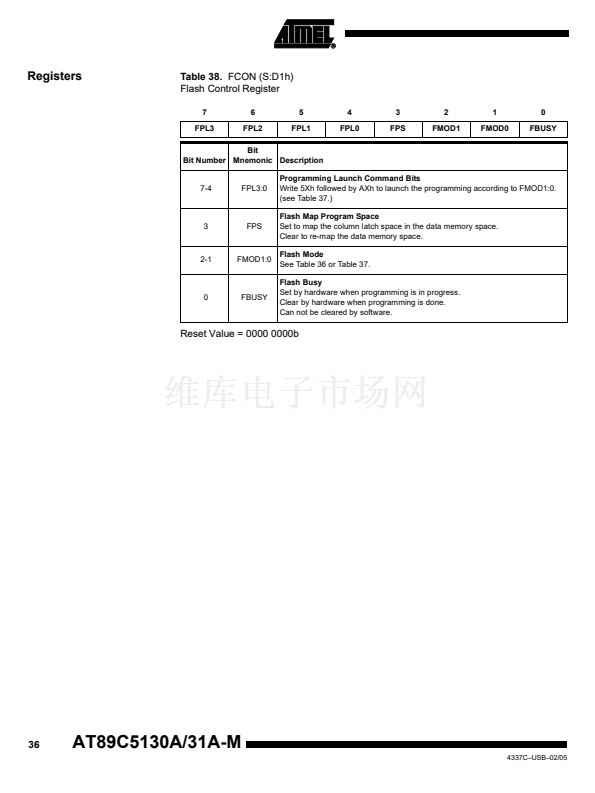

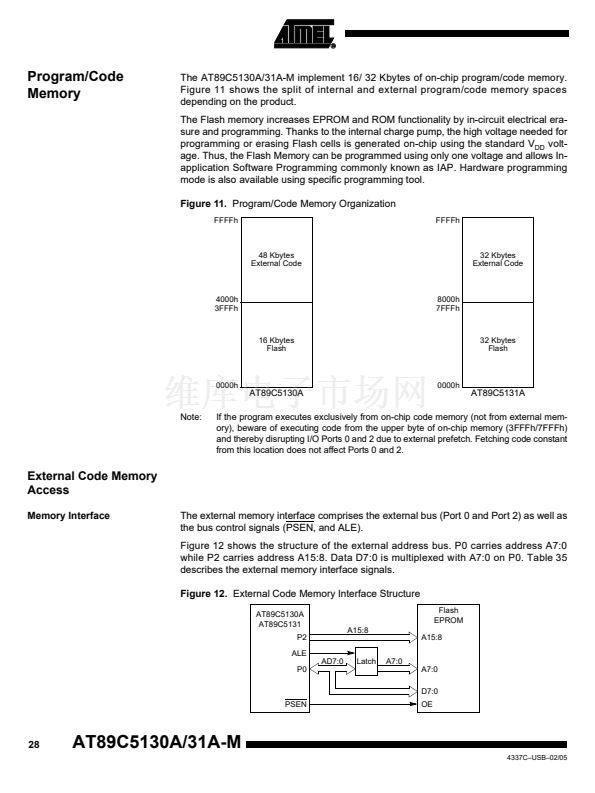

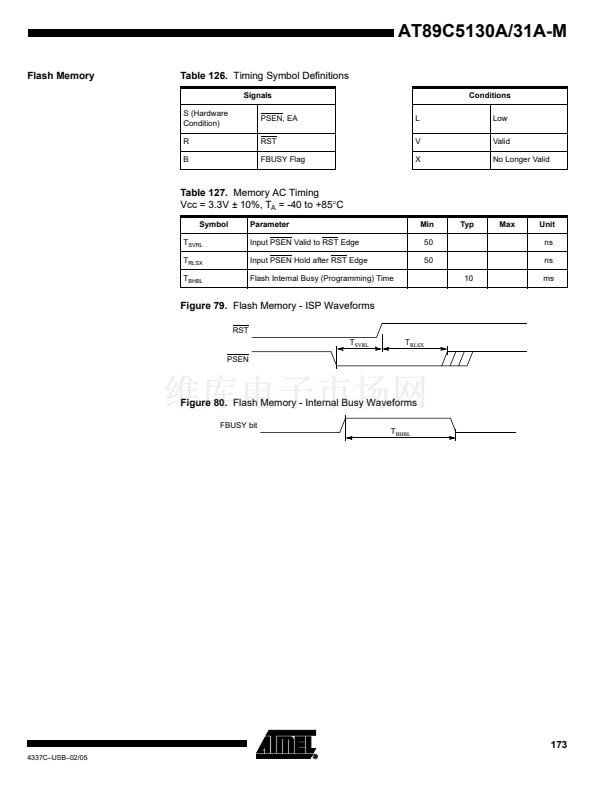

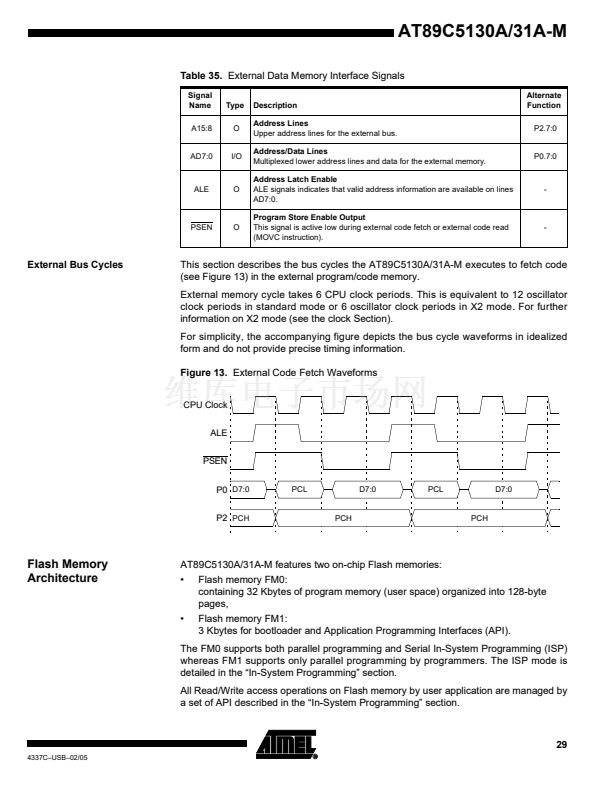

16/32-Kbyte On-chip Flash In-System Programming through USB

鈥?Byte and Page (128 bytes) Erase and Write

鈥?100k Write Cycles

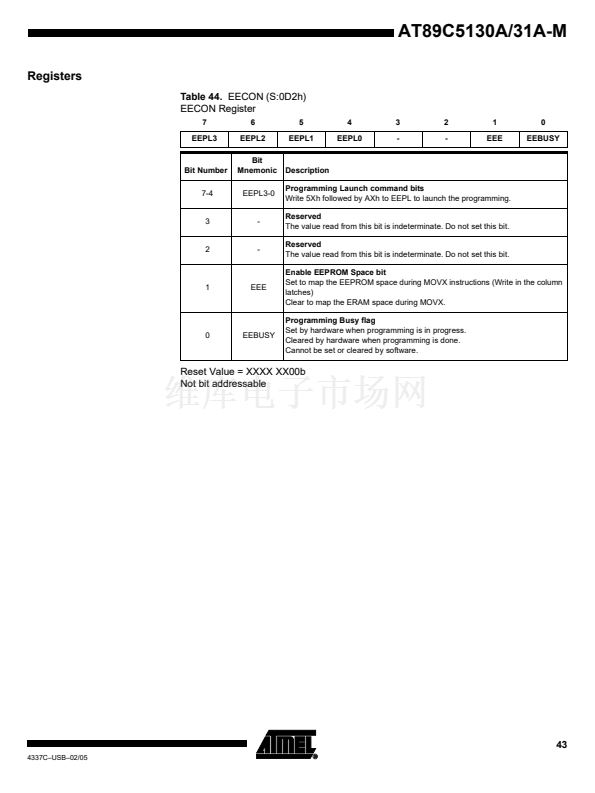

4-Kbyte EEPROM for Bootloader (3-Kbyte) and Data (1-Kbyte)

鈥?Byte and Page (128 bytes) Erase and Write

鈥?100k Write Cycles

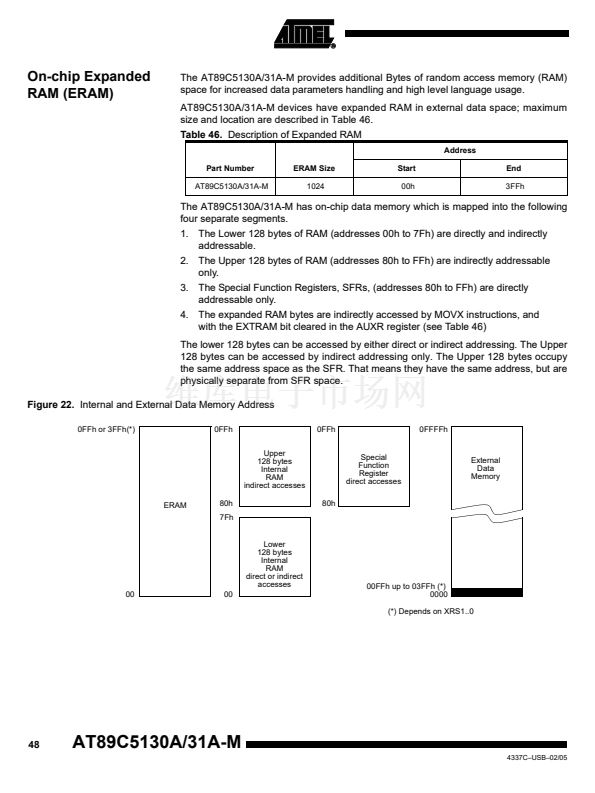

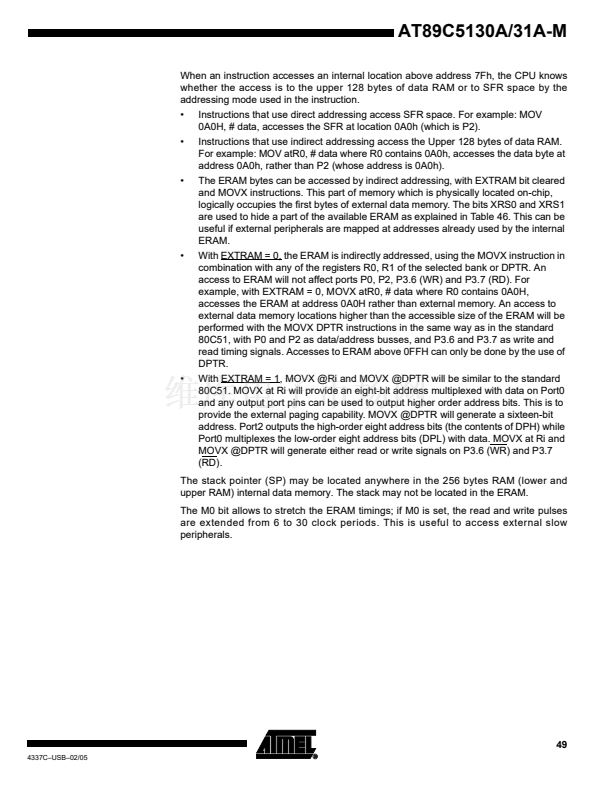

On-chip Expanded RAM (ERAM): 1024 Bytes

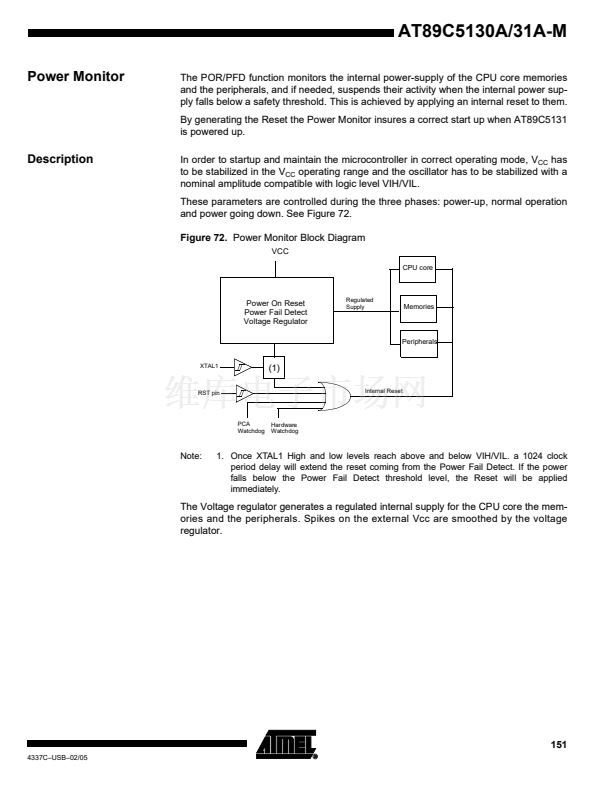

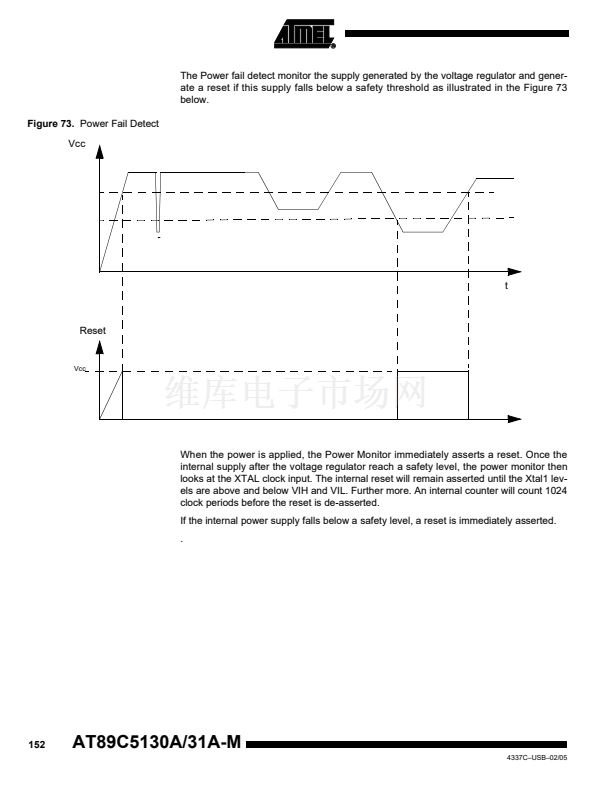

Integrated Power Monitor (POR/PFD) to Supervise Internal Power Supply

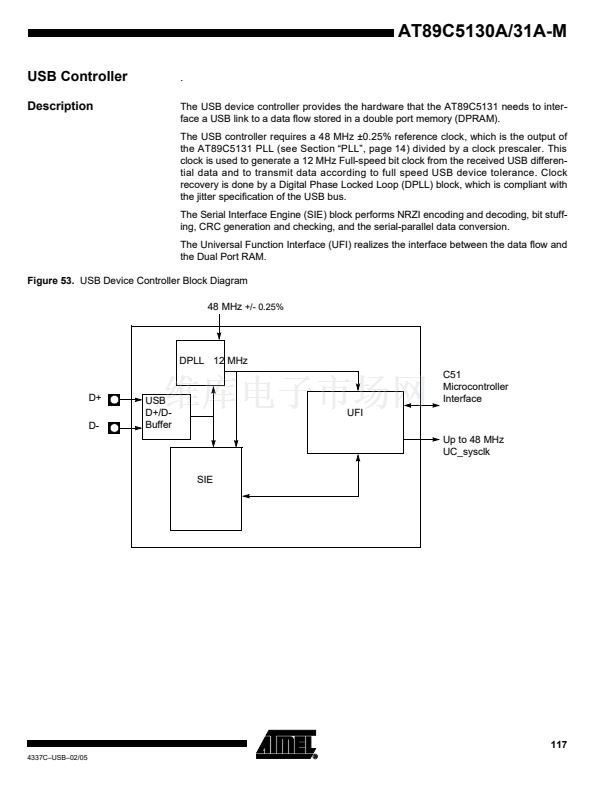

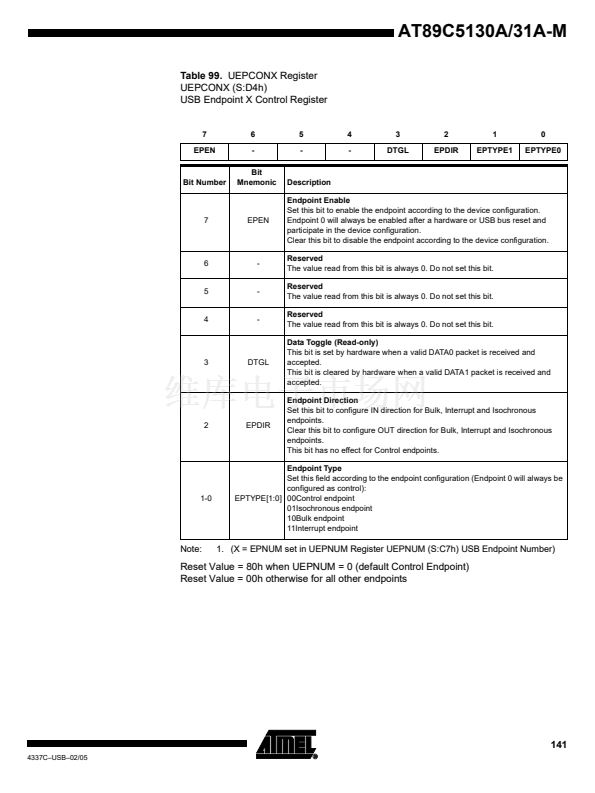

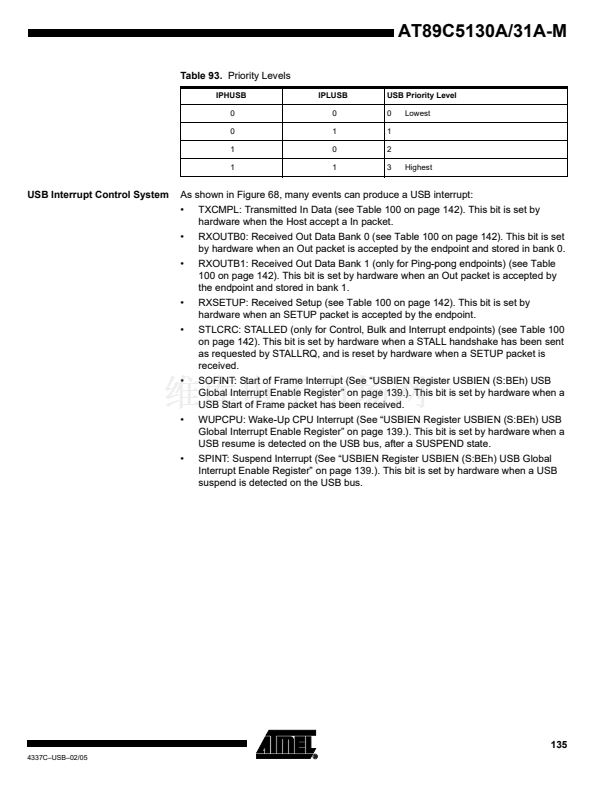

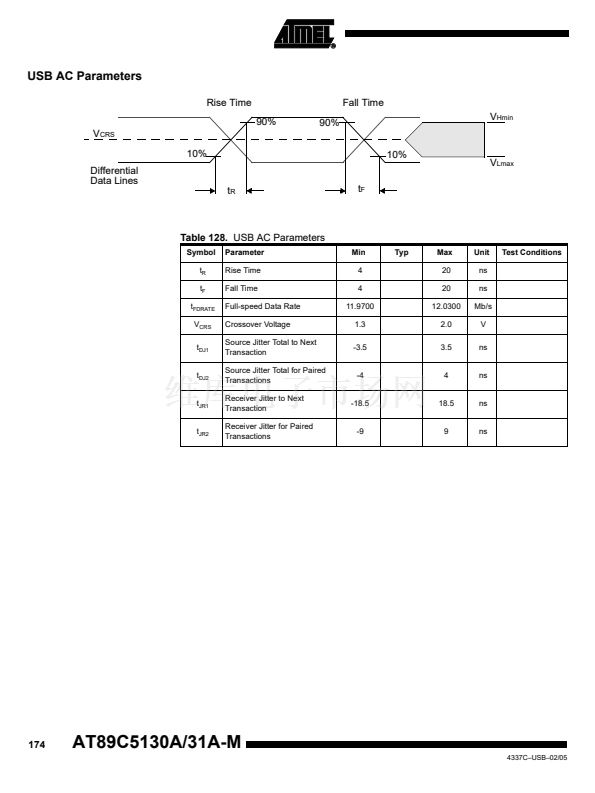

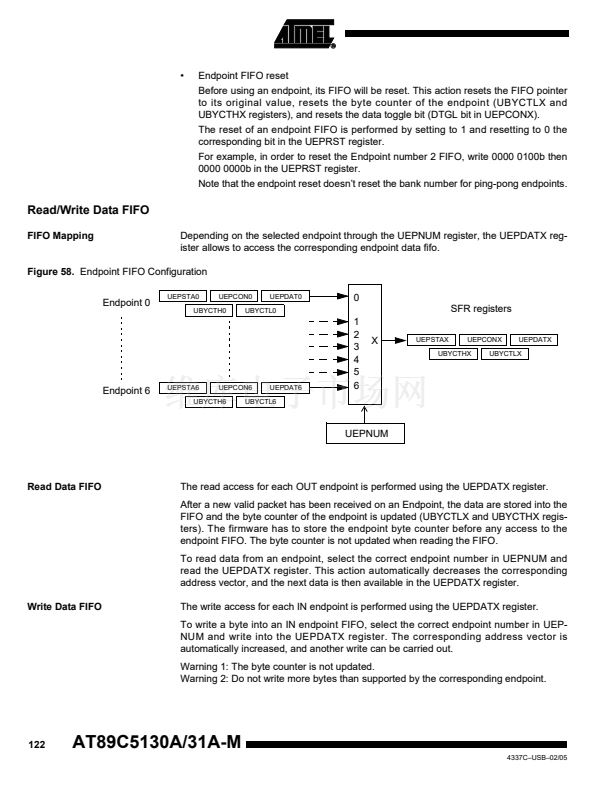

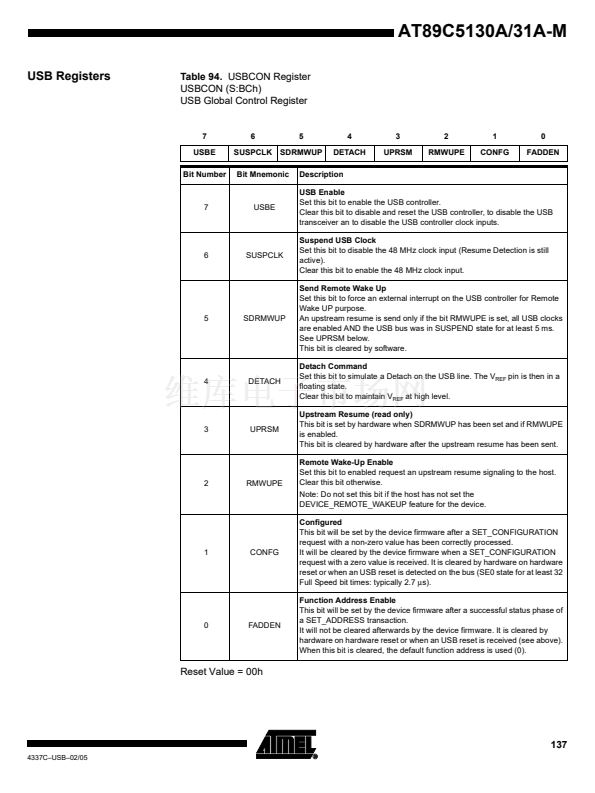

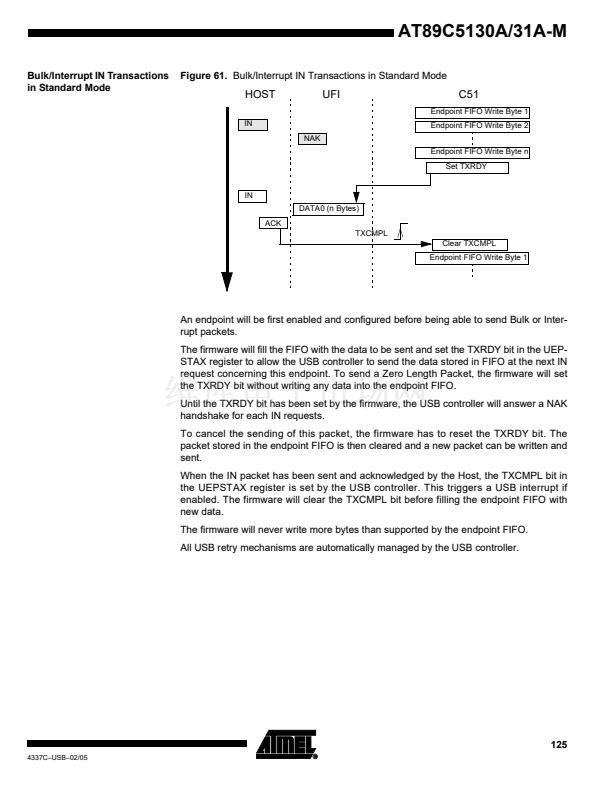

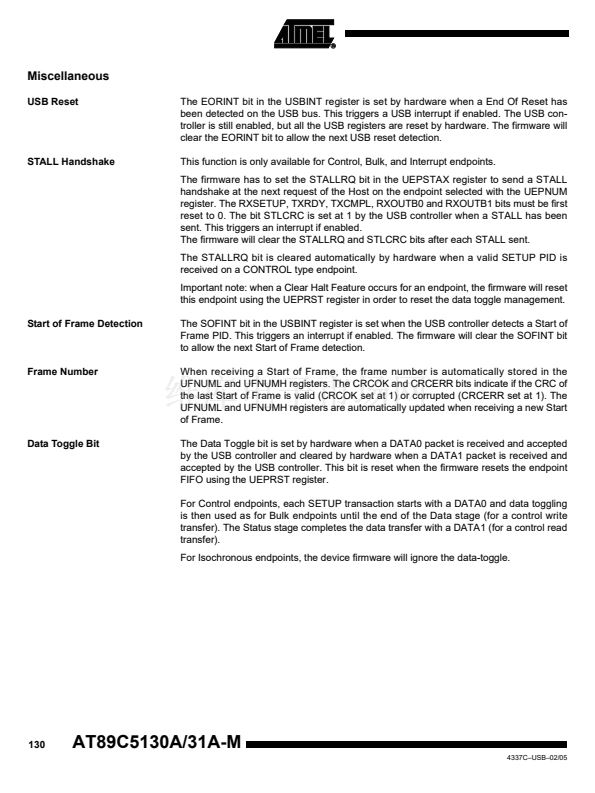

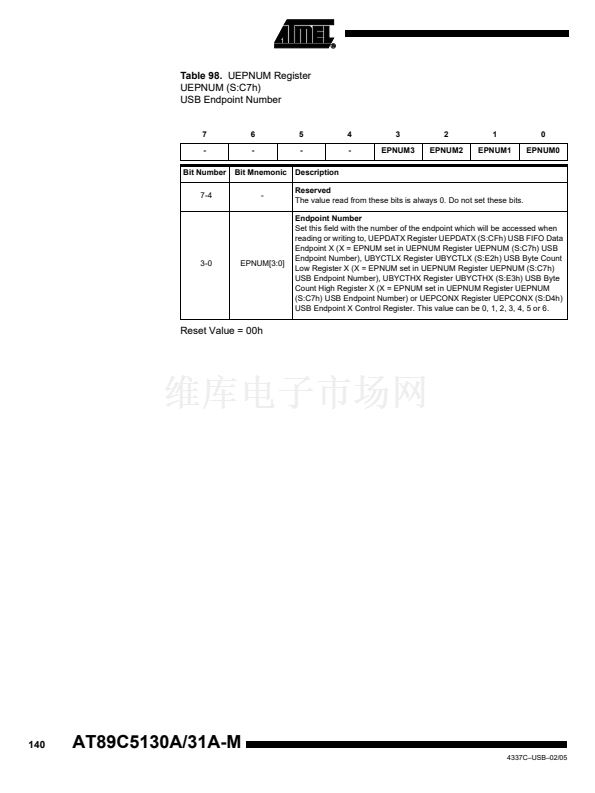

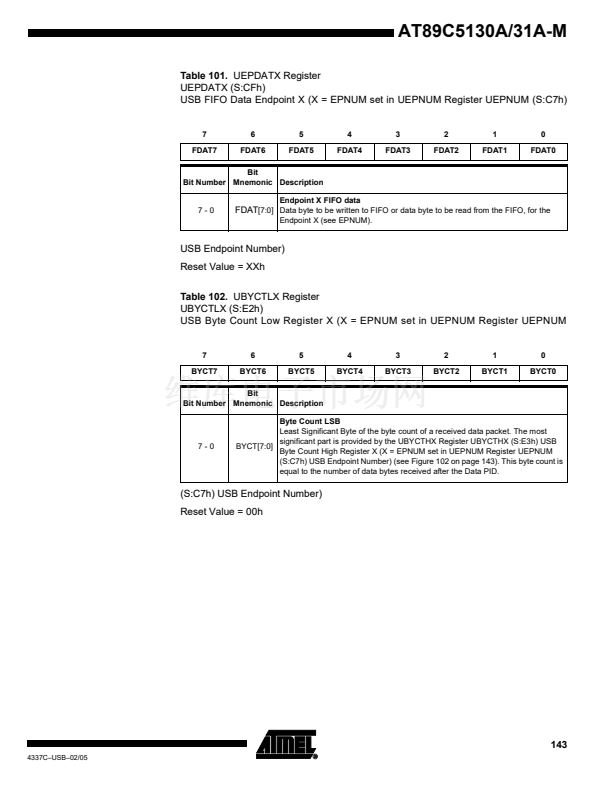

USB 1.1 and 2.0 Full Speed Compliant Module with Interrupt on Transfer Completion

鈥?Endpoint 0 for Control Transfers: 32-byte FIFO

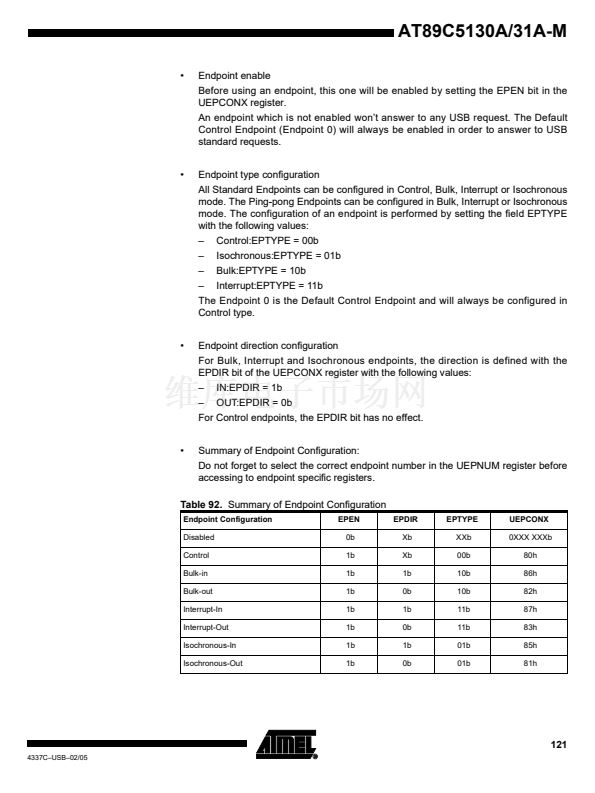

鈥?6 Programmable Endpoints with In or Out Directions and with Bulk, Interrupt or

Isochronous Transfers

Endpoint 1, 2, 3: 32-byte FIFO

Endpoint 4, 5: 2 x 64-byte FIFO with Double Buffering (Ping-pong Mode)

Endpoint 6: 2 x 512-byte FIFO with Double Buffering (Ping-pong Mode)

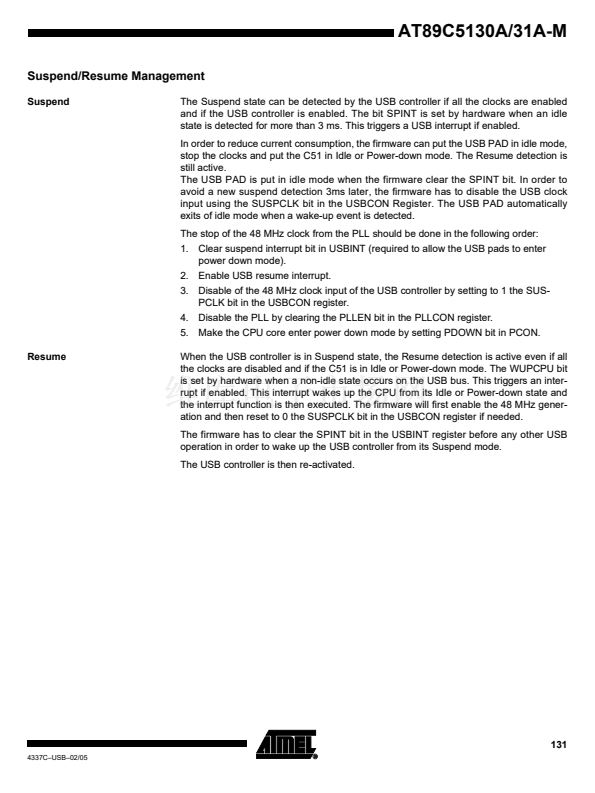

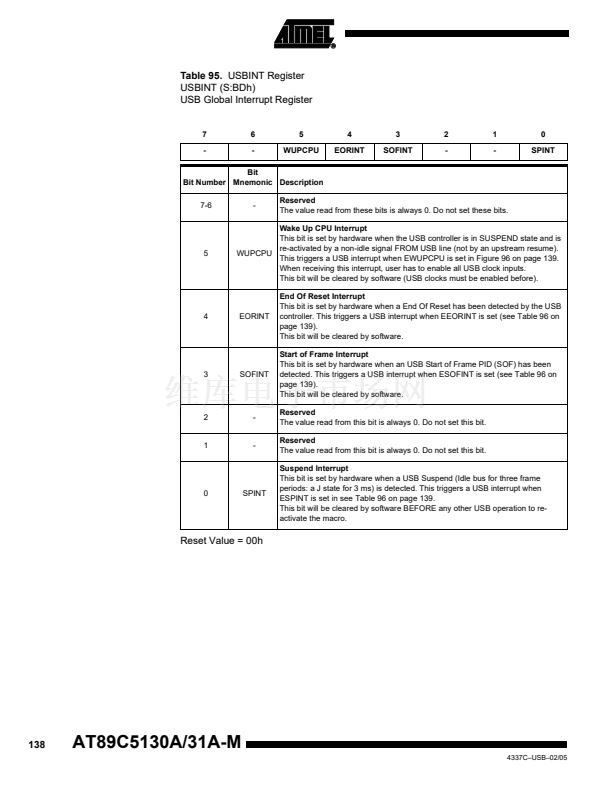

鈥?Suspend/Resume Interrupts

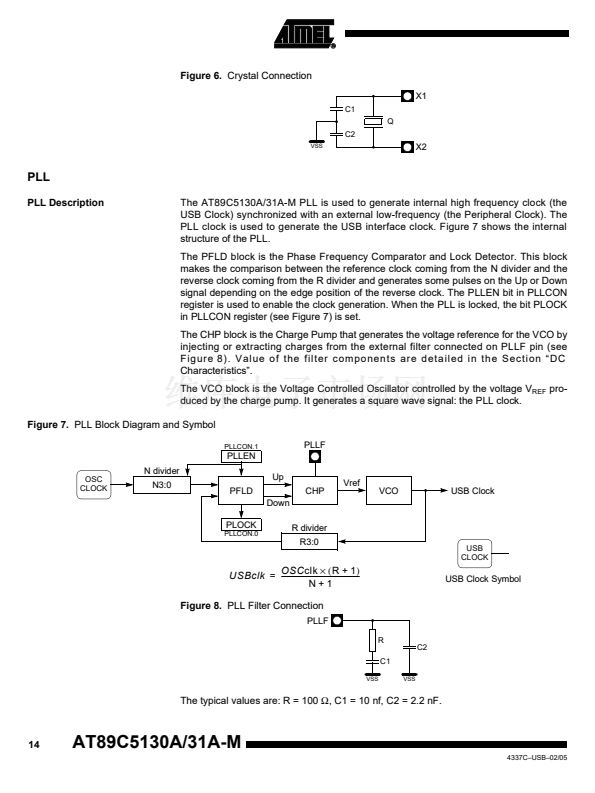

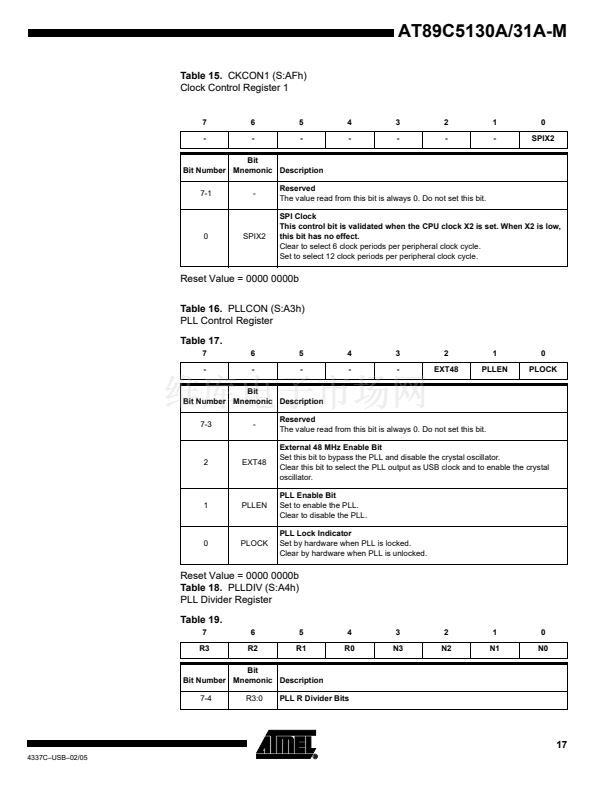

鈥?48 MHz PLL for Full-speed Bus Operation

鈥?Bus Disconnection on Microcontroller Request

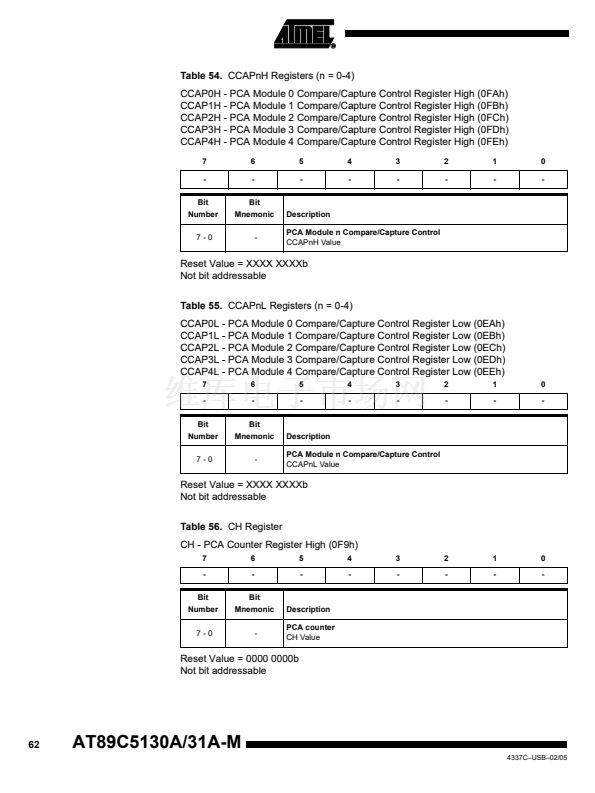

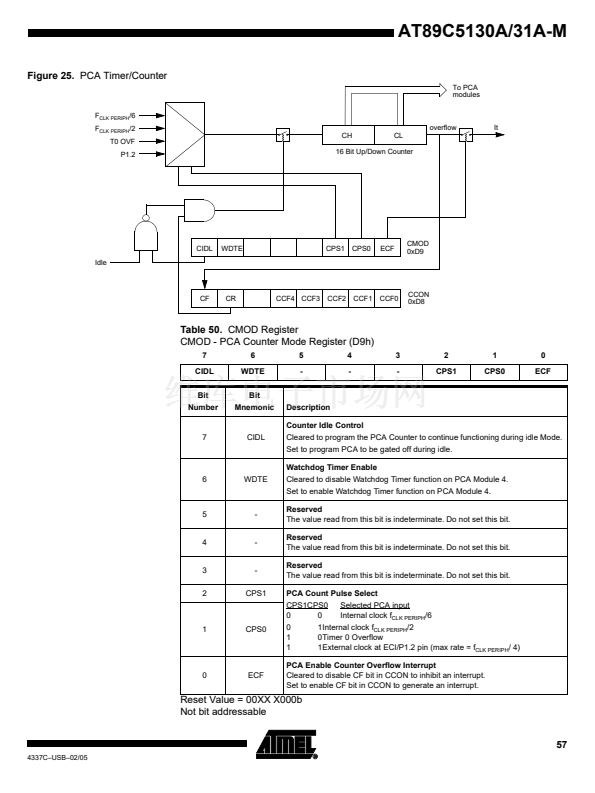

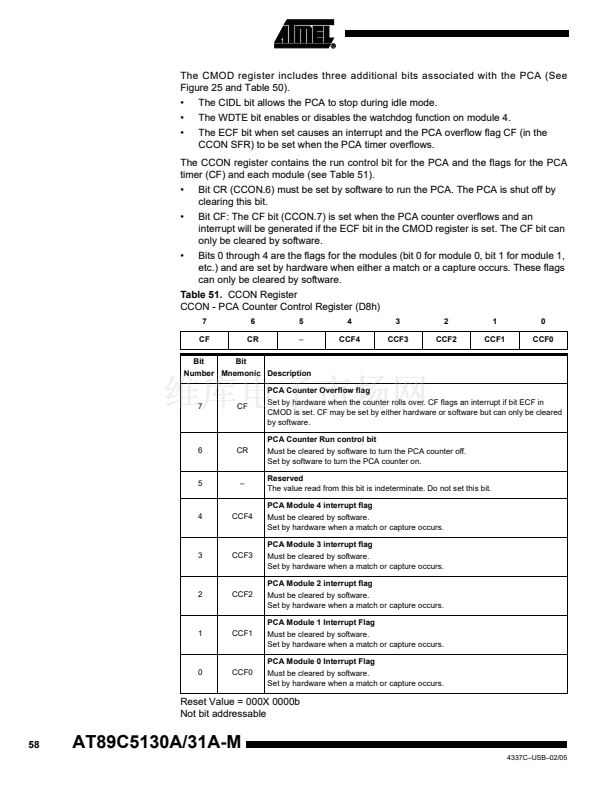

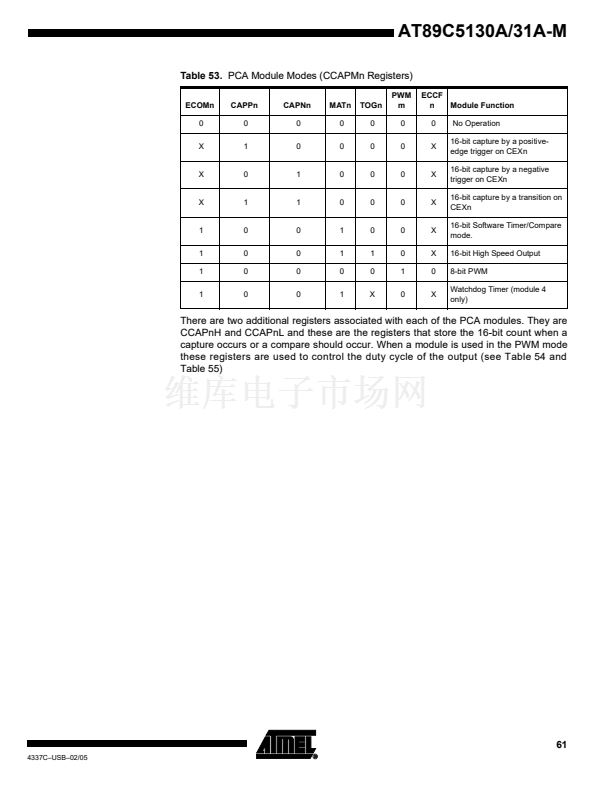

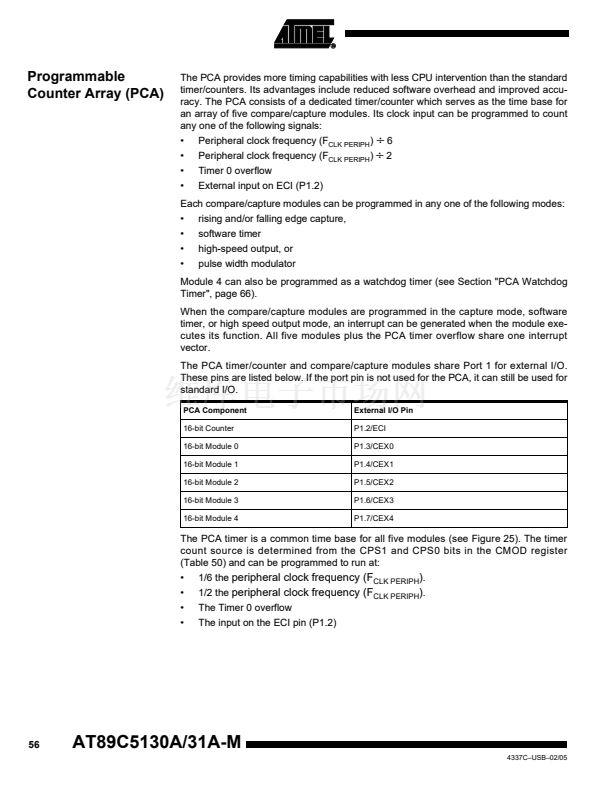

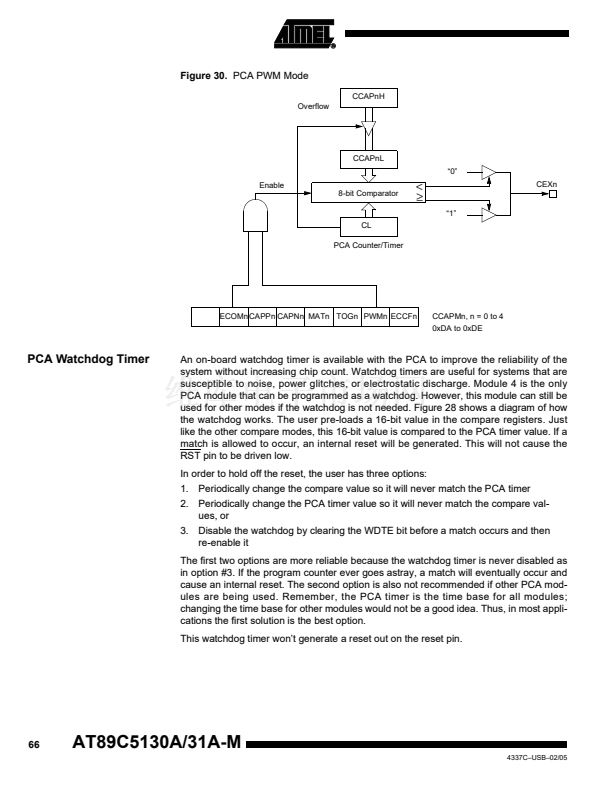

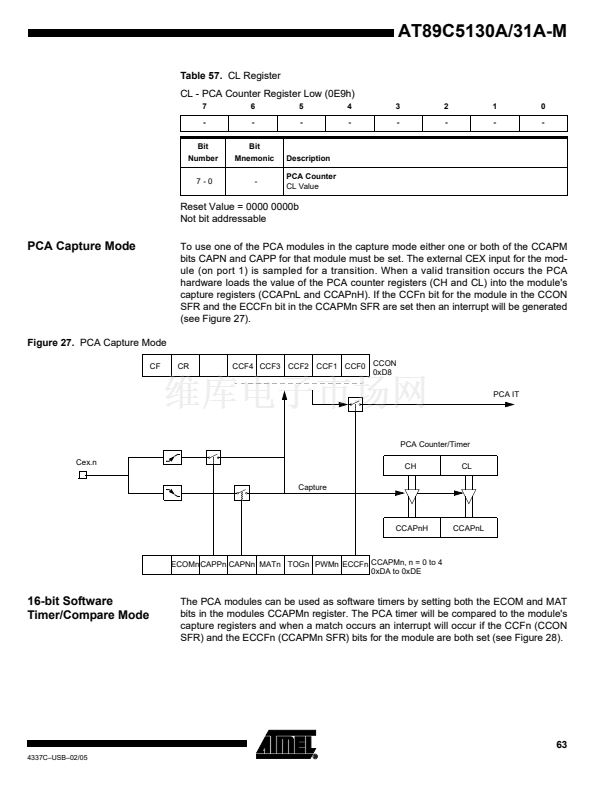

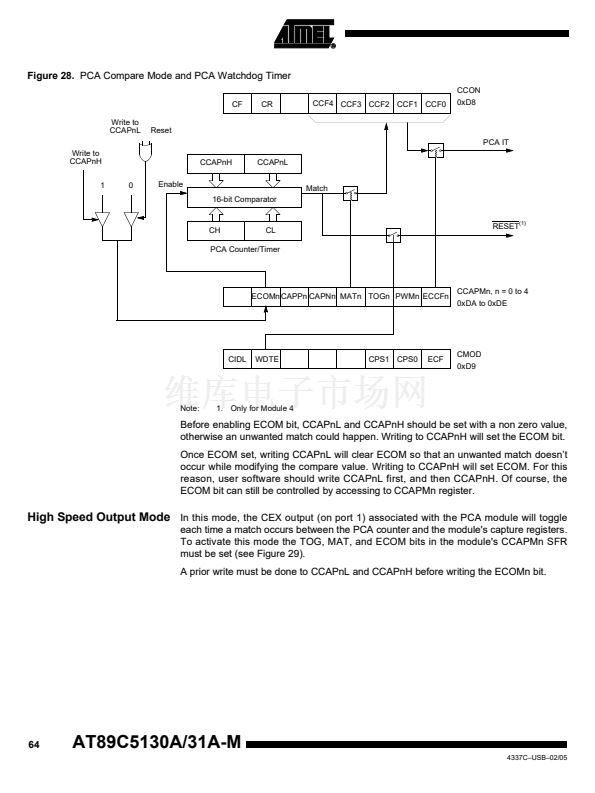

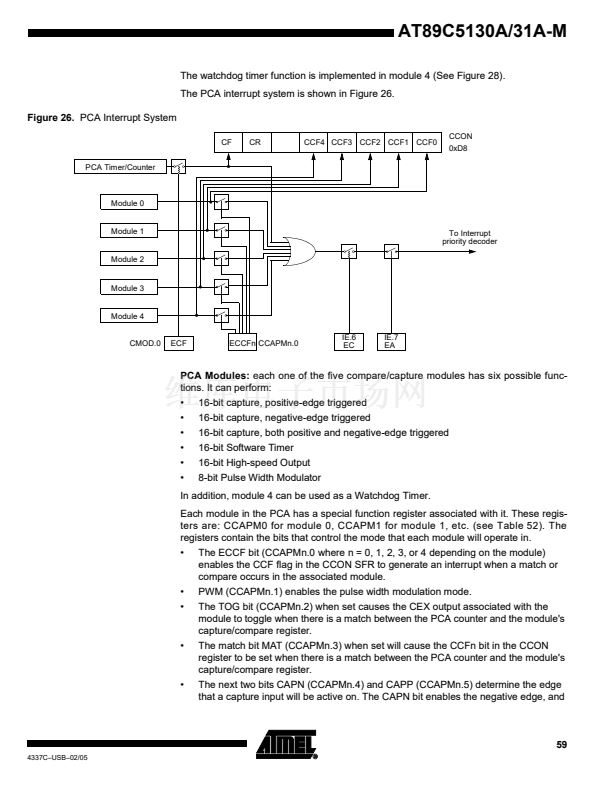

5 Channels Programmable Counter Array (PCA) with 16-bit Counter, High-speed

Output, Compare/Capture, PWM and Watchdog Timer Capabilities

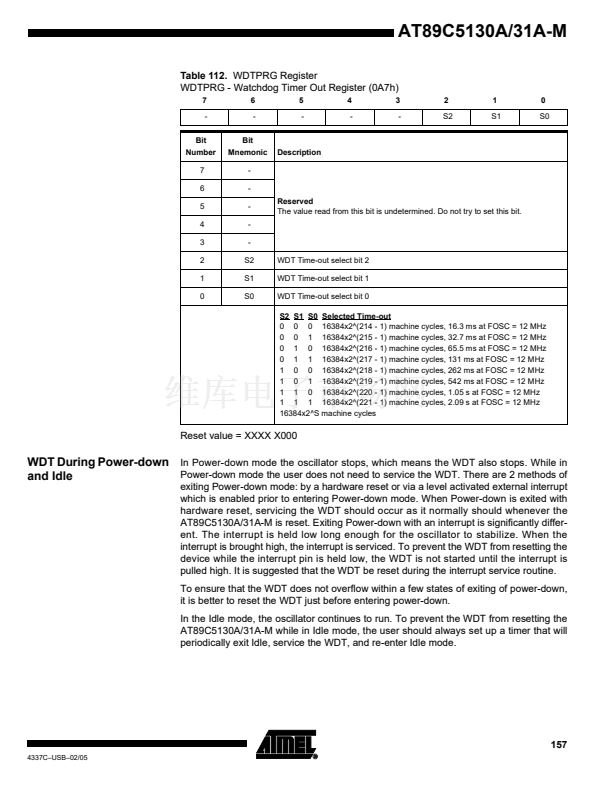

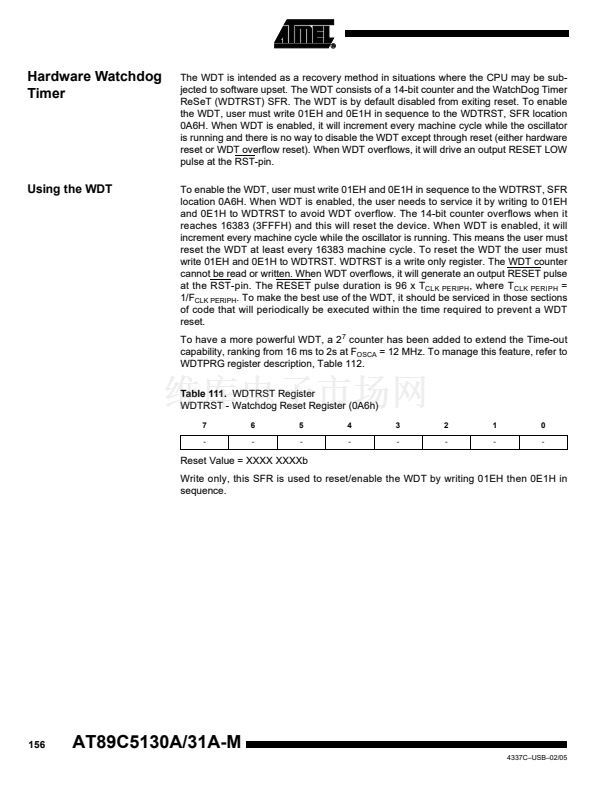

Programmable Hardware Watchdog Timer (One-time Enabled with Reset-out): 100 ms

to 3s at 8 MHz

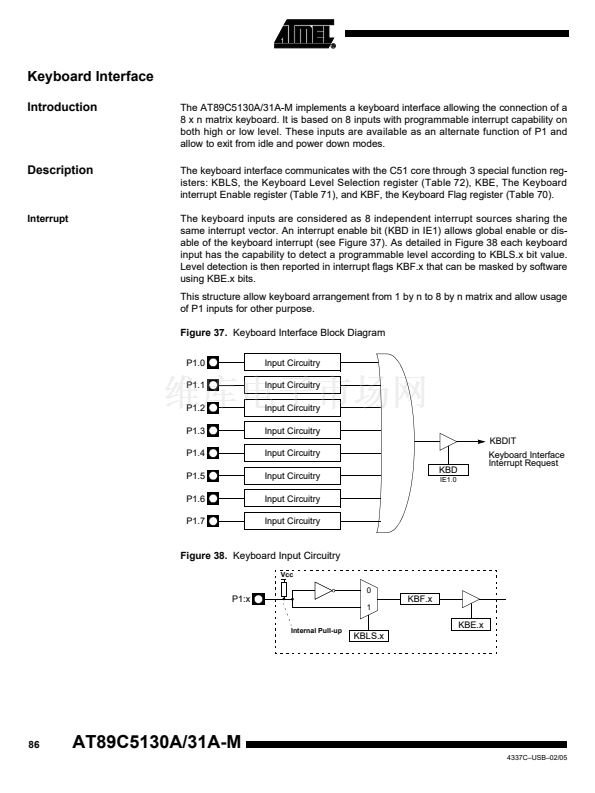

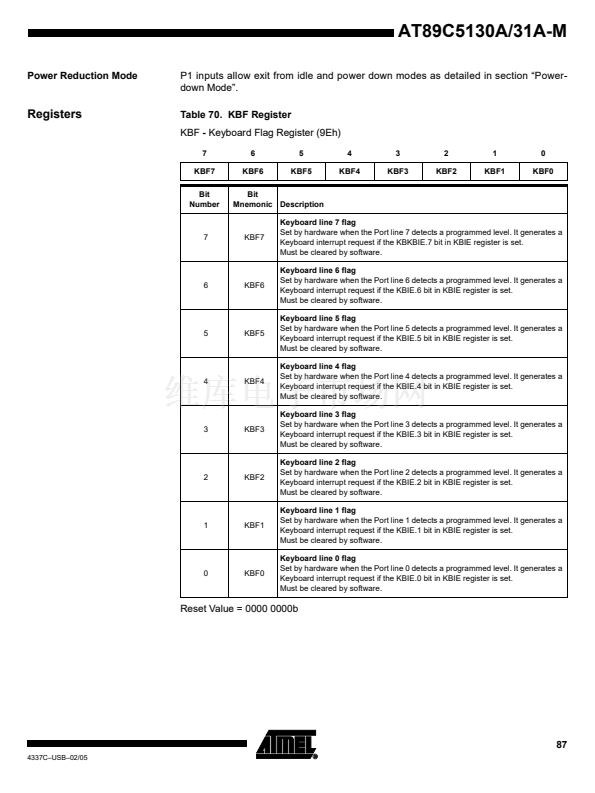

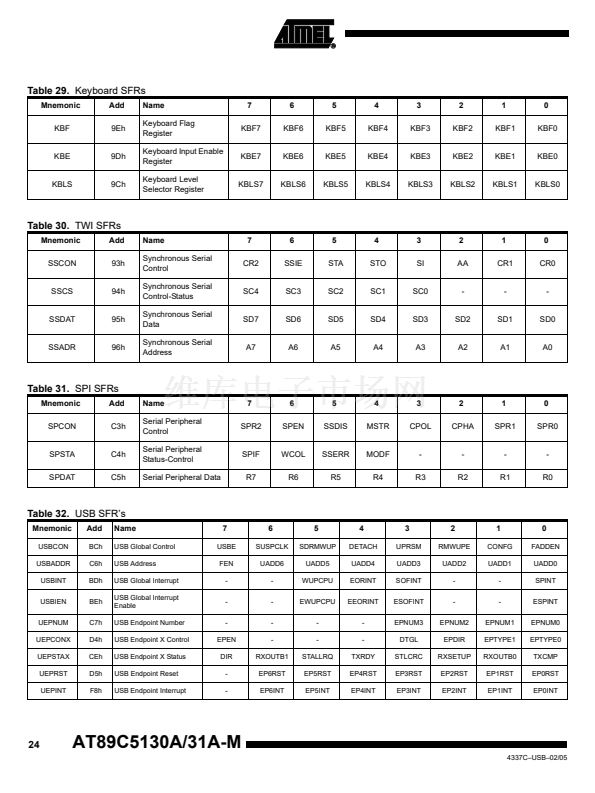

Keyboard Interrupt Interface on Port P1 (8 Bits)

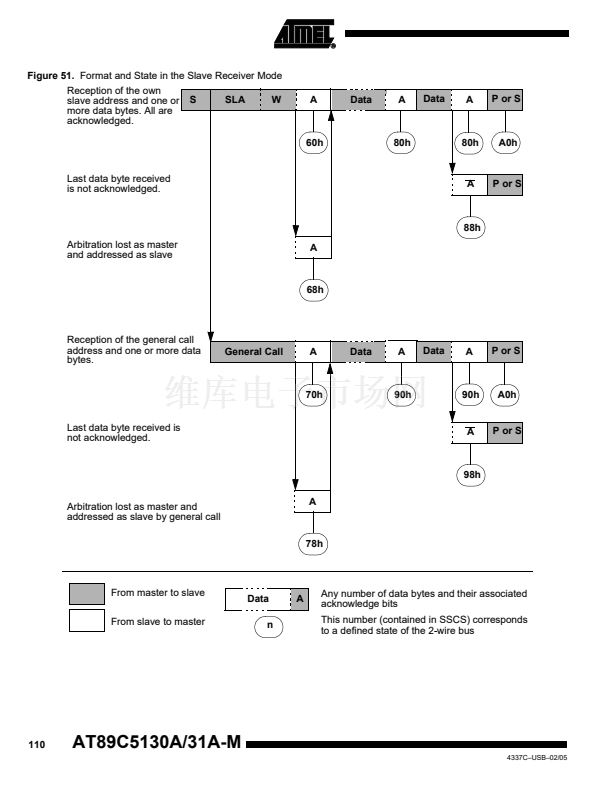

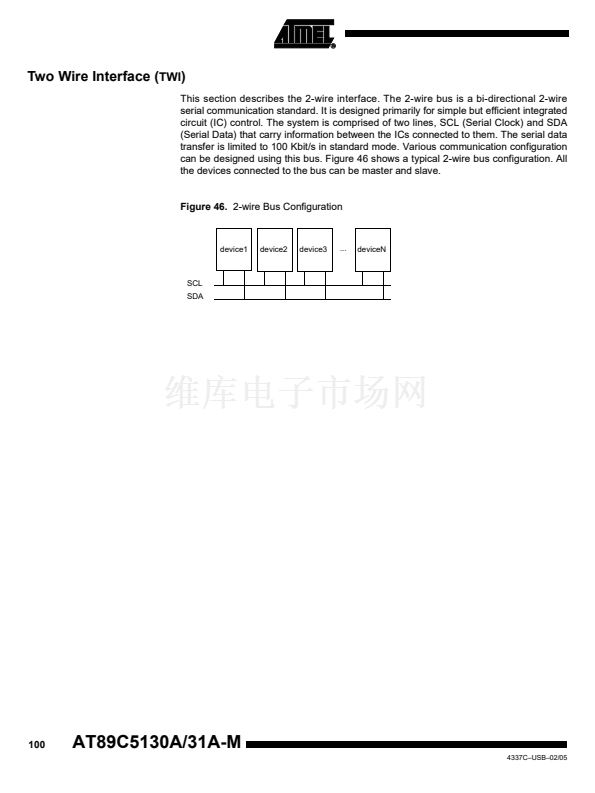

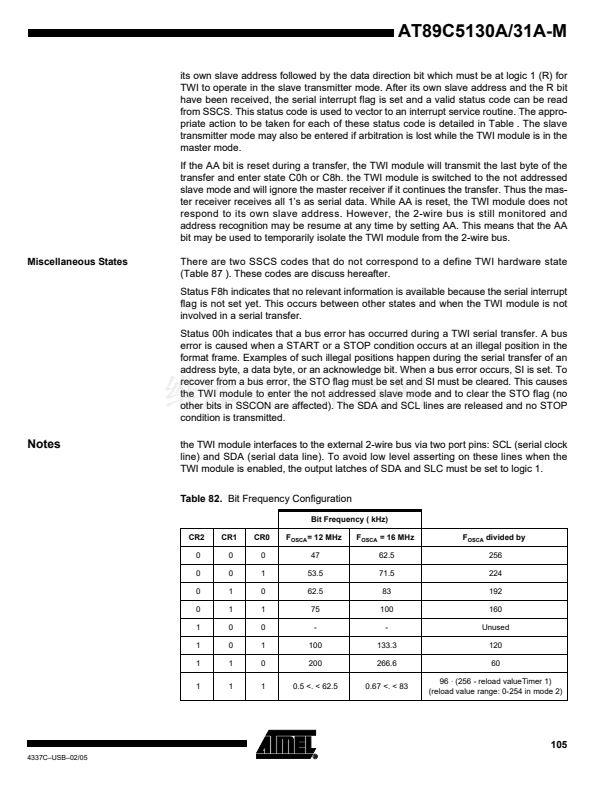

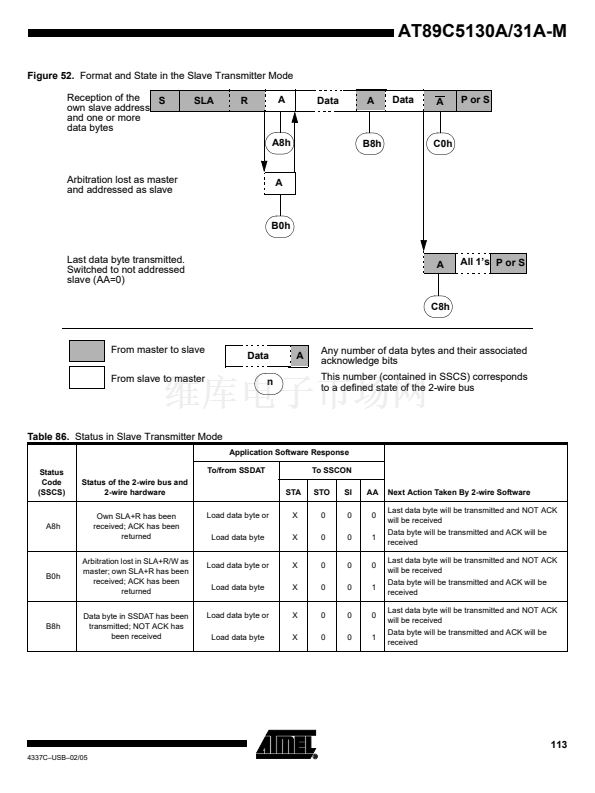

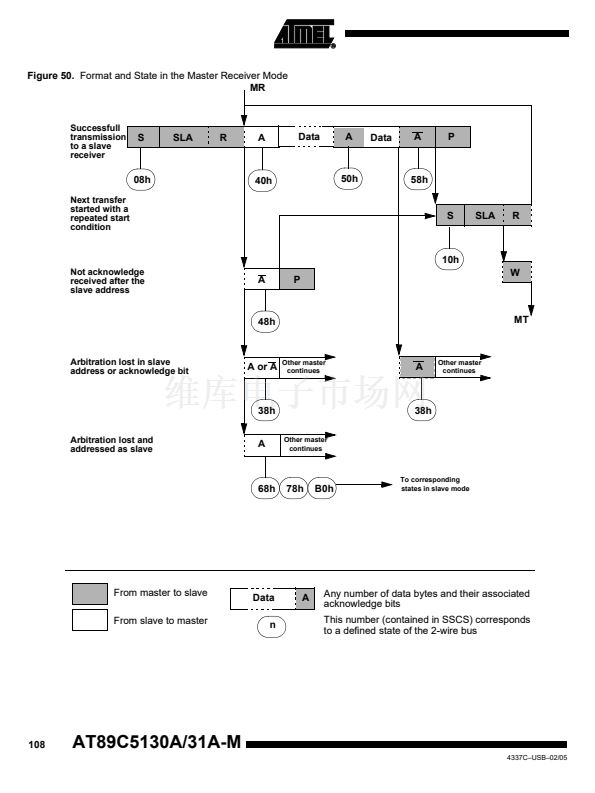

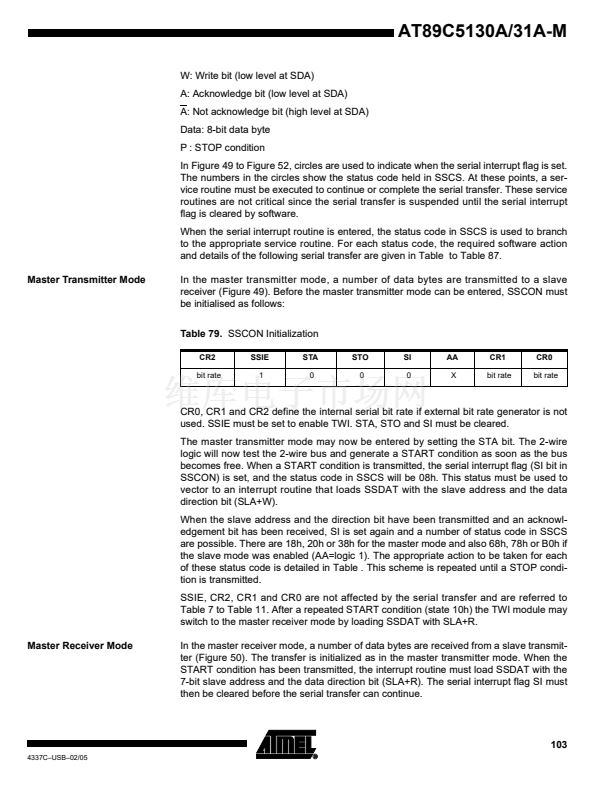

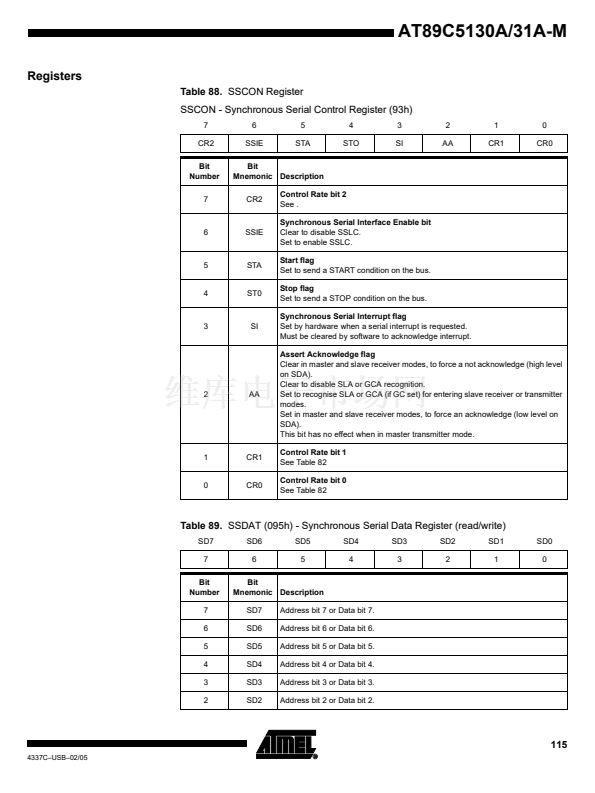

TWI (Two Wire Interface) 400Kbit/s

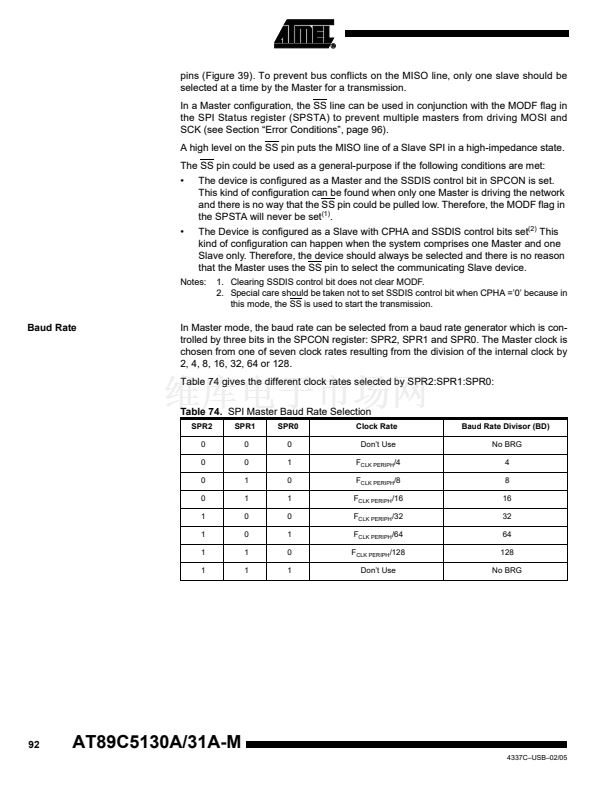

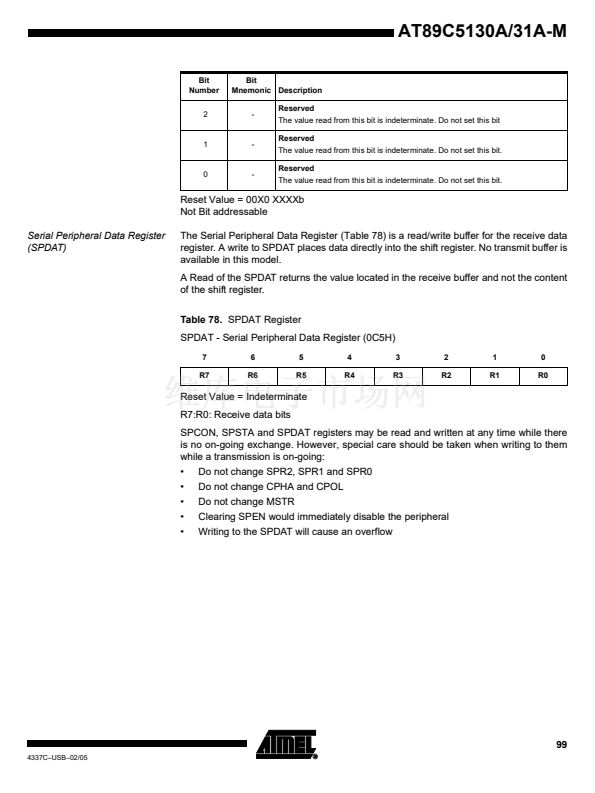

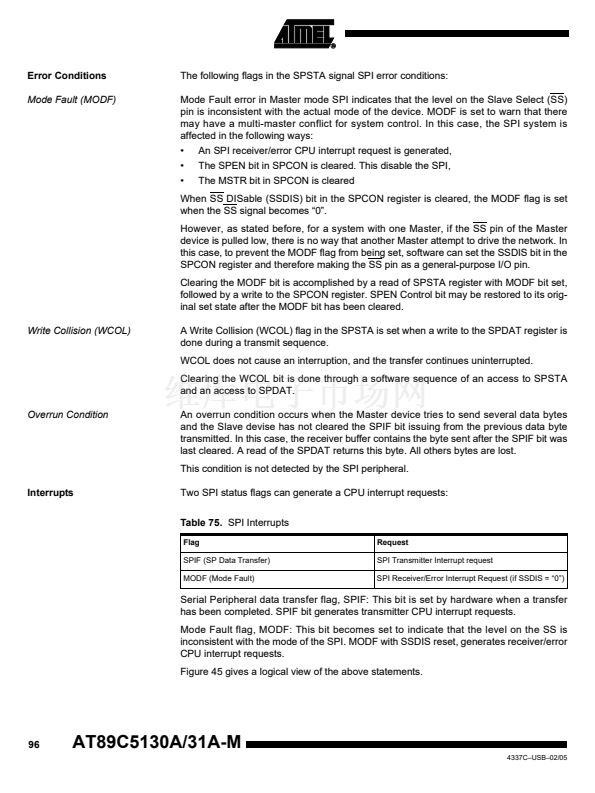

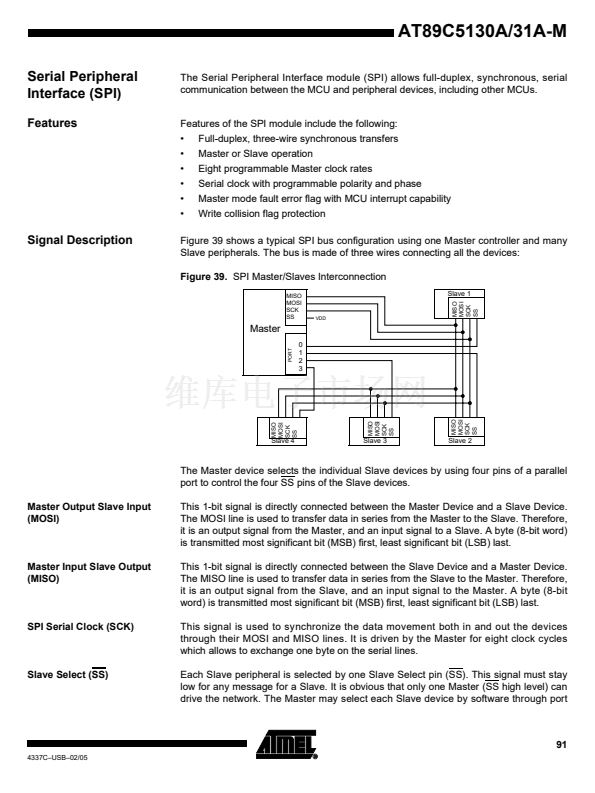

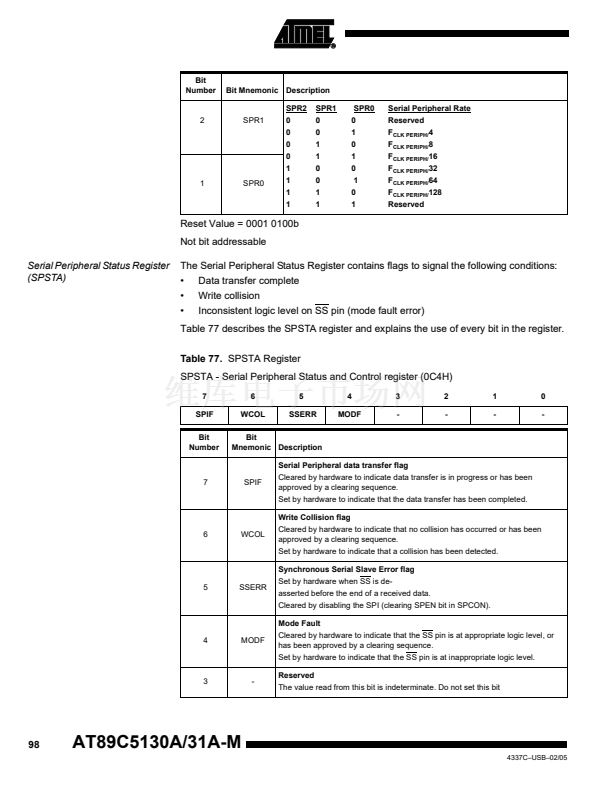

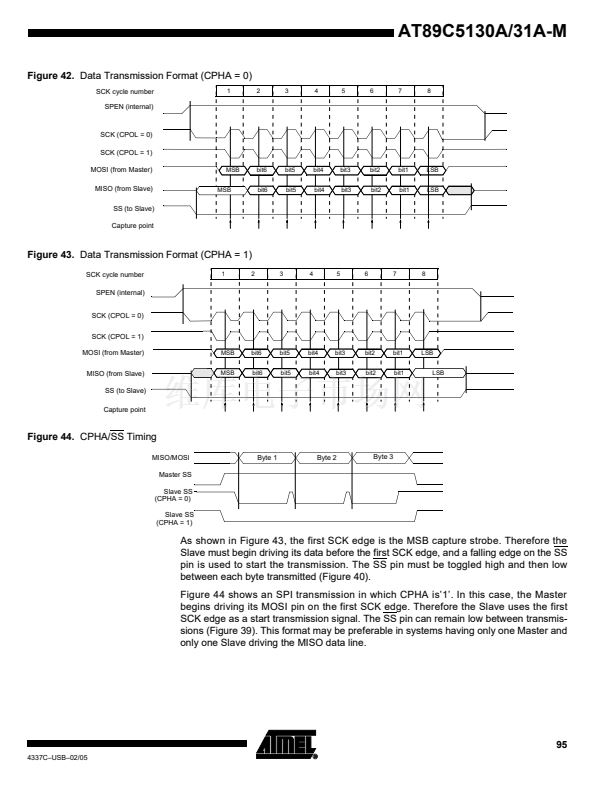

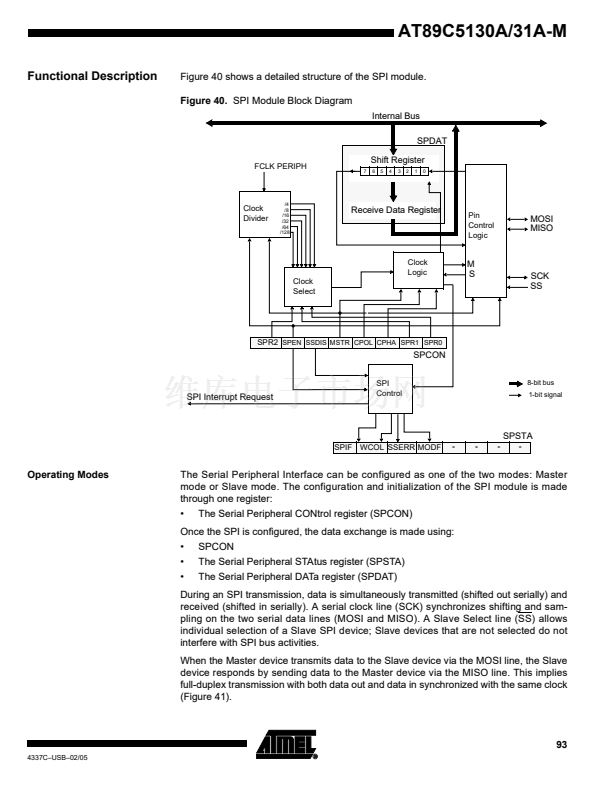

SPI Interface (Master/Slave Mode)

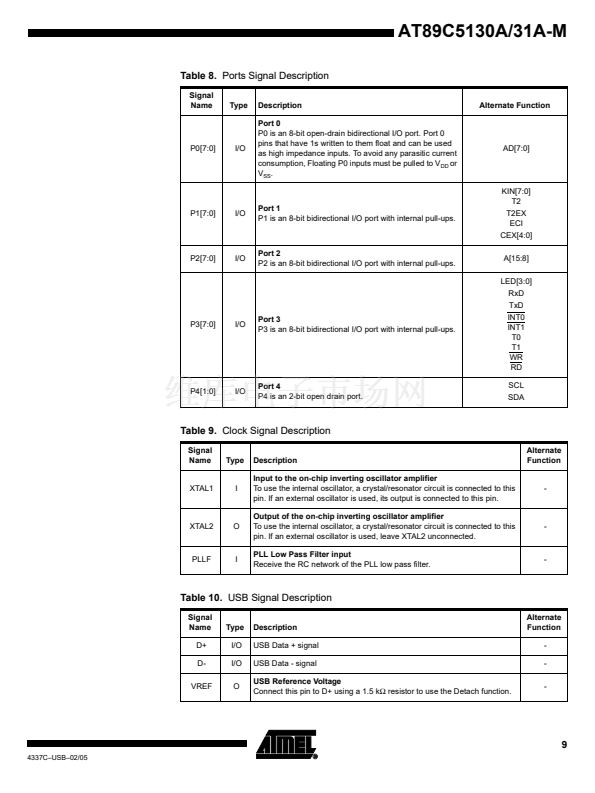

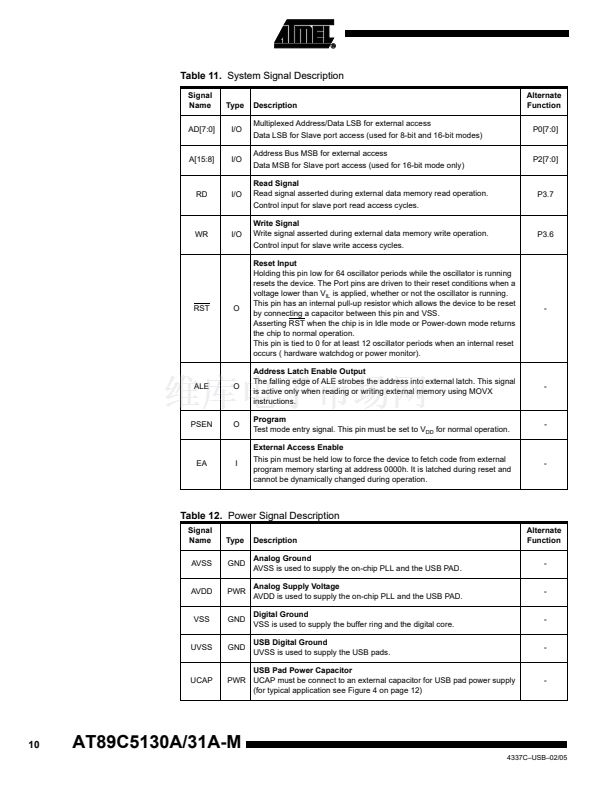

34 I/O Pins

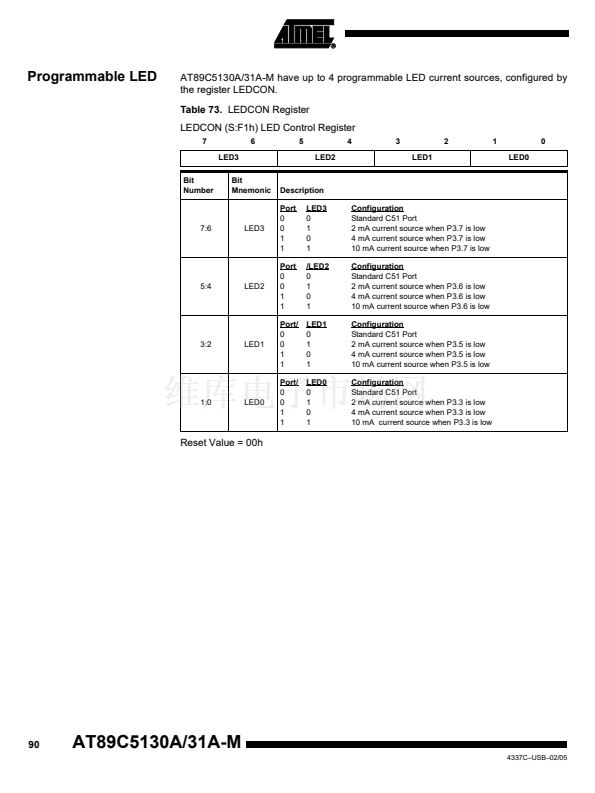

4 Direct-drive LED Outputs with Programmable Current Sources: 2-6-10 mA Typical

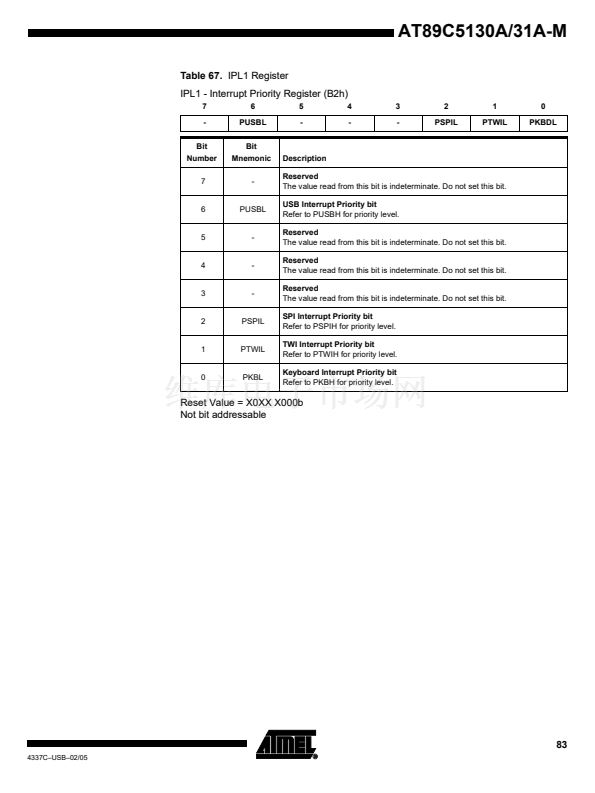

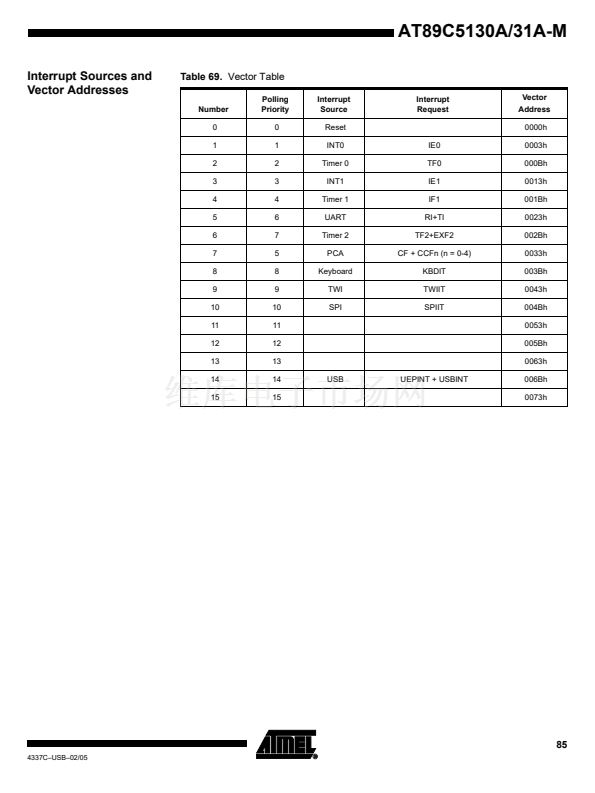

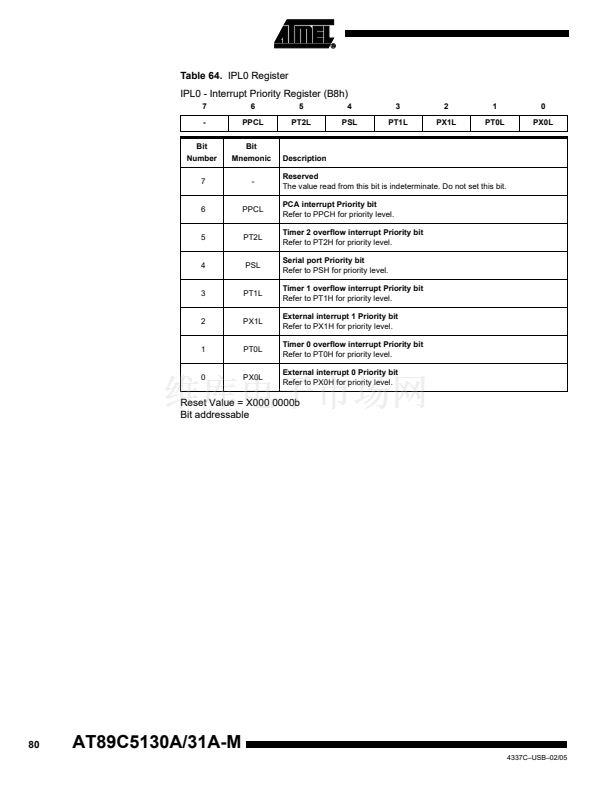

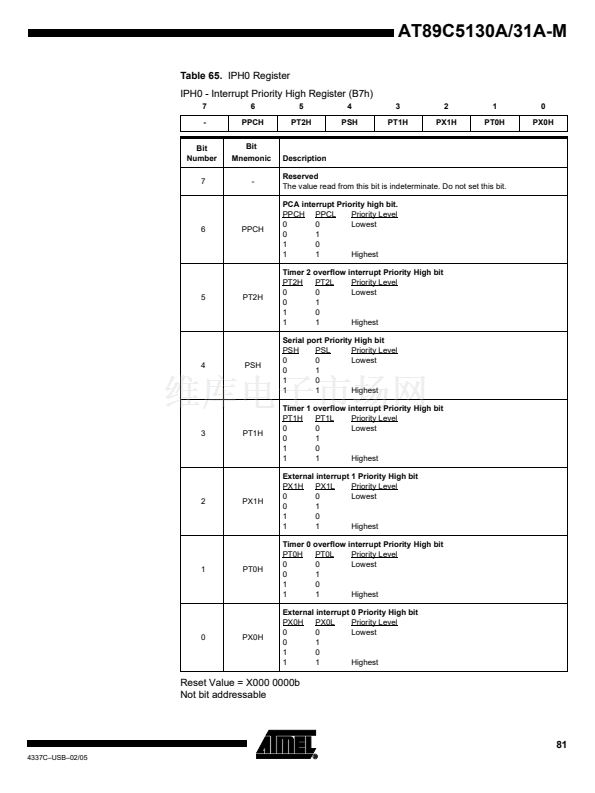

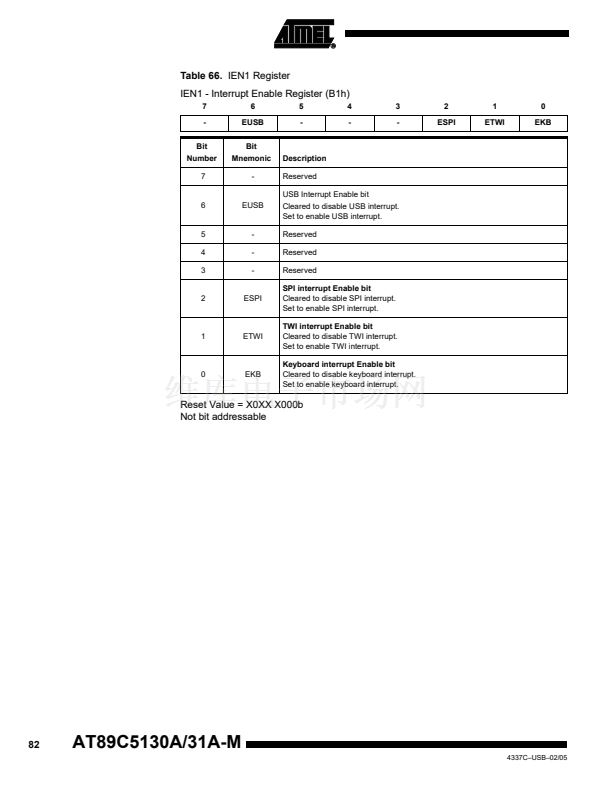

4-level Priority Interrupt System (11 sources)

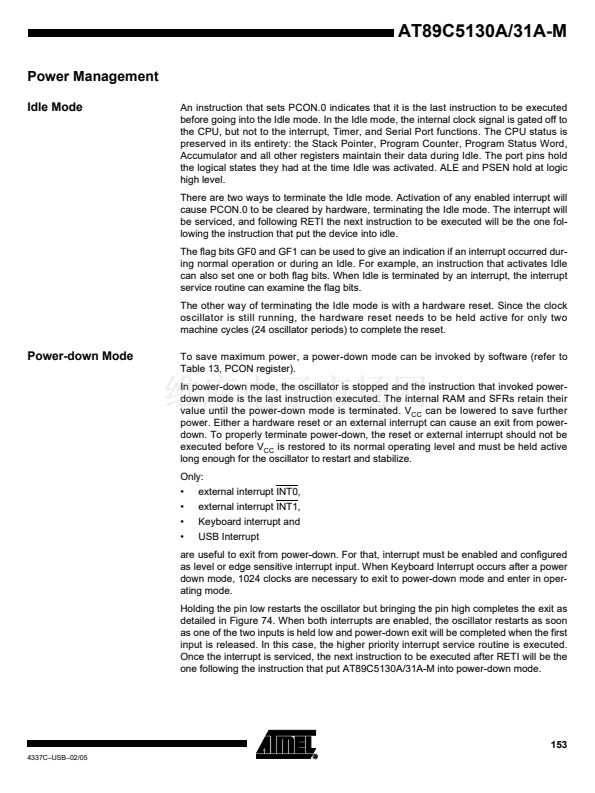

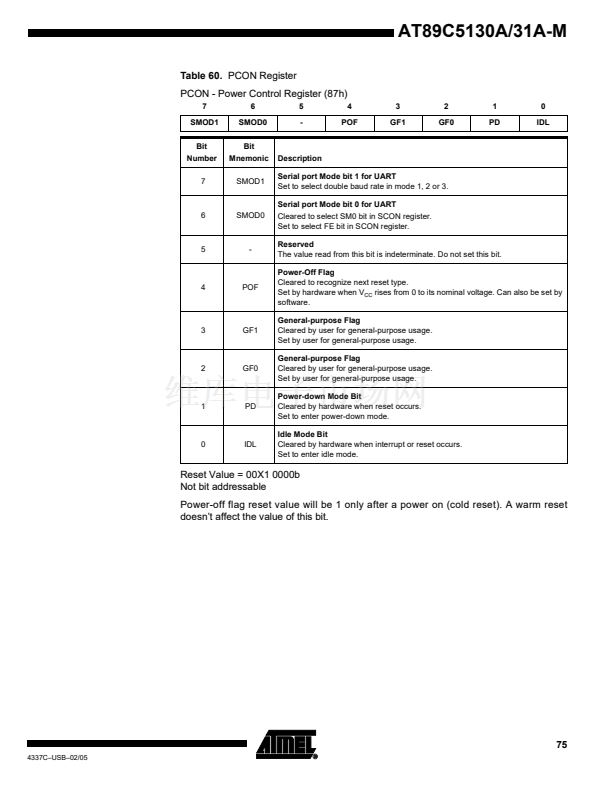

Idle and Power-down Modes

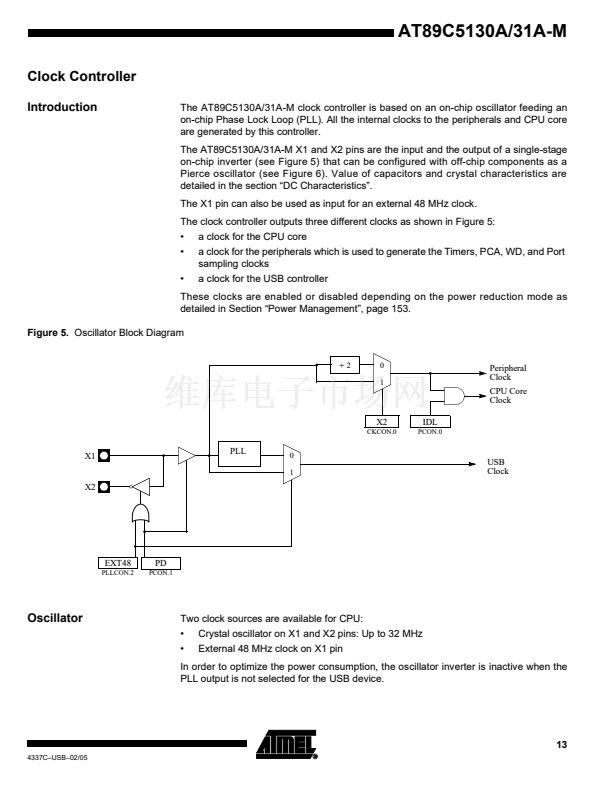

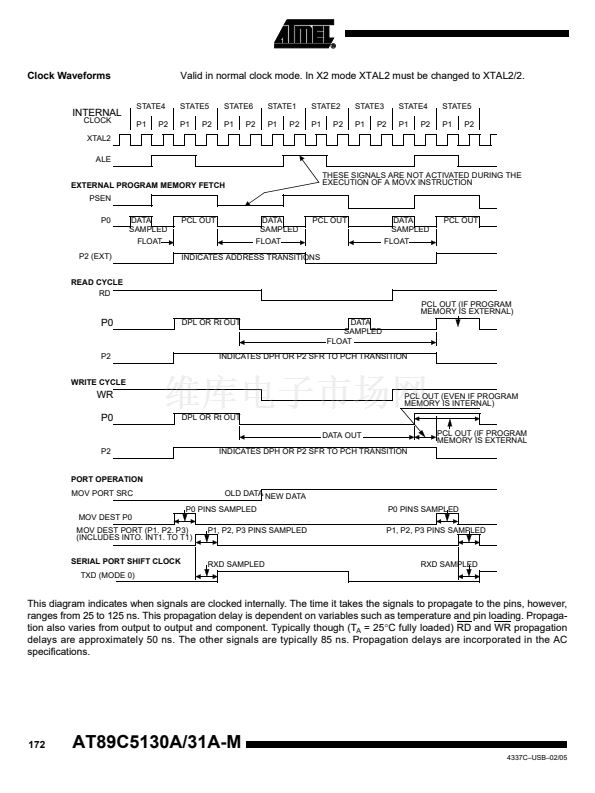

0 to 24 MHz On-chip Oscillator with Analog PLL for 48 MHz Synthesis

Industrial Temperature Range

Extended Range Power Supply: 2.7V to 5.5V (3.3V to 5.5V required for USB)

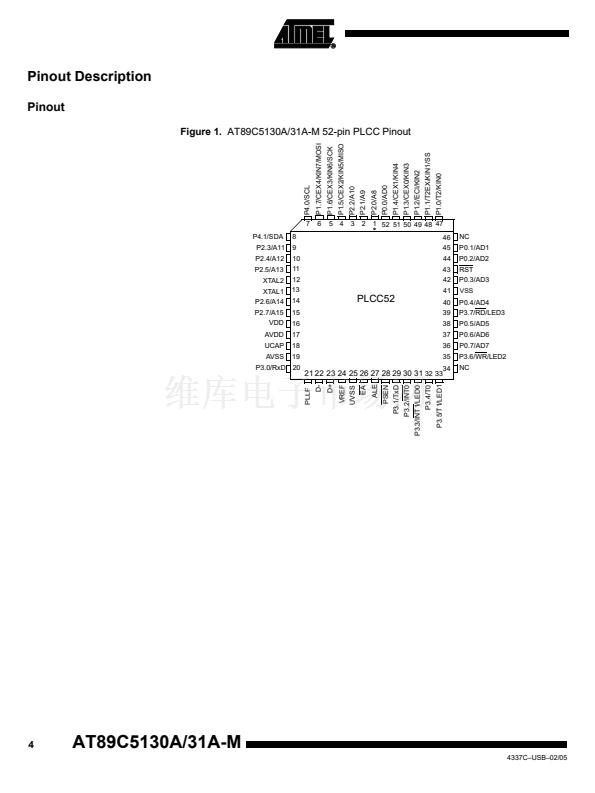

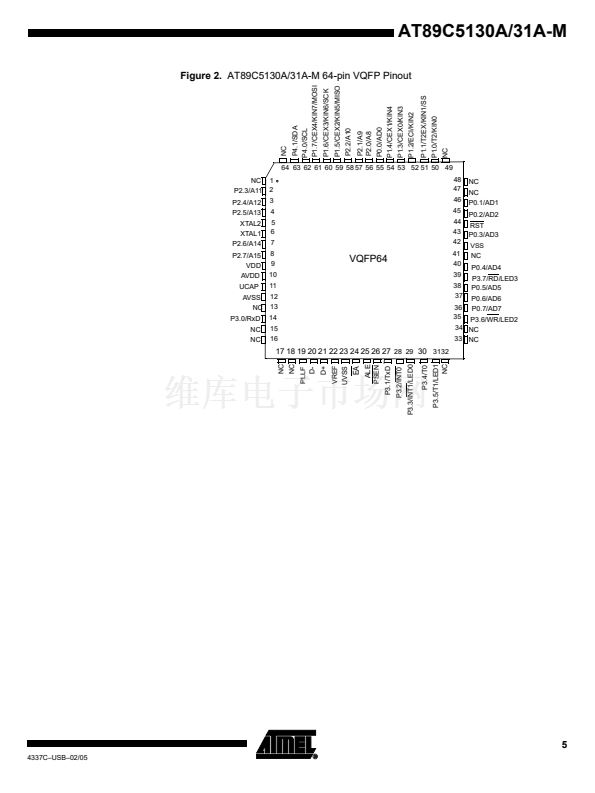

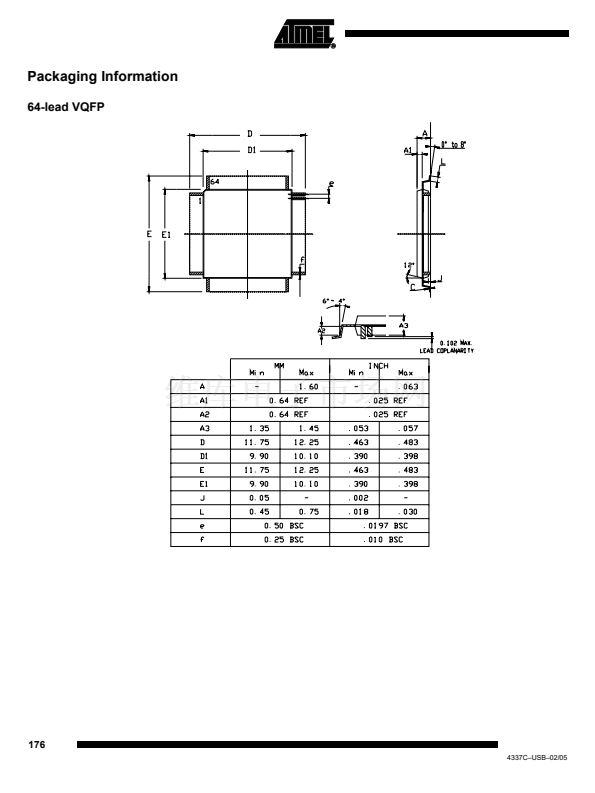

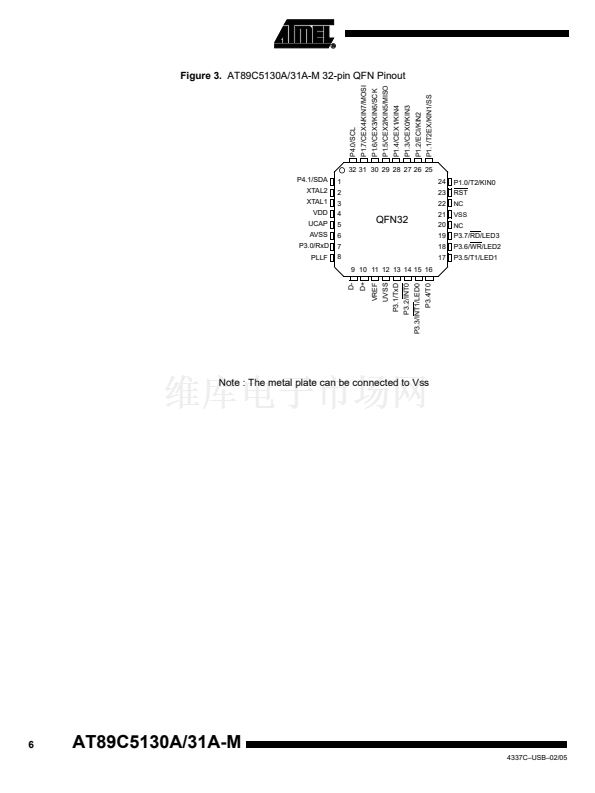

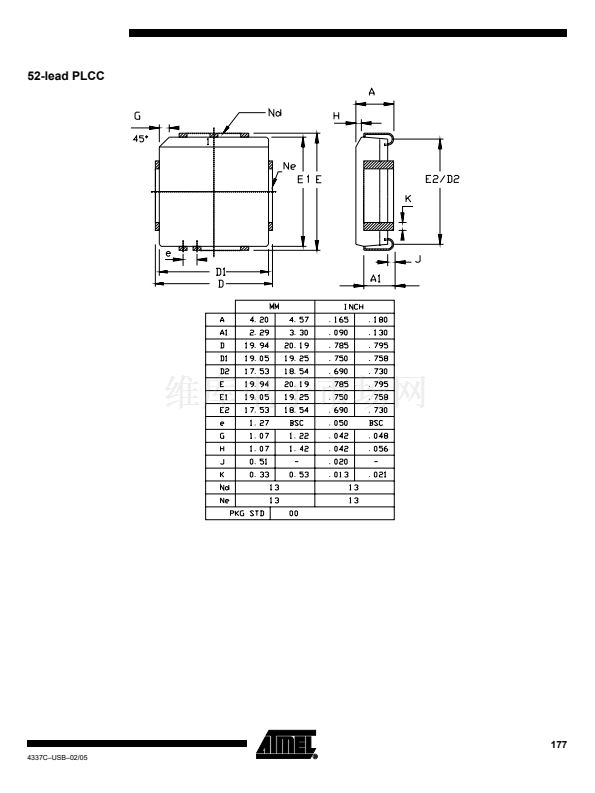

Packages: PLCC52, VQFP64, QFN32

鈥?/div>

8-bit Flash

Microcontroller

with Full Speed

USB Device

AT89C5130A-M

AT89C5131A-M

鈥?/div>

Rev. 4337C鈥揢SB鈥?2/05

標準包裝
160
類別
集成電路 (IC)
家庭
嵌入式 - 微控制器，
系列
AT89C513x
核心處理器
C52X2
芯體尺寸
8-位
速度
48MHz
連通性
I²C，SPI，UART/USART，USB
外圍設備
LED，POR，PWM，WDT
輸入/輸出數
34
程序存儲器容量
16KB（16K x 8）
程序存儲器類型
閃存
EEPROM 大小
4K x 8
RAM 容量
1.25K x 8
電壓 - 電源 (Vcc/Vdd)
2.7 V ~ 5.5 V
數據轉換器
-
振蕩器型
內部
工作溫度
-40°C ~ 85°C
封裝/外殼
64-LQFP
包裝
托盤
